Key Features
- 50 Ohm Nominal Impedance
- 1 Conductor
- 16AWG (19x29) Bare Copper
- 90% Tinned Braid Shield
- Overall PVC Jacket
- Full 1000' Spool
Description

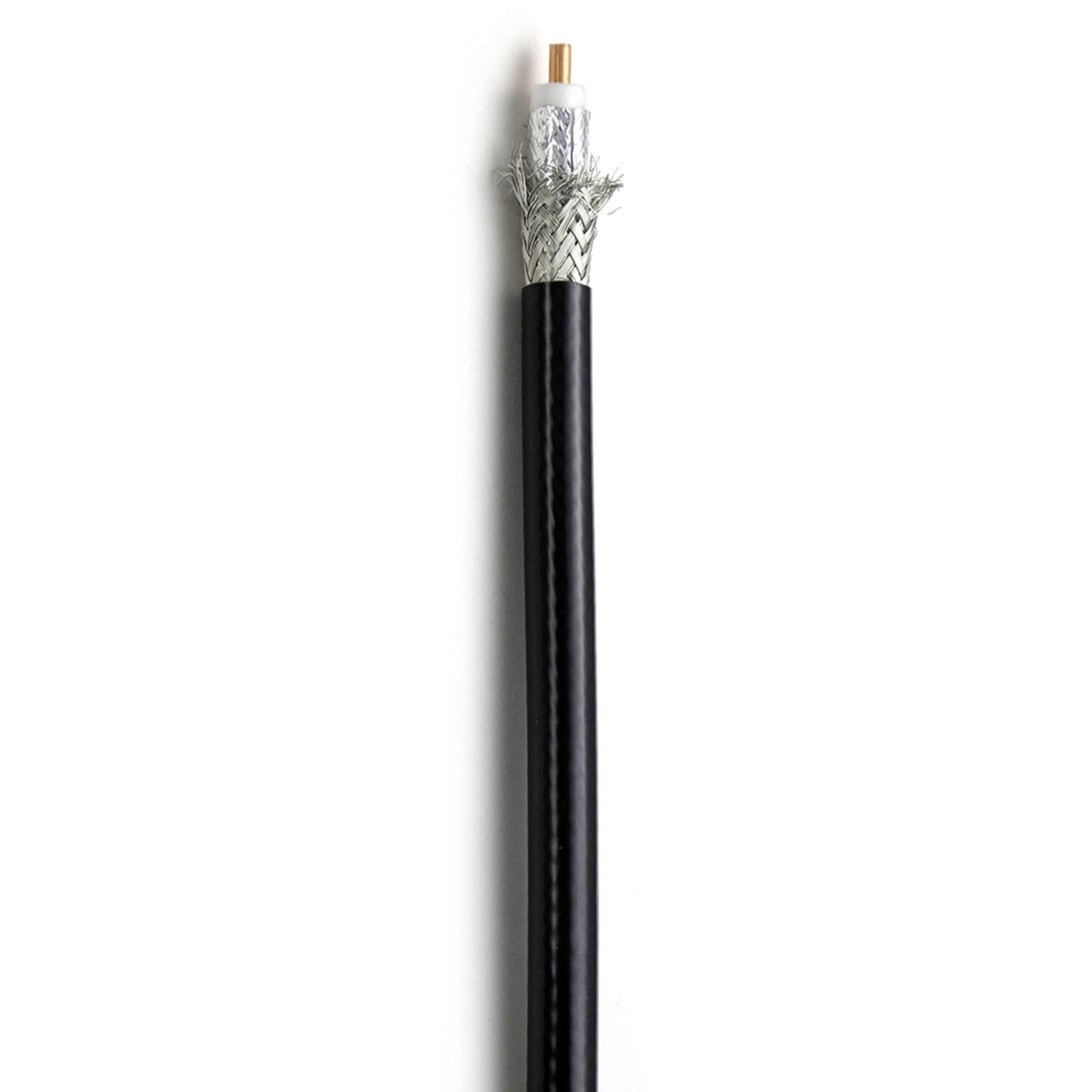

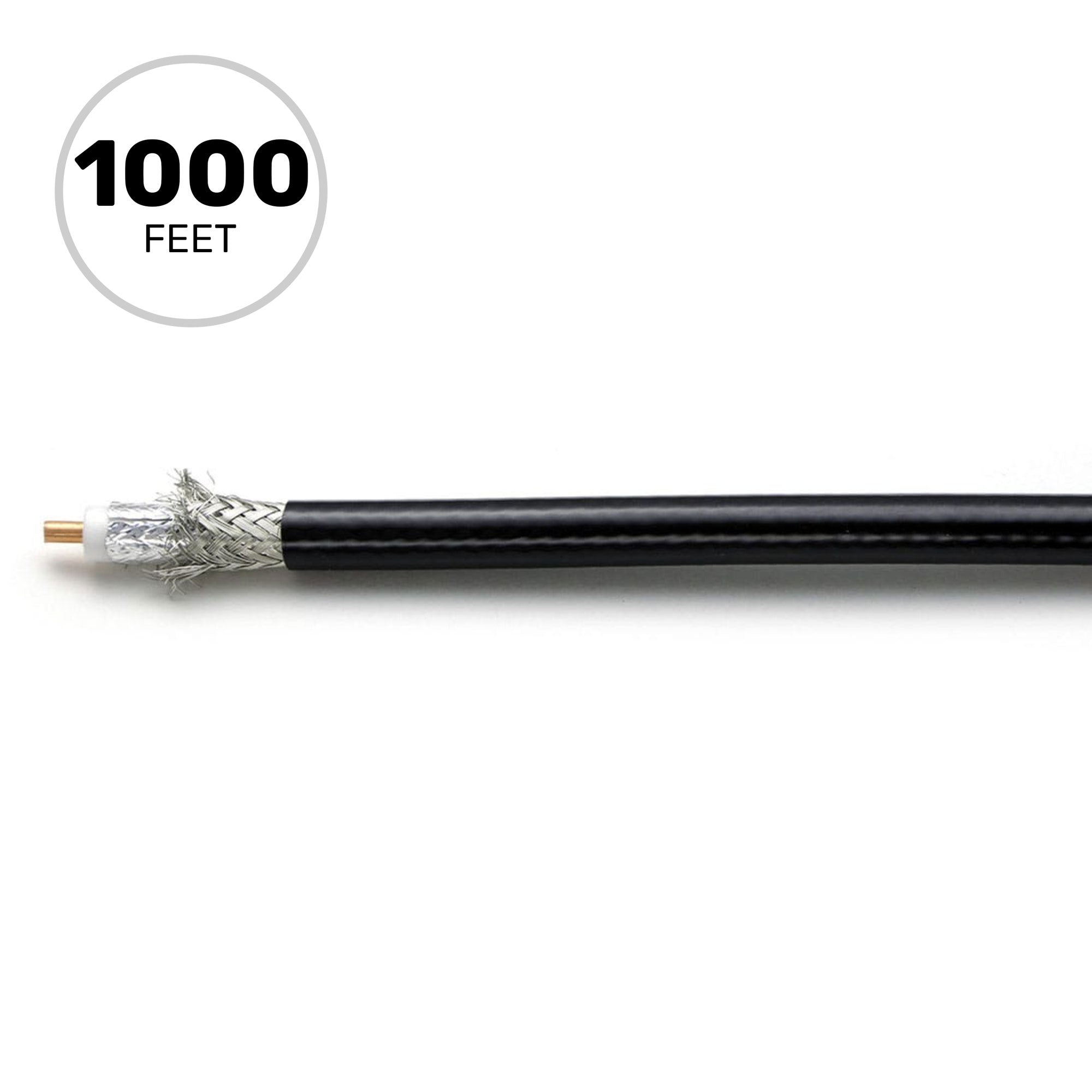

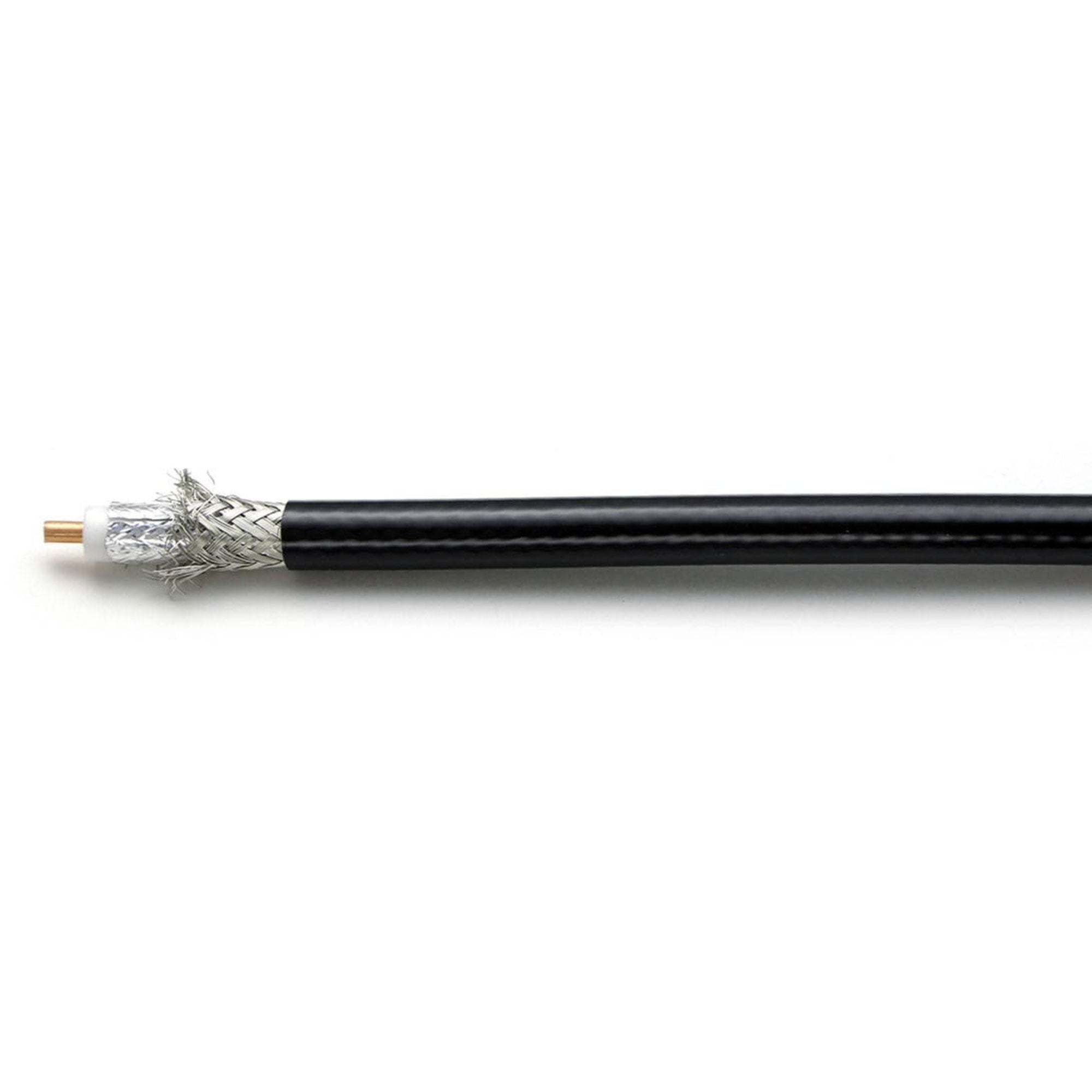

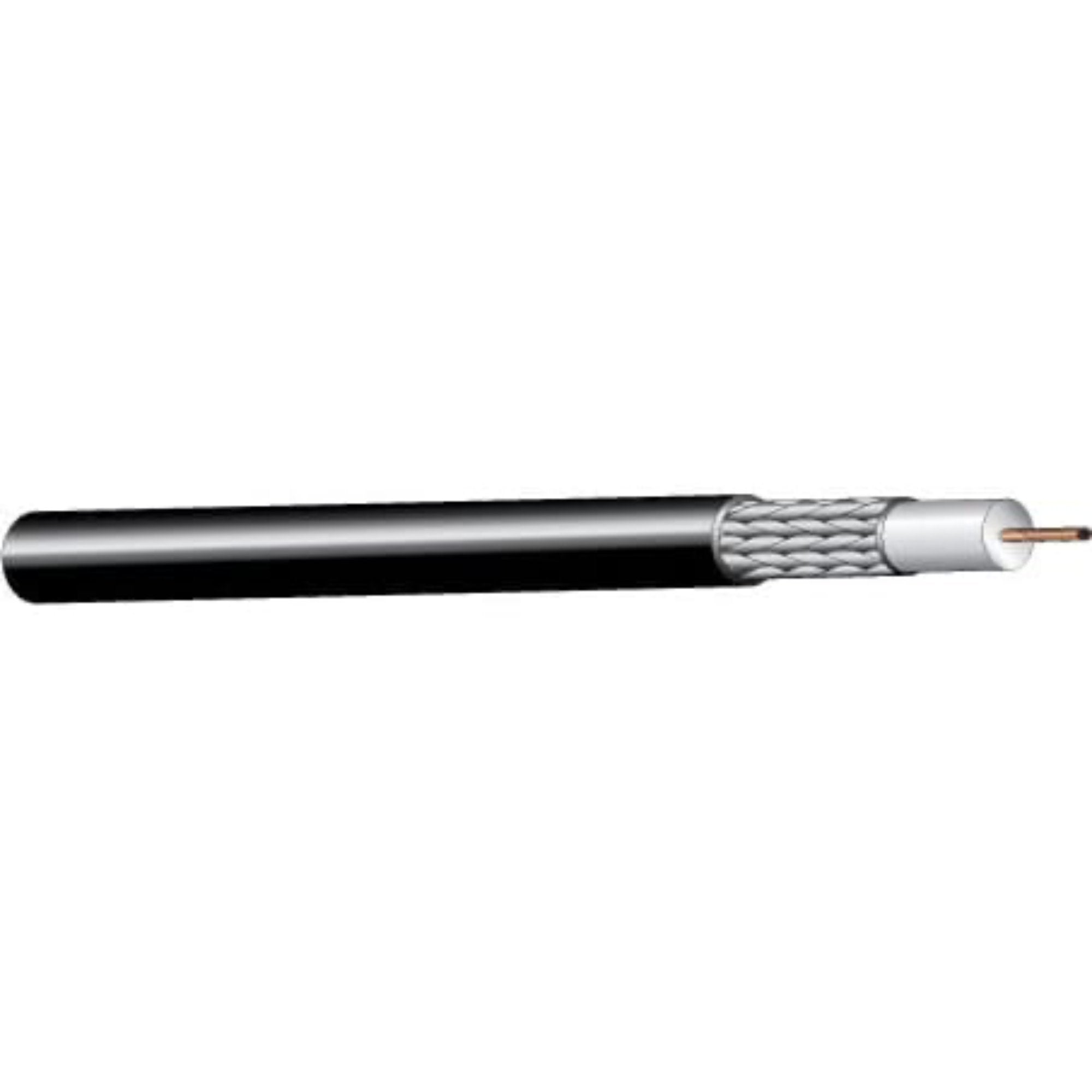

RG8X/U 16 AWG 50 Ohm Non-Plenum Coaxial Cable CM Rated - Black - Full 1000' Spool
Great for RF 50 Ohm Video, Wireless Mic Distribution
Wireless mic systems should use 50 Ohm cables exclusively because of their robust designs and consistent performances. A 50 Ohm coaxial cable, such as an RG-8X/U, has a much lower loss rate than a 75 Ohm cable, and also offers excellent Power Impedance Matching.
Specifications:
- CONDUCTOR PARAMETERS
- Number Of Conductors: 1
- AWG Size: 16
- Conductor Stranding: 19x29
- Conductor Type: Bare copper
- Nominal DCR: 4.3 Ohm/1000ft
- INSULATION PARAMETERS
- Insulation Type: Foam Polyethylene
- Insulation Thickness: 0.155 in
- SHIELDING PARAMETERS
- Shield Type: Overall 100% Aluminum Foil
- Shield Type 2: 90% Tinned Braid
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 50 Ohm
- Nominal Capacitance Between Conductors: 25 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Nominal Cable O.D.: 0.242 in
- Plenum: No
- NEC UL Rating: CM
- RoHS Compliant: Yes
- Bend Radius: 2.42 in
- Cable Weight: 38 lbs
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- Nominal Velocity of Propagation (VP): 82 %
- Delay Skew: 1.2 ns/ft
- UL Flammability: UL1685
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
- ATTENUTION PERFORMANCE:
- Frequency (MHz): Attenuation (db/100ft)
- 1 MHz: 0.3 db/100m
- 10 MHz: 0.9 db/100m
- 50 MHz: 2.1 db/100m
- 100 MHz: 3.1 db/100m
- 200 MHz: 4.5 db/100m
- 400 MHz: 6.6 db/100m
- 900 MHz: 10.7 db/100m
- 1000 MHz: 11.2 db/100m
- POWER RATING:
- Frequency [MHz]: Max Power Rating [W]
- 10 MHz: 1,000 W
- 50 MHz: 370 W
- 100 MHz: 250 W
- 200 MHz: 190 W
- 400 MHz: 110 W
- 700 MHz: 75 W
- 1,000 MHz: 60 W
