Key Features
- 75 Ohm Nominal Impedance
- 3G-SDI & HD-SDI Digital Video
- 18 AWG Copper Covered Steel
- Bi-Foil Tinned-Copper Braided Shield
- Overall PVC Jacket
- Belden 1694A Equivalent
- Sold by the Foot
- Shipped in a Continuous Length
Description

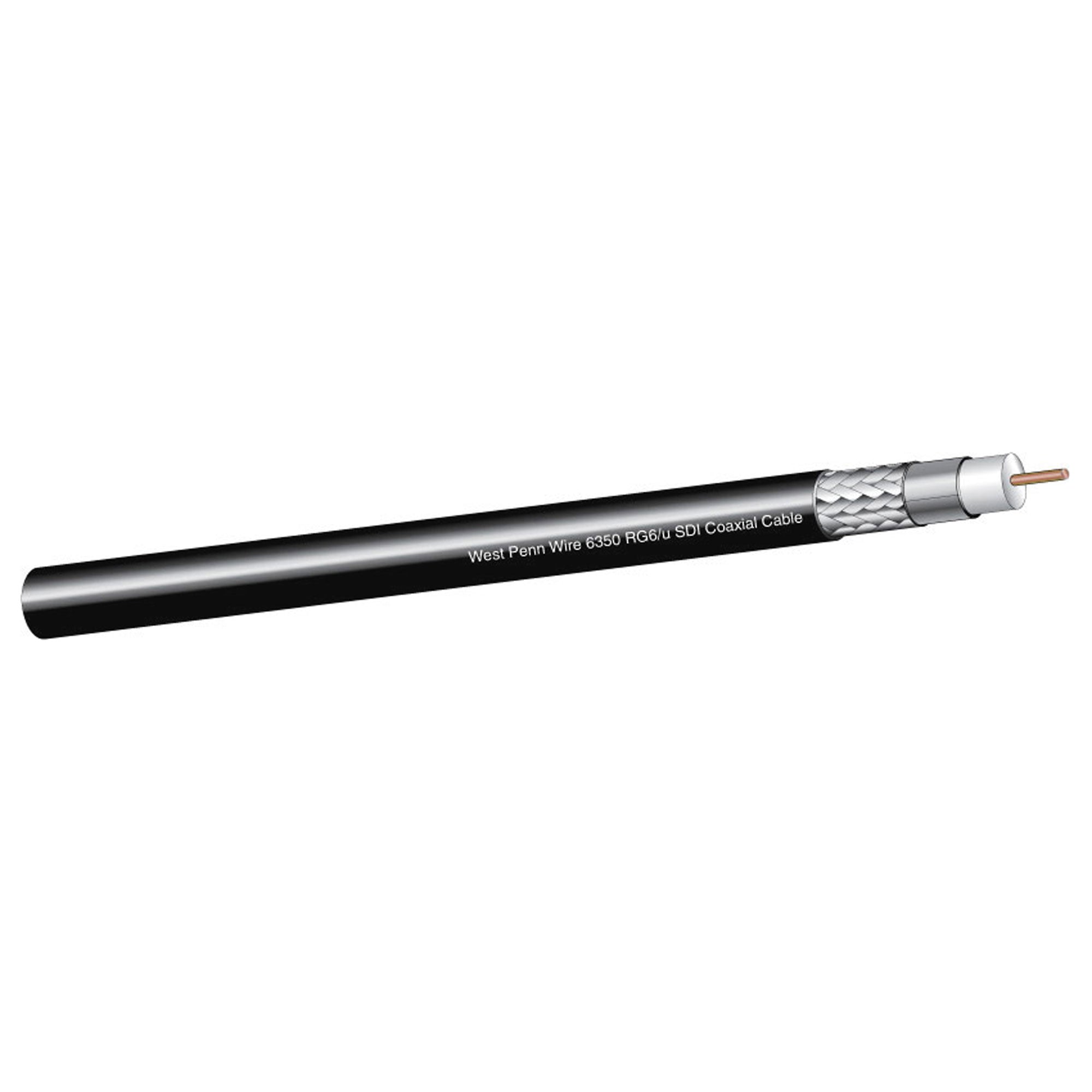

18 AWG 75 Ohm RG6/U 3G-SDI/HD-SDI Digital Video Coaxial Cable - Black - Sold by the Foot
West Penn Wire 6350 is a low cost RG6 coaxial cable capable of carrying 3.0Gb/s SMPTE 292M signals up to 270 Feet and a 1.5Gb/s SMPTE 292M signal up to 400 feet.
The West Penn 6350 is constructed with an 18 Awg solid center conductor and 100% Bi-Foil shield and a 95% Tinned Copper Braid. It has a PVC overall jacket and a 0.275" Outside Diameter.
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 1
- AWG Size: 18
- Conductor Stranding: Solid
- Conductor Type: Bare Copper
- Nominal DCR: 6.5 Ohm/1000ft
- INSULATION PARAMETER
- Insulation Type: Foam Polyethylene
- Insulation Thickness: 0.18 in
- SHIELDING PARAMETER
- Shield Type: Overall 100% Aluminum Foil
- Shield Type 2: 95% Tinned Copper Braid
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 75 Ohm
- Nom. Cap. Between Conductors: 16.2 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Nominal Cable O.D.: 0.275 in
- Plenum: No
- NEC UL Rating: CMR
- RoHS Compliant: Yes
- Pull Tension: 70 lbs
- Bend Radius: 2.75 in
- Cable Weight: 45 lbs
- Belden: 1694A
