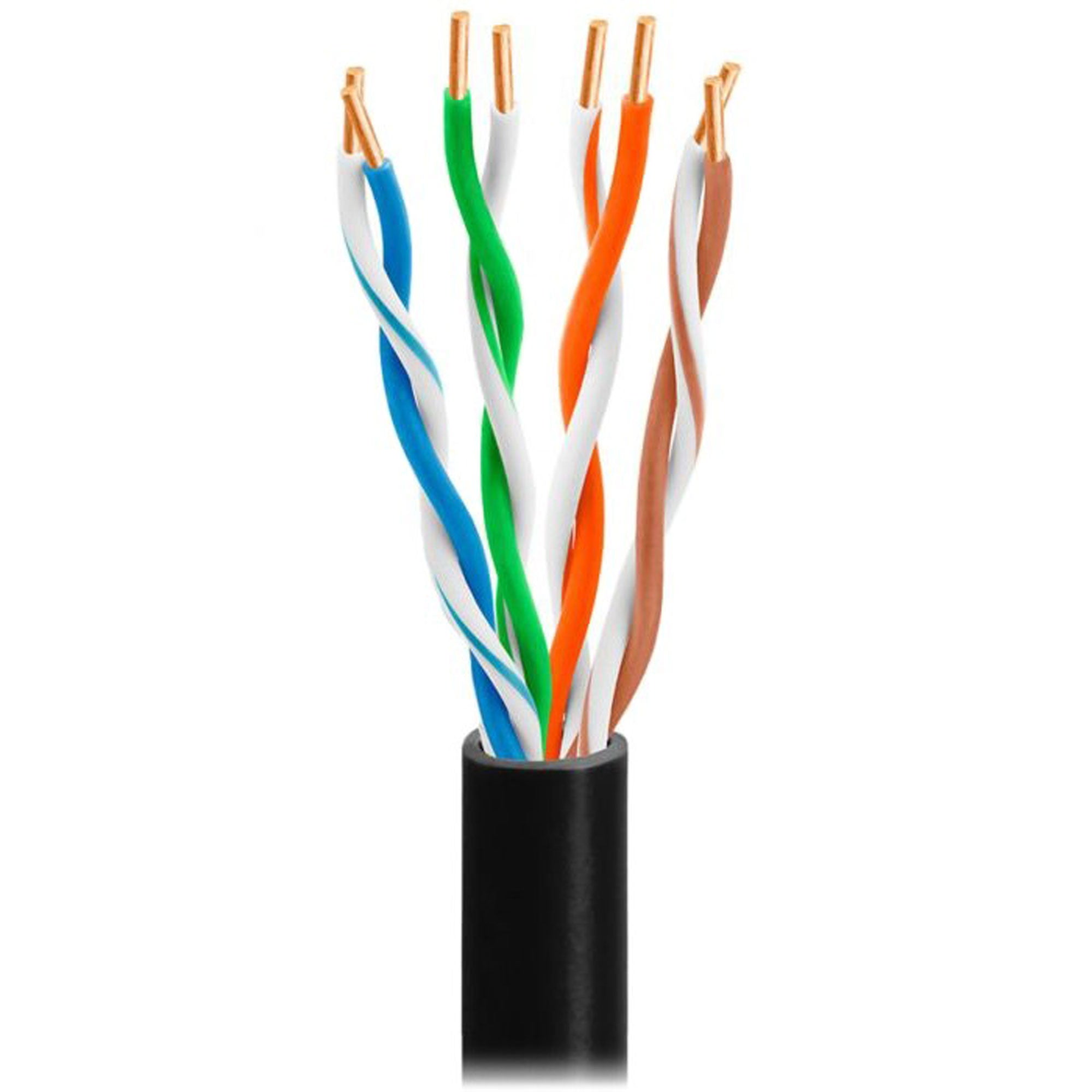

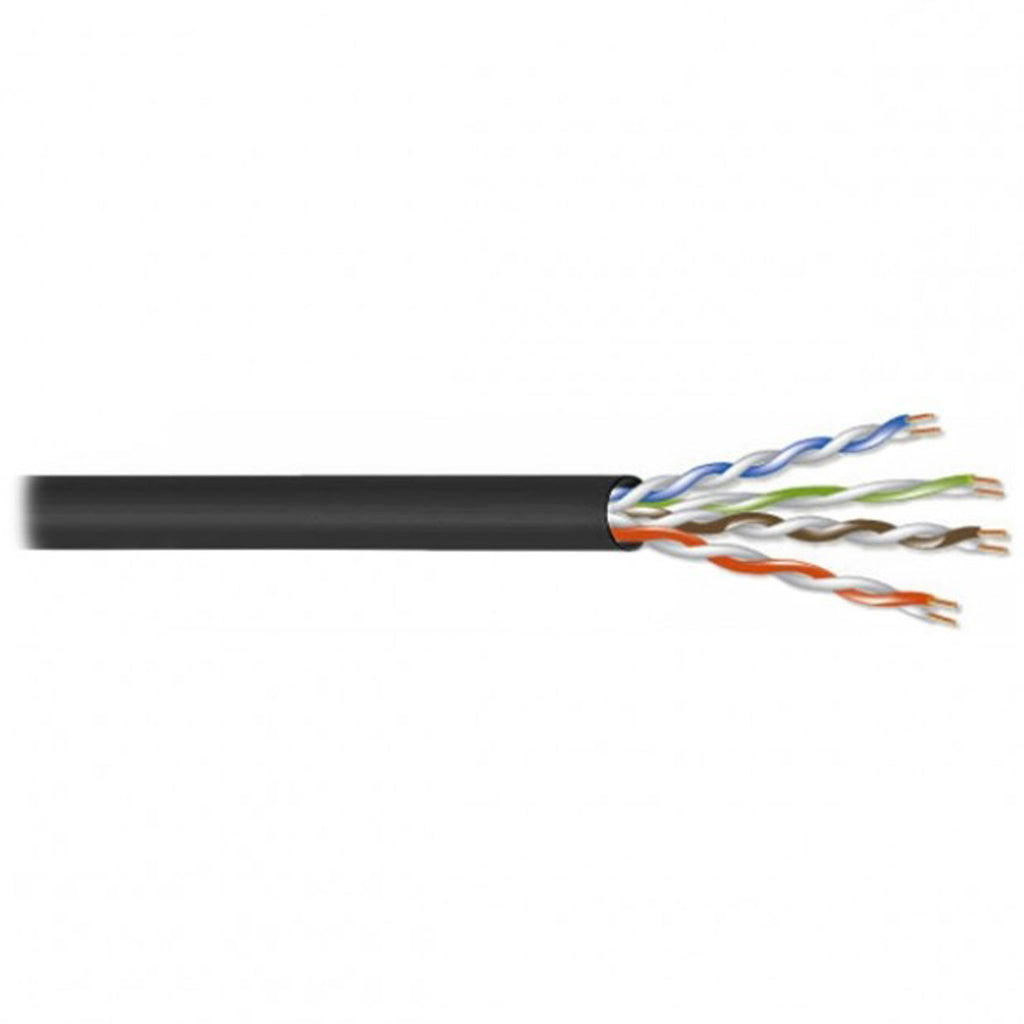

West Penn 4246EZ Category 6 UTP 10/100/1000 BaseT Ethernet Cable (Black, By the Foot)

West Penn SKU: WPW 4246EZBK
MPN: 4246EZBK UPC: 612825380603
Price:
$0.24
Stock:
1098 In Stock & Ready to Ship

Make it a bundle

West Penn 4246EZ Category 6 UTP 10/100/1000 BaseT Ethernet Cable (Black, 1000' Roll) Image 1 11% OFF
West Penn 4246EZ Category 6 UTP 10/100/1000 BaseT Ethernet Cable (Black, 1000' Roll)
$230.00 $204.00
-$26.00
Custom Cable 95 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 95 Feet of West Penn 4246EZ Wire
$22.80
Custom Cable 90 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 90 Feet of West Penn 4246EZ Wire
$21.60
Custom Cable 21 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 21 Feet of West Penn 4246EZ Wire
$5.04
Custom Cable 328 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 328 Feet of West Penn 4246EZ Wire
$78.72
Custom Cable 190 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 190 Feet of West Penn 4246EZ Wire
$45.60
Custom Cable 200 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 200 Feet of West Penn 4246EZ Wire
$48.00
Custom Cable 110 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 110 Feet of West Penn 4246EZ Wire
$26.40
Custom Cable 100 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 100 Feet of West Penn 4246EZ Wire
$24.00
Custom Cable 80 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 80 Feet of West Penn 4246EZ Wire
$19.20
Custom Cable 85 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 85 Feet of West Penn 4246EZ Wire
$20.40
Custom Cable 40 Feet of West Penn 4246EZ Wire Image 1
Custom Cable 40 Feet of West Penn 4246EZ Wire
$9.60

Key Features

  • 10/100/1000 BaseT Ethernet
  • IP CCTV, Digital Integration, HDBaseT
  • Category 6 Applications
  • 23 AWG Solid Conductors
  • Unshielded Twisted Pair (UTP)
  • Flouropolymer Insulation
  • Flexible Jacket
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Black West Penn 4246EZ Category 6 UTP cable, by the foot

Black West Penn 4246EZ is a four-pair, 23 AWG solid bare-copper Category 6 networking cable with polyolefin conductor insulation and a PVC jacket. Its unshielded twisted-pair construction is intended for suitable indoor fixed network runs, including 10/100/1000 BaseT Ethernet, IP cameras and compatible digital integration systems. This is bulk, unterminated cable, not a finished patch cord.

Continuous-length ordering

Quantity 1 = 1 foot; quantity 100 = one continuous 100-foot length. Each purchased length contains the complete four-pair cable, all eight conductors, not separate lengths of individual pairs. Allow extra for routing, service loops and terminations. Connectors and termination hardware are selected separately.

Choose compatible terminations and equipment

Select Category 6 jacks, plugs and other hardware intended for 23 AWG solid conductors and the listed 0.22-inch cable diameter. Do not assume a plug intended for stranded patch cable will fit. Preserve pair twists close to each termination, follow the hardware manufacturer's strip and untwist limits, and use the wiring scheme required by your installation consistently.

The source lists HDBaseT as an application, but suitability and distance depend on the specific transmitter/receiver, required cable category and shielding, connectors and complete installed link. Confirm the equipment manufacturer's cable requirements before selecting this UTP cable. A Category 6 designation alone does not guarantee every AV format, data rate, power application or run length. Test the completed link to the performance required for the job.

Routing and installation

This listing is CMR, non-plenum. It is not presented as plenum, outdoor, direct-burial or wet-location cable; choose the appropriate cable for the actual route and installation requirements. Follow the manufacturer's instructions and applicable installation requirements. Avoid crushing, kinks and excessive pulling force, maintain separation appropriate to nearby power wiring, and do not use this solid-conductor cable as a repeatedly flexed touring lead.

The listed pull-tension limit is 40 lb and bend radius is 1.1 inches. Confirm any different limits during pulling or at terminations in current manufacturer documentation.

Features

  • Black PVC jacket for consistent installation appearance.
  • Four unshielded twisted pairs, eight solid bare-copper conductors.
  • 23 AWG construction with polyolefin insulation.
  • Category 6 cable for suitable indoor Ethernet and IP-camera network links.
  • Continuous-length by-the-foot ordering for custom routing and termination.

Construction specifications

  • Model: West Penn 4246EZ; jacket color Black.
  • Pairs: 4; total conductors: 8.
  • Conductor size/type: 23 AWG, solid bare copper.
  • Insulation: polyolefin.
  • Pair colors: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown.
  • Shielding: unshielded twisted pair (UTP).
  • Jacket: PVC; nominal outside diameter 0.22 inch.
  • Listed pull tension: 40 lb; bend radius: 1.1 inches.

Electrical specifications and listed ratings

  • Nominal conductor DC resistance: 24 Ω/1,000 feet.
  • Nominal impedance: 100 Ω.
  • Nominal capacitance between conductors: 15 pF/foot.
  • Nominal velocity of propagation: 72%.
  • Delay skew: 45 ns/100 m.
  • Listed operating range: 0°C to 75°C.
  • Category: Category 6; source references TIA/EIA-568-B.2.1 and ANSI/TIA-568-C.2.
  • Listed cable rating: CMR; non-plenum.
  • Listed flammability references: UL 1666 vertical shaft and CSA FT4.
  • Listed UL voltage rating: 300 V, not authorization to use it for mains-power wiring.
  • Listed RoHS reference; confirm current manufacturer documentation when required.

Nominal cable values and listed test references do not establish certification of a finished network link. Confirm current product documentation and the complete installation's requirements for specification-controlled work.

Details
  • Manufacturer:  West Penn
  • MPN: 4246EZBK
  • Model Number: 4246EZBK
  • UPC: 612825380603
