Key Features
- 10/100 BaseT Ethernet
- IP CCTV, Digital Integration, HDBaseT
- Category 5E Applications
- 24 AWG Solid Conductors
- Unshielded Twisted Pair (UTP)
- Flouropolymer Insulation
- Flexible Plenum Jacket
- 1000' Spool in an EZ Pull Box
Description

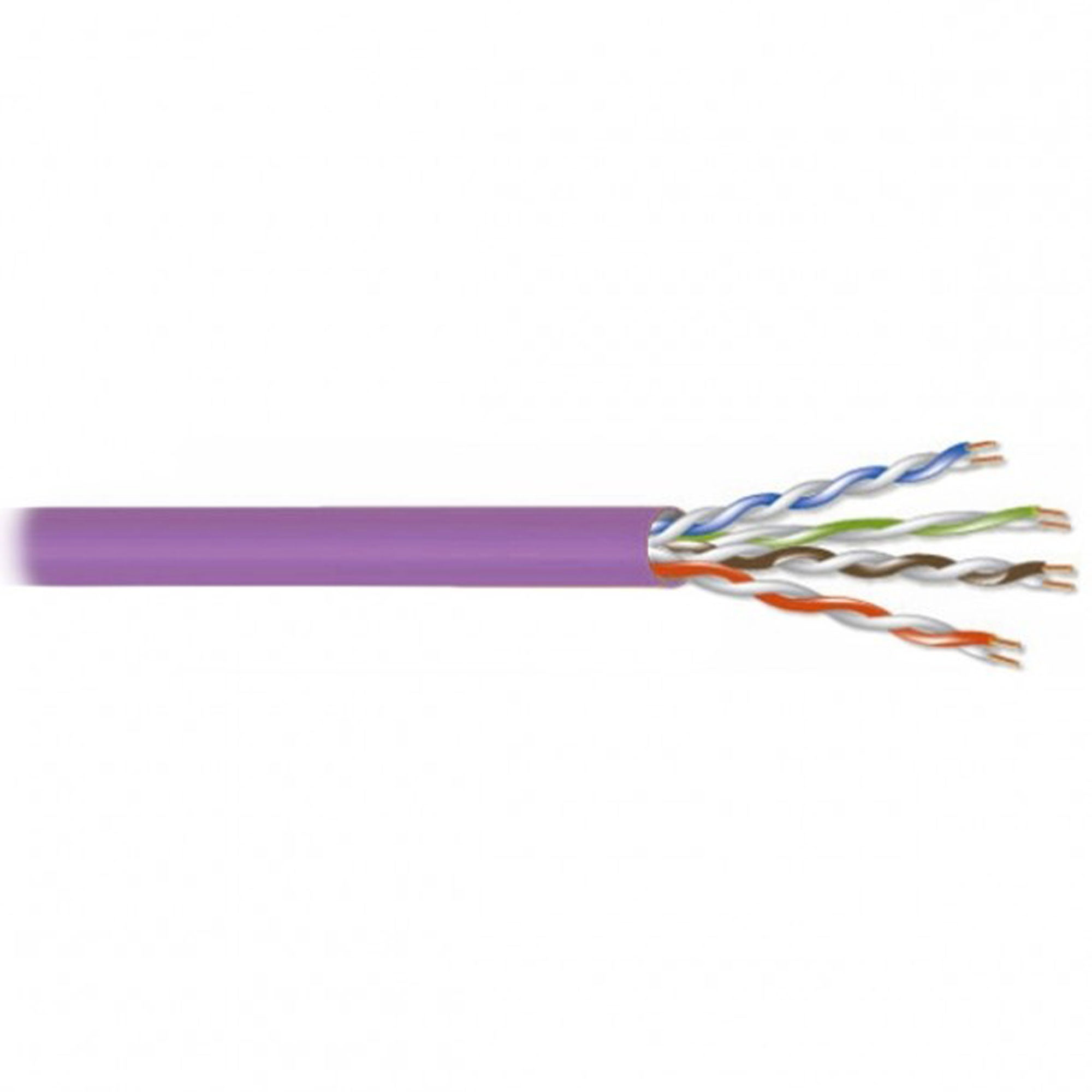

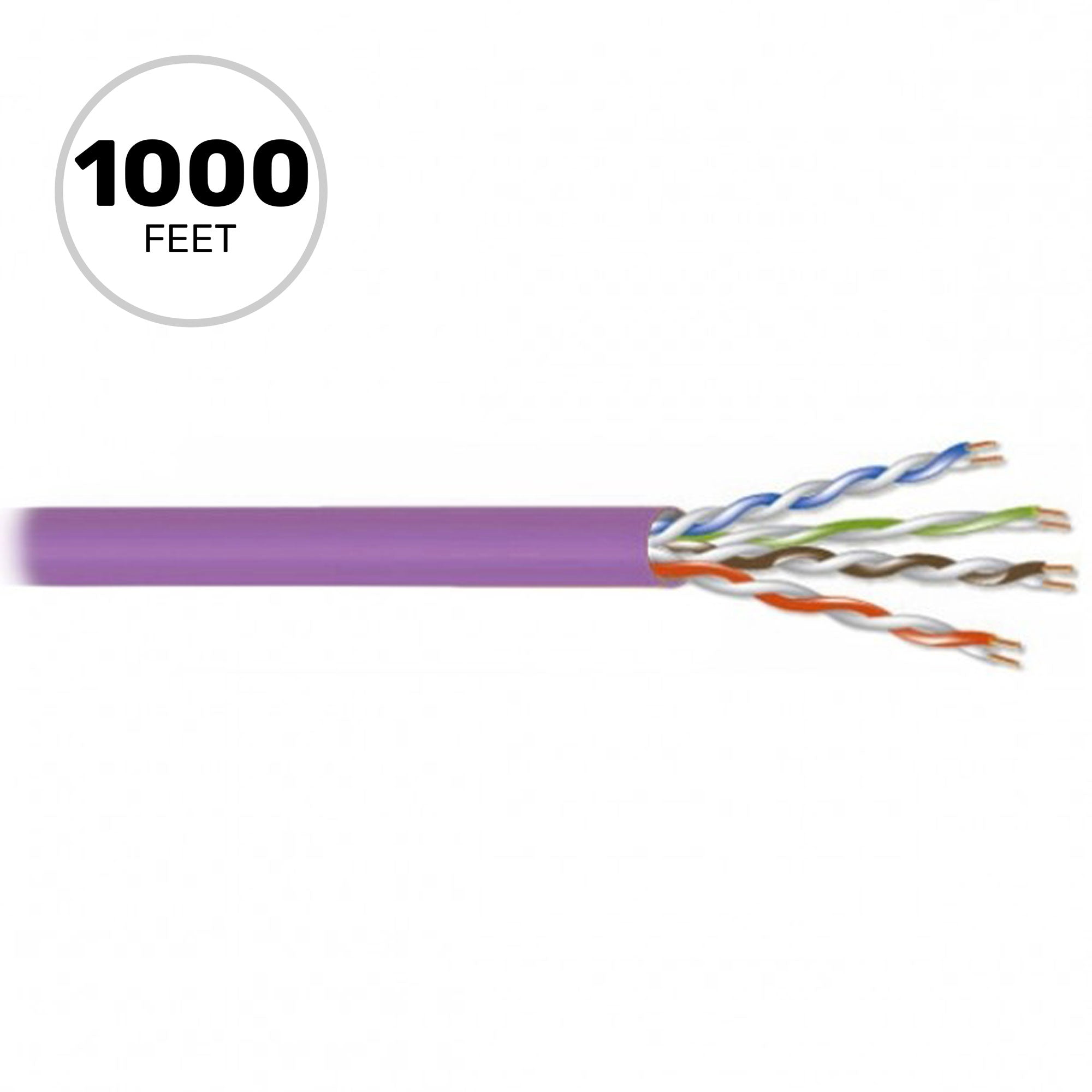

Plenum-Rated 4 Pair 24 AWG CAT5E Ethernet Networking Cable with Flouropolymer Insulation - Purple/Violet - Full 1000' Spool
West Penn's 254245 is an unshielded CAT5E network plenum cable with 4 pairs of 24 AWG solid bare copper conductors and an overall plenum PVC jacket. Applications include Ethernet, IP cameras, digital integration, and more.
Specifications:
- CONDUCTOR PARAMETERS
- Number Of Pairs: 4
- AWG Size: 24
- Conductor Stranding: Solid
- Conductor Type: Bare Copper
- Nominal DCR: 26 Ohm/1000ft
- INSULATION PARAMETERS
- Insulation Type: Flouropolymer
- Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
- SHIELDING PARAMETERS
- Shield Type: Unshielded Twisted Pair (UTP)
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 100 Ohm
- Nominal Capacitance Between Conductors: 14 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Total Number of Conductors: 8
- Jacket Type: Flexible Plenum
- Nominal Cable O.D.: 0.205 in
- Plenum: Yes
- NEC UL Rating: CMP
- RoHS Compliant: Yes
- ANSI/TIA Category: Category 5E TIA/EIA 568.2-D
- TIA Test: ANSI/TIA-568.2-D
- Pull Tension: 25 lbs
- Bend Radius: 1.025 in
- Cable Weight: 23 lbs
