Key Features
- 2 x 14 AWG
- Stranded Bare Copper Conductors
- Unshielded Overall Jacket
- Sequentially Footmarked
- For Indoor Use
- For Ducts, Plenums, & Other Spaces
- Great for Intercom & Security
- Great for Sound, Audio & Music
- Sold by the Foot
- Shipped in a Continuous Length
Description

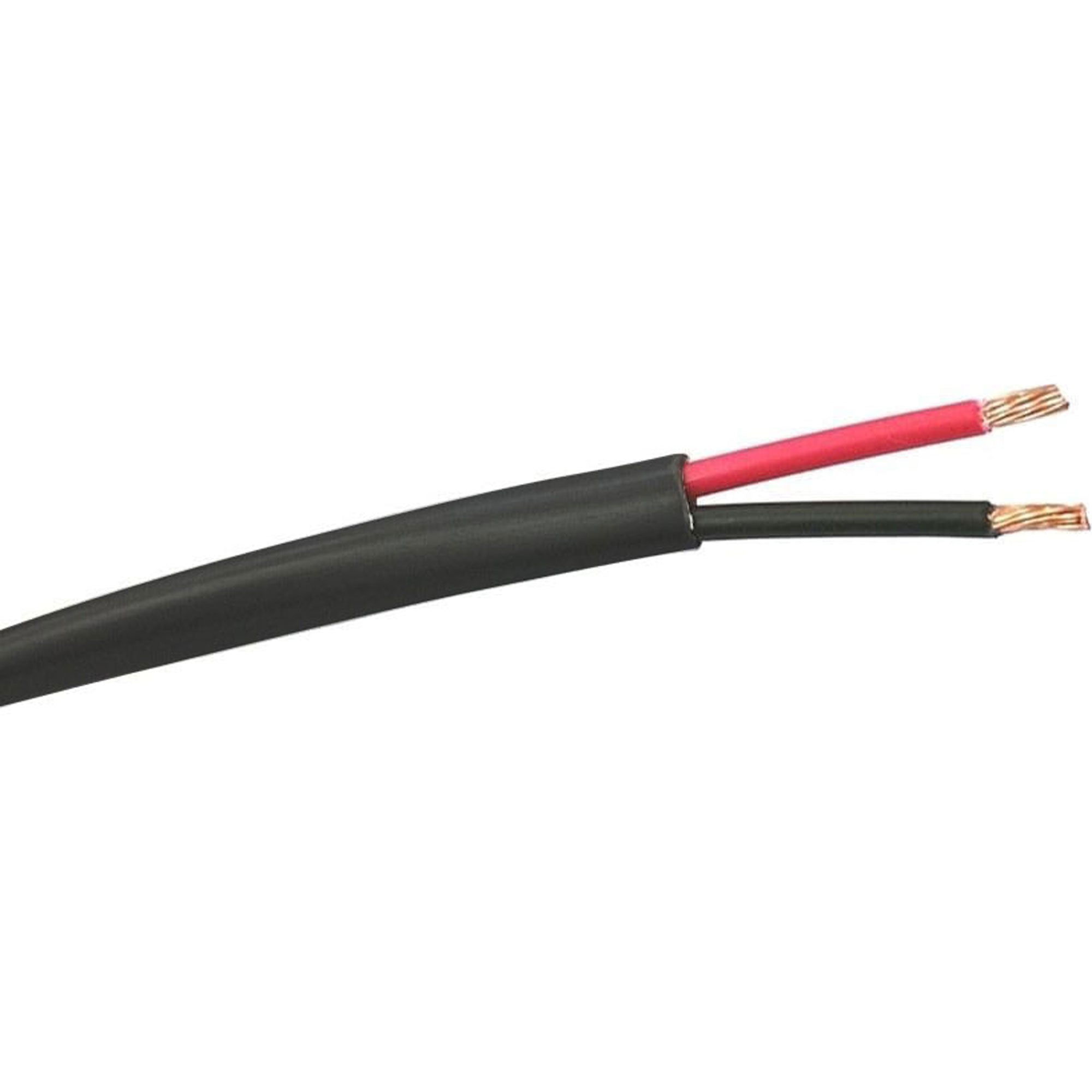

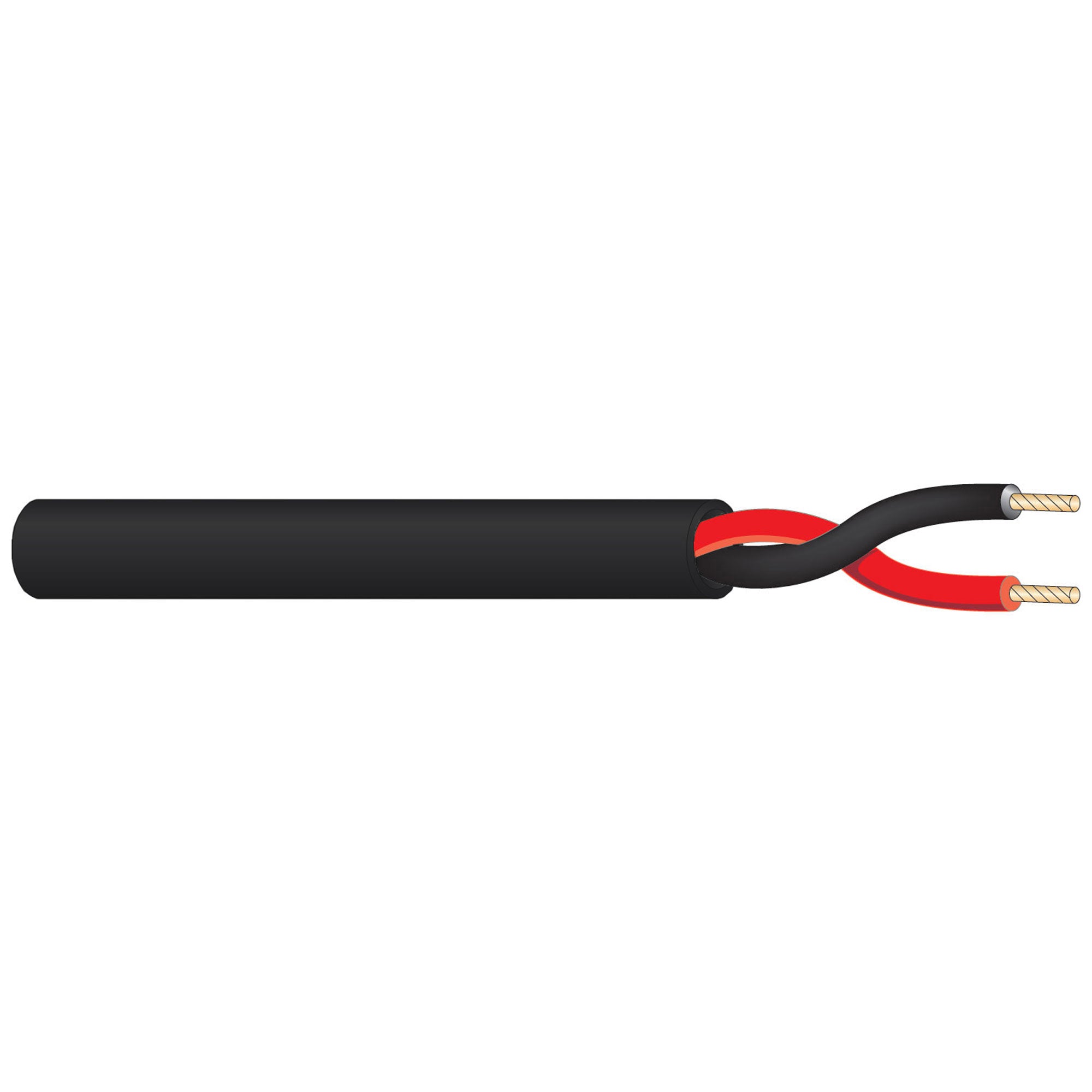

2 Conductor 14awg Plenum Rated Speaker Wire - Black - Sold by the Foot
14/2 Stranded bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor within ducts, plenums and other spaces used for environmental air for:
(Intercom, Security, Sound, Audio, Background music)
Specifications:
- Construction Parameters:
- Conductor 14 AWG Bare Copper
- Stranding 19x27
- Insulation Material Polymer Alloy
- Insulation Thickness 0.010" Nom.
- Number of Conductors 2
- Shield None
- Drain None
- Jacket Material Flexible Plenum
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.190" Nom.
- Approximate Cable Weight 36 Lbs/1M' Nom.
- Flame Rating NFPA 262 Flame Test
- Electrical & Environmental Properties:
- Temperature Rating -10C To +60C
- Operating Voltage 150 V RMS
- Max.Capacitance Between Conductors @ 1 KHz 34 pf/ft Nom.
- DC Resistance per Conductor @ 20deg C 2.7 Ohms/1M' Nom.
- Insulation Colors Black, Red
- Jacket Color Gray
- RoHS Compliant Yes
- Mechanical Properties:
- Max. Recommended Pull Tension 84 lbs
- Min. Bend Radius (Install) 2.25"
