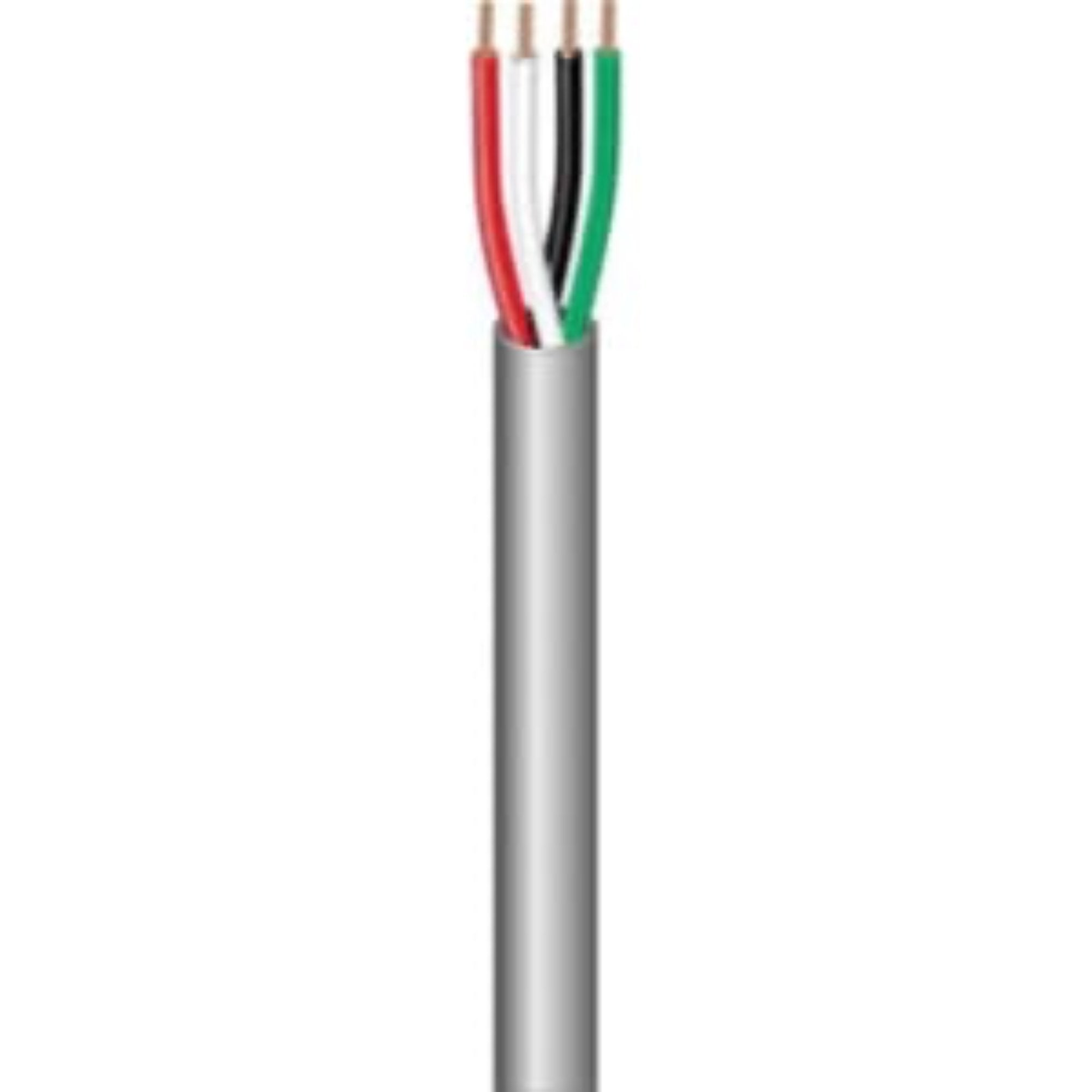

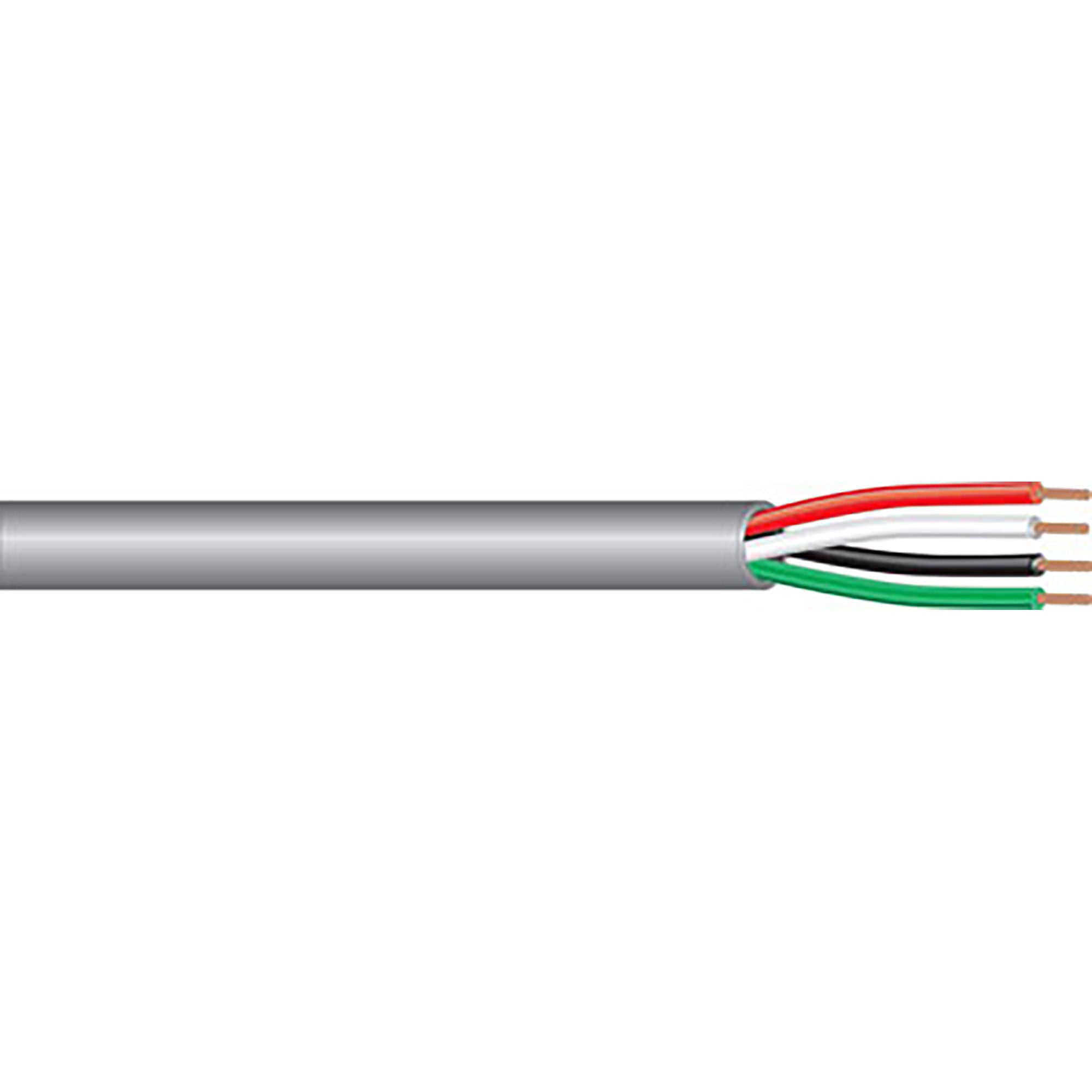

West Penn 245 16/4 Unshielded CMR Audio, Control, and Low Voltage Power Cable (Grey, By the Foot)

4 Conductor 16awg Non-Plenum Speaker Wire with Stranded Conductors - Grey - Sold by the Foot

16/4 Stranded bare copper conductors, unshielded with an overall jacket.

Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits

Part # 245 Specifications

• Construction Parameters:
• Conductor 16 AWG Bare Copper
• Stranding 19x29
• Insulation Material PVC
• Insulation Thickness 0.010" Nom.
• Number of Conductors 4
• Shield None
• Drain None
• Jacket Material PVC
• Jacket Thickness 0.015" Nom.
• Overall Cable Diameter 0.222" Nom.
• Approximate Cable Weight 43.8 Lbs/1M' Nom.
• Flame Rating UL 1666 Riser Flame Test
• Electrical & Environmental Properties:
• Temperature Rating -20C To +60C
• Operating Voltage 300 V RMS
• Max.Capacitance Between Conductors @ 1 KHz 33 pf/ft Nom.
• DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
• Insulation Colors Black, Red, White, Green
• Jacket Color Gray
• RoHS Compliant Yes
• Mechanical Properties:
• Max. Recommended Pull Tension 117 lbs.
• Min. Bend Radius (Install) 2"
