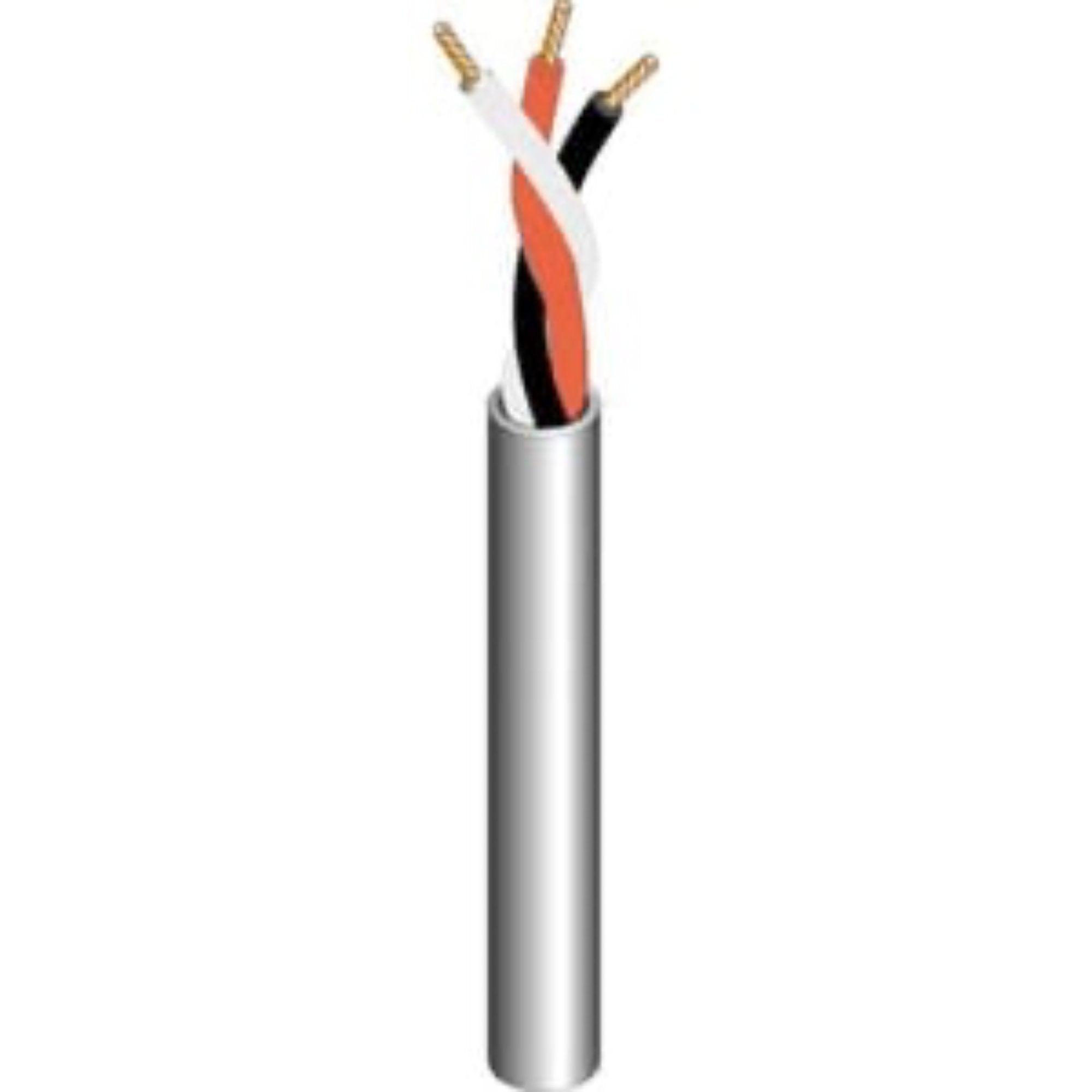

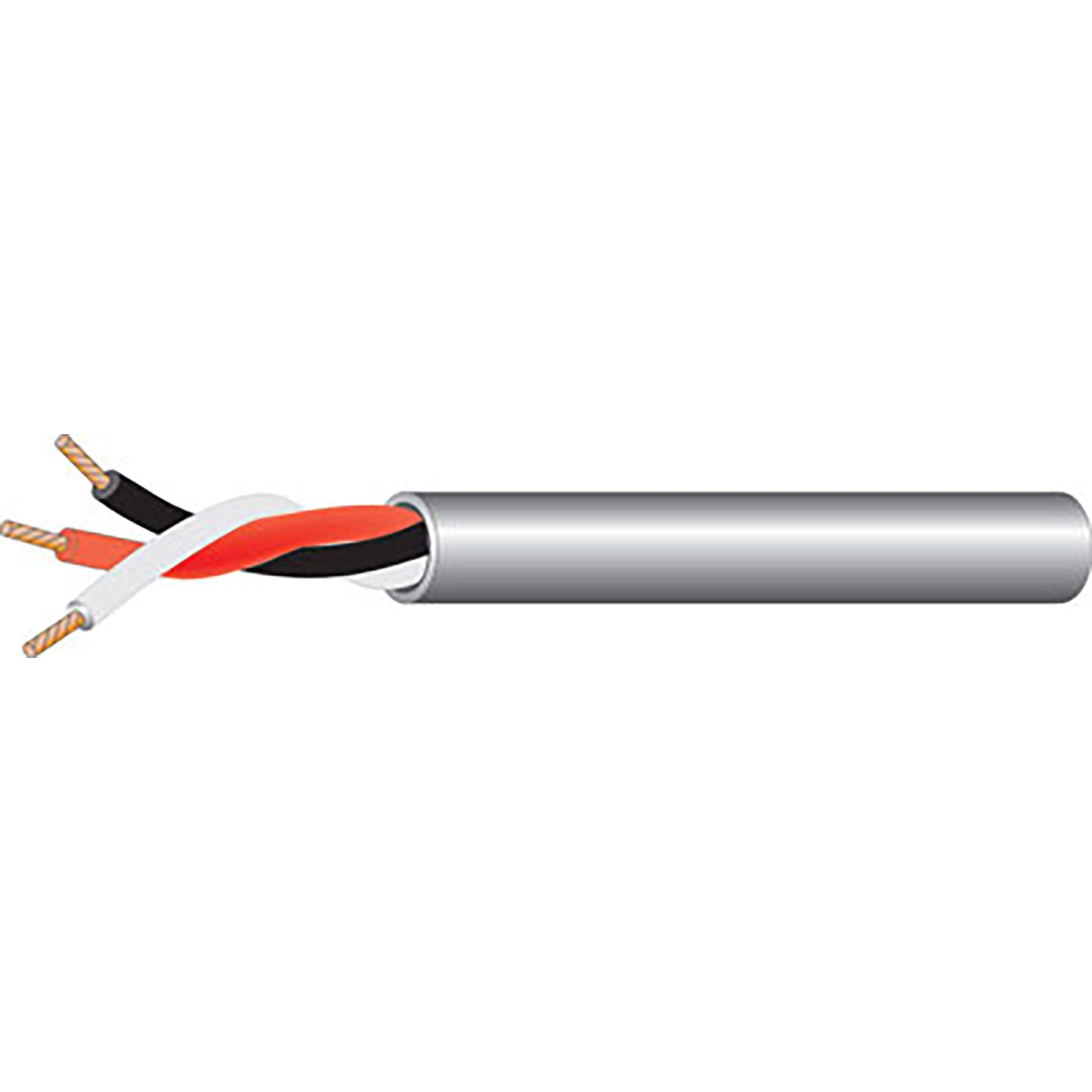

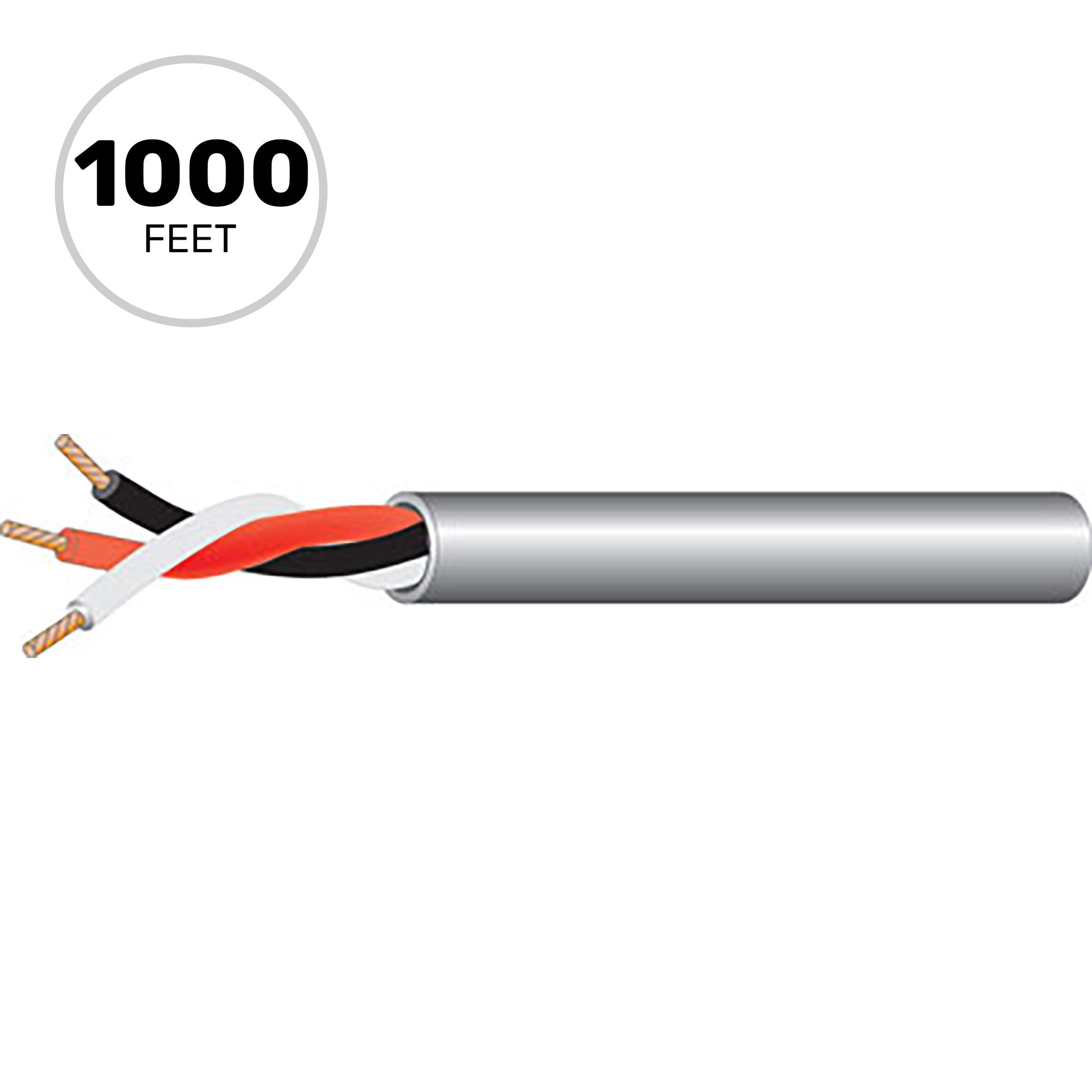

West Penn 235 3 Conductor 16G Stranded Unshielded PVC Jacket CMR Wire (Grey, 1000' Roll)

3 Conductor 16 awg Stranded Bare Copper Conductors, Unshielded with an Overall Jacket - Grey - Full 1000' Spool

16/3 Stranded Bare Copper Conductors, Unshielded With An Overall Jacket.

Specifications:

• Construction Parameters:
• Conductor 16 AWG Bare Copper
• Stranding 19x29
• Insulation Material PVC
• Insulation Thickness 0.010" Nom.
• Number of Conductors 3
• Shield None
• Drain None
• Jacket Material PVC
• Jacket Thickness 0.015" Nom.
• Overall Cable Diameter 0.202" Nom.
• Approximate Cable Weight 34.4 Lbs/1M' Nom.
• Flame Rating UL 1666 Riser Flame Test
• Electrical & Environmental Properties:
• Temperature Rating -20C To +60C
• Operating Voltage 300 V RMS
• Max.Capacitance Between Conductors @ 1 KHz 33 pf/ft Nom.
• DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
• Insulation Colors Black , Red, White
• Jacket Color Gray
• RoHS Compliant Yes
• Mechanical Properties:
• Max. Recommended Pull Tension 88 lbs.
• Min. Bend Radius (Install) 2"
