Key Features
- 3 Conductor, 22 AWG
- Unshielded
- For Audio & Control
- Overall Jacket
- Sold by the Foot
- Shipped in a Continuous Length
Description

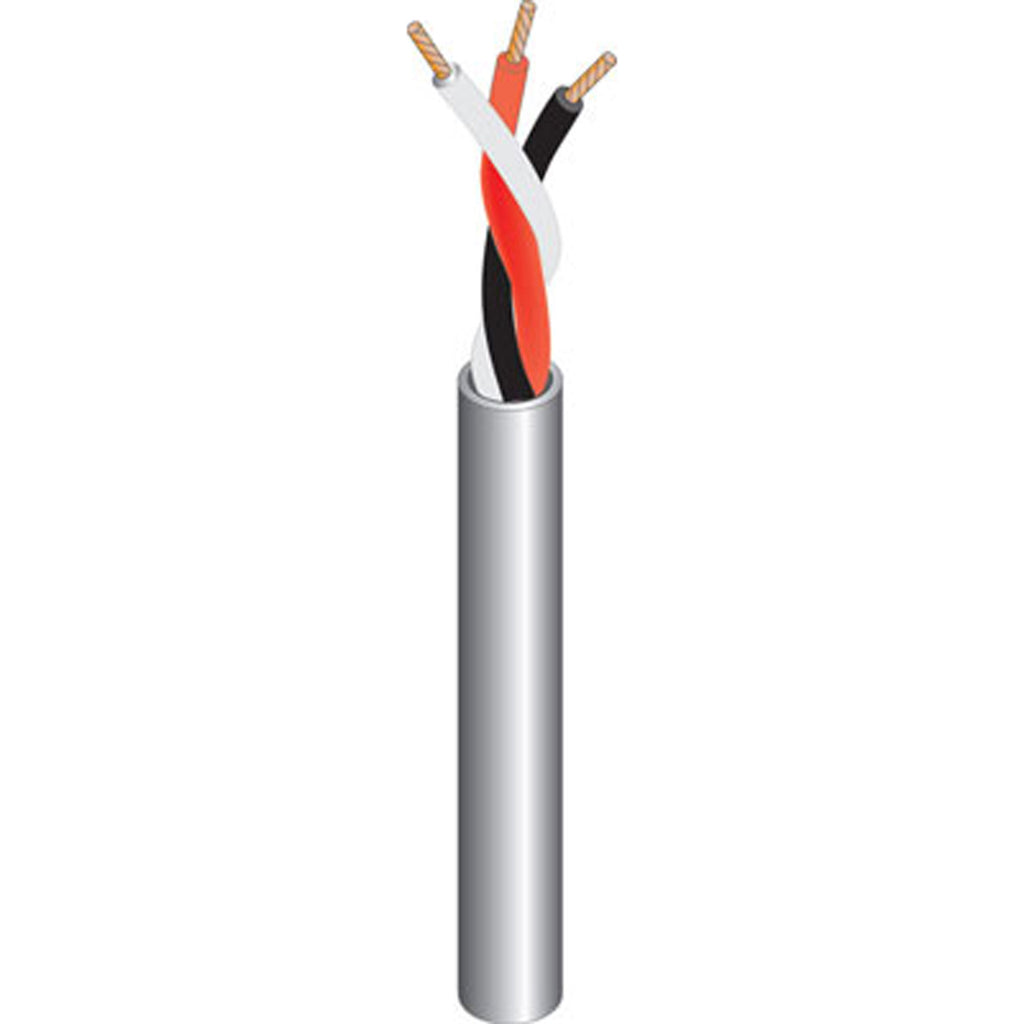

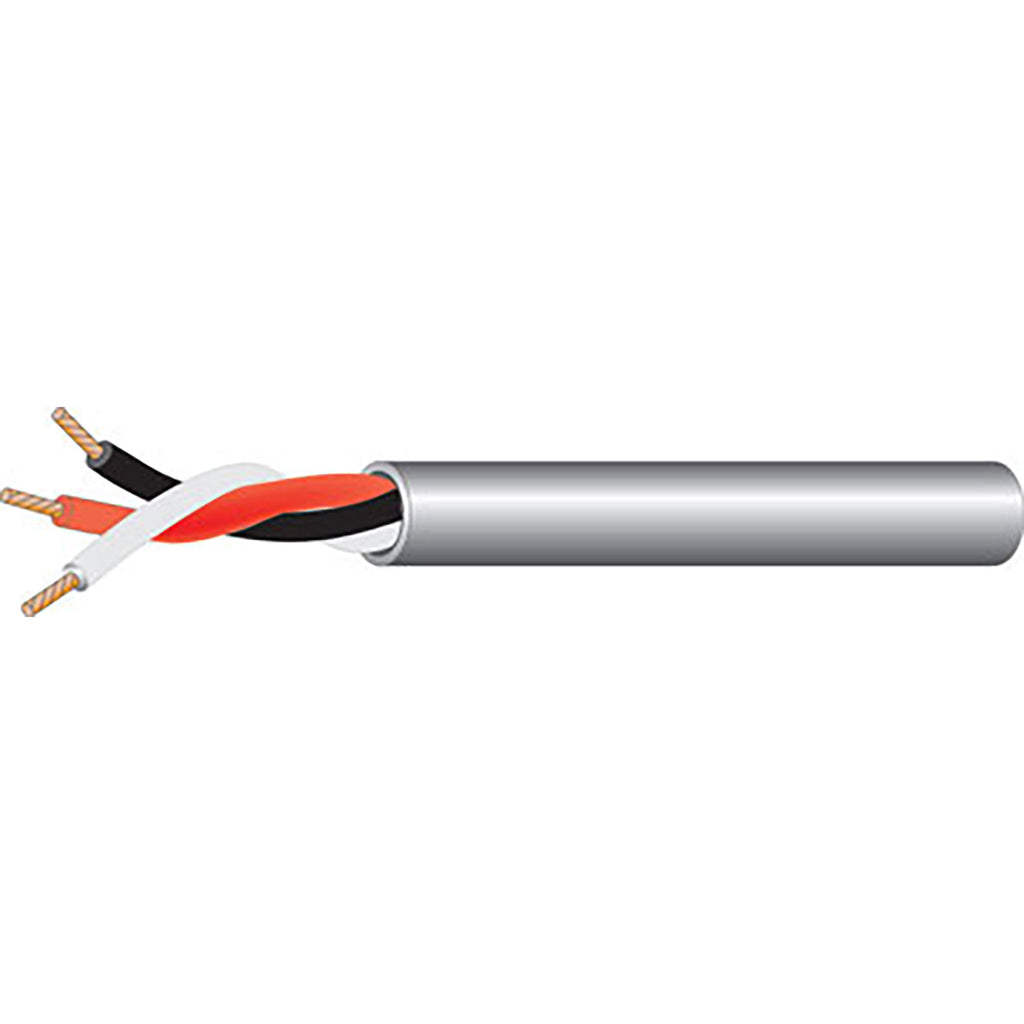

3 Conductor 22 awg Stranded Bare Copper Conductors, Unshielded with an Overall Jacket - Grey - Sold by the Foot
22/3 Unshielded CMR Audio and Control Cable
22/3 Stranded Bare Copper Conductors, Unshielded With An Overall Jacket.
Specifications:
- CONSTRUCTION PARAMETERS:
- Conductor 22 AWG Bare Copper
- Stranding 7x30
- Insulation Material PVC
- Insulation Thickness 0.010" Nom.
- Number of Conductors 3
- Shield None
- Drain None
- Jacket Material PVC
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.141" Nom.
- Approximate Cable Weight 11.6 Lbs/1M' Nom.
- Flame Rating UL 1666 Riser Flame Test
- ELECTRICAL & ENVIRONMENTAL PROPERTIES:
- Temperature Rating -20C To +60C
- Operating Voltage 300 V RMS
- Max.Capacitance Between Conductors @ 1 KHz 25 pf/ft Nom.
- DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
- Insulation Colors Black , Red, White
- Jacket Color Gray
- RoHS Compliant Yes
- MECHANICAL PROPERTIES:
- Max. Recommended Pull Tension 27.3 lbs.
- Min. Bend Radius (Install) 1.25"
