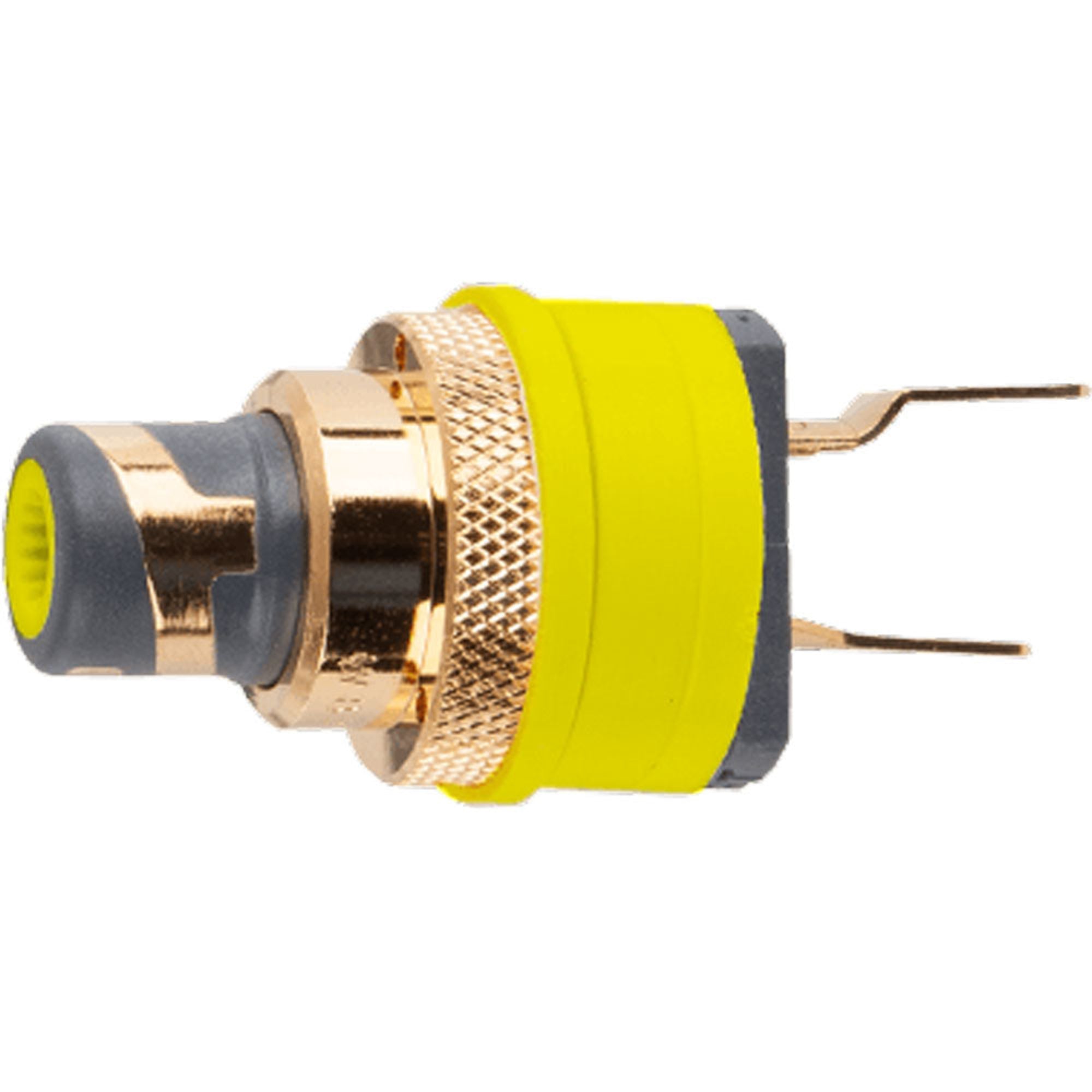

WBT 0210-Cu-Ms Nextgen Gold Plated RCA Female Socket Jack with Metal Nut (Single, Yellow)

nextgen RCA Socket with Signal Conductor Made of 24K Gold PLated Pure Oxygen Free Copper, for Chassis Mounting with Gold Plated Brass Nut - Yellow Identification

The Highest quality socket available on the market, with Pure Oxygen Free Copper contacts plated with a thin layer of 24k Gold to provide protection from oxidation for both positive and negative connections. The positive contact utilizes a tulip tri-shape design that is spring loaded to assure a secure connection. The main body is comprised of 30% glass reinforced Ultramid with the ground (negative) contact embedded within the connector. The complete unit includes insulation washers to accommodate a panel thickness from 0.1 - 4.2mm.

nextgen - a new generation of connectors from WBT

75-ohm characteristic impedance means that these sockets not only transmit superb analogue signals but also outstanding digital audio and video signals. The transmission bandwidth is 1 GHz.

The contact elements of the connector are made of high-purity copper, one of the best electrical conductors, in order to ensure optimum signal transmission. The metal is gold-plated (nickel-free) so that the surface does not oxidise and impair contact quality.

The inner contact is an active spring contact. The newly developed three-segment tulip contact is pressed onto the central pin of the RCA plug by a surrounding double bronze spring ring. Not only does this ensure reliable contact with non-standardised RCA plugs but contact also remains reliable even after the plug has been connected and disconnected many times over.

The outer contact is in the shape of a double wave which encompasses the socket element made of robust Ultramid*. This wave shape guarantees reliable contact with any RCA plug. In addition, the reduction in the amount of conductor material to the absolute minimum prevents the creation of eddy currents, enabling the WBT-0210 to transmit signals that are totally free of distortion.

Eddy currents occur in metal components near to which alternating current flows. These currents can result in major signal distortions.

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts and double step washers with lug are also supplied. The nut of WBT-0210 Ag Ms is made of brass with a gold-plating finish.

*Ultramid is a registered trademark of BASF.

Features:

• 75 ohms (typ.) characteristic impedance

• Totally distortion-free (no eddy currents)

• Ultimate conductivity (signal conductor made of pure copper)

• Inner contact designed as tulip contact with spring ring

• Outer contact in the form of a pat. double wave contact


Specifications:

• Characteristic impedance (typ.): 75 ohms

• Connection technology (inside): soldering

• Borehole: 12mm dia. (also data sheet)

• Identification: available in 9 colours
