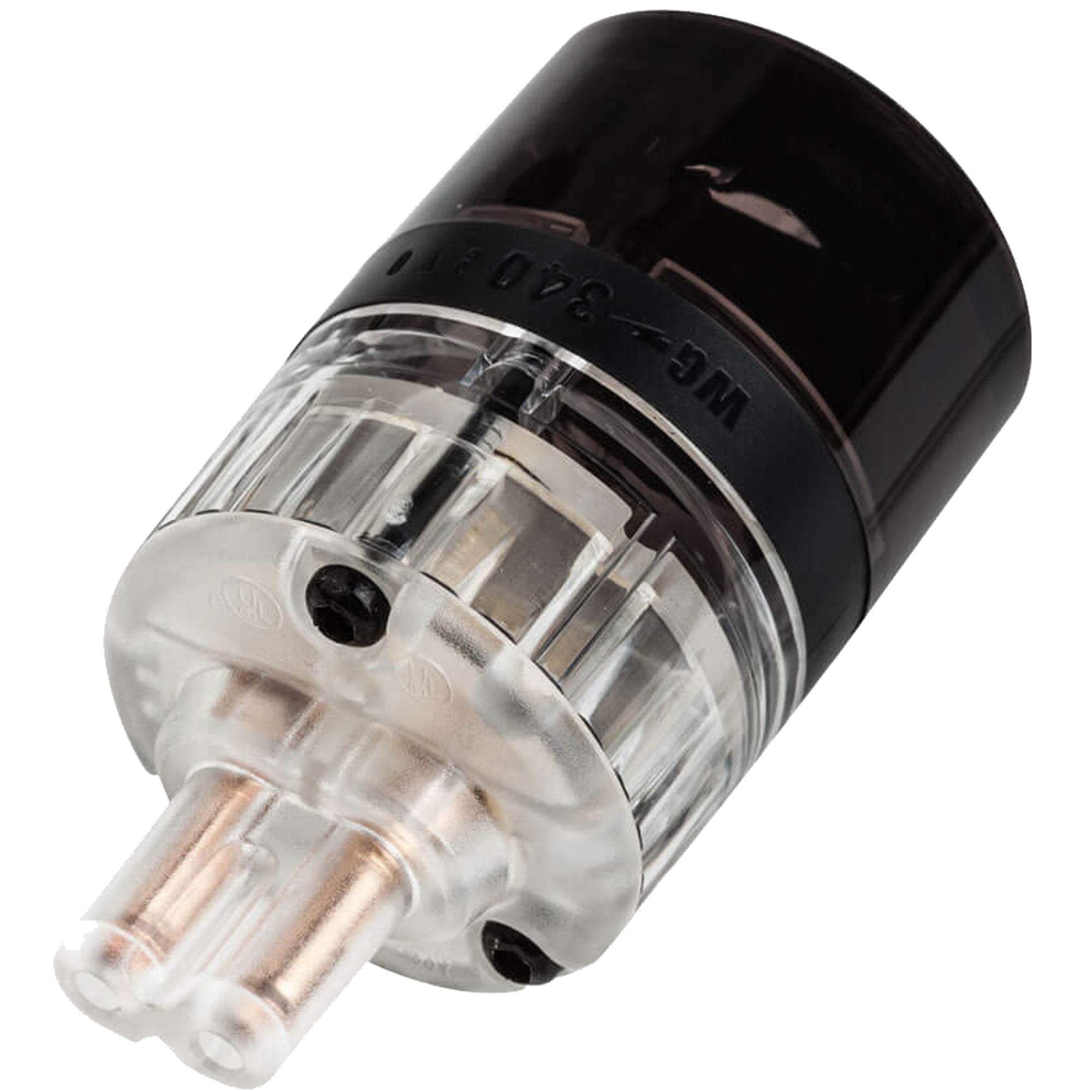

Wattgate 340 evo C7 AC Power Connector (Clear/Smoke)

Cryo Treated Standard C7 IEC (Figure 8) Electrical AC Power Connector with WattLock Terminals - Clear/Smoke

WattGate have spent the last few years designing there version of the C7 IEC (more commonly called the Fig.8 plug) improving every aspect of the connector to the same standard as their legendary IEC connectors.

The W340 EVO is the standard version with phosphor bronze contacts

Featuring a number of new, innovative features the WattGate evolution range are a real step forward in plug performance.

WattLock terminals incorporating WattLock 'teeth' improve contact pressure on the cable conductors for a lower resistance connection. The new terminals accept conductors of up to 8 AWG (3.26mm diameter).

The high spring-rate contacts mean that the plugs grip securely onto your equipment socket.

The new plugs will accept a cable with a total diameter of up to 19mm. The complete plug shell is of non-magnetic construction with a durable polycarbonate plug shell.

Finally, all plugs are Deep Cryogenically Treated.

Wattgate Cryo Treated Products

After ten years of researching cryogenic technology, we now cryogenically treat our Wattgate line of products in house. Years of testing different methods and processes within the cryogenic field have led us to develop our own optimized approach.

Our method of Deep Cryogenic Treatment(DCT) is of the indirect or dry type. A specially optimized cycling method is employed to achieve maximum benefit for our products. With the indirect or dry process the parts are never subject to direct contact with liquid nitrogen, avoiding thermal shock to the materials. The process takes between four and five days to complete. We have truly enjoyed the sonic results of this process, we think you will too.

Look for the Cryo Treated logo to be sure that you are getting Cryo Treated Wattgate products.

Features:

• Superb high quality C7 IEC plug
• Unique WattLock Contact System Accepts 8 to 14 awg wire
• Phosphor bronze contacts
• Accepts up to 8awg wire
• Accepts 19mm outer cable diameter
• Features 2.5 mm hex socket hardware throughout the plug for better control on torque All All Polycarbonate design using non-magnetic materials
• Cryogenically treated as standard

Specifications:

• Standard C7 Connector
• WattLock terminals - Heavy duty wire capture box
• Accepts 8 to 14 awg wire
• Accepts 19mm cable diameter
• 2.5mm Hex socket hardware
• All Polycarbonate design
• All non-magnetic materials
• Phosphor bronze contacts
• 7A/250VAC
• 10A/125VAC
