Key Features
- CineMag USA Output Transformer
- Class-A Design + Fairchild FETs
- Polystyrene and Wima Capacitors
- Vintage-Style Cardioid Capsule
- -10 dB Pad
- 20 Hz to 20 kHz Frequency Response
- Max SPL with Pad Engaged: 133 dB
- Gold-Plated 3-Pin XLR Output

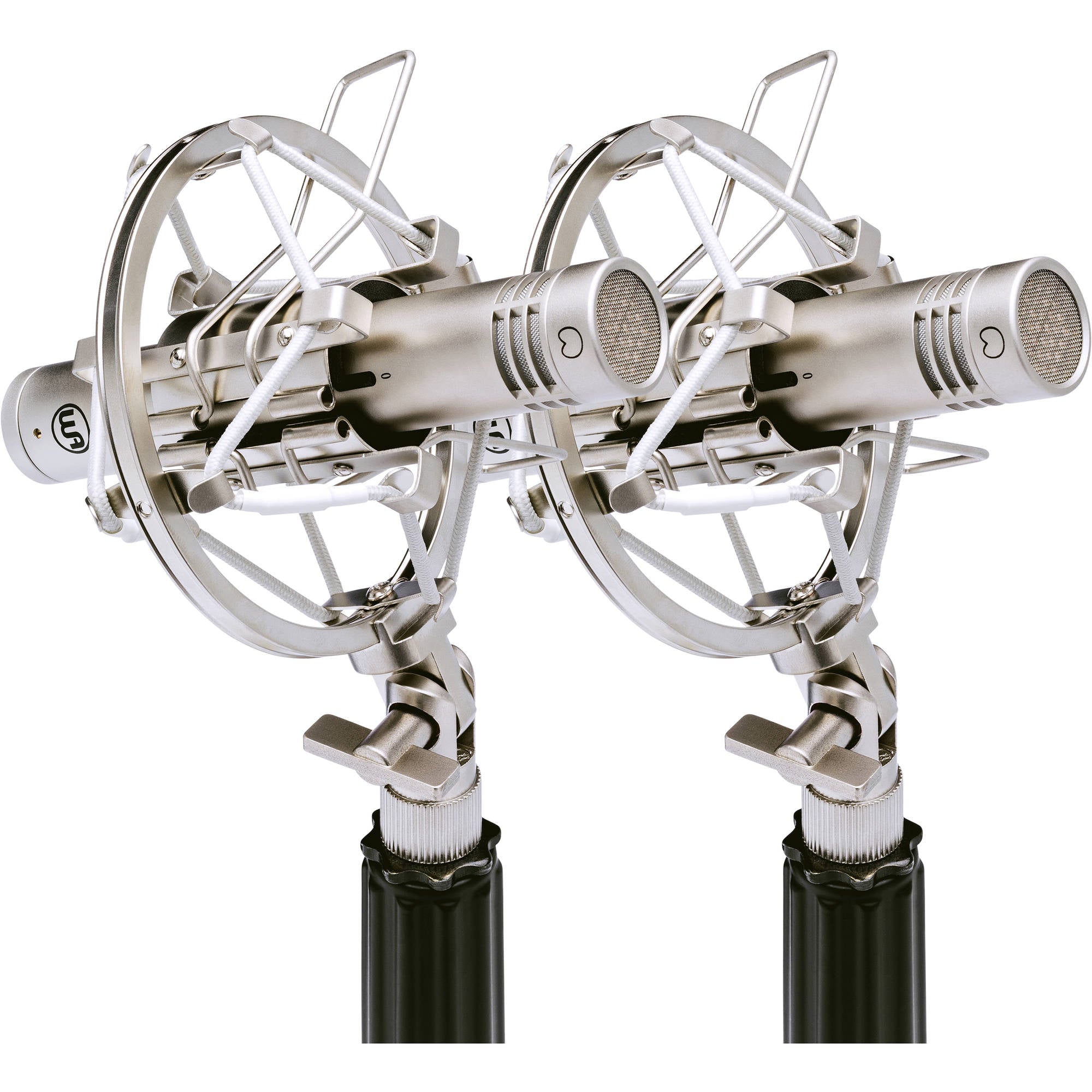

- Includes Shockmounts & Clips
- Windscreens & Carrying Case
Description

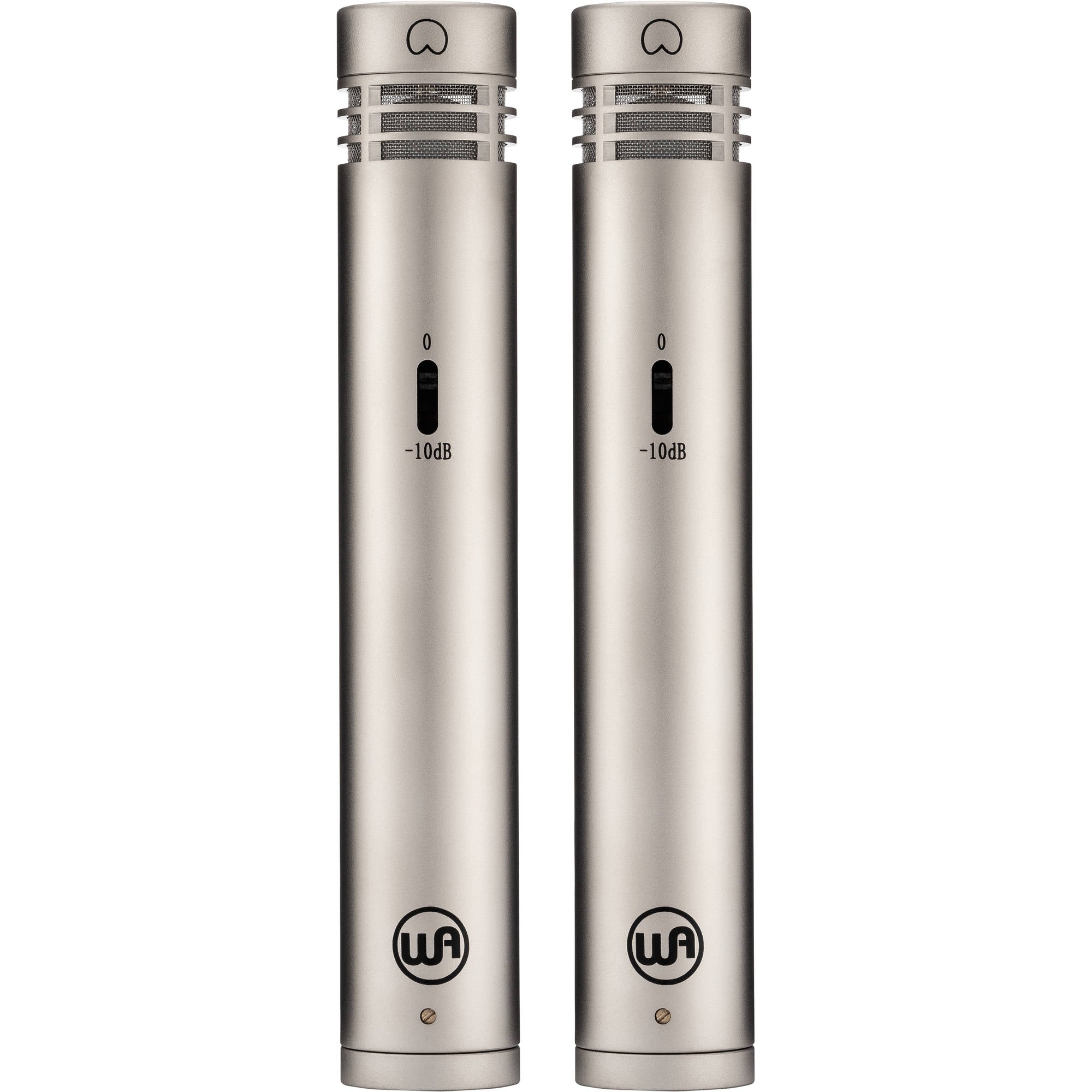

Small-Diaphragm Condenser Microphone with Cardioid Polar Pattern and 10dB Pad - Stereo Pair, Nickel
Sound Like A Legend
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.
Large Sound, Small Size
The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound.
Boutique Tone
We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.
Look Inside The WA-84
The Capsule
The WA-84 utilizes a custom vintage-style capsule designed to emulate classic componentry and design techniques. The WA-84's capsule is carefully manufactured by an Australian capsule supplier and is precisely reproduced to vintage specs. We are pleased to offer such a high quality capsule in this microphone which allows us to nail the sonics of the most important component of any microphone.
The Circuit
The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET.
The Transformer
The WA-84 utilizes an American made CineMag USA transformer that contributes to the legendary creamy smooth top-end and the BEEFY mid to bottom-end one would hope to get from an 84-style small diaphragm condenser microphone.
The Capacitors
The WA-84 proudly utilizes Wima, polystyrene and tantalum through-hole capacitors throughout
Specifications:
- UTILIZES A CINEMAG USA TRANSFORMER
- DIRECTIONAL PATTERN: CARDIOID
- FULLY DISCRETE VINTAGE-STYLE SIGNAL PATH
- VINTAGE CAPSULE REPRODUCTION

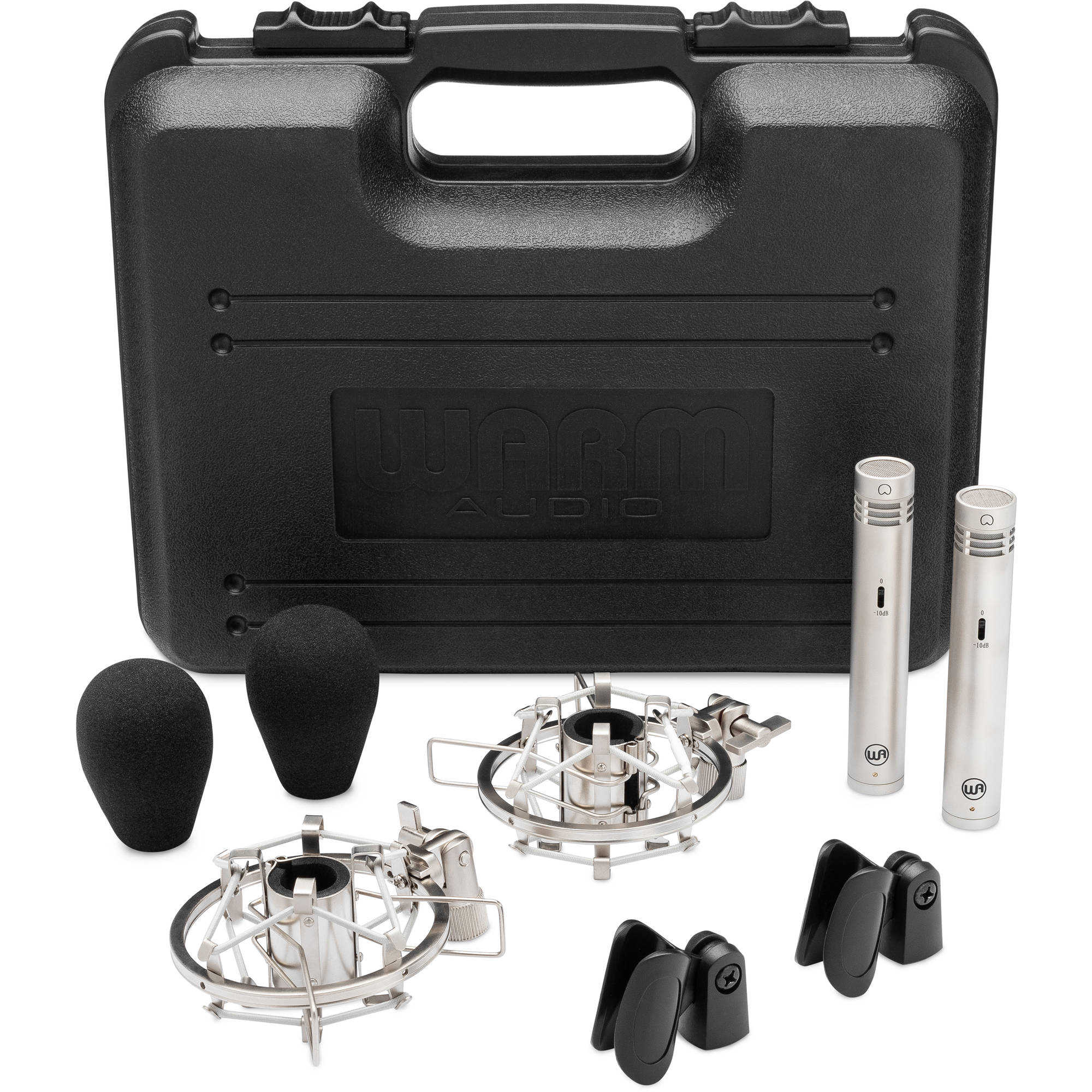

- PACKAGE INCLUDES: MICROPHONE, CARDIOID CAPSULE, SHOCK-MOUNT, MIC CLIP, WINDSCREEN AND CARRYING CASE
- 48V PHANTOM POWERED
- FREQUENCY RANGE: 20HZ - 20KHZ
- SENSITIVITY: -39DB OR 11MV/PA @ 1KHZ
- OUTPUT IMPEDANCE: 200Ω
- RATED LOAD IMPEDANCE: ≥1KΩ
- PAD: 0DB OR -10DB
- MAXIMUM SPL: 123/133DB @ 1KHZ, 0.5% THD, 0/-10DB
- S/N RATIO: 78DBA (IEC651)
- EQUIVALENT NOISE: 16DBA (IEC651)
- DYNAMIC RANGE: 107DBA (IEC651)
- CONNECTOR: 3-PIN GOLD-PLATED XLR
- WEIGHT: 122G EACH
- FINISH: BLACK & NICKEL
