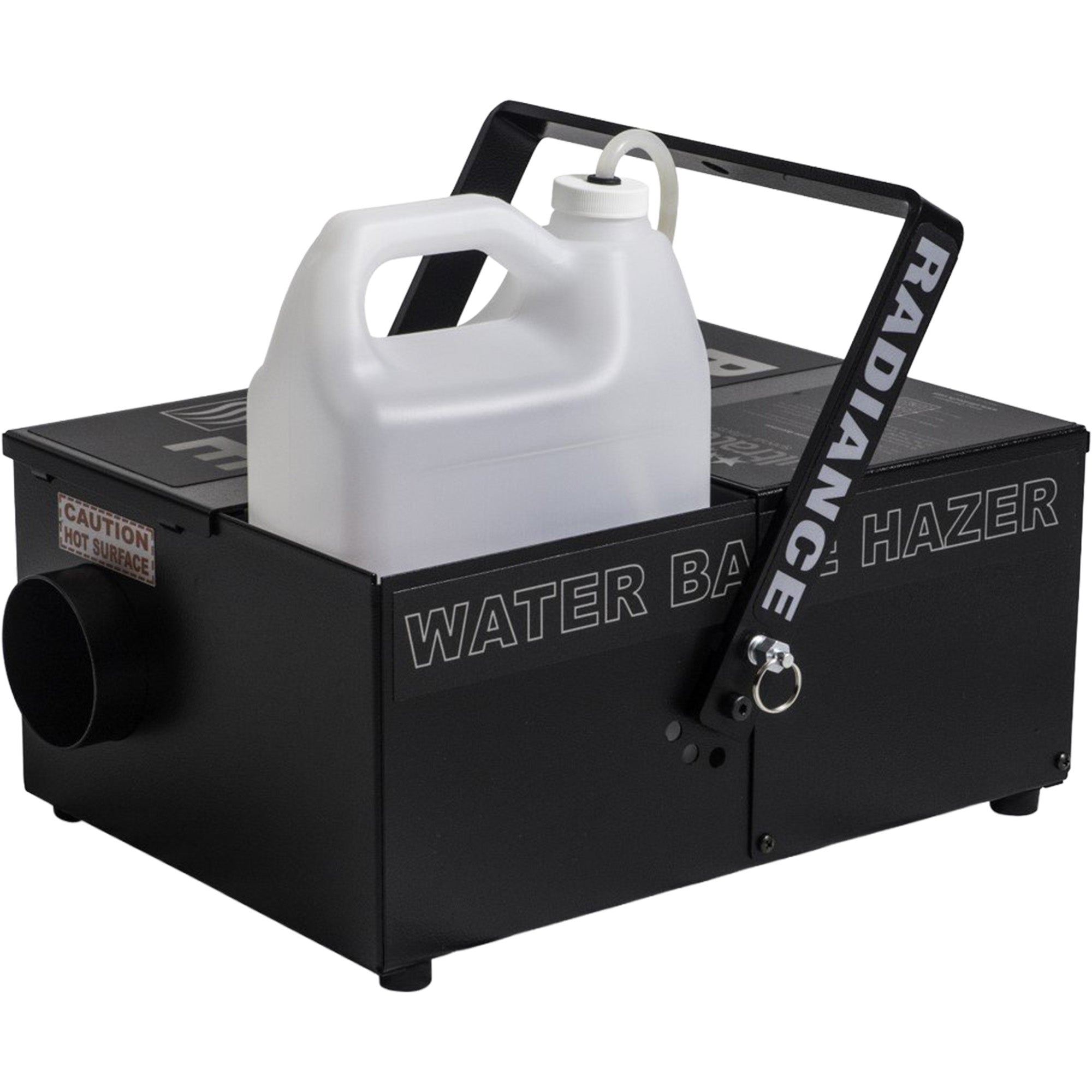

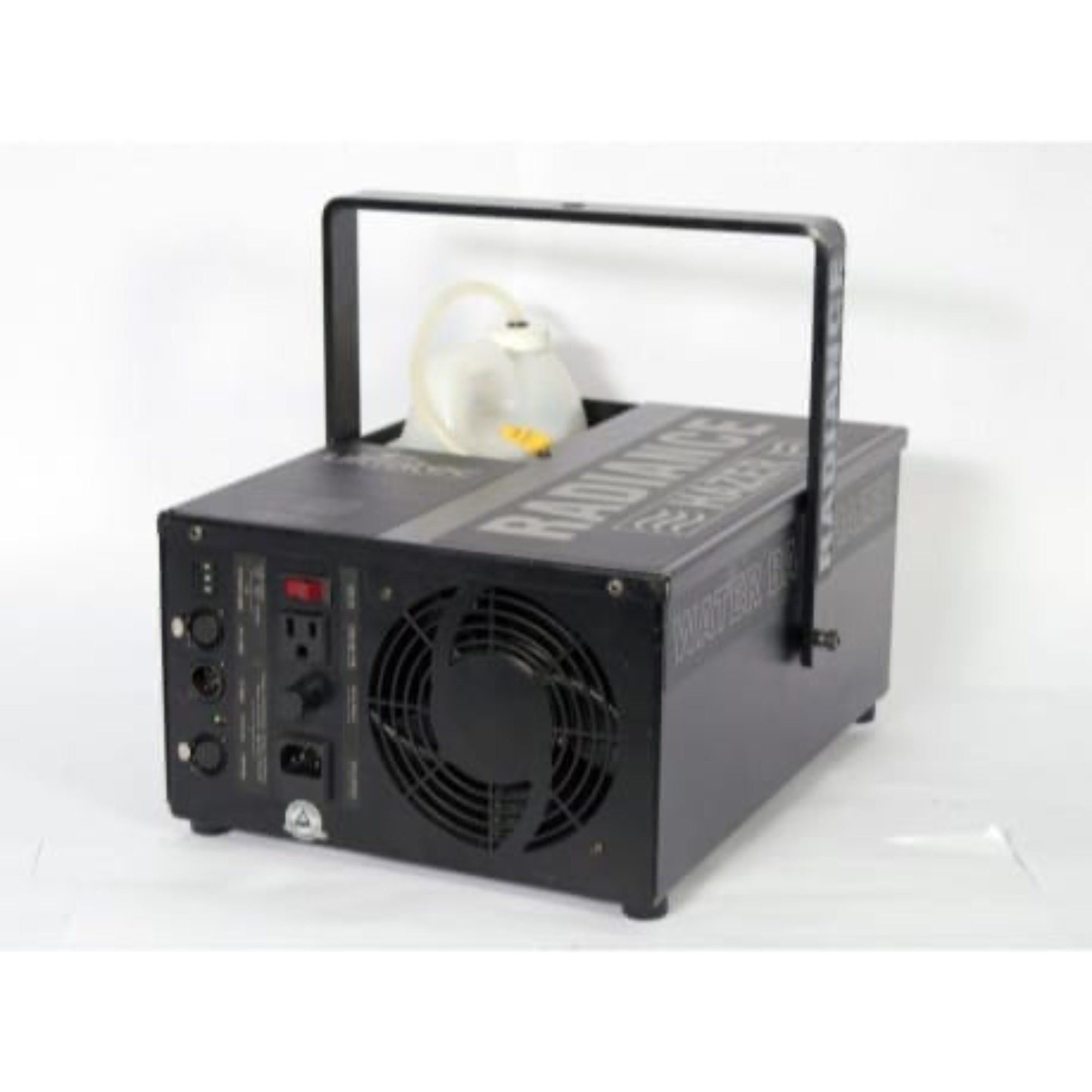

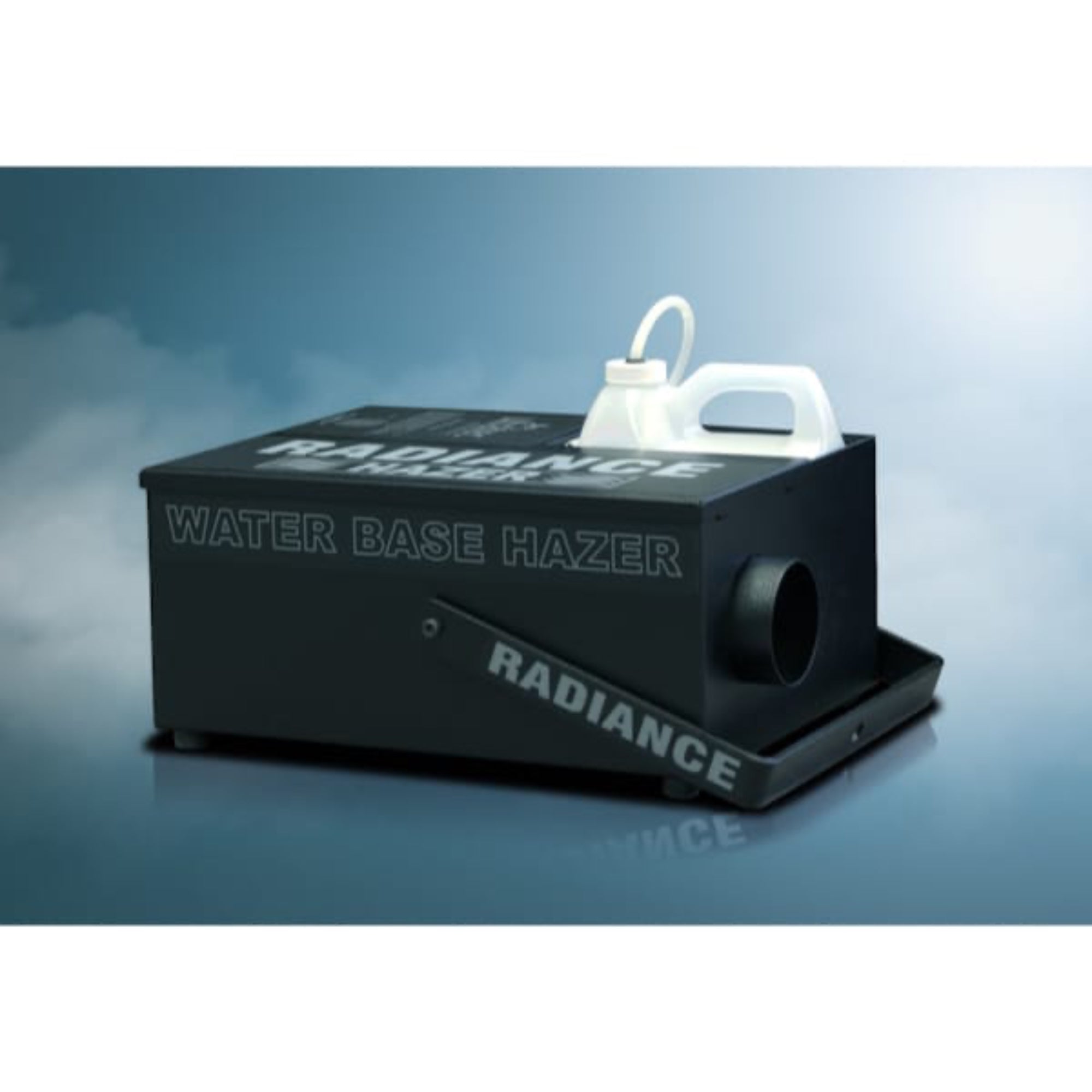

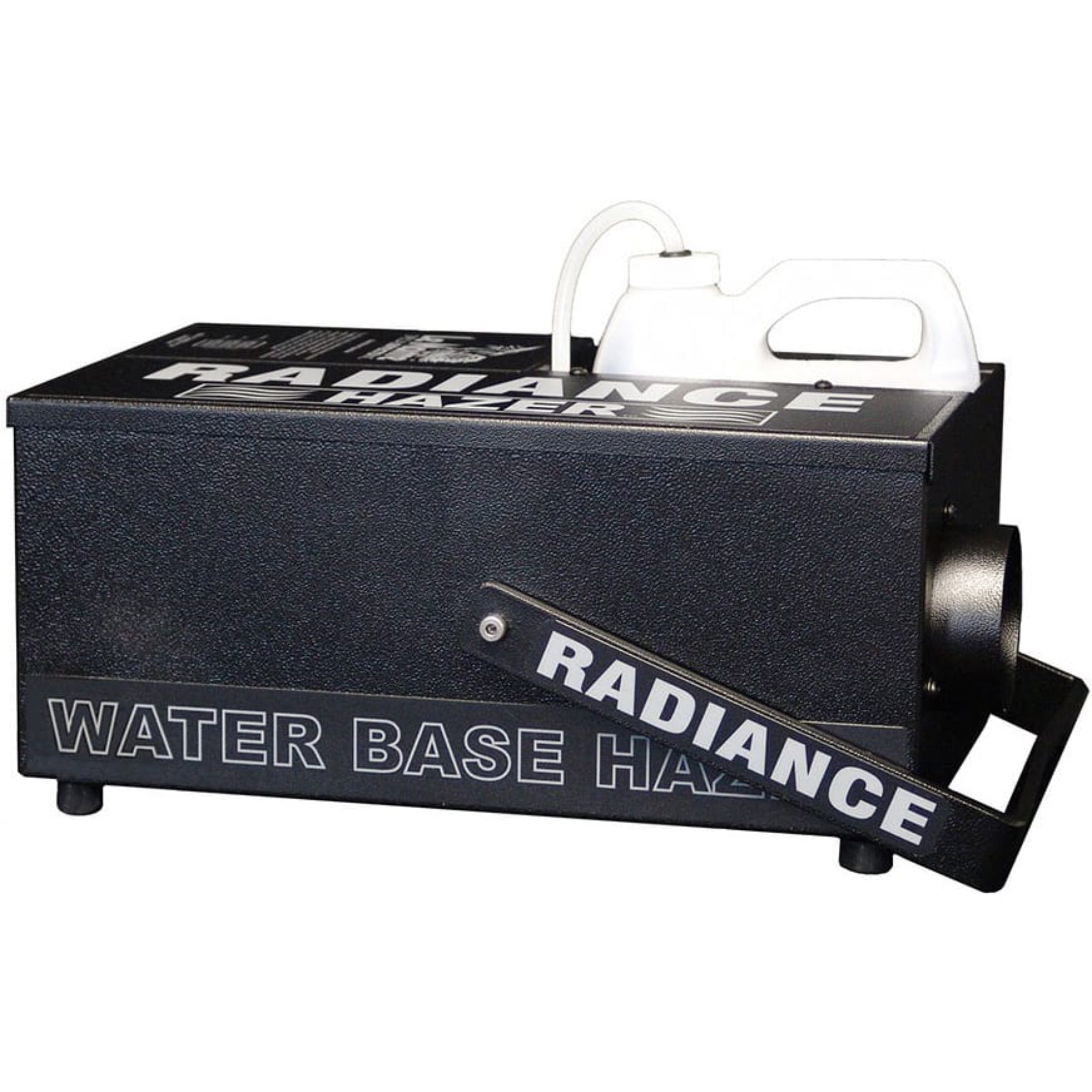

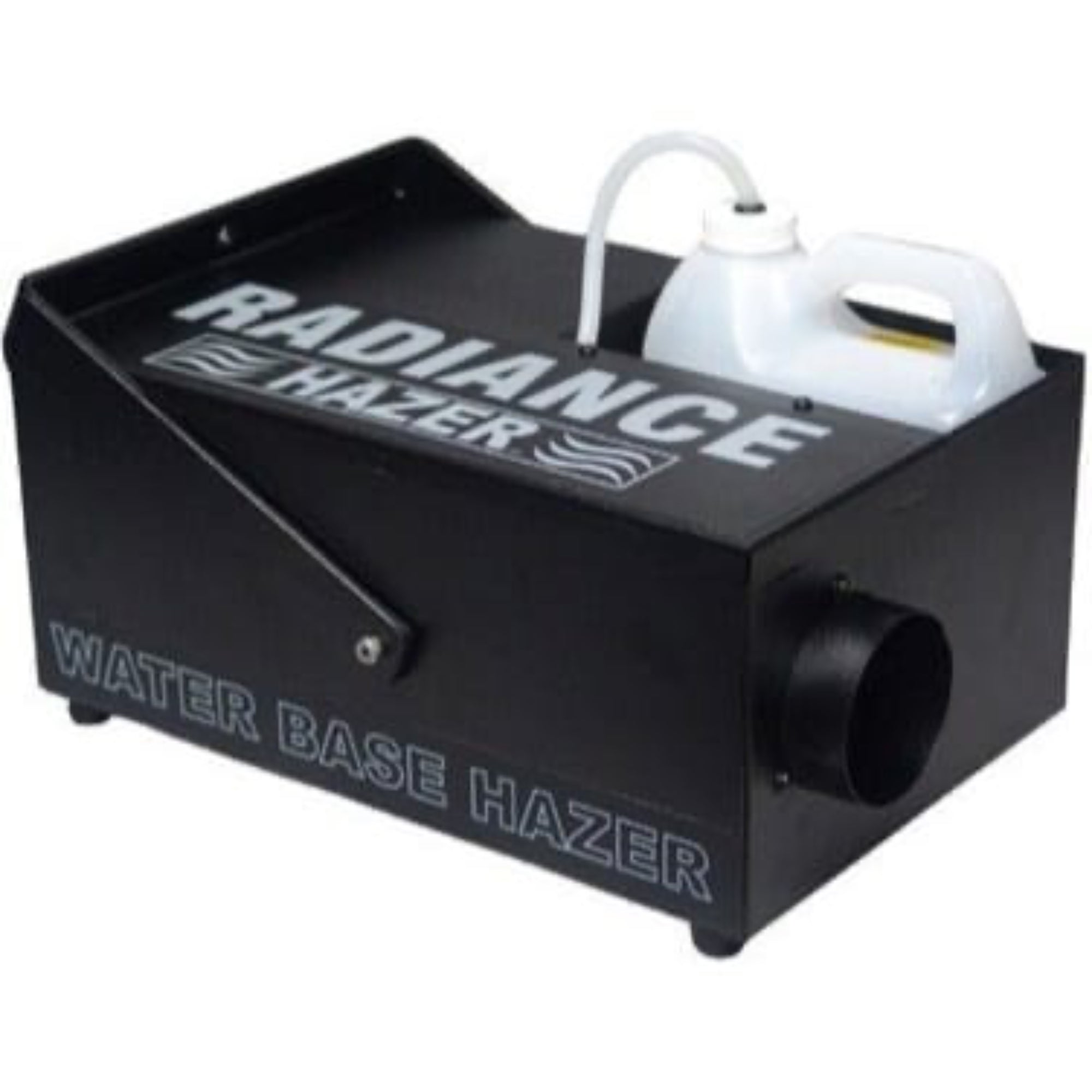

Ultratec Radiance Hazer Haze Machine

Water-based haze that brings lighting designs into focus

The Ultratec Radiance Hazer is a 500-watt water-based haze machine designed to distribute haze evenly and give light and laser beams visible shape. Variable haze output and fan speed let you adjust the effect for your production.

Features

• Variable haze output
• Variable-speed internal fan
• Built-in 2-channel DMX with LED panel
• Standalone operation using onboard settings
• 4-Port Rapid Vaporizer for cleaning and service access
• Accommodates 2L and 4L fluid jugs

Standalone or DMX control

Operate the Radiance using its onboard settings, an optional remote with timer, or built-in 2-channel DMX. DMX controls haze output, the internal fan, and an optional external Versa Fan. An LED DMX panel supports setup and operation.

The optional remote and external Versa Fan are not part of the standard box contents listed below.

Fluid and serviceability

The Radiance uses Ultratec Luminous 7 Haze Fluid and accommodates 2L and 4L fluid jugs. At full output, listed fluid consumption is 6.7 cc per minute, with a continuous benchmark of 400 cc per hour.

The 4-Port Rapid Vaporizer is designed for cleaning and service access. Ultratec states that the machine can be cleaned and returned to service in less than 15 minutes.

What’s in the box

• Ultratec Radiance Hazer unit with built-in 2-channel DMX and internal fan
• Removable power cable
• Multi-use mounting bracket
• Operator’s manual / documentation

Manufacturer warranty

Ultratec specifies a five-year warranty against manufacturing defects, provided Ultratec fluids are used. Refer to the manufacturer’s warranty terms for full details.

Specifications

• Run time: Continuous
• Reheat time: 8 minutes
• Fluid consumption at full output: 6.7 cc/min
• Continuous fluid consumption benchmark: 400 cc/hour
• Dimensions (L × W × H): 16 × 13 × 7 in. / 41 × 33 × 18 cm
• Net weight: 28 lb / 13 kg
• Power cord length: 6 ft / 1.8 m
• Heater: 500 watts
• Power rating: 110V AC, 50/60 Hz, 5 amps
• Internal fan noise level: 53 dB
• Noise level at maximum operation: 65 dB at 10 ft
• Regulatory compliance: Certified by QPS/UL Standards Canada Inc.
