Techflex Flexo PET Expandable Braided Sleeving (1/4" Dark Purple, By the Foot)

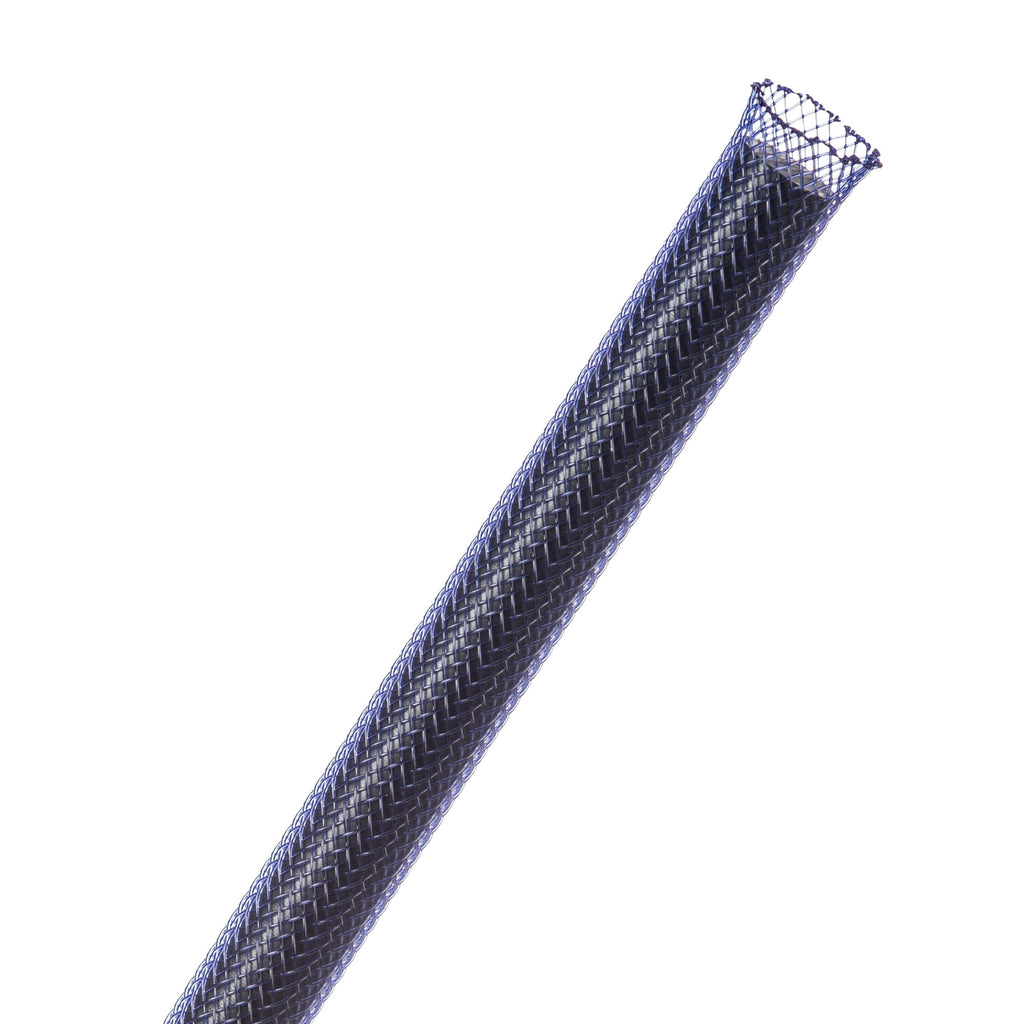

Dark Purple Techflex Flexo PET 1/4-inch expandable braided sleeving, by the foot

Dark Purple Techflex Flexo PET is an expandable PET monofilament braid for organizing cables, wire harnesses and compatible hoses. Its open weave provides a flexible covering with abrasion resistance and a tidy appearance. This is the nominal 1/4-inch size, sold by the foot.

Other 1/4-inch by-the-foot colors and patterns

Aqua Blue, Beige, Black, Black Magic, Black with Red Spiral, Blue, Brown, Carbon, Checkered Flag, Clear, Green, Grey, Ground Stripe, Highlighter Yellow, Neon Blue, Neon Green, Neon Orange, Neon Pink, Neon Red, Neon Yellow, Ogre, Olive Drab OD Green, Orange, Patriot, Platinum Grey, Purple, Rainbow Black, Red, Reggae, Safety Stripe, Snake, White and Yellow.

Continuous-length ordering

Quantity 1 = 1 foot; quantity 10 = one continuous 10-foot length. Allow extra material for routing, end finishing and the length change that occurs when the braid expands over your bundle. Manufacturer 200-foot and 1,000-foot spool put-ups are packaging references, not the quantity purchased here.

Fit and installation

The listed expansion range is 1/8–7/16 inch. Measure the bundle and the largest connector the sleeve must pass over. Use this size's range rather than a generic percentage-expansion claim. The open weave spreads as diameter increases. This is not heat shrink: it does not shrink into place, seal out water or replace electrical insulation, shielding or connector strain relief.

Install before connector termination if the connector will not pass through. Compress the braid lengthwise to expand it, feed it over the bundle, then smooth it along the run. Avoid sharp edges, maintain the cable's bend radius and leave movement at connectors. A hot knife is the recommended cutting method for fused ends. Follow tool and manufacturer safety instructions, protect cable jackets from heat and let cuts cool. Secure ends using a suitable separately selected end treatment.

Features

• Flexible expandable polyethylene terephthalate monofilament braid.
• Wire harnessing and cable organization in suitable electronics, automotive, marine and industrial applications.
• Listed abrasion, UV and selected chemical resistance, not protection against every solvent, sharp edge or exposure condition.
• Dark Purple covering for a consistent cable-bundle appearance.

Specifications and test references

• Series FLEXO PET (PT); size part number PTN0.25; Dark Purple.
• Nominal size 1/4 inch; expansion range 1/8–7/16 inch.
• Monofilament 0.010 inch (10 mil), ASTM D-204; listed wall thickness 0.025 inch.
• Listed weight 0.30 lb/100 feet.
• Yarn tensile strength 7.5 lb, ASTM D-2265, not a finished-bundle load rating.
• Abrasion resistance Medium; specific gravity 1.38.
• Moisture absorption 0.1–0.2%, ASTM D-570.
• Continuous temperature −94°F/−70°C to 257°F/125°C (MIL-I-23053 reference).
• Melt temperature 482°F/250°C, ASTM D-2117, not a use rating.
• Hard vacuum, ASTM E-595 at 10⁻⁵ torr: TML 0.19; CVCM 0.00; WVR 0.16.
• Smoke D-Max 56, ASTM E-662; outgassing Medium; oxygen index 21, ASTM D-2863.

The source references UL-94 without a classification and UL/CSA without an approval file or scope. Do not infer a flame class or finished-assembly approval. It also lists halogen-free, RoHS and no SVHC; confirm current documentation for the exact material and application when substance declarations or recognition are required.

Listed chemical resistance

Scale: 1 = no effect; 2 = little effect; 3 = affected; 4 = more affected; 5 = severely affected. These material-test references do not guarantee performance at every concentration, temperature or exposure duration.

• 1: aliphatic solvents, weak bases, salt water (O-S-1926), hydraulic fluid (MIL-H-5606), lubricating oil and de-icing fluid (MIL-A-8243), esters/ketones, UV light, petroleum, fungus (ASTM G-21) and salts.
• 2: aromatic solvents, strong bases and strong oxidants.
• 3: chlorinated solvents and strong acids.

Confirm suitability for your exposure conditions and the cables inside the sleeve.
