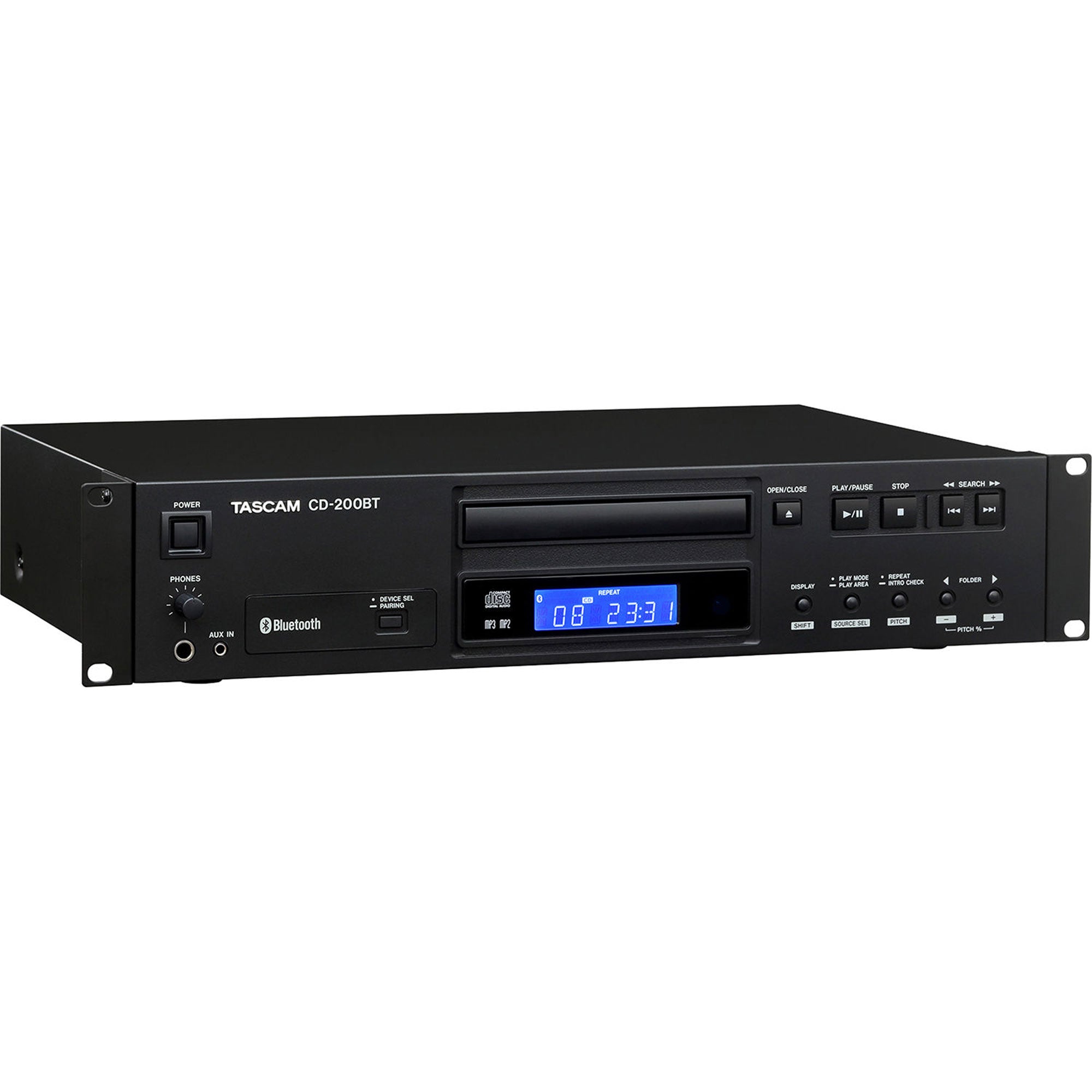

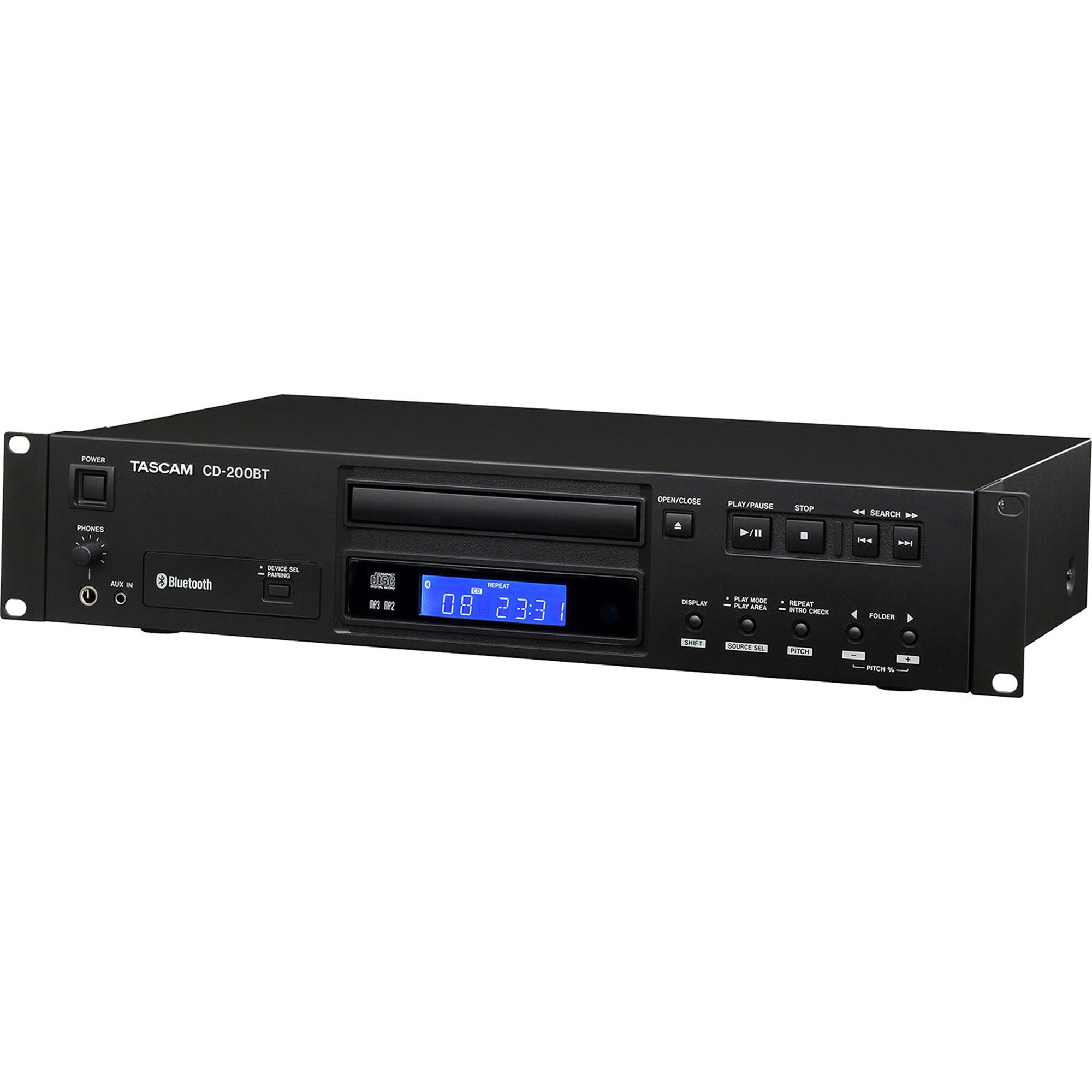

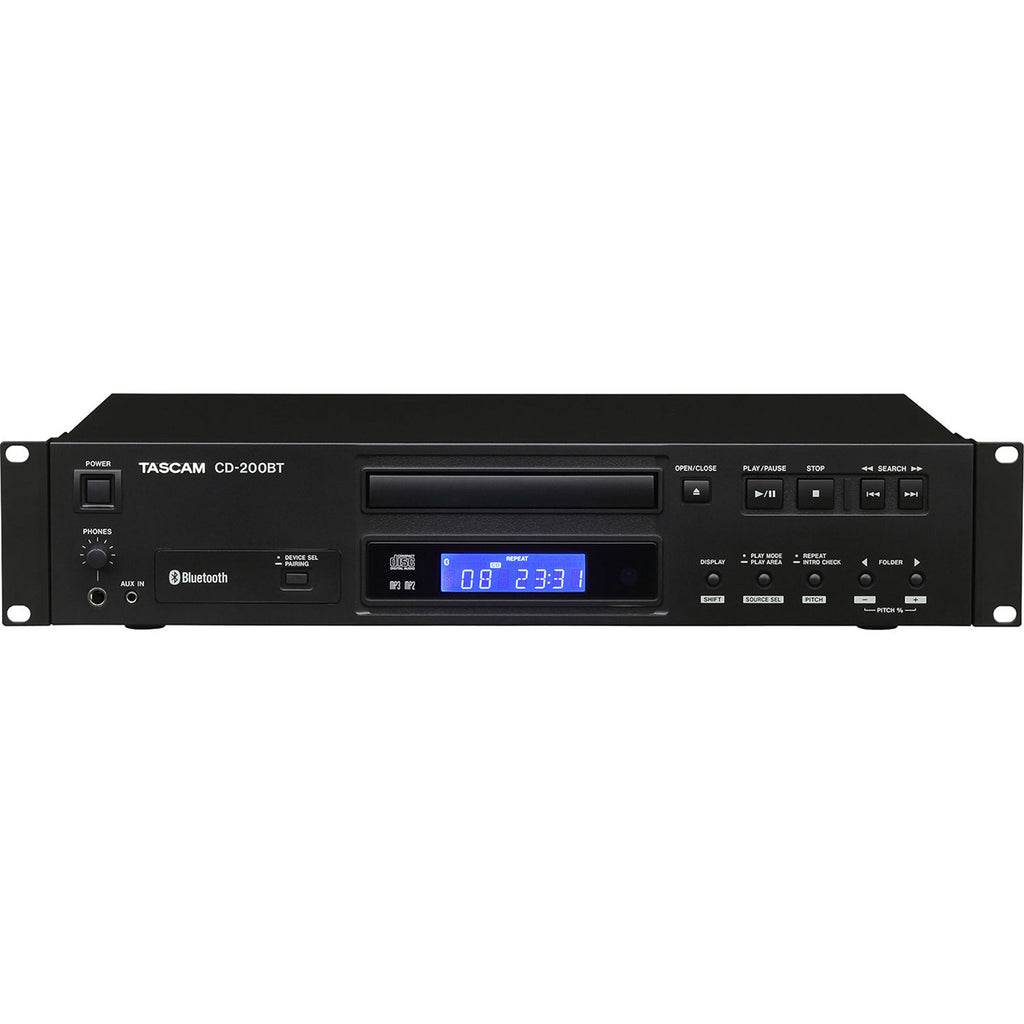

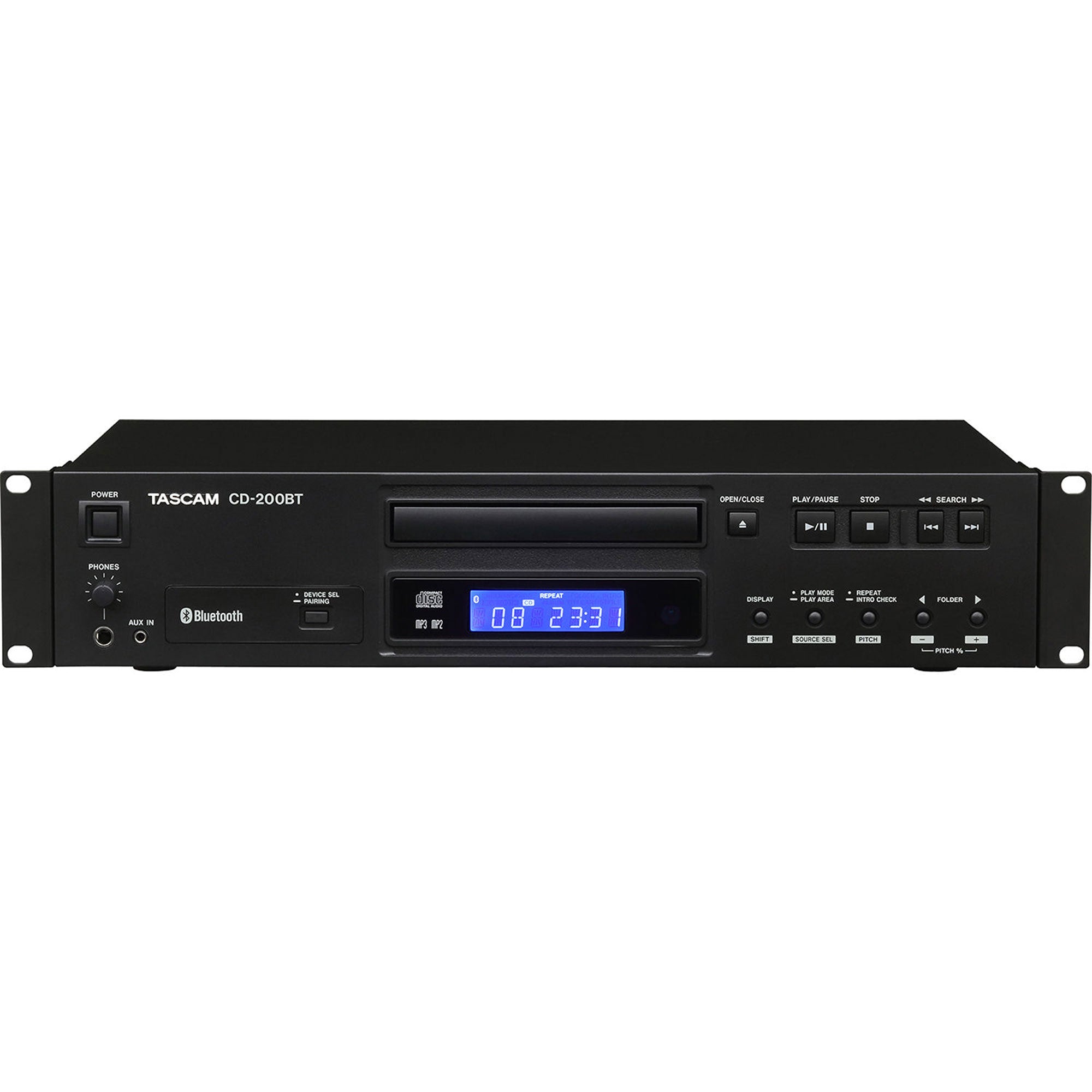

Tascam CD-200BT Rackmount CD Player with Bluetooth Receiver

Professional Single CD Player with Bluetooth

The CD-200BT Rackmount CD Player With Bluetooth Receiver from Tascam allows you to playback CDs, CD-Rs, CD-RWs, and WAV, MP2 and MP3 data CDs in addition to audio from Bluetooth enabled devices. While you can only pair one Bluetooth device to the CD-200BT at a time, you can register up to 8 devices, allowing you to switch between them quickly.

The CD drive itself is designed and built by TEAC and features a 10-second shockproof memory, keeping your playback protected from vibrations and CD skips. The CD-200BT also has an auxiliary 3.5mm stereo mini-jack input for integrating another sound source. The unit has a variety of output options including stereo analog RCA outputs and digital coaxial and optical outs. A front-panel 1/4" headphone output with independent volume control allows you to use the CD-200BT for personal listening. The unit can be controlled with the included remote control and is rackmountable with the included rackmount screw kit.

Wireless Playback from Bluetooth Devices
Through the antenna located in the front of the CD-200BT, audio file playback signals can be received from a variety of Bluetooth compatible devices. The types of files that can be played back depend on the transmitting device; so any file type that can be played back by iTunes, Windows Media Player, smartphone player apps and other music applications can be played through this unit. Bluetooth playback uses a wireless connection, so no new wiring is necessary to use compatible audio sources as long as they are in signal-range, allowing easy and speedy playback

Device Selection Function
Bluetooth playback requires pairing. Normally, pairing is one to one, but the CD-200BT has a device selection function that can be used to pair with multiple transmitting devices. By registering devices to be used in advance, you can switch smoothly between transmission devices for playback with minimal connection interruption time (only one device can be used for playback at a time). In addition, since the name of the transmission device currently being used for audio playback can be shown on the display, you can check the connection status within this unit

A2DP Playback
A variety of different profiles are used for Bluetooth transmission depending on the application. The CD-200BT supports the A2DP (Advanced Audio Distribution Profile) for music playback, and SBC (Sub Band Codec), a standard A2DP codec. In addition, it supports the aptX codec, making high quality wireless audio playback possible. The aptX codec also has an error recovery function, so audio is much less likely to be interrupted, compared to ordinary SBC transmission

CD Drive Designed and Built by TEAC
The CD-200BT's CD drive is designed by TEAC

10-Second Shockproof Memory
The 10-second shockproof memory prevents skipping from vibration and other causes. Data stored in the player's memory can be played back without skipping, preventing undesired interruptions

Features:

• The aptX codec supports high audio quality playback
• Up tp eight Bluetooth transmission devices can be paired at a time for quick and easy switching
• The name of the transmission device currently being used for playback can be displayed
• aptX, AAC and SBC codecs are supported, and the codec being used can be displayed
• SCMS-T is supported using Bluetooth (A2DP), so audio with content protection can be received
• Bluetooth antenna in the front for stable Bluetooth connections
• High-quality CD drive designed for audio by TEAC
• 10-second shockproof memory prevents skipping from vibrations and other causes
• CD drive supports playback of CD-DA and WAV/MP3/MP2 files (data CD)
• Supports CD text and ID3 tags, so text information, including artist, album and track names, can be shown
• Four playback modes (continuous, shuffle, program and single)
• Repeat playback function (all or single)
• Folder repeat playback (data CD)
• Switch between display of track elapsed time, track and disc remaining time (audio CD)
• +/-14% pitch control function(audio CD/data CD)
• Intro check function can be used to play the first 10 seconds of songs in order(audio CD/data CD)

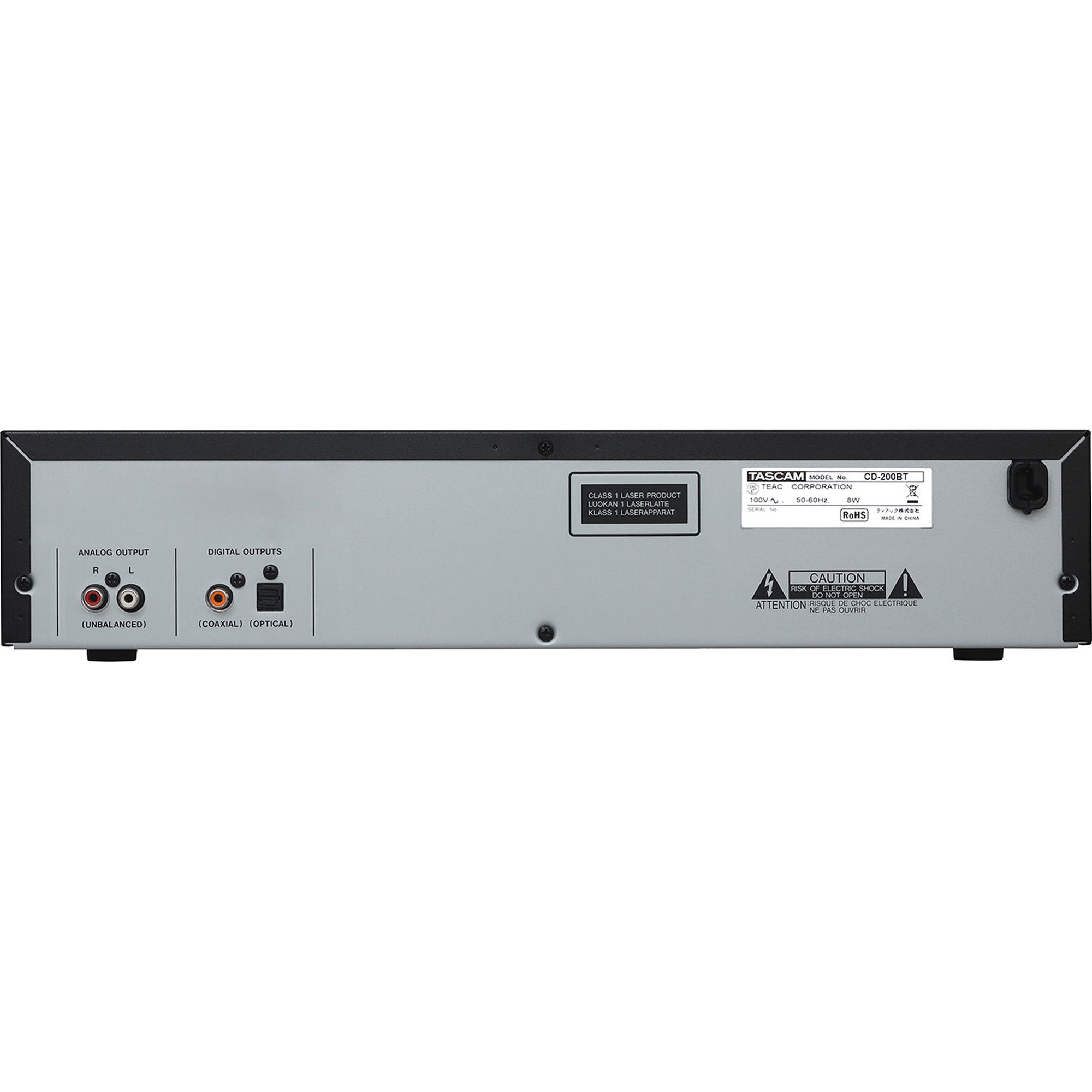

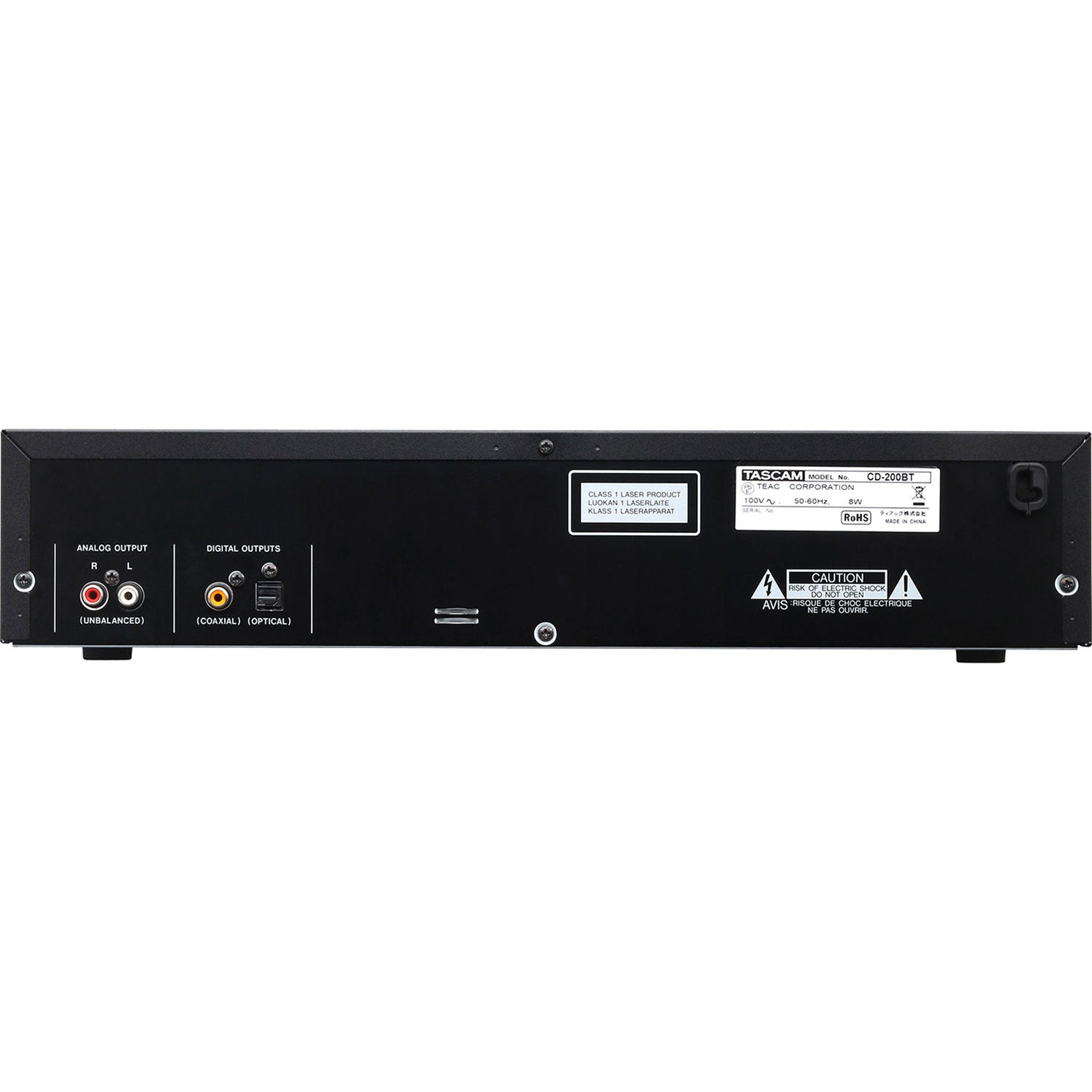

• RCA analog outputs and COAXIAL/OPTICAL digital outputs
• Stereo mini jack input on the front for portable audio devices
• 2U EIA rack-mount size

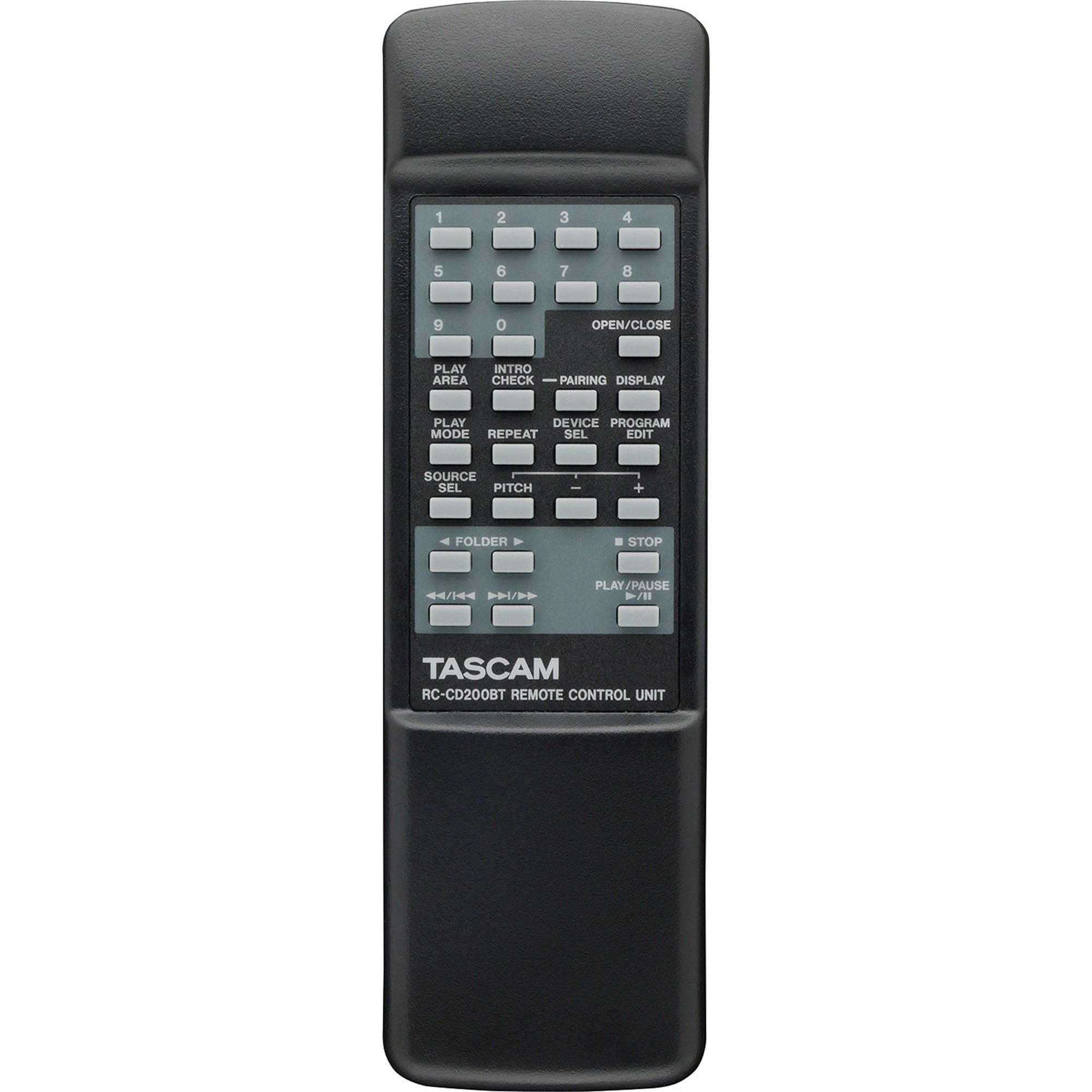

• Wireless remote controller with 10-key included
• Paring and device selection can be conducted with the included wireless remote control
• Headphone output
• RoHS certified

Specifications:

• Playback media: CD,CD-R,CD-RW (8/12cm)
• Playback format:
• CD-DA: Stereo, 44.1kHz, 16bit
• WAV(Data CD): Stereo, 8/16/32/11.025/22.05/44.1/12/24/48kHz, 16bit
• MP2(Data CD): Stereo, 32/44.1/48kHz, 32-384kbps
• MP3(Data CD): Stereo, 32/44.1/48kHz, 32-320kbps, VBR
• Analog audio input:
• AUX:
• Connector: 1/8"(3.5mm) Stereo Mini Jack
• Input impedance: 22k ohms
• Nominal input level: -20dBV
• Maximum input level: -4dBV
• Analog audio output:
• UNBALANCED:
• Connector: RCA pin-jack
• Output impedance: 200 ohms
• Nominal output level: -10dBV(0.32Vms)
• Maximum output level: +6dBV(2.0Vms)
• Digital audio output:
• COAXIAL:
• Connector: RCA pin-jack
• Format: IEC60958-3(S/PDIF)
• OPTICAL:
• Connector: TOS(JEITA RC-5720C)
• Format: IEC60958-3(S/PDIF)
• Bluetooth:
• Version: 3.0
• Output Class: Class 2
• Supported profile: A2DP, AVRCP
• Supported A2DP codec: SBC, AAC, aptX
• Supported contents protection: SCMS-T
• PHONES:
• Connector: 6.3mm (1/4") stereo phone jack
• Maximum output level: 20mW + 20mW (THD 0.1%, 32ohms loaded)
• Power: AC120V, 60Hz (North American)/AC230V, 50Hz (EUR)/AC240V, 50Hz (Australia)
• Power consumption: 11W
• Dimensions: 481(W)×94.5(H)×298(D)mm
• Weight: 4.5kg
• Operating temperature: 5-35°C
• Inclination of installation: 5° or less
• Standard accessories: Wireless remote controller(RC-CD200BT), AA battery, Rack mounting screw kit, Warranty card, Owner's manual
• Audio performance
• Frequency response: 20Hz-20kHz, +/-1dB(playback, JEITA)
• Distortion: 0.01% or less(playback, JEITA)
• S/N ratio: 90dB or greater(playback, JEITA)
• Dynamic range: 90dB or greater(playback, JEITA)
• Channel separation: 90dB or greater(playback, JEITA)
