Key Features
- 1/8" 3-Conductor Male
- Solder Contacts
- Panel Mount Connector
- Nickel Finish
Description

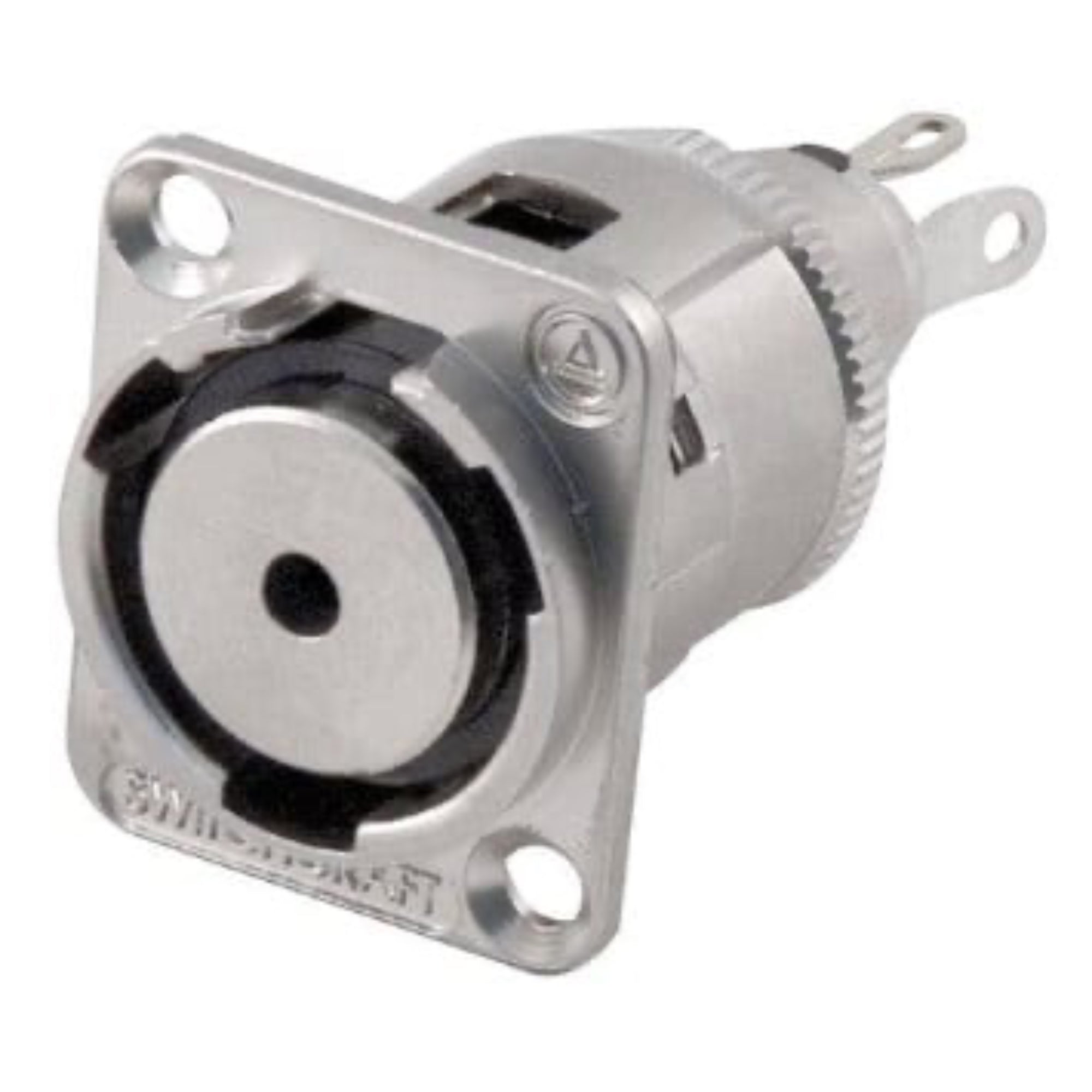

Female 1/8" (3.5mm) TRS Panel Mount Receptacle, Solder Cups, Nickel Housing
EH Series 3.5MM, 3 Conductor Jack To Solder Contacts - Nickel Finish
The EH Series by Switchcraft is a complete line of audio, video, and data connectors built into standard panel-mount XLR housings. Custom combinations of EH Series connectors can be quickly loaded into any of our Q-G Series panels. Once mounted, connecting your equipment to the back of an EH Series connector is fast and easy. Most connectors are feedthru, which means standard cabling is simply plugged into the back of your gear, then plugged into the back of the EH Series connector. For those EH Series connectors that are not feedthru, solder lugs are clearly marked for simple, secure solder connections.
Configuration:
- Number of Conductors: 3
- Product Line: EH Series
- Mounting Type: Panel
- Termination Style: Solder Cup
- Color: Nickel
- Packaging Type: Bulk
- Standard Connector Type: 3.5mm Jacks & Plugs
Compliance:
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
- Manufacturer: Switchcraft
- MPN: EH35MMSSC
- Model Number: EH35MMSSC
