Key Features
- 1/8" 2-Conductor Male
- Solder Contacts
- Panel Mount Connector
- Black Chrome Finish
Description

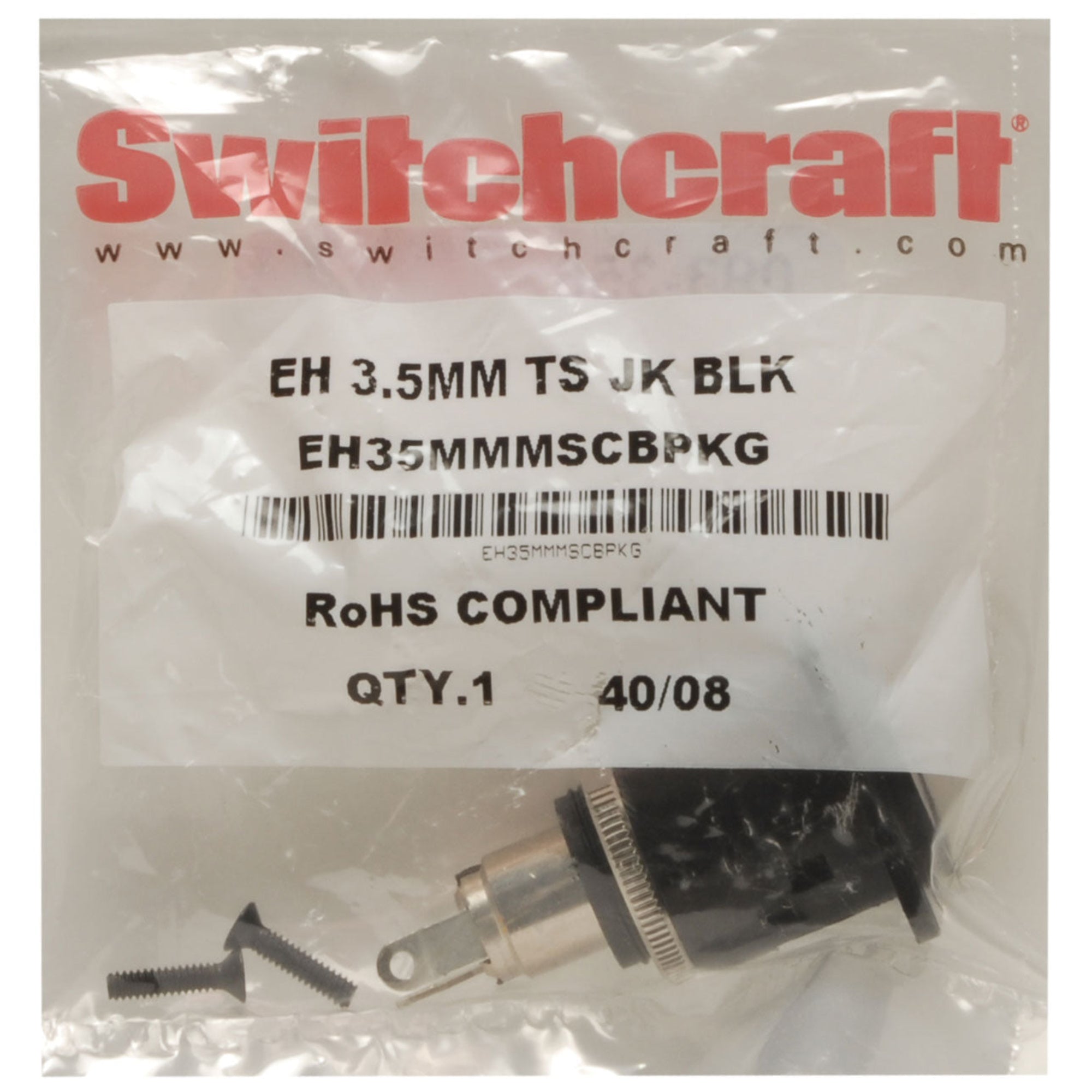

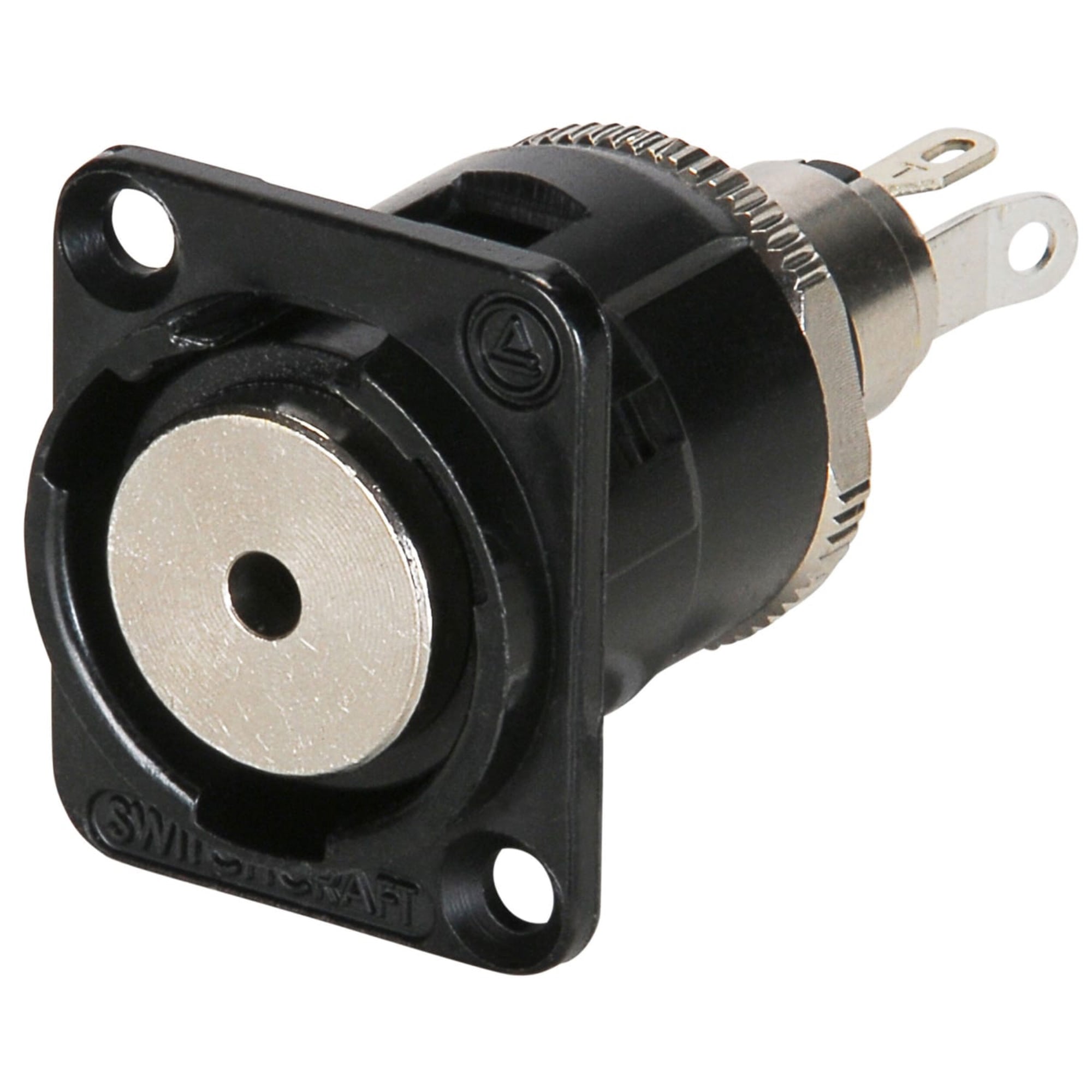

Panel Mount 3.5mm Mono Jack to Solder Contacts
The EH35MMMSCB is a 3.5 mm mono jack to solder contacts EH Series panel mount connector and features a zinc die-cast housing with black chrome finish.
The EH Series by Switchcraft is a complete line of audio, video, and data connectors built into standard panel-mount XLR housings. Custom combinations of EH Series connectors can be quickly loaded into any of our Q-G Series panels. Once mounted, connecting your equipment to the back of an EH Series connector is fast and easy. Most connectors are feedthru, which means standard cabling is simply plugged into the back of your gear, then plugged into the back of the EH Series connector. For those EH Series connectors that are not feedthru, solder lugs are clearly marked for simple, secure solder connections.
Configuration:
- Number of Conductors: 2
- Product Line: EH Series
- Mounting Type: Panel
- Termination Style: Solder Cup
- Color: Black
- Packaging Type: Bulk
- Standard Connector Type: 3.5mm Jacks & Plugs
Compliance:
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
- Manufacturer: Switchcraft
- MPN: EH35MMMSCB
- Model Number: EH35MMMSCB
