Key Features
- 1/4" 2-Conductor Male
- Cable Mount Connector
- 90º Right-Angle
- Solder Lugs
- Shielded Handle
Description

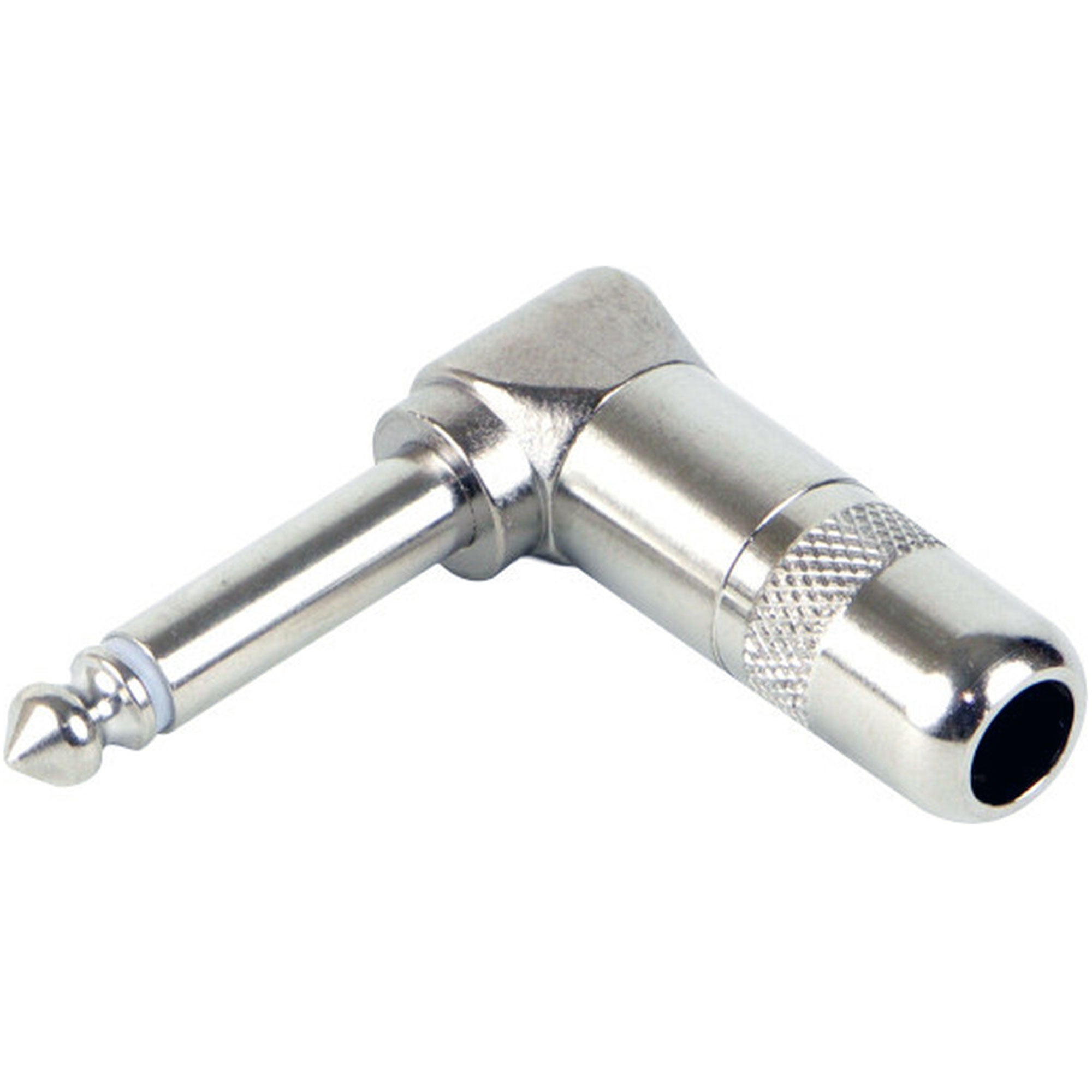

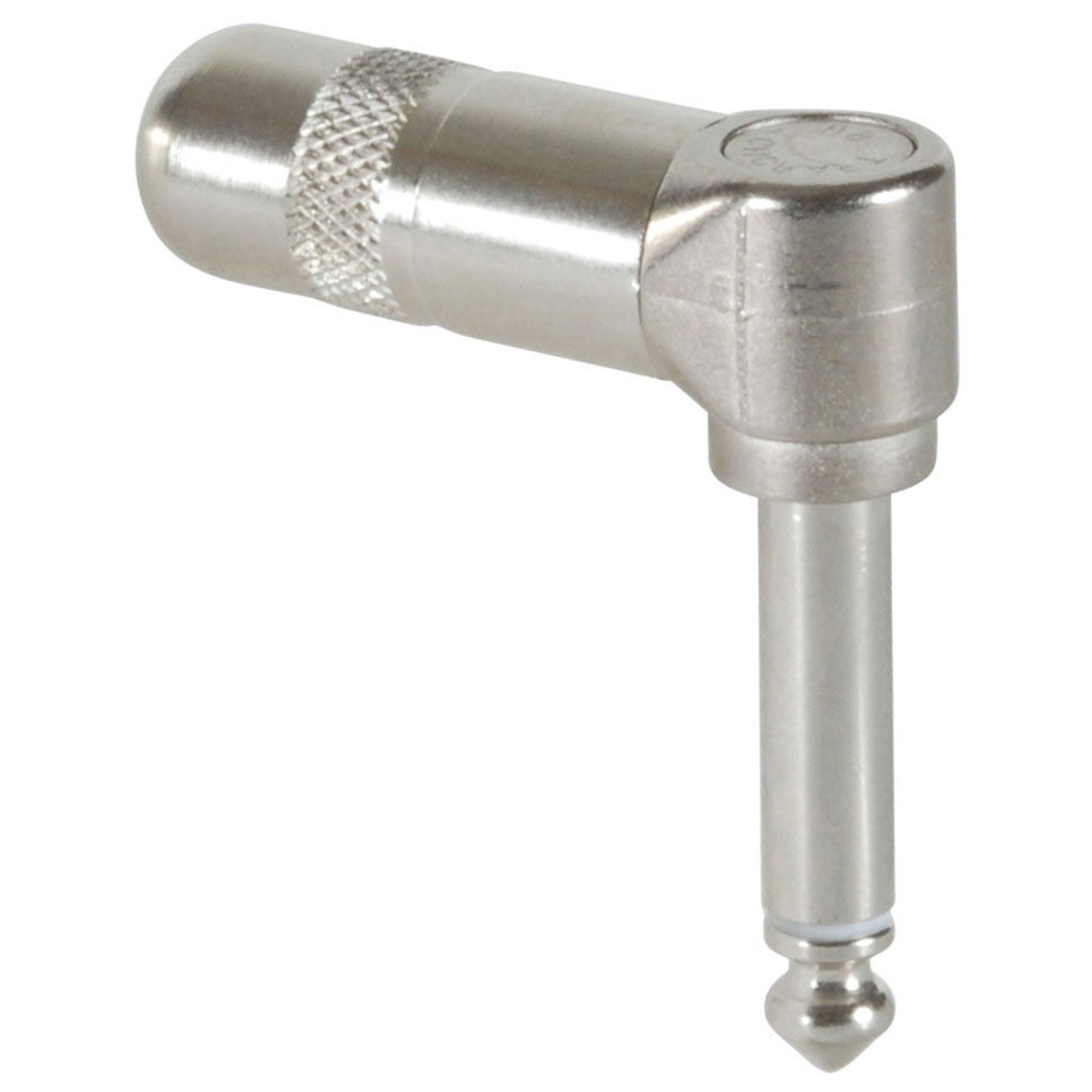

TS Mono 2-Pole Male 1/4" 90° Right-Angle Phone Plug Cable Mount Connector with Solder Contacts

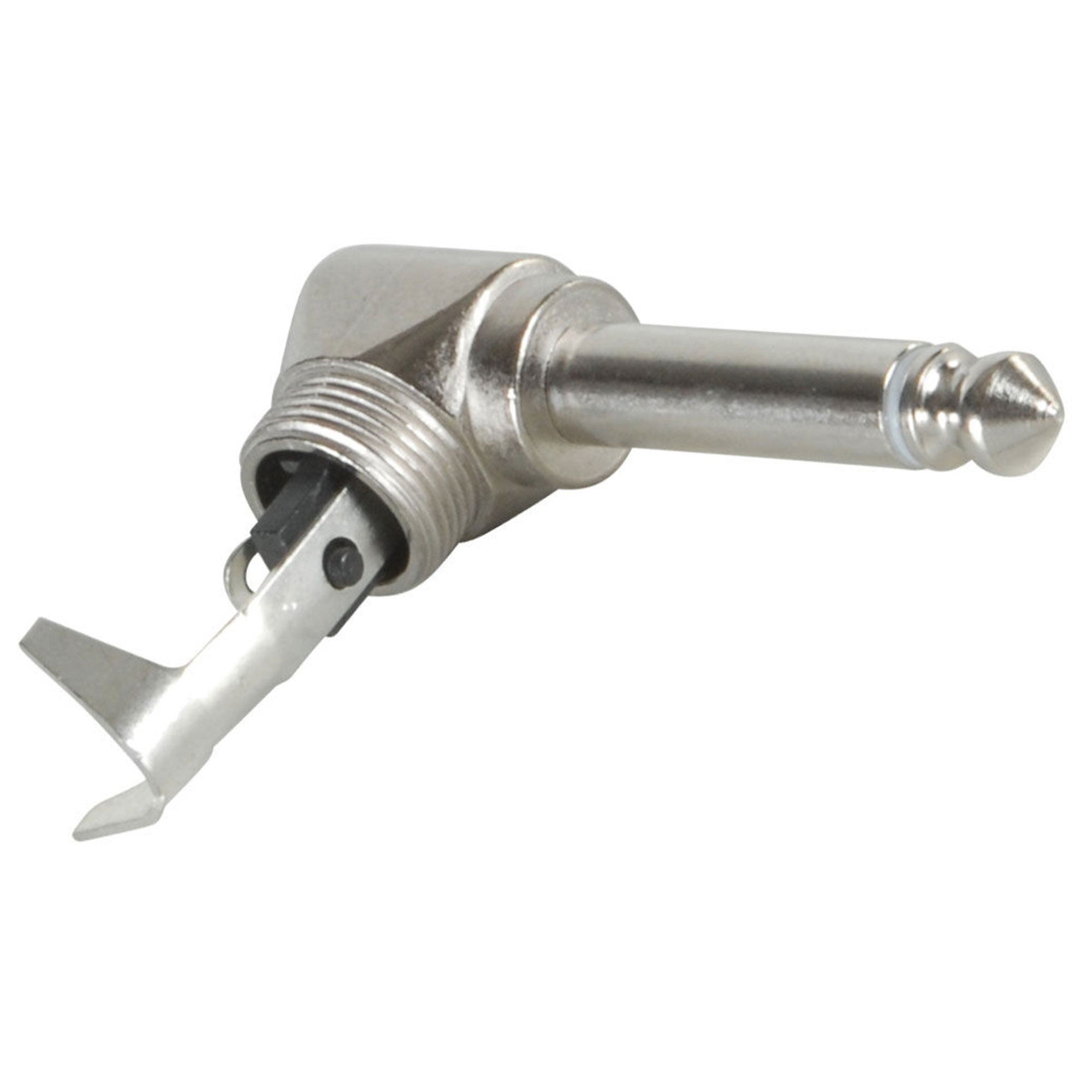

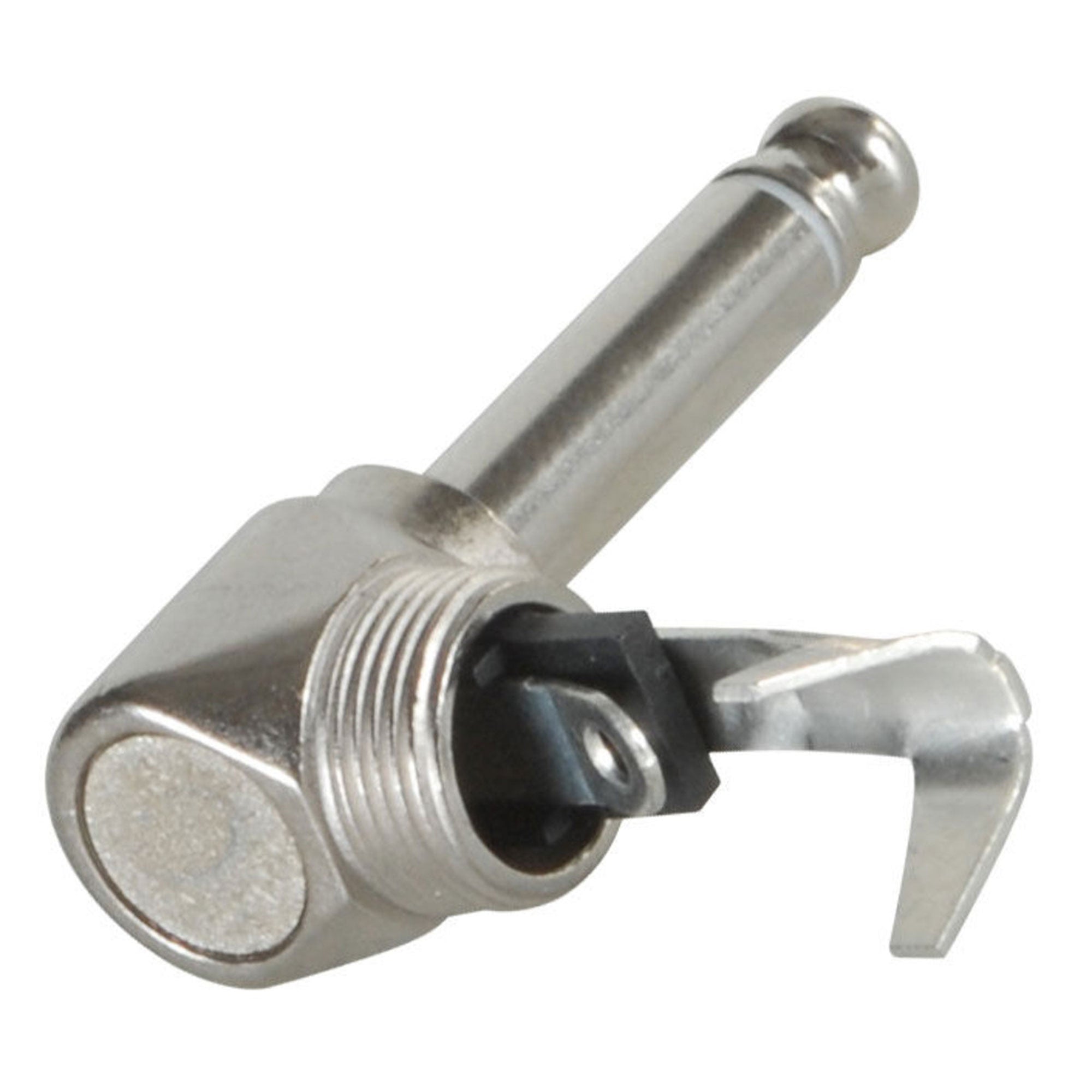

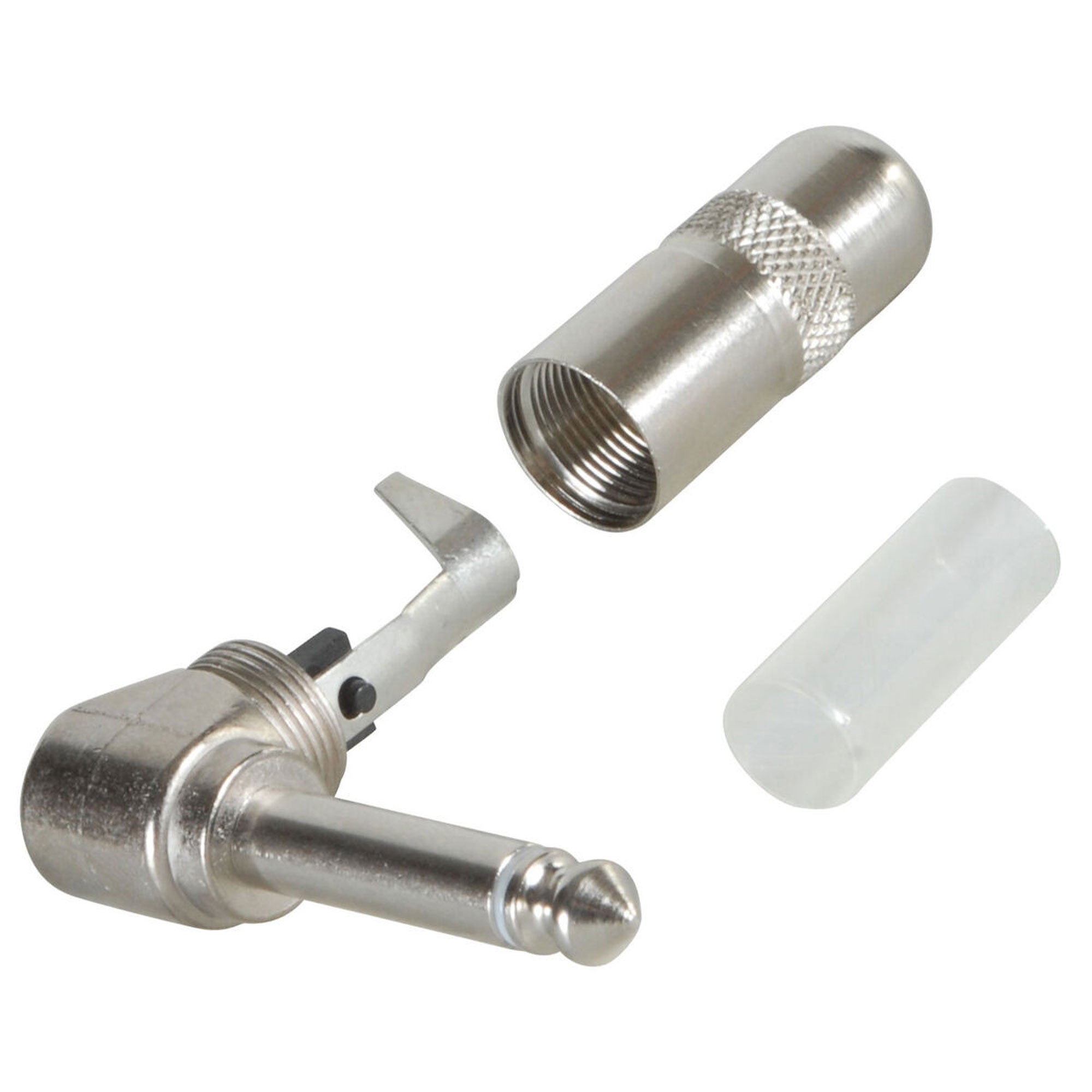

The Switchcraft 1/4" Mono Right Angle 2-Conductor Plug is designed for OEM development and users of commercial grade phone plugs. The plug is comprised of a handle, an insulator, and a finger/housing assembly. It features large terminals for easy 16 AWG wiring. For crowded wiring, the plug utilizes a 1/2" wide low-profile design. For secure connections, the plug features both knurled handles and a rugged cable clamp that prevents the wire strains from twisting or pulling out of the plug.
Specifications:
- Construction: Tip, Rod, and Handle: Nickel-plated copper alloy
- Housing: Nickel-plated
- Terminal: Tip: Tin-plated copper alloy
- Sleeve: Tin-plated steel
- Insulation Material: Thermoplastic
- Dielectric Strength: 500 VAC
- Insulation Resistance: 50,000 MΩ
- Operating Temperature: -20 to 65°C
Details
- Manufacturer: Switchcraft
- MPN: 226
- Model Number: 226
- UPC: 85359200733
