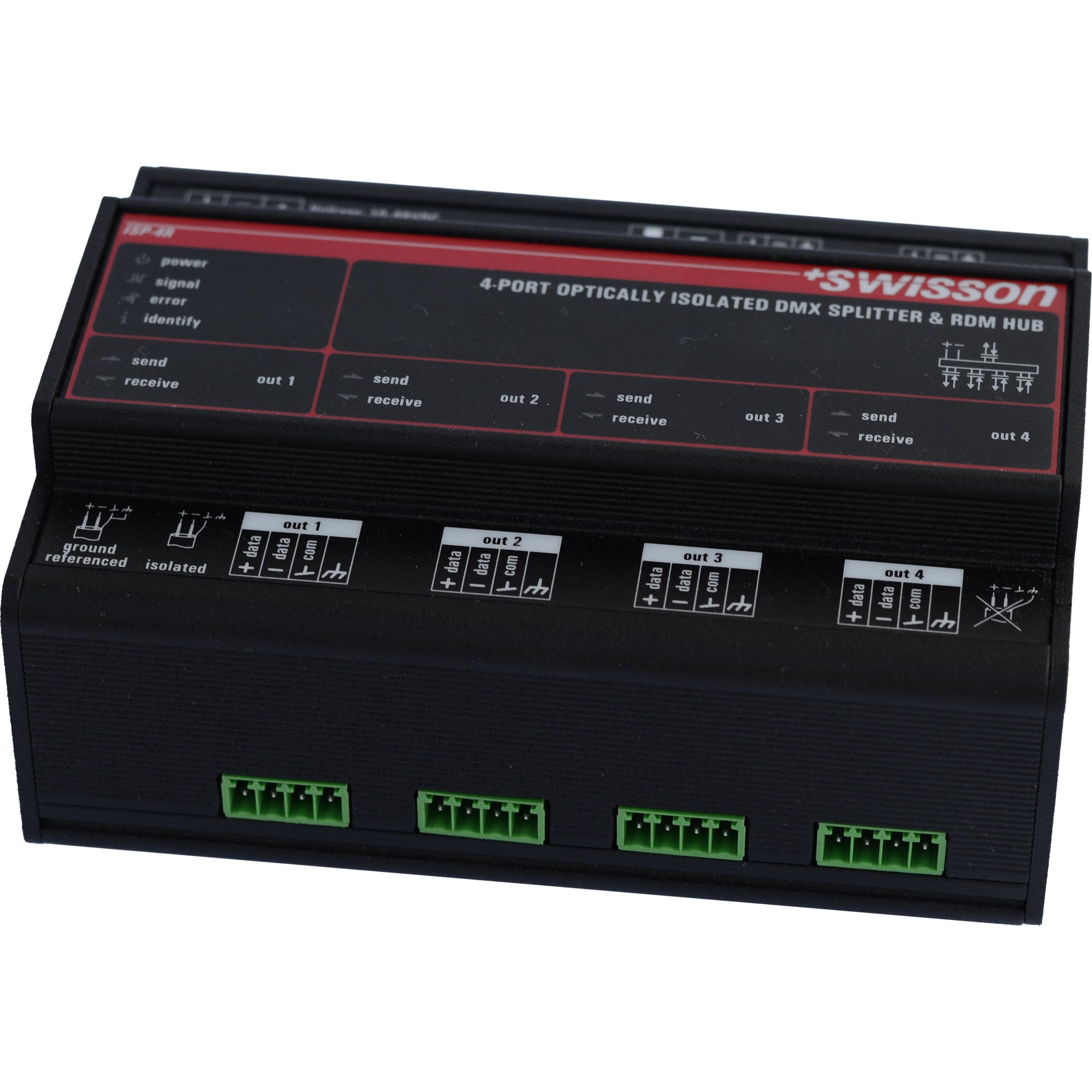

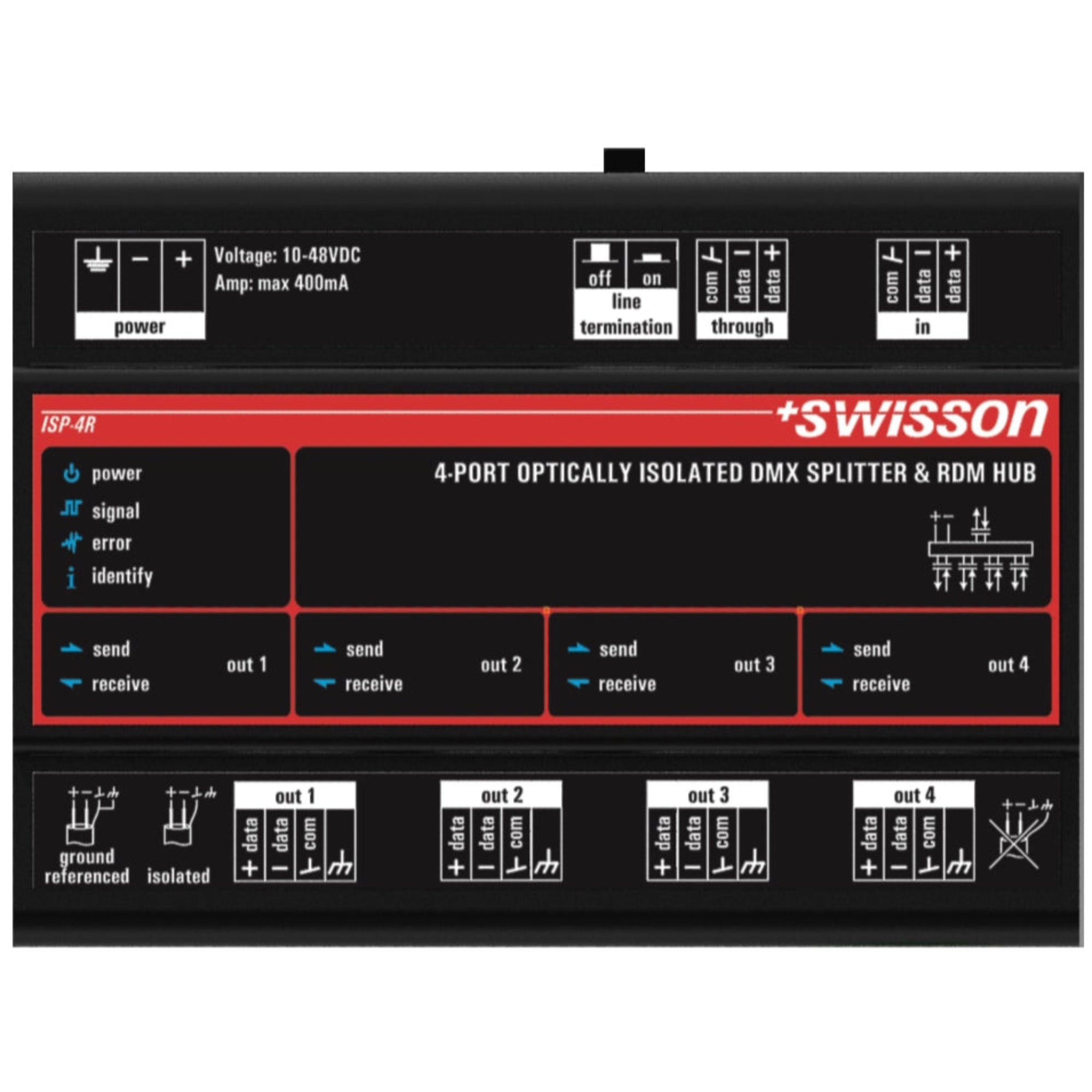

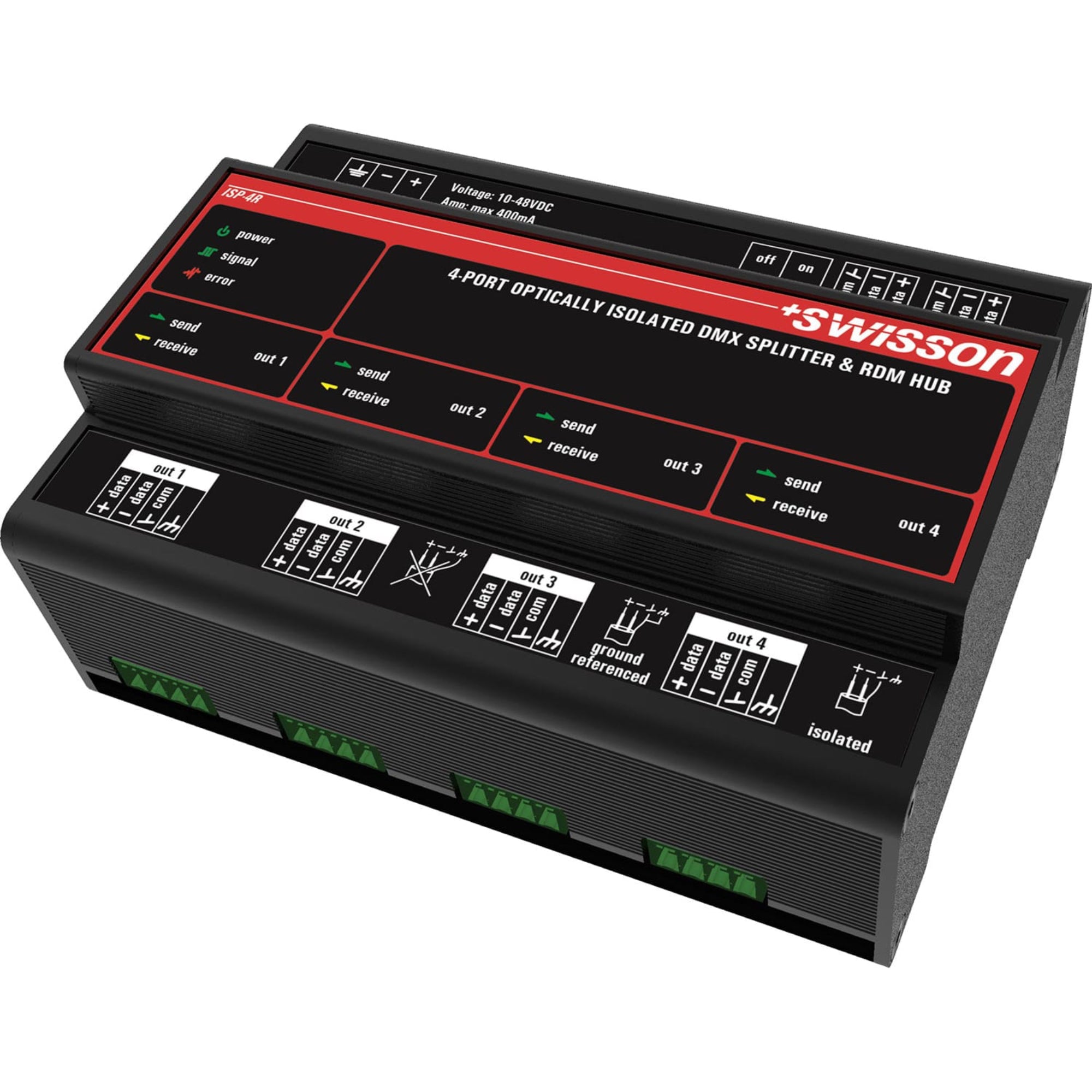

Swisson ISP-4R-DC-TERM DIN Rail Mountable, DMX & RDM Splitter, 4 Outputs, Terminal

DMX & RDM Splitter for DIN Rail Installation - Pluggable Screw Terminals

This installation DMX splitter boosts an incoming DMX signal and provides it on four output ports. This allows for safely going beyond the 32 devices limit of the DMX standard, as well as adding flexibility to your design.

ISP-4 splitters also act as repeaters, allowing for transporting a DMX signal across greater distances.

DMX signals can be disturbed by devices connected to the signal line or the local environment.

With 4 individually optically isolated outputs, as well as an optically isolated input, the ISP-4 splitters may prevent harmful voltages applied to a given port from affecting the other ports and damaging the connected equipment.

Features:

• DIN rail mountable (powered by an external power supply unit).
• DMX splitter / booster
• DMX repeater
• Optically isolated input
• 4 individually optically isolated outputs
• Rugged metal housing
• Built-in termination
• Pluggable screw terminal
