Sumitomo Sumitube B2 3/8" Flexible Polyolefin 2:1 Heat Shrink Tubing - Yellow (By the Foot)

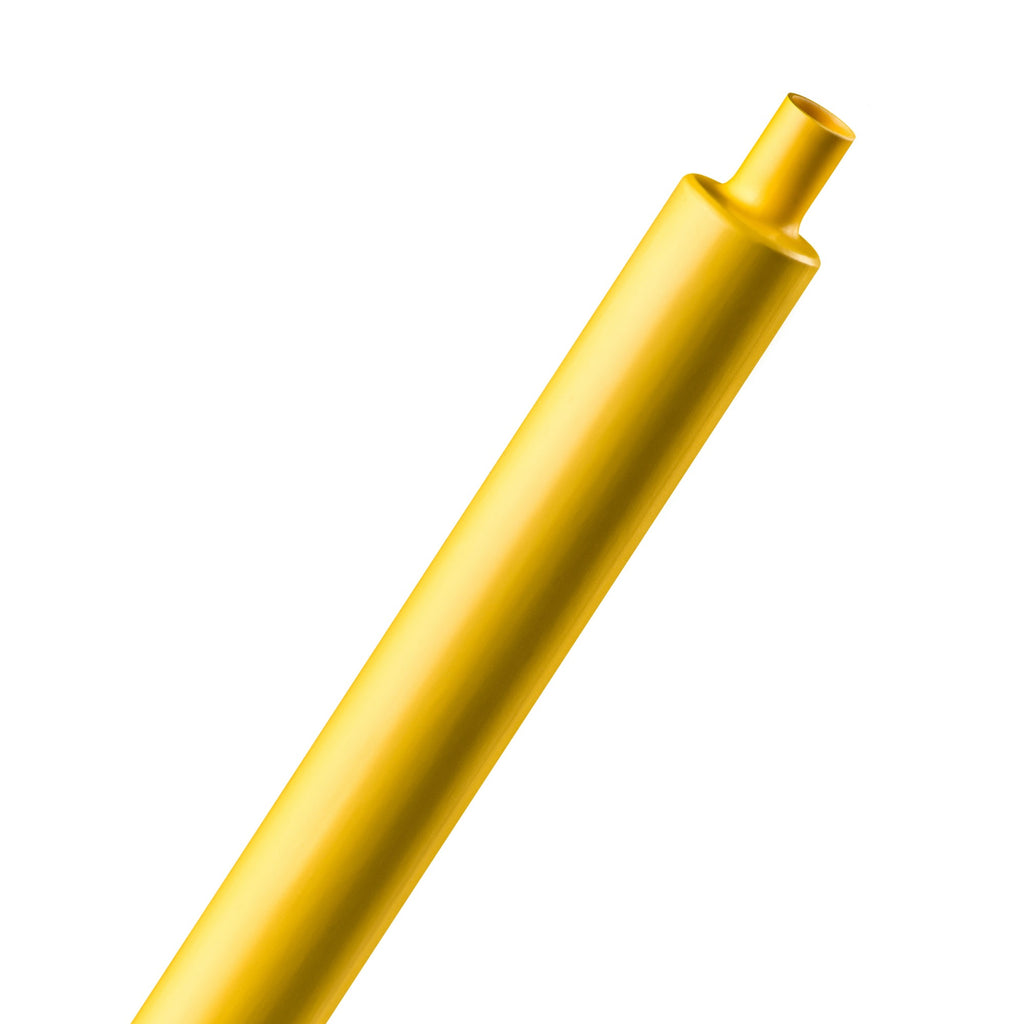

Yellow Sumitomo Sumitube B2 3/8-inch 2:1 heat shrink tubing, by the foot

Yellow Sumitomo Sumitube B2 is flexible, flame-retarded, radiation-crosslinked polyolefin tubing for wire identification, color coding, bundling and compatible electrical insulation applications. This is the nominal 3/8-inch size with a 2:1 shrink ratio.

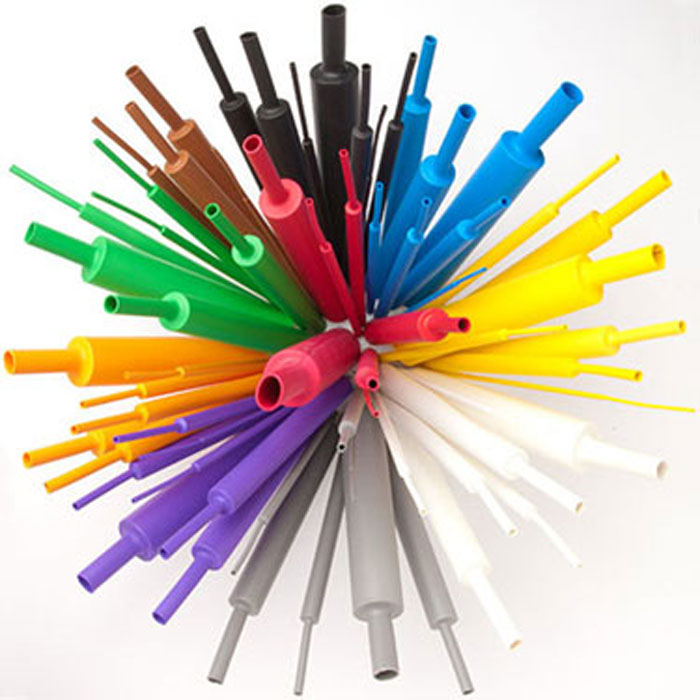

Other matching colors: Black, Brown, Red, Orange, Green, Blue, Purple, Grey and White.

Continuous-length ordering

Quantity 1 = 1 foot; quantity 10 = one continuous 10-foot piece. Cut sections to suit your assembly, allowing for longitudinal change.

Sizing and installation

Tubing must pass over the largest part before heating and recover sufficiently to grip the covered section. Measure the cable, joint or connector, not just wire gauge. The 2:1 ratio describes diameter recovery, not half the length. The original size description is 3/8 inch (10 mm); treat 3/8 inch as nominal, not an exact metric conversion. Confirm expanded and recovered inside-diameter limits if fit is critical.

Install before fitting connectors if necessary. Do not assume an adhesive-lined or watertight seal. Apply controlled, even heat following manufacturer instructions; check surrounding components' heat limits, avoid overheating, cool and inspect. The listed minimum shrink temperature is not a universal heat-tool setting. Tubing does not replace connector strain relief.

Features and applications

• Yellow nominal 3/8-inch 2:1 tubing.
• Flexible irradiated cross-linked polyolefin.
• Flame-retarded formulation, listed PBDE/PBB-free.
• Wire marking, color coding and light harness bundling.
• Insulation, protection and reinforcement of suitable wire terminations and joints.
• Insulation and protection of suitable resistors and capacitors.
• Continuous-length by-the-foot ordering.
• Listed RoHS 10-substance and ELV references; confirm current material documentation when required.

Specifications

• SUMITUBE B2; Yellow.
• Nominal 3/8 inch; original metric size reference 10 mm.
• 2:1 ratio; listed diameter shrink minimum 50%.
• Minimum shrink temperature 90°C.
• Longitudinal change 0 ±5%.
• Listed continuous operating range −55°C to +135°C.
• Listed SAE-AMS-DTL-23053/5 Class 3.
• Listed UL224: E48762, SUMITUBE B2 or 826; 125°C, 600 V, VW-1.
• Listed CSA C22.2 No. 198.1: LR33298; 125°C, 600 V, VW-1.

The 125°C UL/CSA rating is separate from the general operating range. For specification-controlled work, confirm applicable size, color, manufacturer documentation and assembly requirements; these details do not approve a finished assembly.

Other configurations

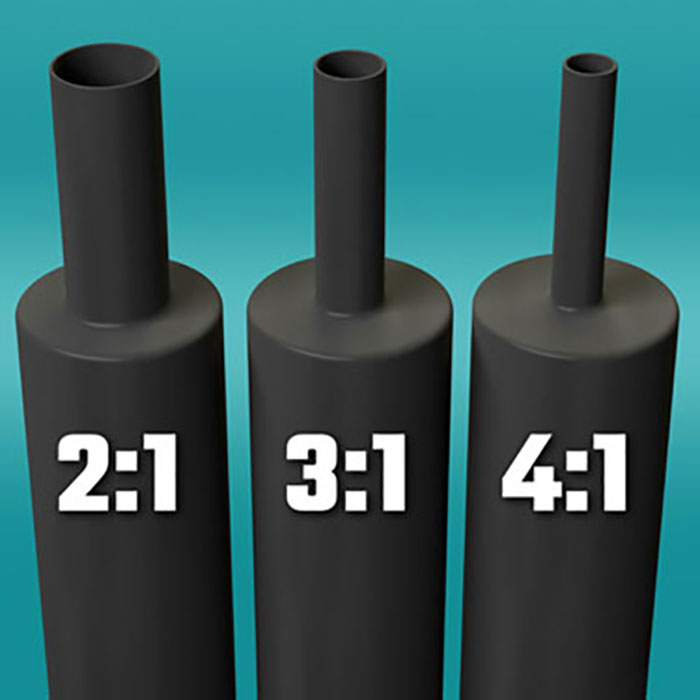

Other sizes and higher-expansion B2(3X), B2(4X) and B2(4XC) are separate products. Confirm fit and availability before choosing an alternative.
