Sumitomo Sumitube B2 1/8" Flexible Polyolefin 2:1 Heat Shrink Tubing - Grey (By the Foot)

Sumitomo Electric SKU: HET B2GREY18
MPN: B2 GREY 1/8

Price:
Sale price$0.34
Stock:
In Stock & Ready to Ship

Key Features

  • Heat Shrink Ratio 2:1
  • 1/8 (3.5 mm) Diameter Before
  • 1/16" (1.6 mm) Diameter After
  • Matte Grey Finish
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

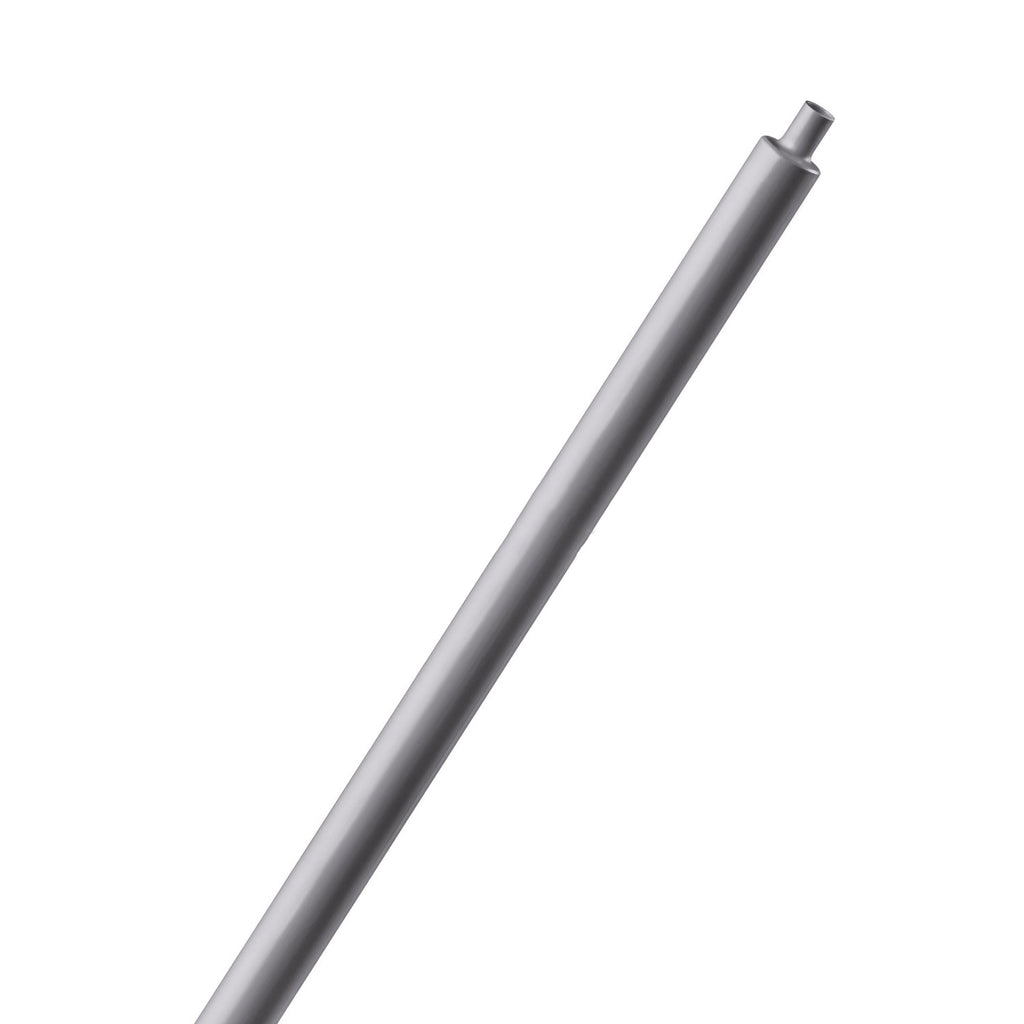

Grey Sumitomo Sumitube B2 1/8" 2:1 heat shrink tubing

Sumitomo Sumitube B2 in grey is flexible, flame-retarded polyolefin heat shrink tubing with a 2:1 shrink ratio for wire identification, insulation and protection of suitable terminations and light wire harness assemblies. This 1/8" size has a 2:1 shrink ratio and is sold by the foot in a continuous length.

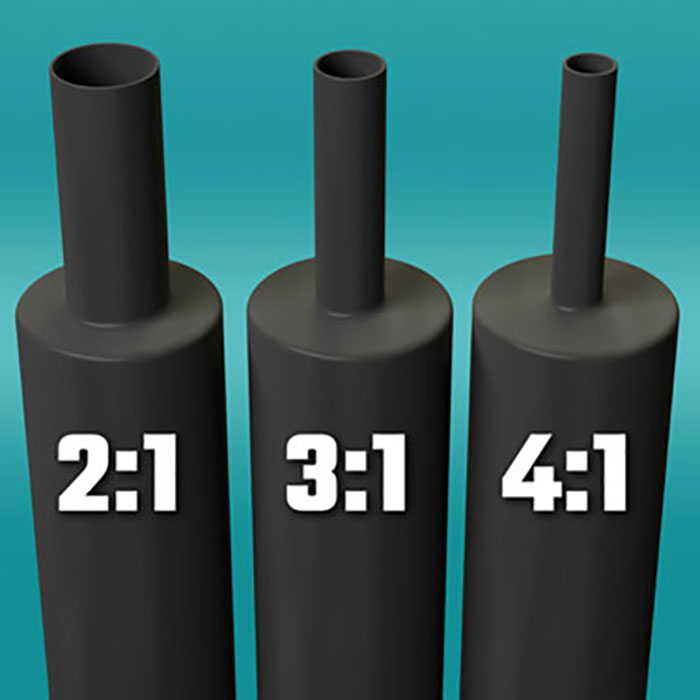

The 2:1 recovery ratio reduces the expanded diameter to approximately one-half when fully recovered. Use the grey finish for color-coded cable assemblies, wire marking and harness organization.

Ordering and choosing your size

Quantity 1 is 1 foot; quantity 10 is one continuous 10-foot length. Cut sections to suit your assembly. Choose tubing that passes over the largest component before heating and recovers sufficiently around the section you need to cover. The shrink ratio refers to diameter, not length. Confirm expanded and recovered inside-diameter limits when fit is critical.

Applications

  • Color identification and bundling of electric wires.
  • Insulation, protection and reinforcement of suitable wire joints and terminations.
  • Protection of suitable resistors, capacitors and light harness components.

Specifications

  • Series: SUMITUBE B2; color: Grey.
  • Nominal size: 1/8 inch; original metric size: 3.5 mm.
  • Shrink ratio: 2:1; listed diameter shrink: minimum 50%.
  • Minimum shrink temperature: 90°C.
  • Longitudinal change: 0 ±5%.
  • Listed continuous operating temperature: −55°C to +135°C.
  • Listed SAE-AMS-DTL-23053/5 Class 3.
  • Listed UL224: File E48762, SUMITUBE B2 or 826, 125°C, 600 V, VW-1.
  • Listed CSA C22.2 No. 198.1: File LR33298, 125°C, 600 V, VW-1.

The 125°C UL/CSA rating temperature is separate from the general operating range. For specification-controlled work, confirm the applicable size, color, current manufacturer documentation and assembly requirements; these listing details are not approval of a finished assembly.

Other configurations

Other sizes and higher-expansion B2(3X), B2(4X) and B2(4XC) series are separate products, not interchangeable shrink ratios for this listing. Confirm fit and availability before choosing an alternative.

Details
  • Manufacturer:  Sumitomo Electric
  • MPN: B2 GREY 1/8
  • Model Number: Heat Shrink 0.13" Grey
