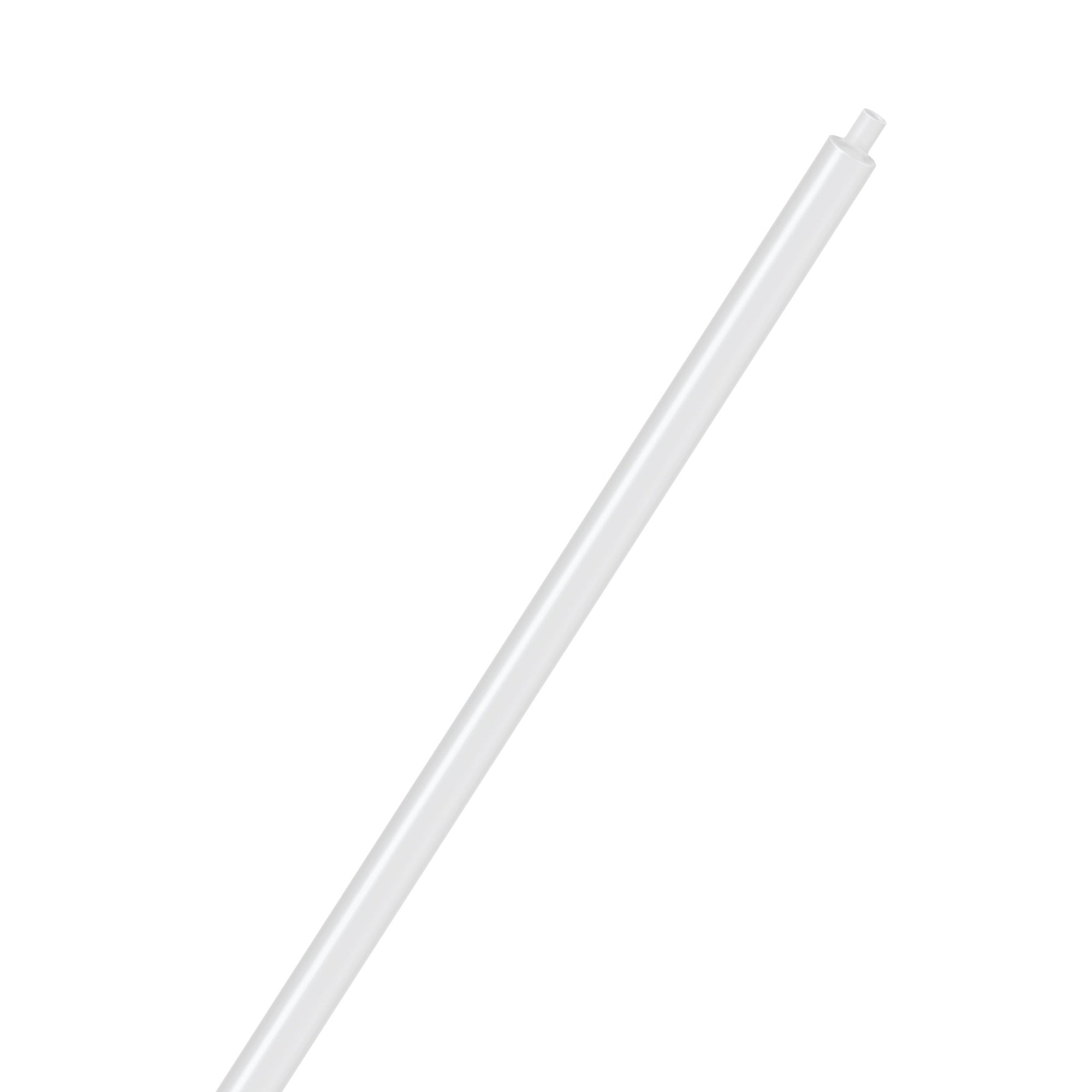

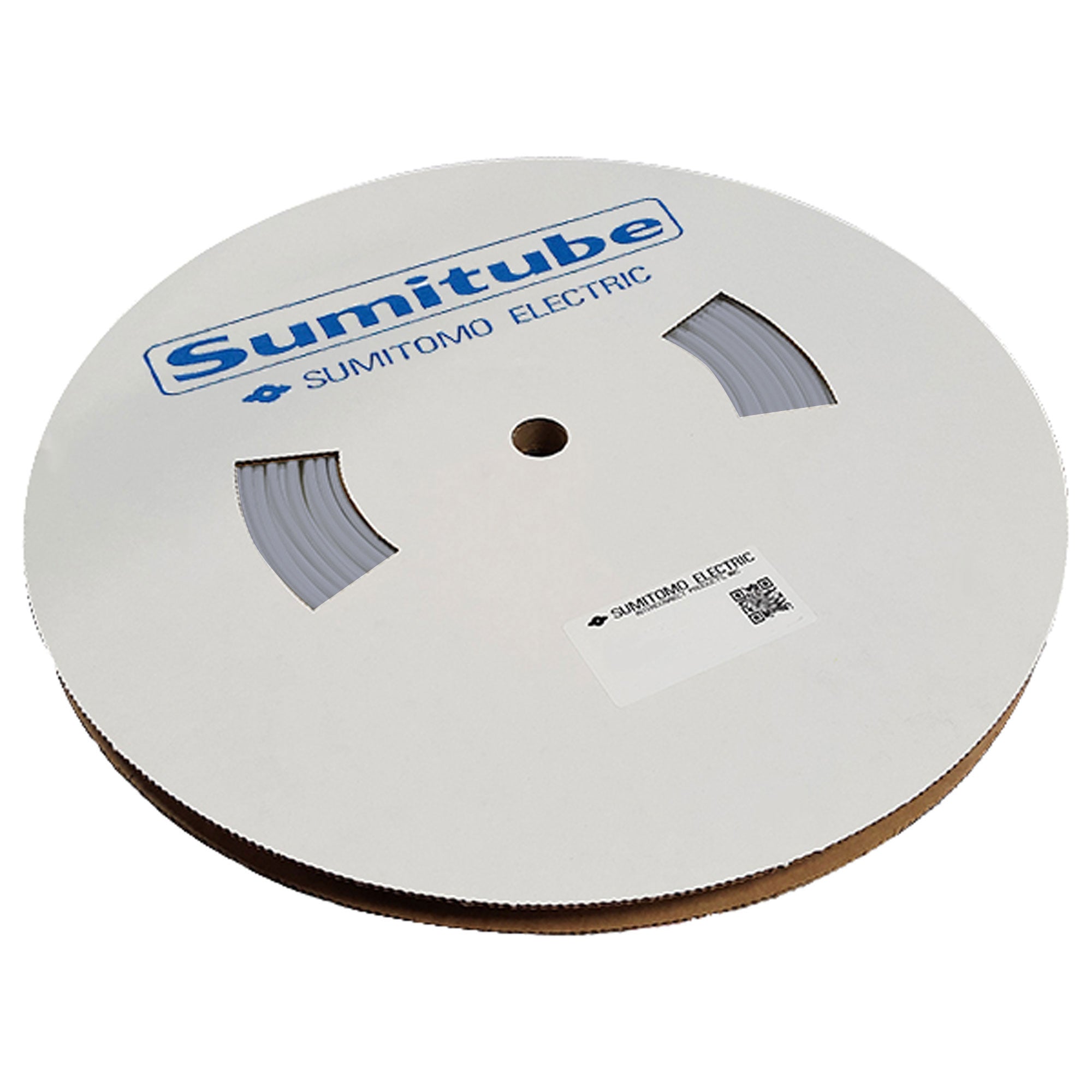

Sumitomo Sumitube A2 1/16" Flexible Polyolefin 2:1 Heat Shrink Tubing - Clear (1000' Spool)

Clear 1/16" (2 mm) Flexible Polyolefin Heat Shrink Tube with a 2 to 1 Ratio - Full 1000' Spool

SUMITUBE A2 is a flexible, clear polyolefin heat-shrinkable tubing which meets all of the material and functional requirements of Military Specification AMS-DTL-23053/5C, Class 2. A2 is recommended for general purpose applications such as electrical insulation or light weight harness jacketing, where visual inspection of the substrate is desirable. For 3:1 shrink version see A2(3X).

This is high-grade, mil-spec polyolefin heat shrinkable tubing. Very versatile through excellent balance of chemical, electrical and mechanical properties. Shrunken size is approximately half of original diameter. Our standard color is black.

Sold by the Foot (Shipped in a Continuous Length)

Features:

• Fast, safe, secure way to wrap wiring harnesses.
• Protects and insulates.
• Great variety of top pro quality heat shrink tubing.
• Will shrink up to half of original diameter.
• SAE-AMS/UL/CSA recognized.
• Flame-retarded (PBDE/PBB-free)
• Flexible
• Bright colors
• RoHS directive 10 substances
• Applications
• Insulation, protection and reinforcement for termination and joints of electric wire.
• Color identification and bundling for electric wires.
• Insulation and protection of resistors and capacitors.

Specifications:

• Category: Heat-shrinkable tubing
• Material: Irradiated cross-linked flexible flame-retarded polyolefin
• Flammability: Flame Retarded
• Shrink temperature: min. 110°C
• Shrink ratio: min. 50%
• Longitudinal change: 0 ±5%
• Continuous operating temperature: -55 to 135°C
• Specifications/Approvals: SAE-AS23053/5 Class 2
• Marking on Surface: -
• Available colors: Clear
• Flexibility: Flexible
• Environmental Compliance: RoHS,ELV
• Industry: Automotive,Military / Aerospace,Construction machinery,Industrial machinery,Electronics
