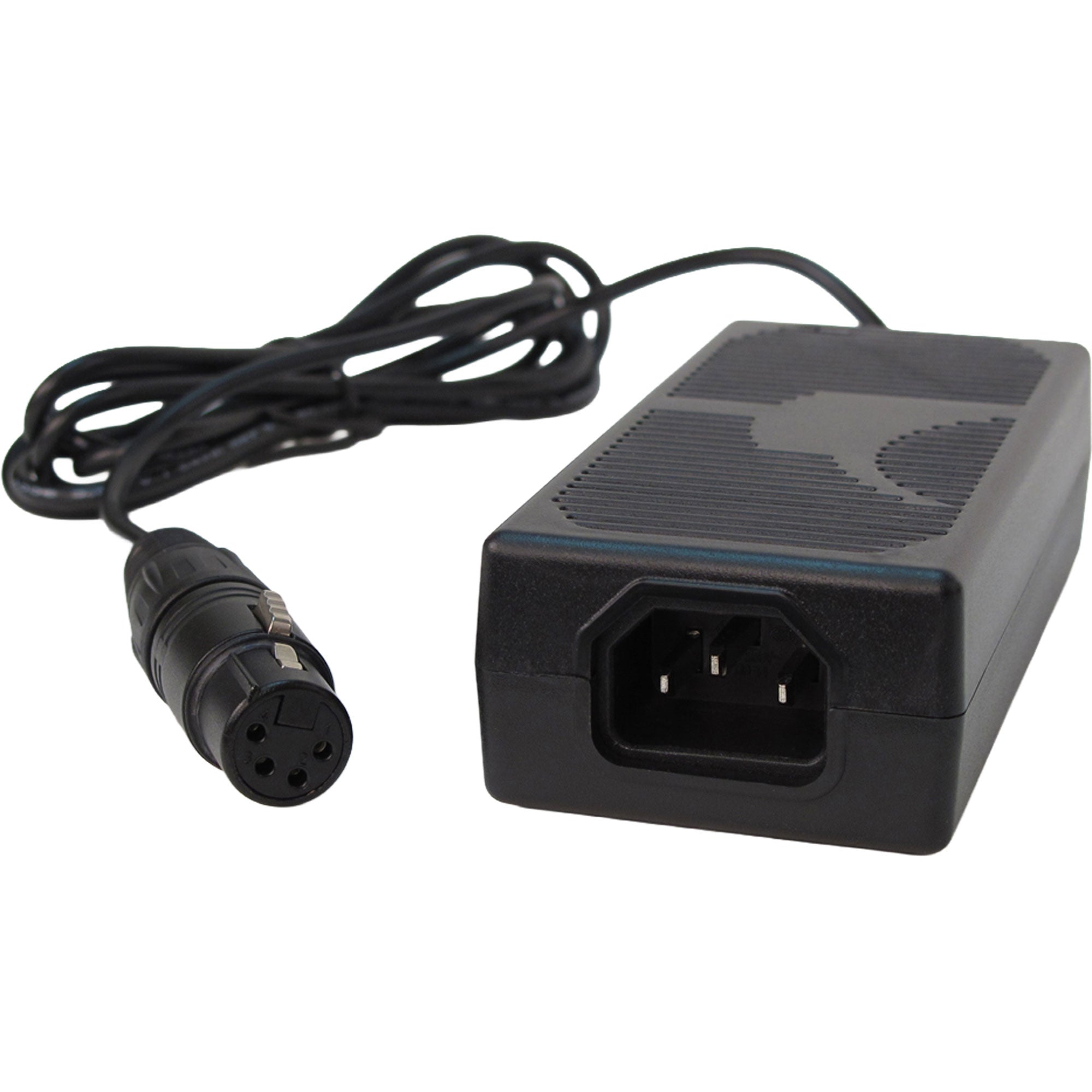

Studio Technologies PS-DC-01 Replacement Power Supply

12 Vdc 5 A Replacement Power Supply

Universal input, 100-240 volts, 50/60 Hz; 12 volts DC, 5 amps (60 watts) output power supply. IEC C14 mains inlet; cable-mounted 4-pin female XLR DC output. Pin 1 of the XLR connector is connected to both the earth pin of the mains inlet connector and the negative potential of the 12 volt DC output. Pin 4 of the XLR connector is connected to the positive potential of the 12 volt DC output. External tabletop unit features worldwide approvals and output status LED indicator. AC mains cord not included.

This power supply is for use with the following products:

• Live-Link Remote Camera Interface Systems
• Model 792 Central Controller
• Model 5100-Series Broadcast Support Modules
