Key Features
- World's Smallest 1/4" Straight Plug!
- Unmatched Strain Relief & EMI Protection
- Solder Tabs for Quick & Easy Soldering

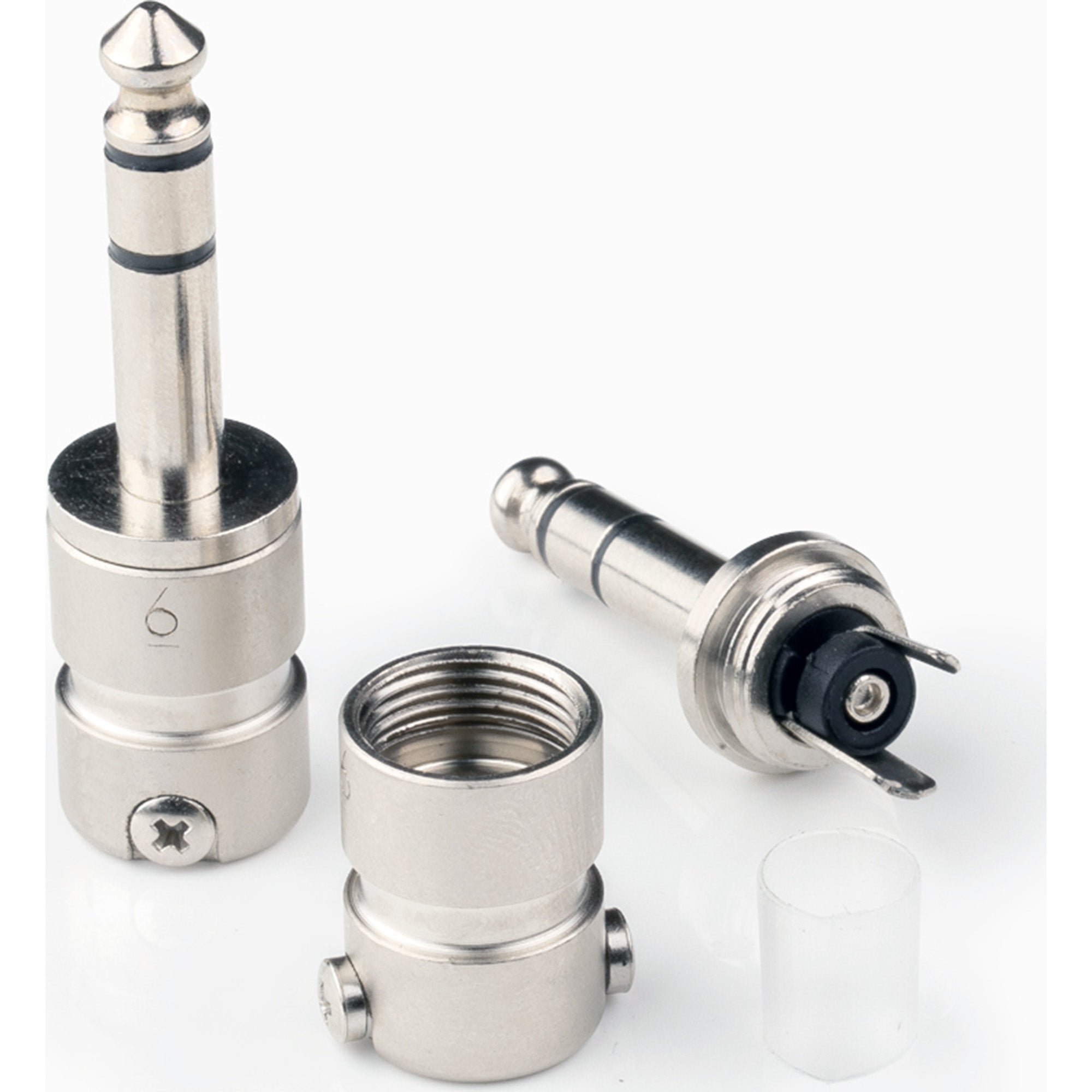

- Insulation Tube to Prevent Shorting
- Color Coding: Yes with Optional Screws
- Serviceable, All-Metal Construction
- Available in Silver & Black Finish
Description

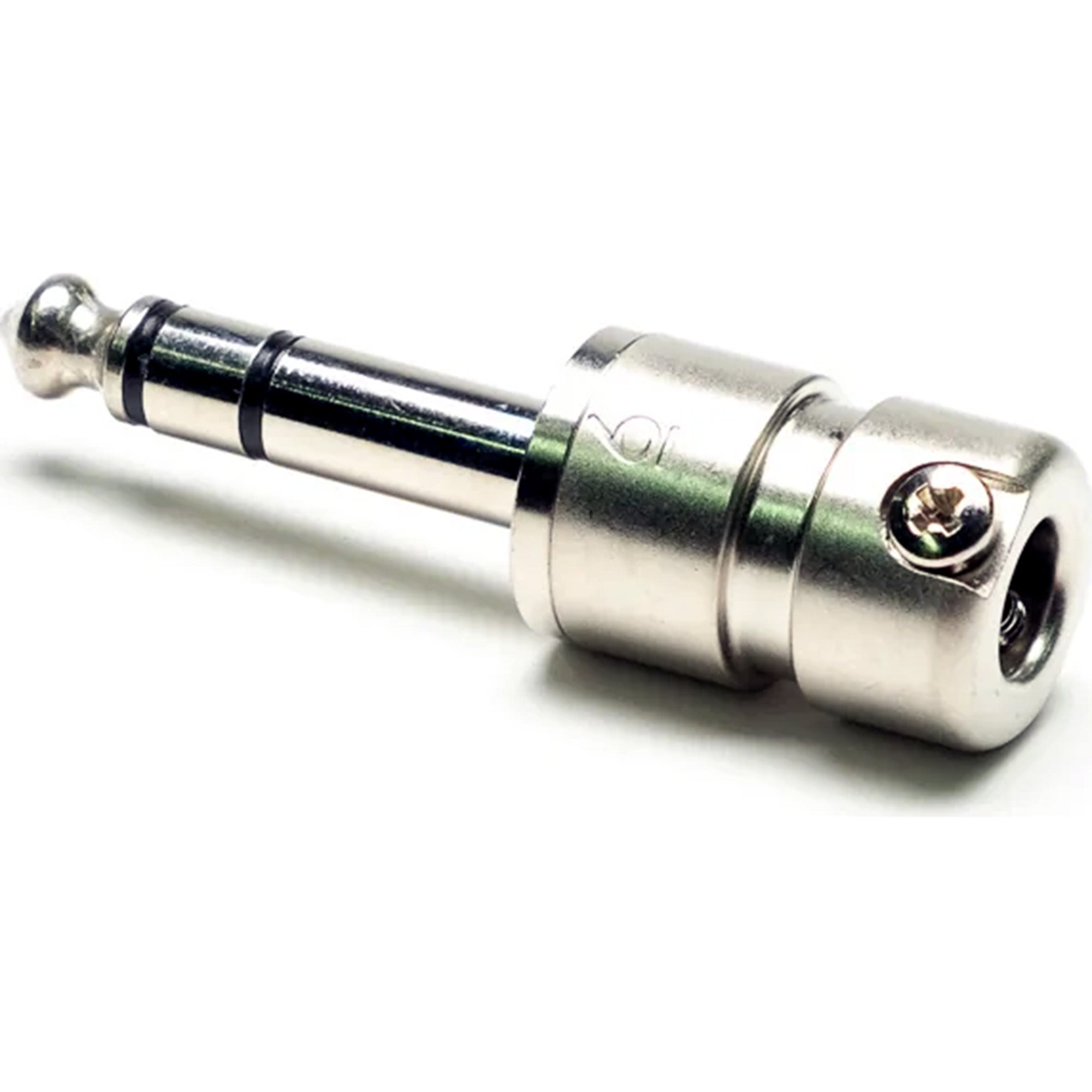

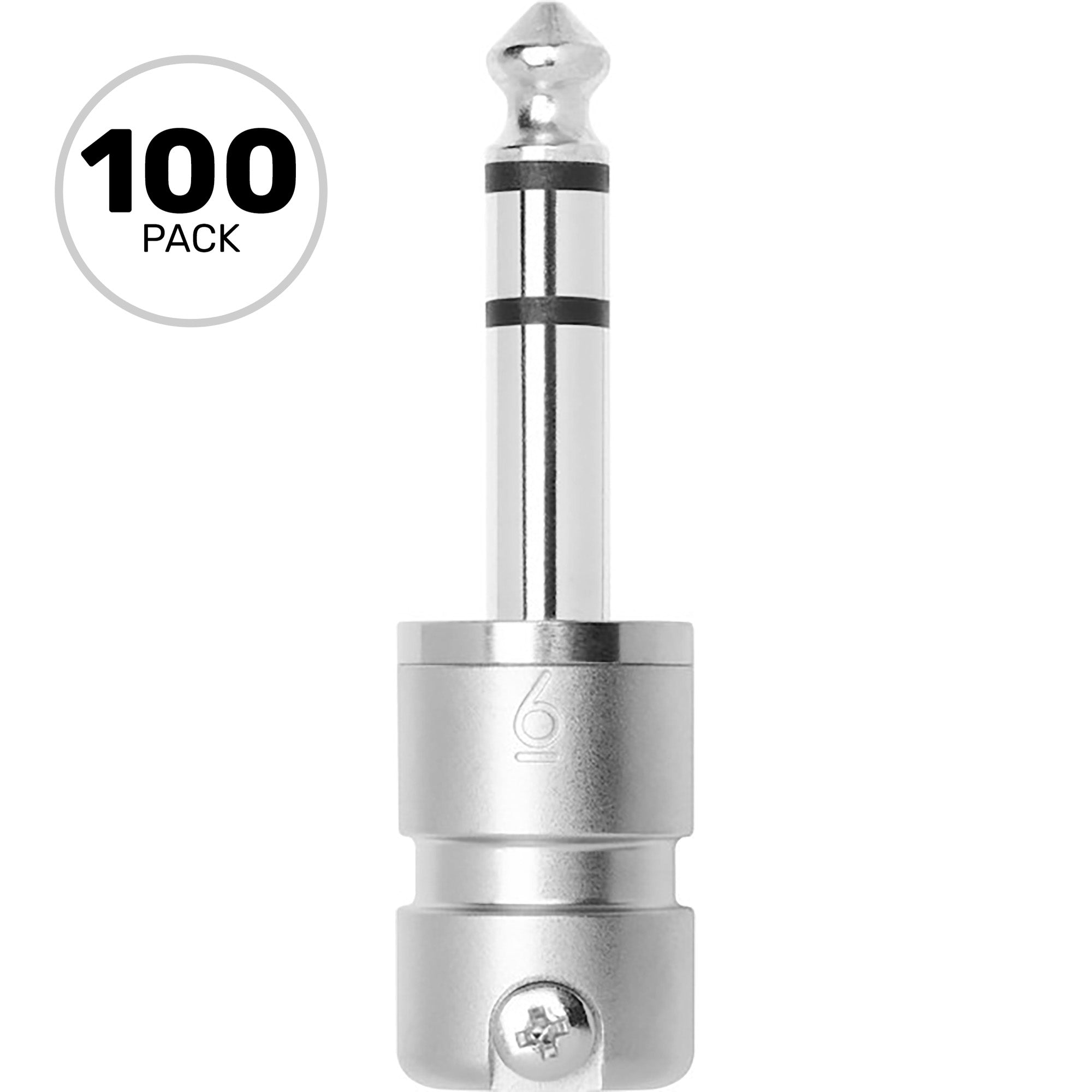

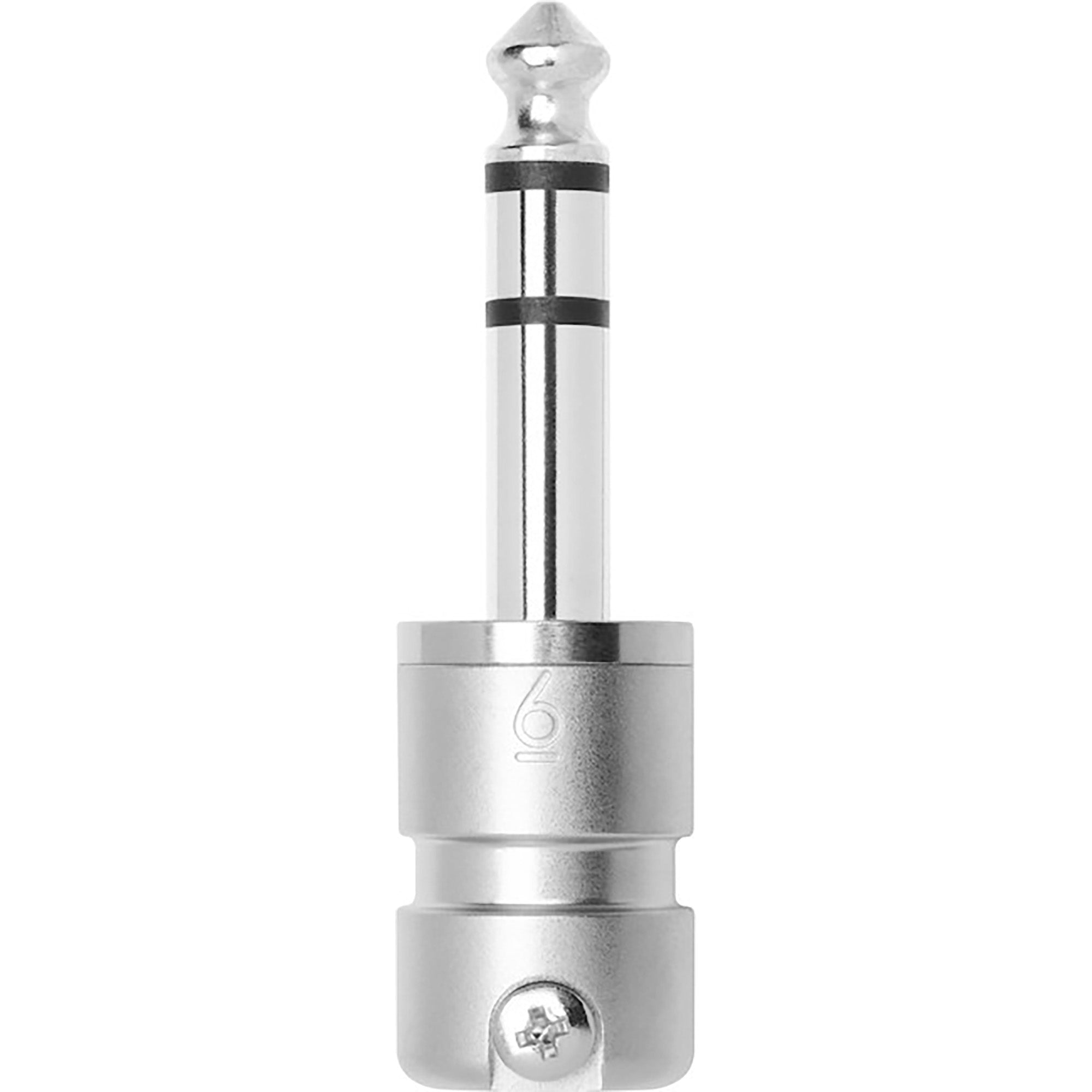

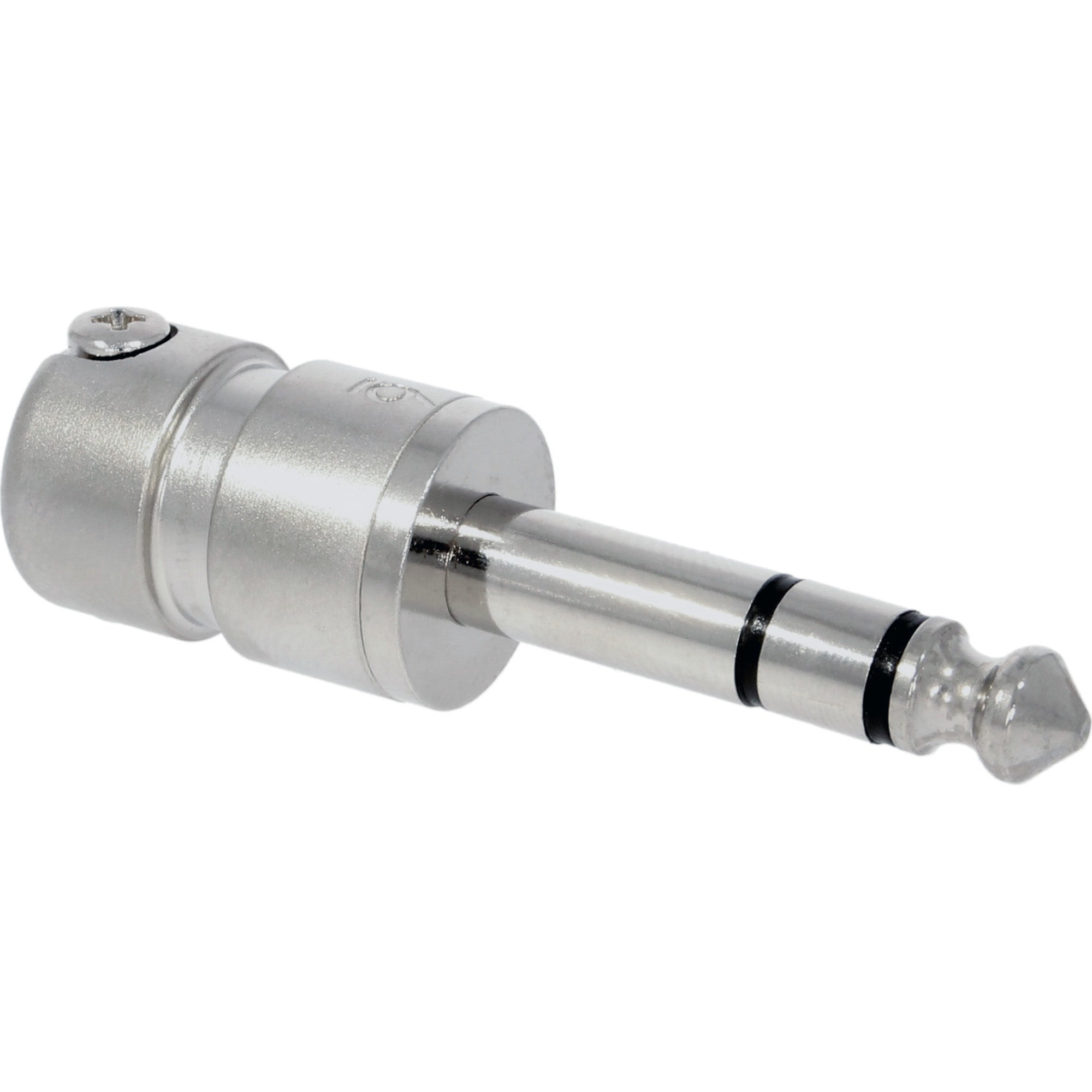

Short Handle Straight 1/4" Stereo TRS Cable End Connector for Cables up to 6.2mm OD - Matte Nickel - Package of 100

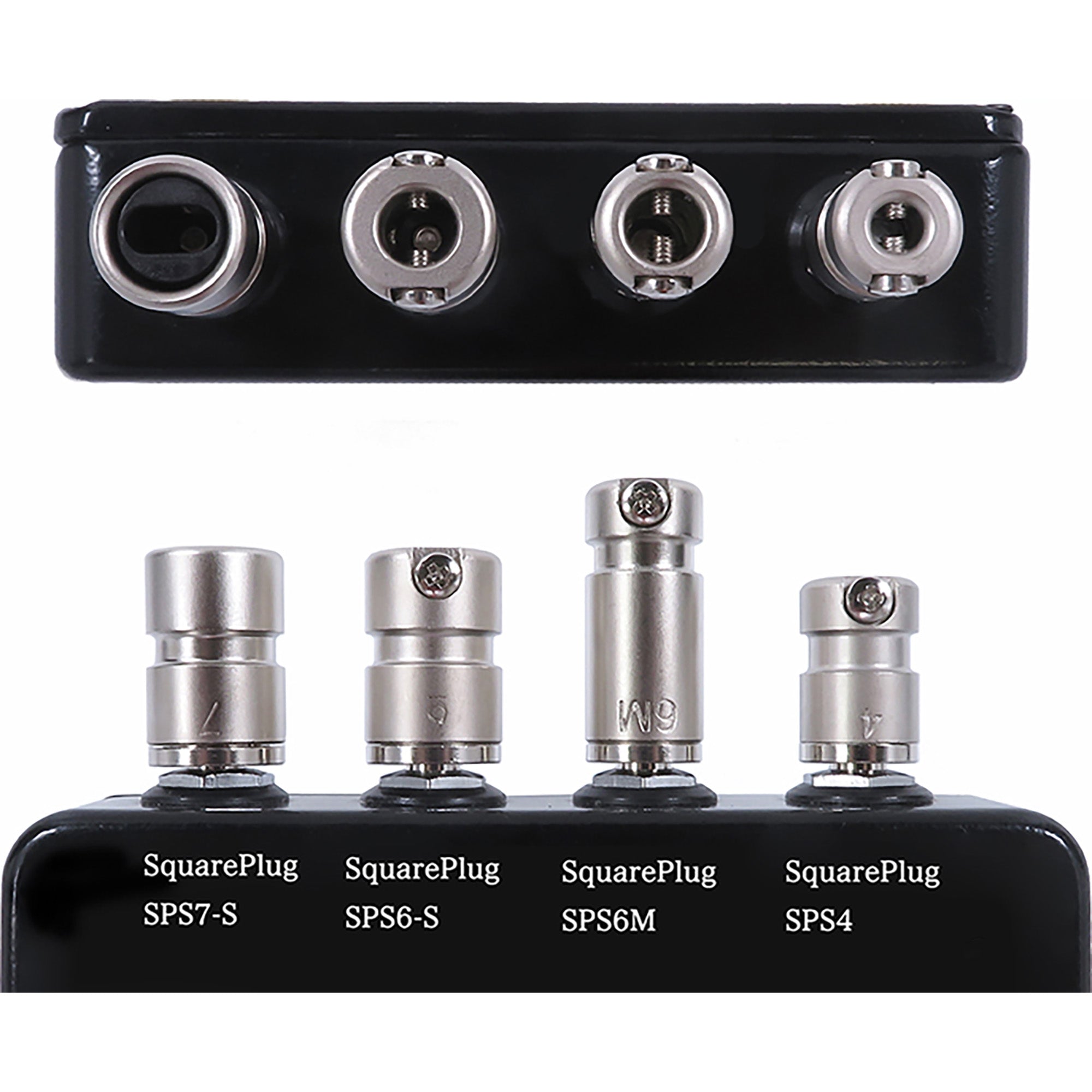

SPS6-S is our straight TRS plug similar in design to its SPS4/5 TS counterparts. It can accommodate balanced cables with an OD up to 6.5mm, and pairs perfectly with our short body XLR plugs for 1/4"-XLR cables assemblies.
SquarePlug offers the most comprehensive range of low profile audio connectors in the industry. The product line consists of 11 different models, set to cover virtually every possible application where low profile balanced and unbalanced audio cabling is required. Besides the obvious small form factor competitive advantage, SquarePlug connectors provide a set of functionalities not found elsewhere, such as:
An improved strain relief design preventing any axial AND lateral cable movements, thus keeping the solder joints completely stress-free.
An elegant cable identification/tracing system built around a set of colored screws - 2 screws per connector, 10 different colors - that can be retrofitted on all SP connectors. 55 distinct combinations can be built this way.
SquarePlugs are protected by domestic and foreign patents.
CHOOSING THE RIGHT CONNECTOR
| CABLE TYPE ⇢ | UNBALANCED / MONO | UNBALANCED / MONO | UNBALANCED / MONO | BALANCED / STEREO |
| CABLE DIAMETER ⇢ | 3.8 — 4.6 MM | 4.8 — 5.8 MM | 5.8 — 6.5 MM | 4.5 — 6.2 MM |
| SP400 / 400BK | ◉ | |||
| SP500 / 500BK | ◉ | |||
| SP600 / 600BK | ◉ | |||
| SP550-S / 550-SBK | ◉ | |||
| SPS4 / 4BK | ◉ | |||
| SPS5 / 5BK | ◉ | |||
| SPS6M / 6MBK | ◉ | |||
| SPS6-S / 6-SBK | ◉ | |||
| SPS7-S / 7-SBK | ◉ | |||
| SPX-M | ◉ | |||
| SPX-F | ◉ |
POPULAR CABLES COMPATIBILITY CHART
| ◉ | TIGHT OR CLOSE-TO-TIGHT FIT |
| ◎ | LOOSE FIT |
| ✕ | NO FIT |
| — | NOT APPLICABLE |
| CABLE ⇣ | SP400 / 400BK | SP500 / 500BK | SP600 / 600BK | SP550-S / 550-SBK | SPS4 / 4BK | SPS5 / 5BK | SPS6M / 6MBK | SPS6-S / 6-SBK | SPS7-S / 7-SBK |
| BELDEN 1865A | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| BELDEN 8218 | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| CANARE GS4 | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| CANARE GS6 | ✕ | ◉ | ◎ | — | ✕ | ◉ | ◎ | — | ✕ |
| MOGAMI 2314 | ◉ | ◎ | ◎ | — | ◉ | ◎ | ◎ | — | ◉ |
| MOGAMI 2319 | ✕ | ◉ | ◎ | — | ✕ | ◉ | ◎ | — | ✕ |
| MOGAMI 2524 | ✕ | ✕ | ◉ | — | ✕ | ✕ | ◉ | — | ✕ |
| MOGAMI 2552 | — | — | — | ◉ | — | — | — | ◉ | — |
| PRO CO 120SM | ✕ | ◉ | ◎ | — | ✕ | ◉ | ◎ | — | ✕ |
Features:
- Low profile design for highest packing density

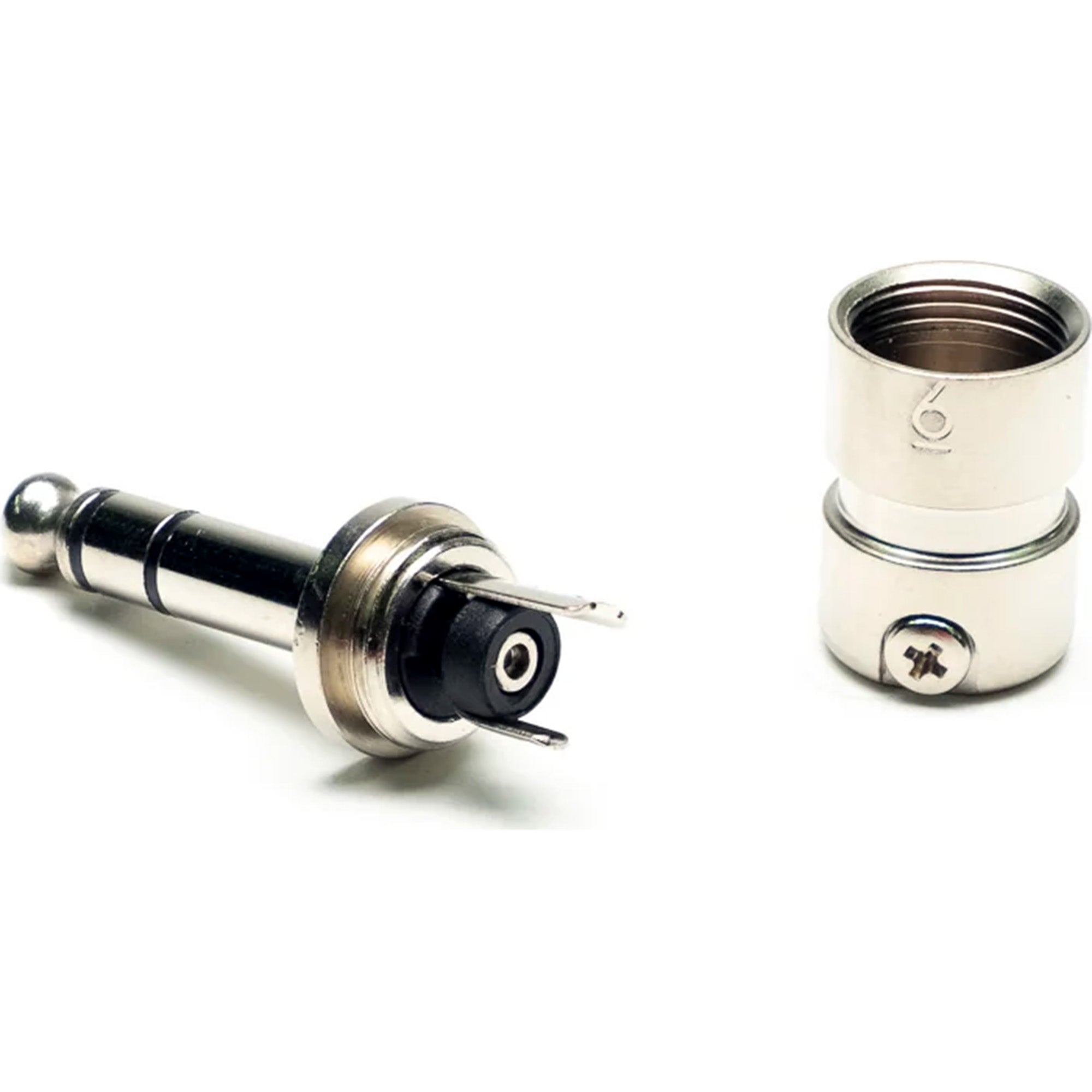

- Solder tabs for tip, ring and sleeve connections for quick and easy soldering and desoldering
- Serviceable, all-metal construction
- Available in silver and all-black finish
Specifications:
- Type: 1/4" Straight TRS
- Length: 22.50 mm | 0.88 in
- Diameter: 15 mm | 0.59 in
