Description

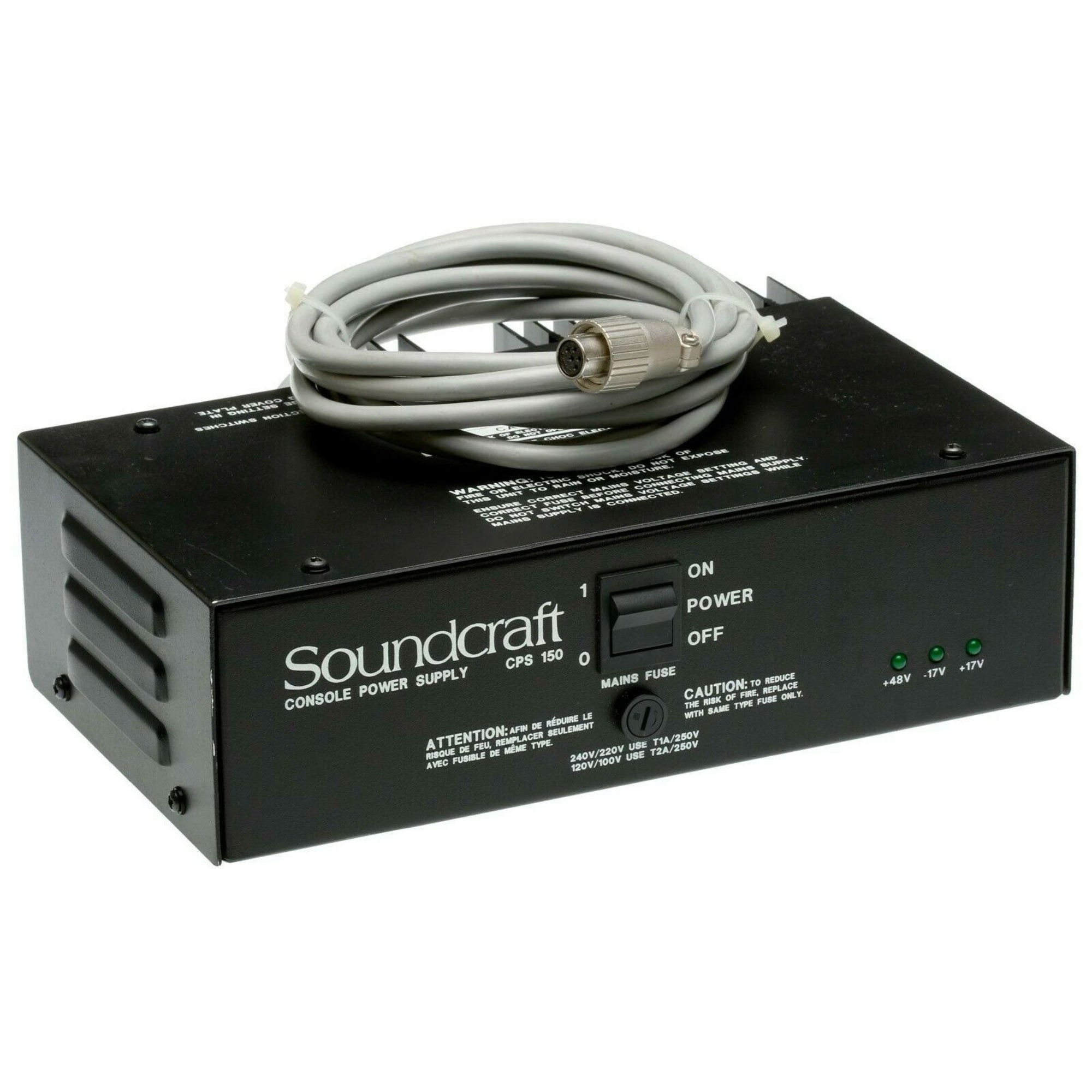

Broadcast Mixer Console AC Power Supply PSU +/- 17V & 48V
Soundcraft/Spirit PSU • For RM Series (RM100, RM105 etc) Broadcast Consoles • Plus 200SR (24ch), 200B (24ch), 200BVE (8ch), 200 Delta (24ch), Delta AVE (8ch) • May be adapted to other Mixers needing +/- 17V supply
Specifications:
- DC power connector: 5 pin screw-lock
- 3 Output rails: +17V, -17V, +48V
- Power requirements: 110/120/220/240VAC ±10% 50/60Hz
- Input power: 100VA
- Dimensions: 483(w) x 195(d) x 89(h)mm
- Physical: 19" (2u) rack mount kit optional (ie. not included)
- Weight: 5kg
