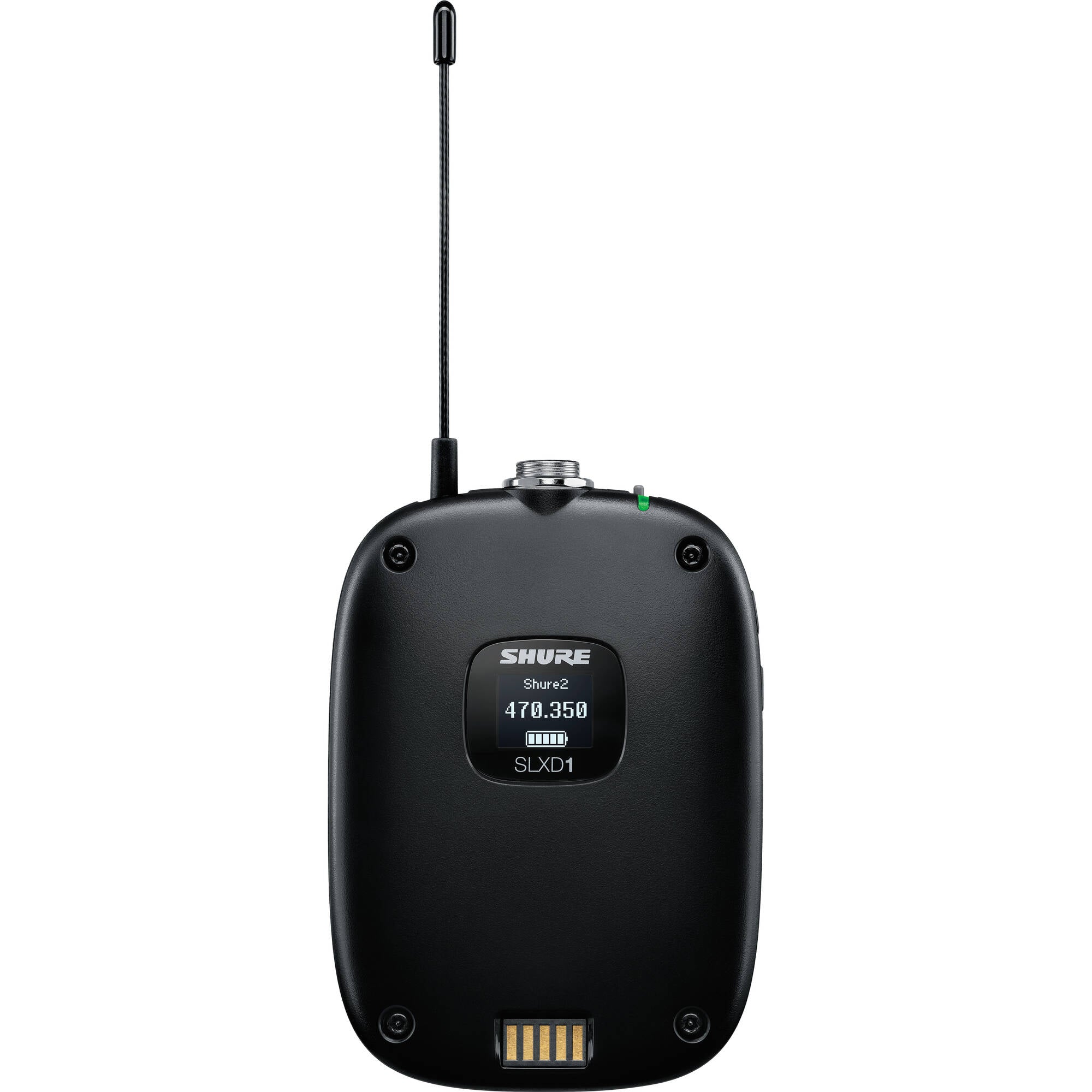

Shure SLXD1 Digital Wireless Bodypack Transmitter (H55: 514-558 MHz)

SLXD Series Wireless Bodypack Transmitter with On/Off Switch, Adjustable Gain Control, and Indicator LED - H55 Band (514 to 558 MHz)

The Shure SLXD1 is a bodypack digital wireless microphone transmitter compatible with SLX-D receivers. It delivers crystal-clear, 24-bit digital audio quality and reliable RF performance-well suited for use in small- to medium-sized venues and houses of worship, or with A/V installations in conference, educational, or corporate facilities.

The SLXD1 operates in a 44 MHz UHF tuning range with 1760 frequencies available and features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

The SLXD1 easily syncs with a wireless receiver for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Features:

• User Friendly, Compact, and Lightweight
• The SLXD1 features a TA4M input, allowing you to connect a lavalier or headset mic of your choice for hands-free presentations and performances, or a dedicated WA305 locking instrument cable for use with a guitar/bass (mic and cable available separately).
• The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
• An easy-to-read LCD shows important information.
• 1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
• The discreet, ergonomic housing is constructed from tough, lightweight ABS plastic and features a fixed 1/4 wave antenna.
• Convenient Power Management Options
• The SLXD1 operates for up to 8 hours on two AA batteries or an SB903 rechargeable battery (available separately).
• The SB903 lithium-ion rechargeable battery offers convenient power management with zero memory effect and precision metering in hours and minutes on the transmitter's LCD screen.
• The SBC203 dual-battery recharging station (available separately) charges two SB903 batteries at once-it fits the external contacts on the transmitter so you don't have to remove the batteries to recharge.

Specifications:

• Wireless Technology: Digital UHF
• RF Frequency Band: H55: 514 to 558 MHz
• RF Bandwidth: 44 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 328' / 100 m
• Sample Rate/Resolution: 24-Bit
• Latency: 3.2 ms
• Encryption: None
• Transmitter
• Transmitter Type: Bodypack
• RF Output Power: 1 / 10 mW
• Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
• Pad: None
• Muting: None
• Auto-Level Control: No
• Gain Range: 0 +21 dB
• Signal Processing: None
• Sync Method: IR
• Antenna: 1/4 Wave External, Fixed
• Power Requirements: Battery
• Battery Type:
  2 x AA (Included)
  1 x Shure SB 903 (Not Included)
• Battery Charging Time: 1.25 to 5.5 Hours
• Approx. Battery Life:
  8 Hours (Lithium Shure SB903)
  8 Hours (Alkaline)
• USB/Lightning Connectivity: None
• Display & Indicators: LCD (Battery Status, Channel, Group)
• Housing: ABS, Plastic
• Operating Temperature: 0 to 122°F / -17 to 50°C
• Storage Temperature: -20 to 165°F / -28 to 73°C
• Dimensions: 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm
• Weight: 3.1 oz / 89 g

Includes:

• Shure SLXD1 Digital Wireless Bodypack Transmitter (H55: 514 to 558 MHz)
• 2 x AA Batteries
• Limited 2-Year Warranty
