Key Features
- For 2-Bay Charger
- Level 6 Energy Compliant
- 72" Length Locking DC Coax Plug Output
- 15 VDC, 2.72 A Rated Output
Description

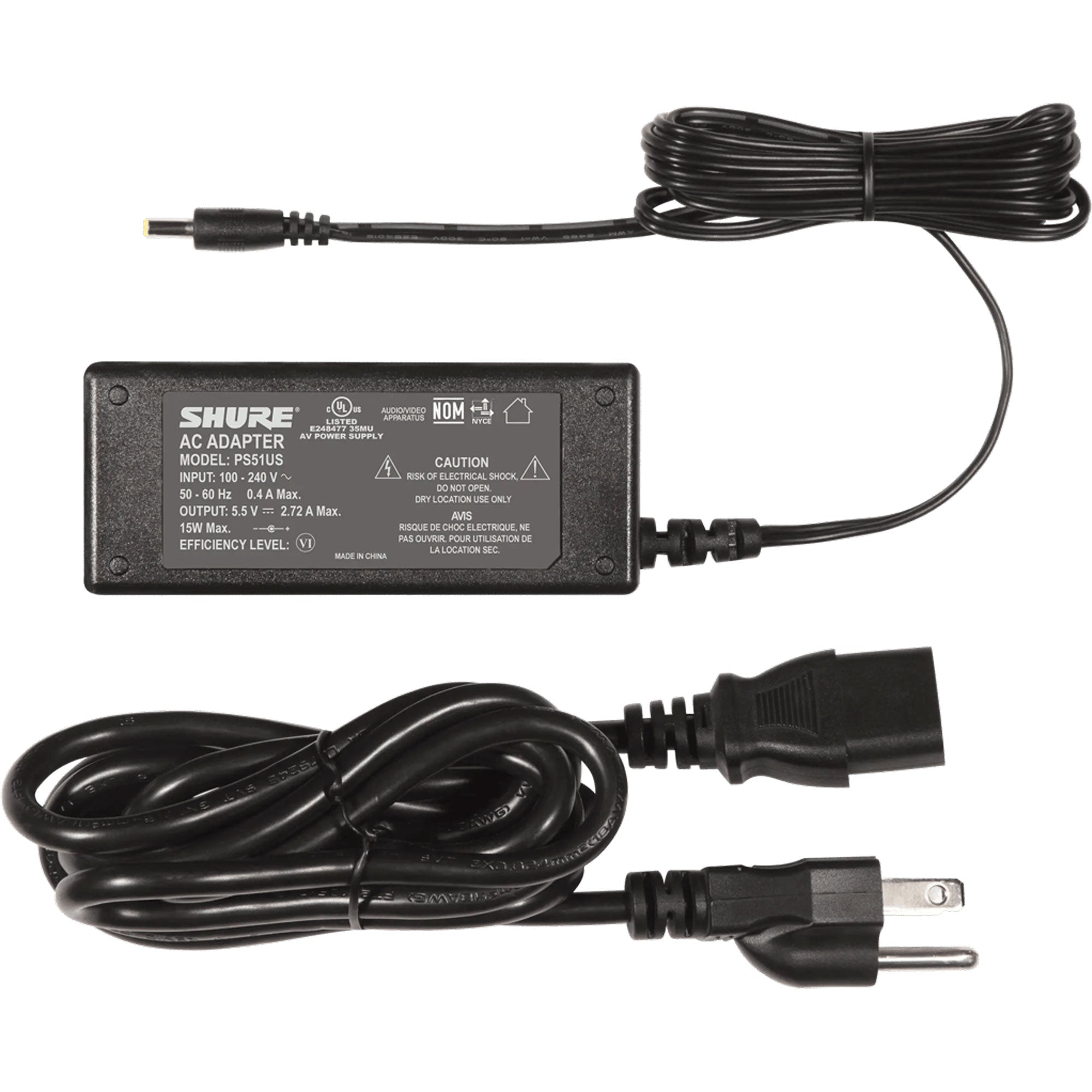

Power Supply for Two-Bay Charger
Power Supply for Two-Bay Charger
Specifications:
- Rated input: 100 - 240 VAC, 50-60 Hz, 400 mA maximum.
- Rated output: 15 VDC, 2.72 A
- Input cable: Removable, 72 inches (1.8 meter) long; three-prong North American A.C. plug, three prong IEC connector
- Output cable: 72 inches (1.8 meter) long; DC Coax plug
- DC Coaxial Plug: straight female; non-locking; 1.35 mm inside diameter; 3.8 mm outside diameter; tip/center = positive; sleeve = negative
- Dimensions of power supply plastic enclosure: 4.2" long x 1.8" wide x 1.3" thick; 106 mm x 45 mm x 33 mm
