Key Features
- For GLXD4, ULXS4, ULXP4 & PS9T Receivers
- Level 6 Energy Compliant
- 72" Length Locking DC Coax Plug Output
- 15 VDC, 600 mA Rated Output
Description

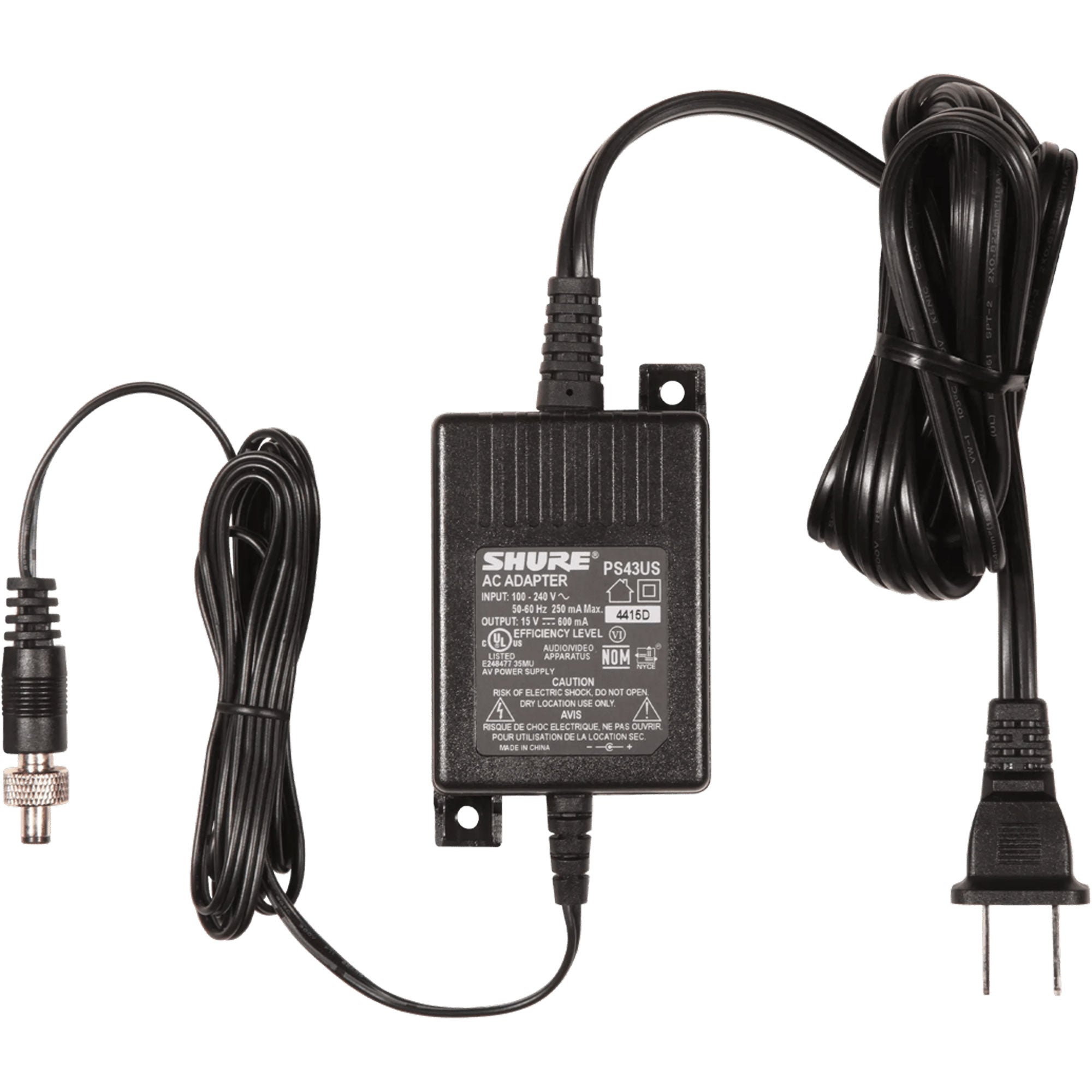

Replacement 15 VDC Power Supply for Shure Wireless Receivers
The PS43US from Shure replaces the PS42US power supply. It is offered to cut consumer utility costs and sets higher standards of energy efficiency, and is the solution to the US Department of Energy implemented mandate that all external AC adapters be "Level-6 energy compliant". The rated output is 15 VDC, 600 mA maximum.
Features:
- For GLXD4, ULXS4, ULXP4 & PS9T Receivers
- Replaces PS42US Power Supply
- Level-6 Energy Compliant
- Straight-Female Locking DC Coaxial Plug
- Two Mounting Tabs Are Included
Specifications:
- Rated input: 100 - 240 VAC, 50-60 Hz, 250 mA maximum.
- Rated output: 15 VDC, 600 mA
- Leakage current: less than 30 uA
- Input cable: 72 inches (1.8 meter) long; two-prong plug North American A.C. plug
- Output cable: 72 inches (1.8 meter) long; Locking DC Coax plug
- DC Coaxial Plug: straight female; locking; 2.1 mm inside diameter; 5.5 mm outside diameter; tip/center = positive; sleeve = negative
- Dimensions of power supply plastic enclosure: 2.7" long x 2.1" wide x 1.1" thick; 69 mm x 53 mm x 28 mm; two mounting tabs are provided.
