Key Features
- 0-180 Degree Coverage
- Back or Bottom Exit Cable
- Mute Output
- LED Input
Description

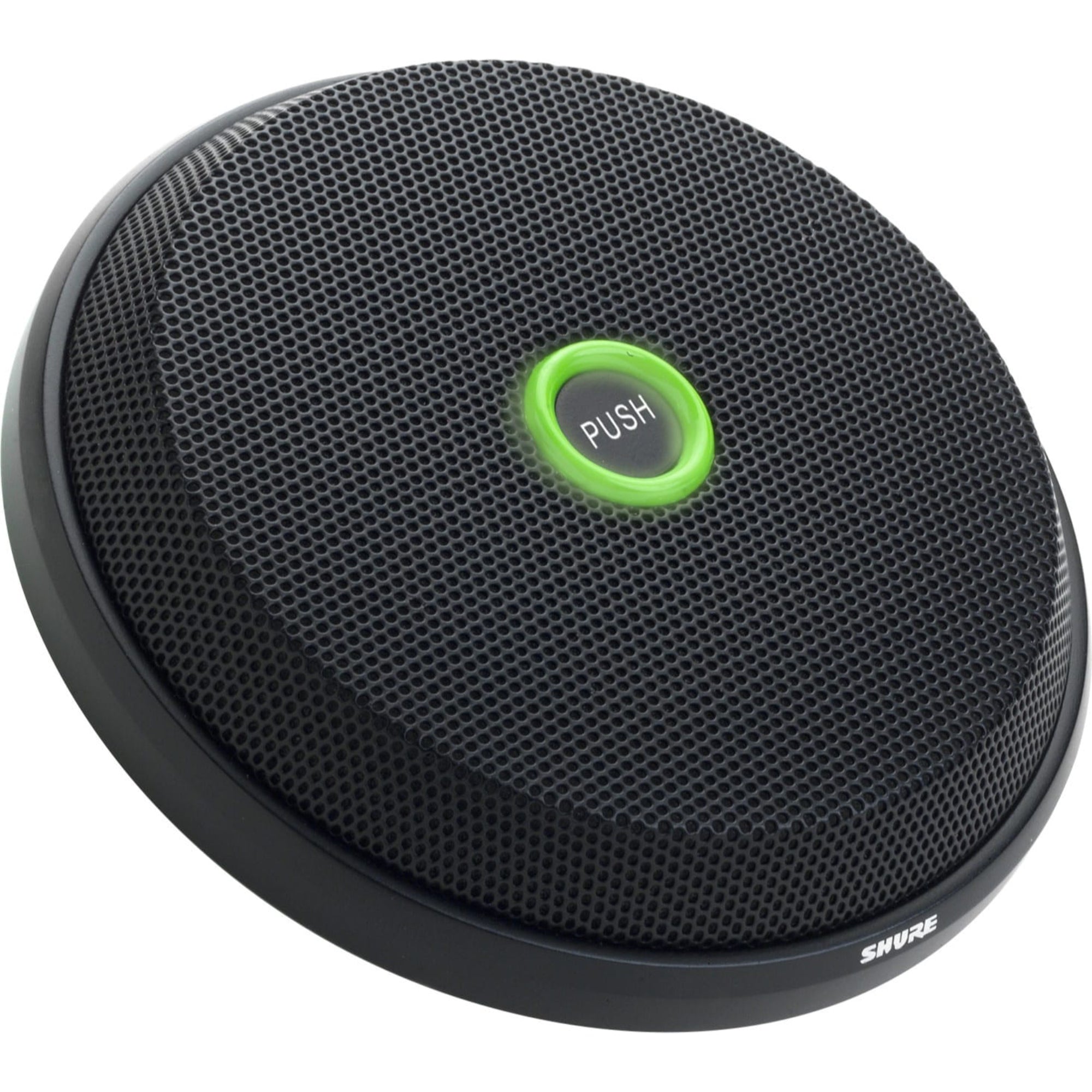

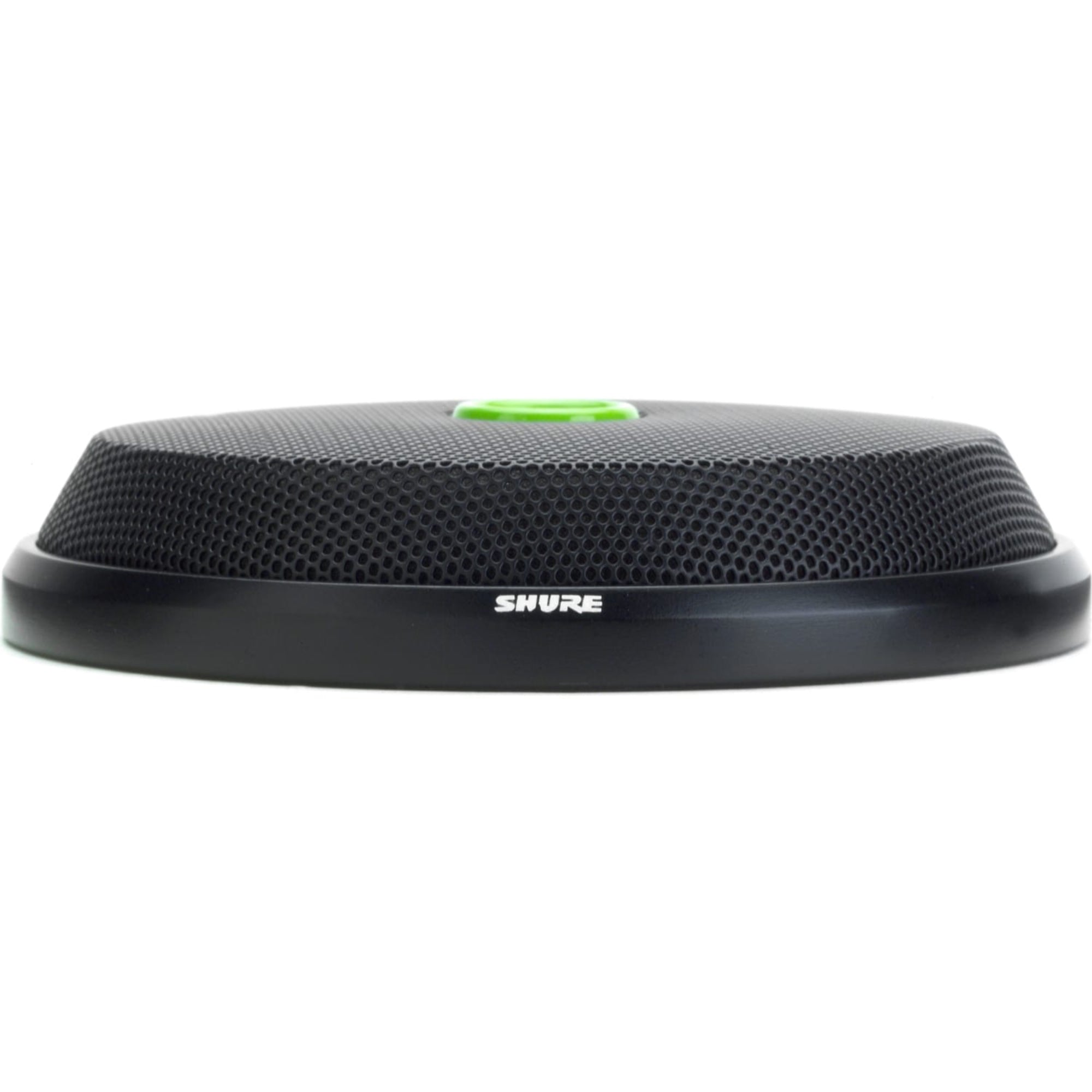

Cardioid Dual-Element Boundary Microphone, 0-180 Degrees, Mute Output, LED Input
The Microflex Multi-Element Boundary microphone delivers a unique and versatile tool for conference room installations.
Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.
Available Options
MX396/C-DUAL: Dual-Element 0-180 Degrees, Cardioid, back or bottom exit cable, mute output, LED input
MX396/C-TRI: Tri-Element 90-0-90 mic, adjustable to 120-120-120 degrees, Cardioid, back or bottom exit cable, mute output, LED input
Features:
- End of table (300), center of table (360), or cross table (bidirectional) coverage patterns
- Individual audio output for each element
- Bi-color status indicator
- Programmable mute switch
- Logic input/output for remote LED and mute control
- CommShield Technology
Specifications:
- Type: Condenser (electret bias)
- Frequency Response: 50 to 17000 Hz
- Polar Pattern: MX396/C-DUAL: 2 x Cardioid; MX396/C-TRI: 3 x Cardioid
- Impedance: EIA Rated at 150 Ohms (170 Ohms actual)
- Phantom power required?: MX396/C-DUAL: 48-52 Vdc phantom, 10.0 mA; MX396/C-TRI: 48-52 Vdc phantom, 12.0 mA
