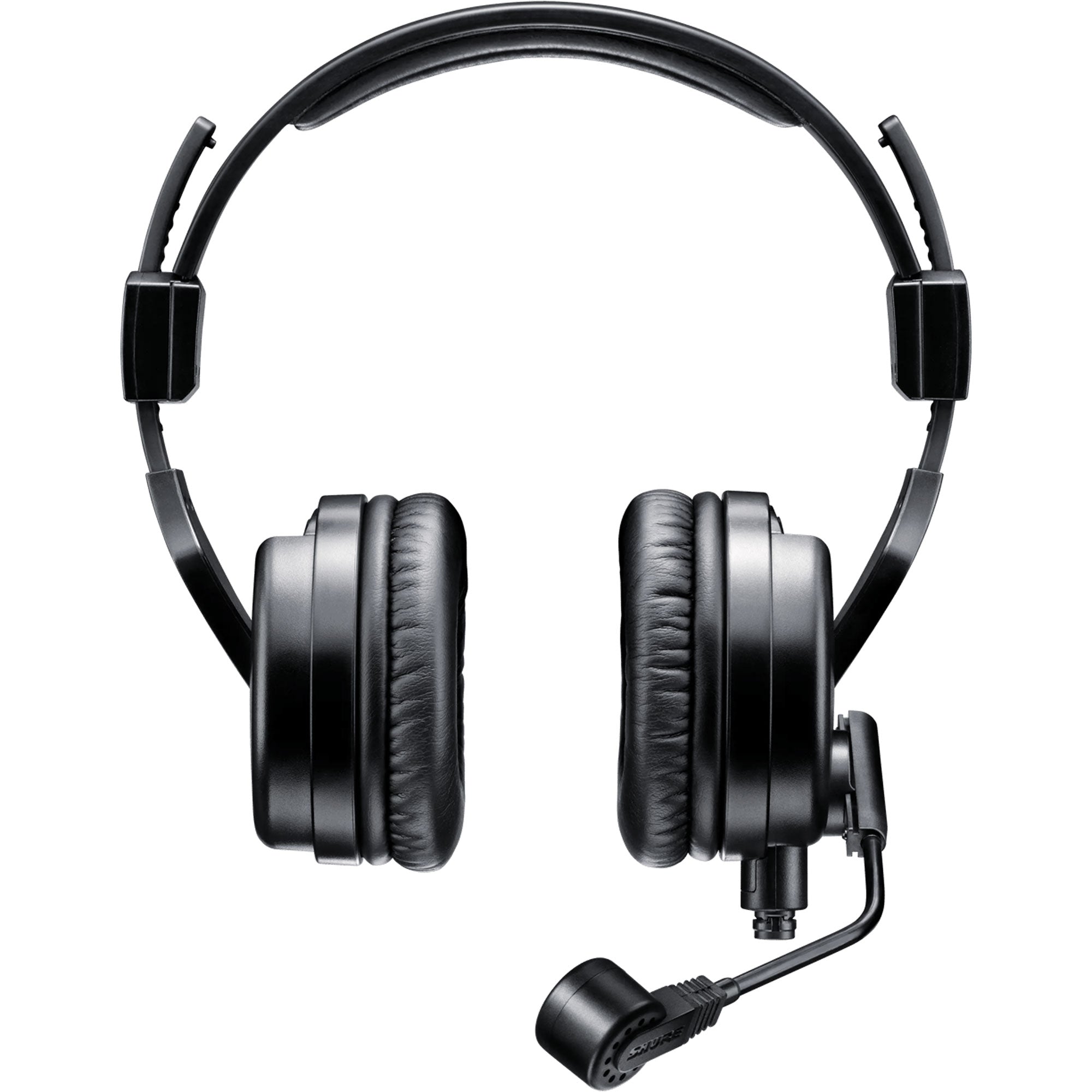

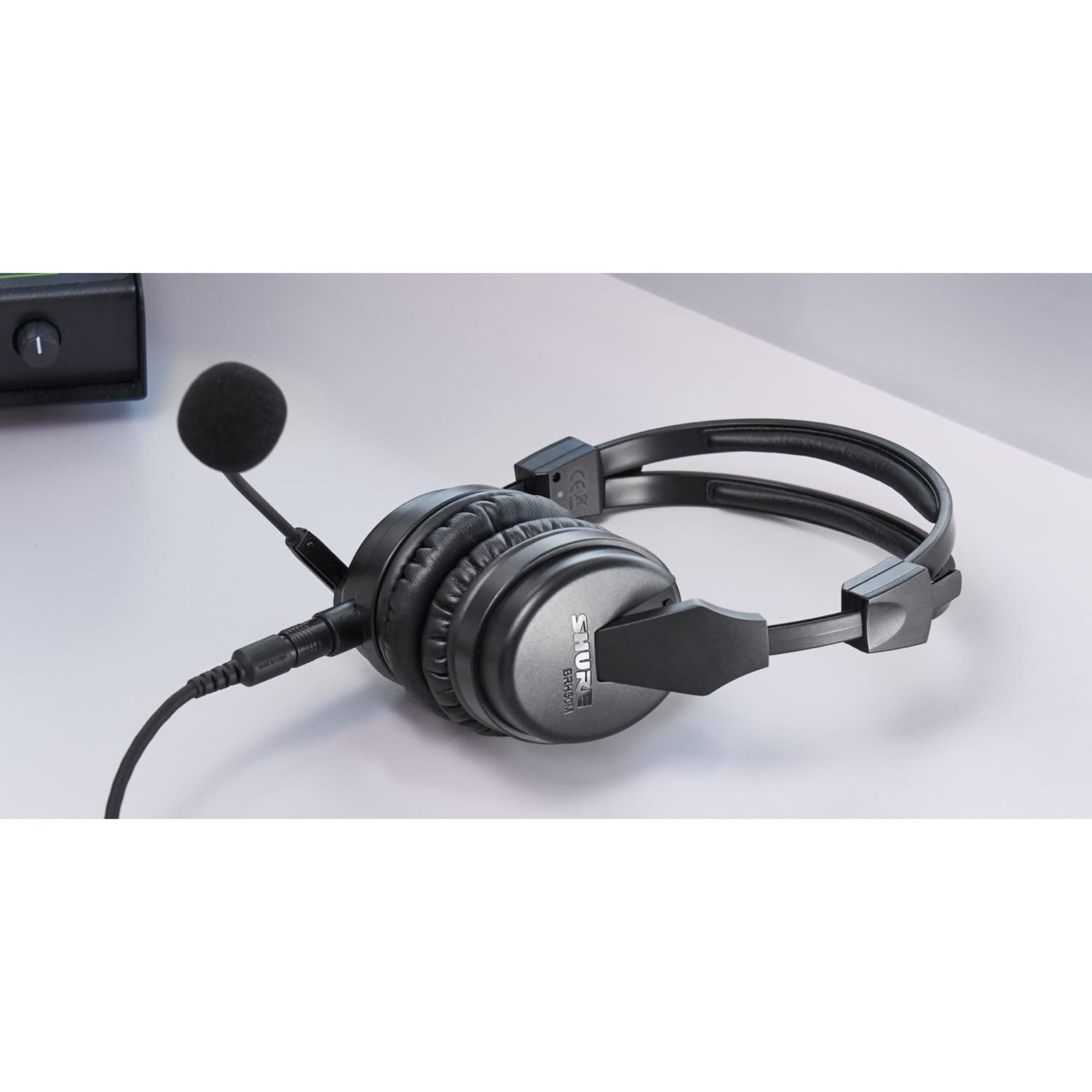

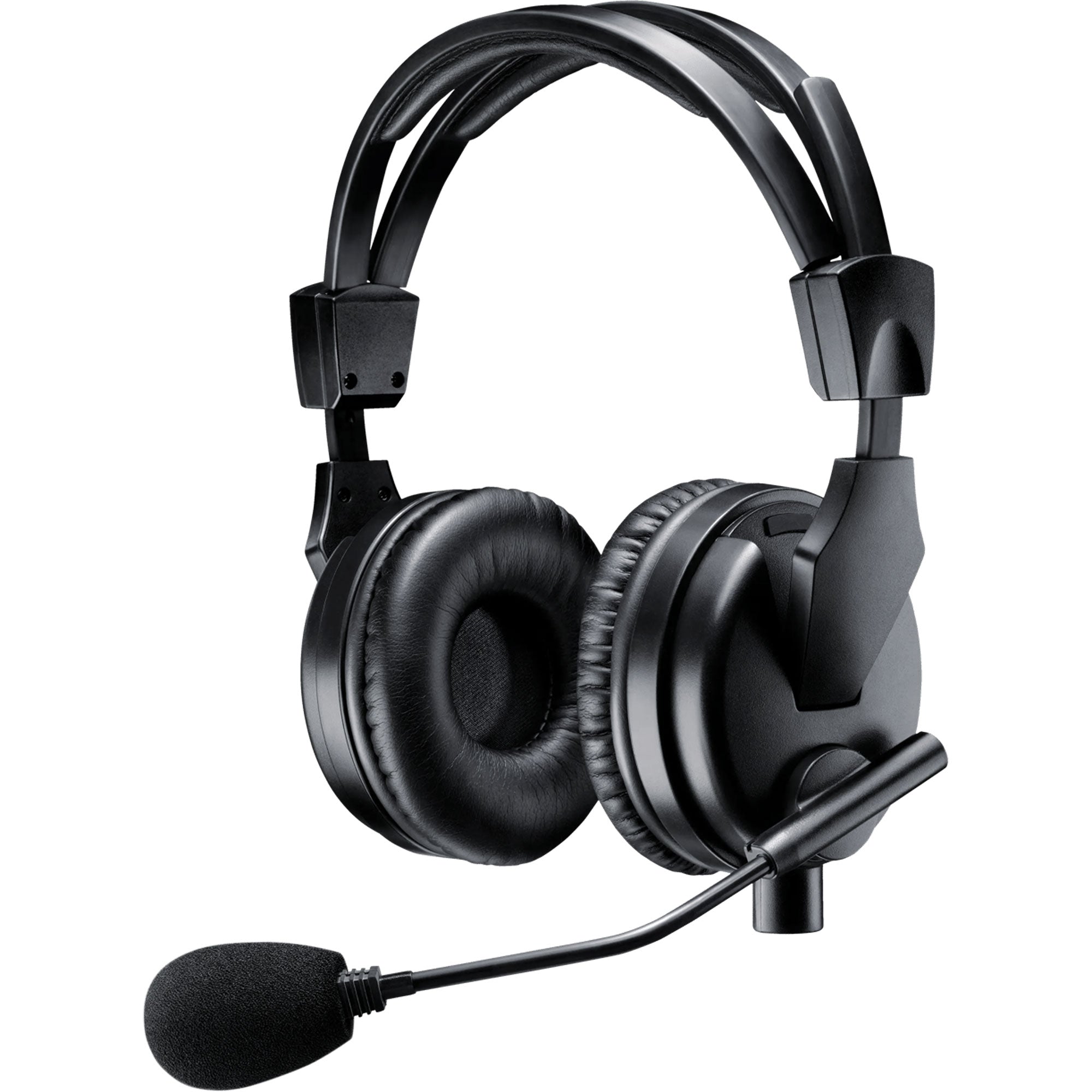

Shure BRH50M Dual-Sided Broadcast Headset

Premium Dual-Sided Broadcast Headset, Includes BCASCA-NXLR3QI Cable

BRH50M is a dual-sided, supra-aural headset with lightweight on-camera design provides exceptional audio quality, comfort and durability. The high performance dynamic microphone delivers natural, intelligible voice reproduction with a supercardioid polar pattern and frequency response optimized for demanding broadcast and media production applications.

Where should the BRH50M be used?
The BRH50M headset is intended for various broadcast applications such as studio production, theater production, corporate event production, electronic field production, conferencing and intercom applications or event production.

The closed-back, supra-aural earcups feature 40mm drivers, which provide a frequency response of 20 Hz to 20 kHz. The adjustable headband with padding ensures comfort.

The boom arm for the mic pivots up to 270 degrees, allowing use on the left or right side. The dynamic microphone delivers a frequency response of 40 Hz to 16 kHz and is optimized for on-air broadcast of voice reproduction. It exhibits a cardioid polar pattern at 1 kHz and 4 kHz for optimal voice reproduction. At 500 Hz and 8 kHz, it utilizes a supercardioid polar pattern for increased rejection of off-axis sound.

The single-sided, detachable cable connector is reinforced with Kevlar for increased durability. The included Y-cable terminates to Neutrik 3-pin XLR male and 1/4" stereo TRS. The ear pads and included windscreen are user-replaceable.

Features:

• Lightweight, on-camera design
• Dual-sided headset with 40mm drivers
• Closed-back, supra-aural earcups
• Headset frequency response: 20 Hz to 20 kHz
• Adjustable headband with padding
• Dynamic microphone features a neodymium magnet
• Mic boom pivots up to 270 degrees for use on left or right side
• Cardioid polar pattern at 1 kHz and 4 kHz for optimal voice reproduction
• Supercardioid polar pattern at 500 Hz and 8 kHz for increased rejection of off-axis sound
• Microphone frequency response: 40 Hz to 16 kHz
• Single-sided, detachable cable connector is reinforced with Kevlar for increased durability
• Included Y-cable terminates to Neutrik 3-pin XLR male and 1/4" stereo TRS
• Includes windscreen
• Ear pads and windscreen are user-replaceable

Specifications:

• Microphone
• Type: Dynamic, neodymium magnet
• Polar Pattern:
  Cardioid (1 kHz and 4 kHz)
  Supercardioid (500 Hz and 8 kHz)
• Frequency Response: 40 Hz to 16 kHz
• Output Impedance: 250 Ohms
• Sensitivity: @ 1 kHz, open circuit voltage: -60 dBV/PA (1 Pa = 94 dB SPL)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 1 (red wire) with respect to pin 2 (black wire)
• Headphone
• Transducer Type: Dynamic, neodymium magnet
• Driver Size: 40 mm
• Frequency Range: 20 Hz to 20 kHz
• Sensitivity: @ 1 kHz: 110 dB SPL/mW
• Impedance: @ 1 kHz: 300 Ohms
• Maximum Input Power: 1000 mW
• General Specifications
• Cable Length: 24.6' / 7.5 m
• Cable Connectors: Y-cable terminates to Neutrik 3-pin XLR male and 1/4" TRS
• Operating Temperature: 0 to 140¬∞F / -18 to 60¬∞C
• Storage Temperature: -29 to 165¬∞F / -34 to 74¬∞C
• Relative Humidity: 0 to 95%
• Weight: 7.4 oz / 208 g (without cable)

Includes:

• Shure BRH50M Dual-Sided Broadcast Headset with Microphone and Cable
• BCAWS2 Replacement Windscreen for BRH50M Headset
• Straight 3-Pin XLR and 1/4" Male Cable for BRH50M/440M/441M Broadcast Headset (25')
• Limited 2-Year Warranty
