Shure BLX14/B98 Wireless Cardioid Instrument Microphone System (H11: 572-596 MHz)

Wireless Instrument System with Beta 98H/C Clip-on Gooseneck Microphone (Frequency Band H11, 572-596 MHz)

The Beta 98H/C condenser microphone is a versatile solution for brass or percussion instruments. It offers a flexible integrated gooseneck with clip-on clamp for a secure fit and precise positioning. It combines simple setup and an intuitive interface for performance you can trust in.

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

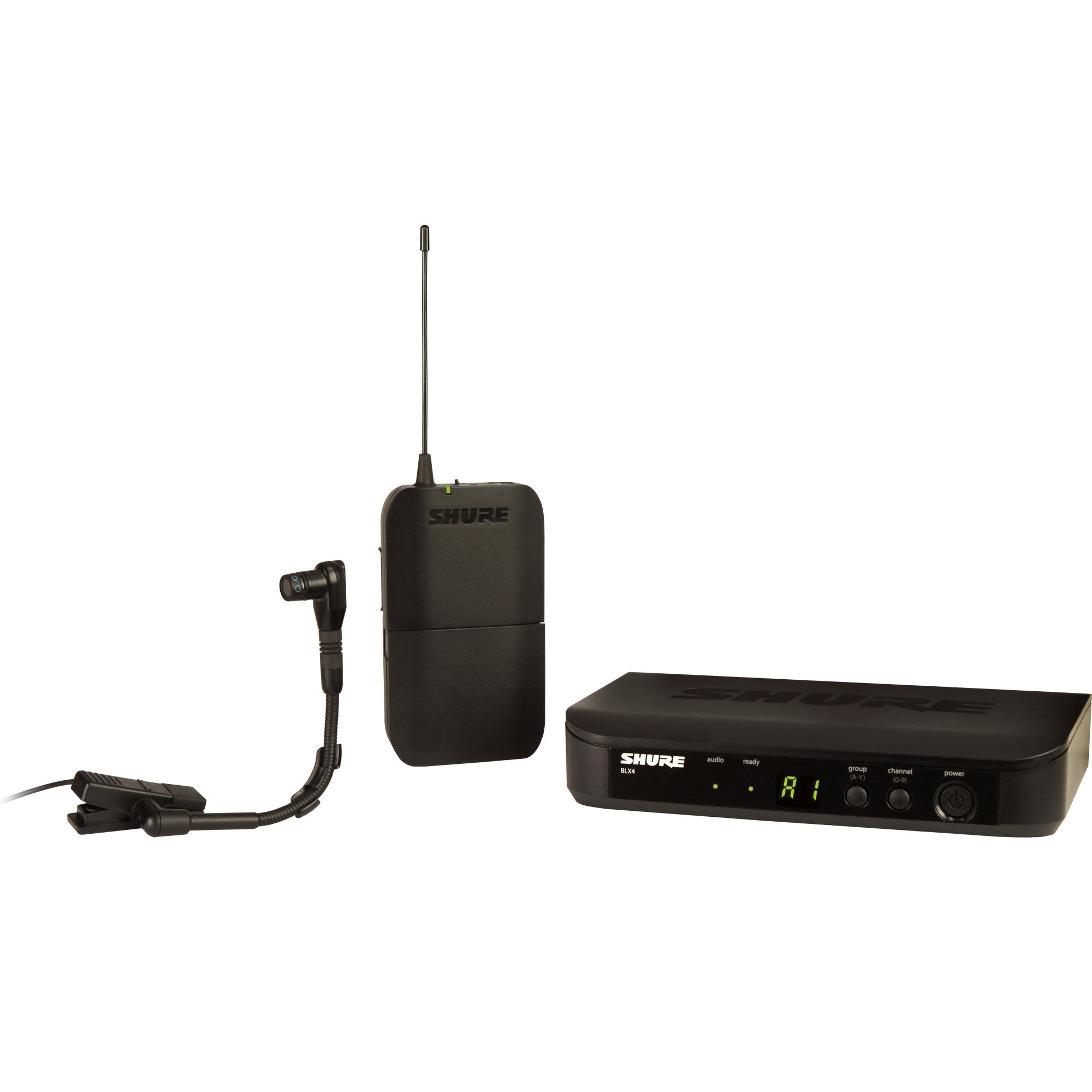

Includes BLX4 single-channel receiver, BLX1 bodypack transmitter, BETA 98H/C instrument microphone, power supply, 2 AA batteries, carrying case, and user guide.

Features:

• User-friendly, high-performance wireless system
• BLX wireless supports up to 12 simultaneous systems
• BLX4 single-channel receiver with easy one-touch setup
• Beta 98H/C condenser microphone with cardioid polar pattern captures your horn or woodwind instrument with exceptional clarity
• Also includes carry case, power supply, and 2 AA test batteries

Specifications:

• System
• Wireless Transmission: Analog UHF
• Number of RF Channels: 123
• Included Transmitters: 1 x Bodypack
• Diversity: Antenna Diversity
• RF Frequency Band:
  H9: 512 to 542 MHz
  H10: 542 to 572 MHz
  H11: 572 to 596 MHz
  J10: 584 to 608 MHz
  J11: 596 to 616 MHz
• RF Bandwidth: 24 MHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 300' / 91.4 m (Line of Sight)
• Max Systems per Setup: 12
• Dynamic Range: 100 dBA

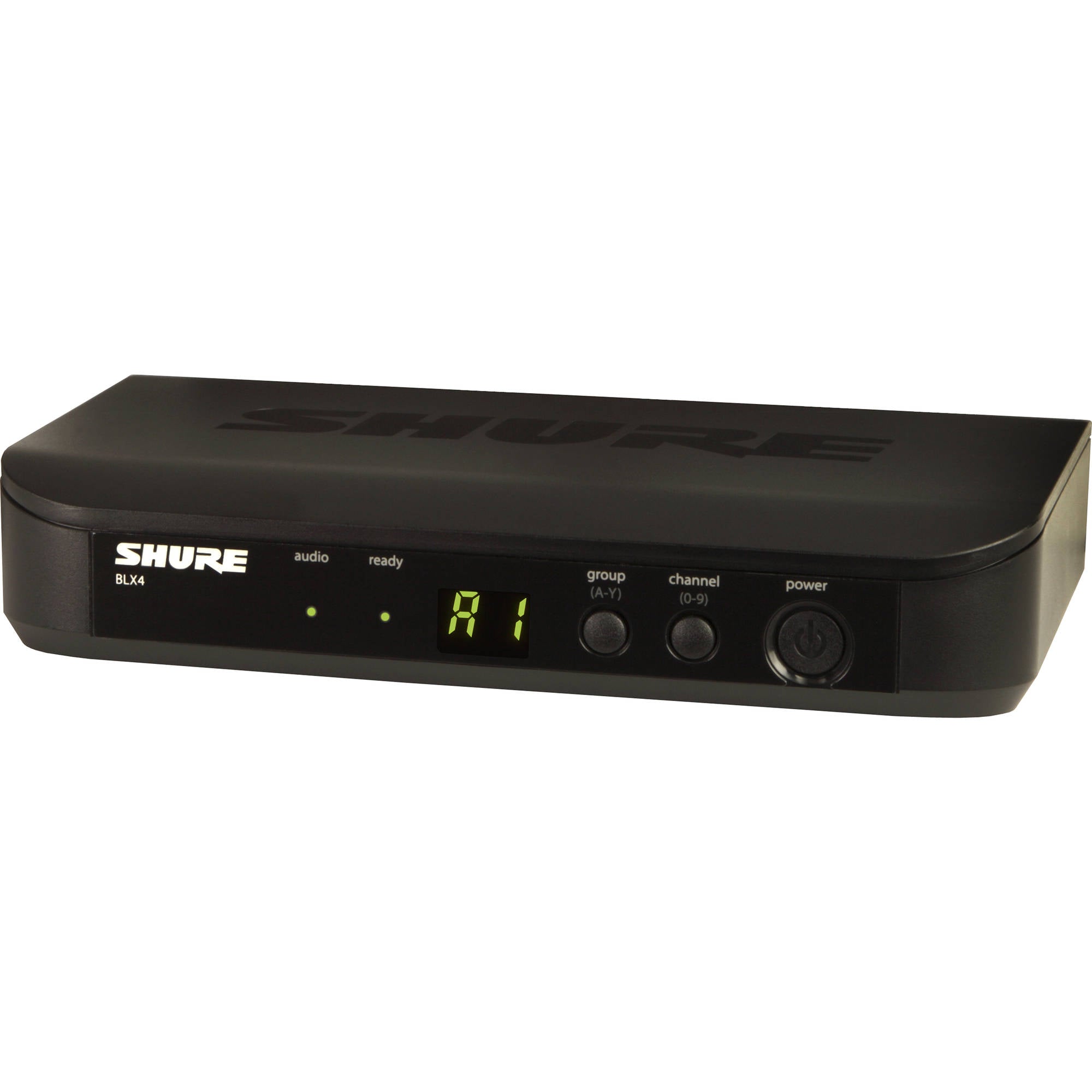

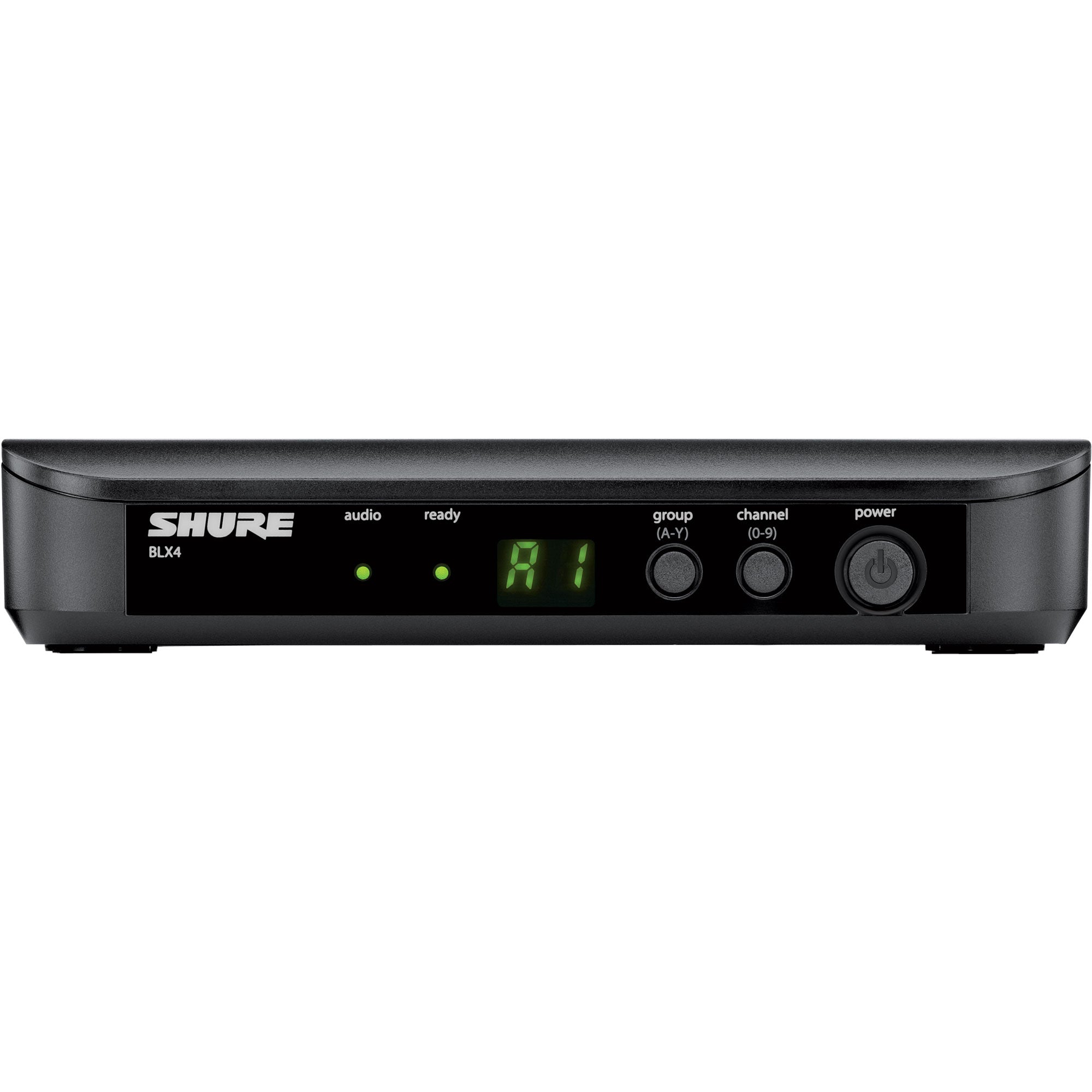

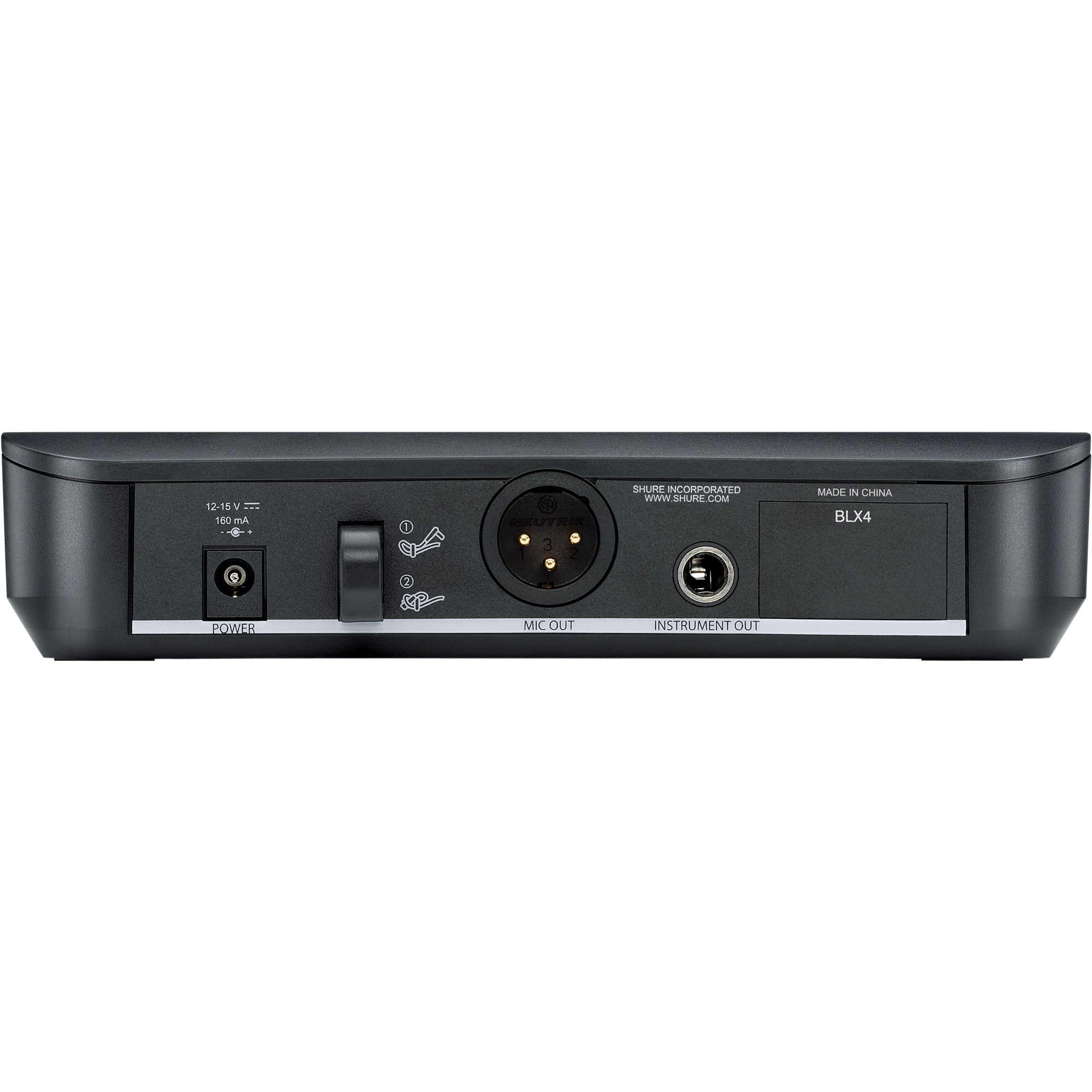

• Receiver
• Form Factor: Tabletop
• Antenna: 2 x Internal, Fixed
• Number of Audio Channels: 1

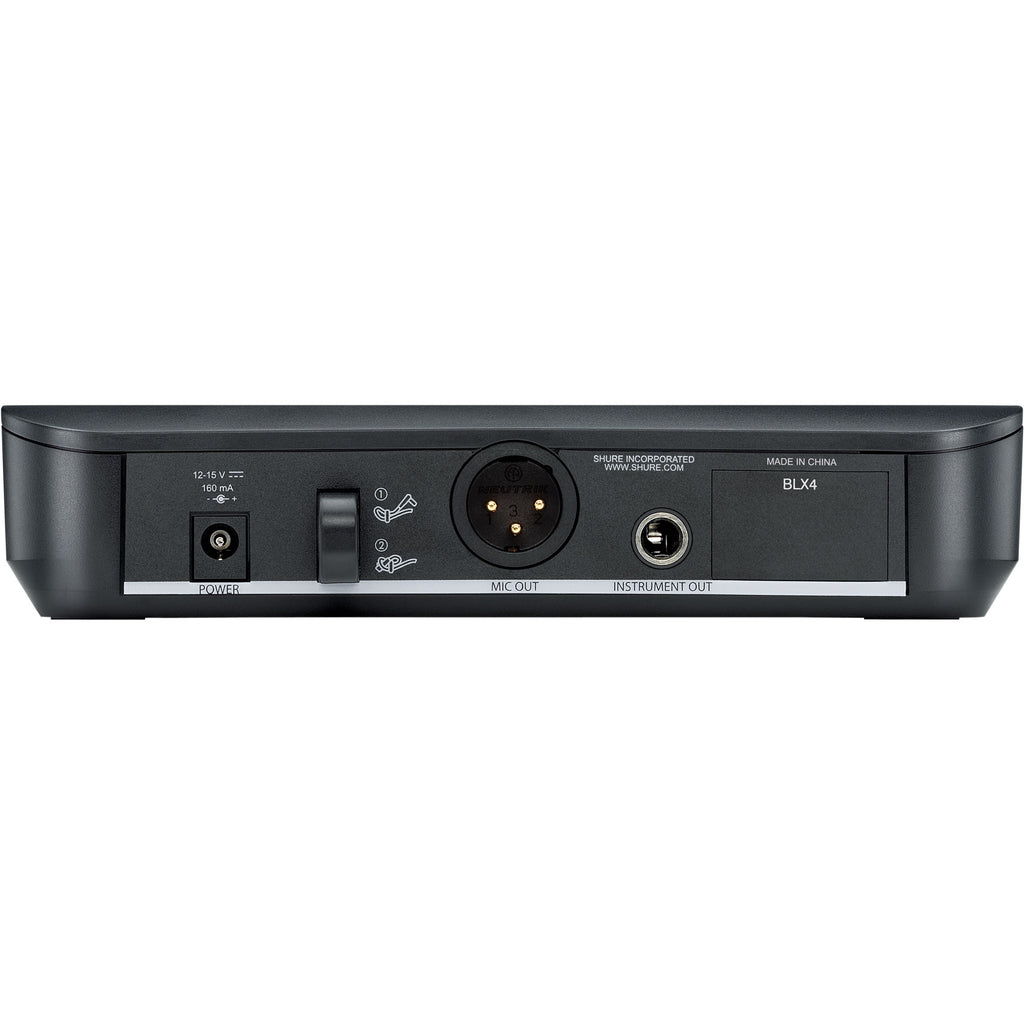

• Audio I/O:
  1 x XLR 3-Pin Male Balanced Output
  1 x 1/4" TRS Female Unbalanced Output
• Audio Output Level:
  XLR Output: -27 dBV (Mic Level)
  1/4" Output: -13 dBV (Instrument Level)
• Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
• Impedance:
  XLR Output: 200 Ohms
  1/4" Output: 50 Ohms
• Power Requirements: AC/DC Power Adapter
• AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
• Display & Indicators:
  1 x Multi-Segment LED (Channel, Group)
  2 x LED (AF Level, Sync)
• Housing: ABS
• Operating Temperature: 0 to 135¬∞F / -17 to 57¬∞C
• Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
• Weight: 8.5 oz / 241 g

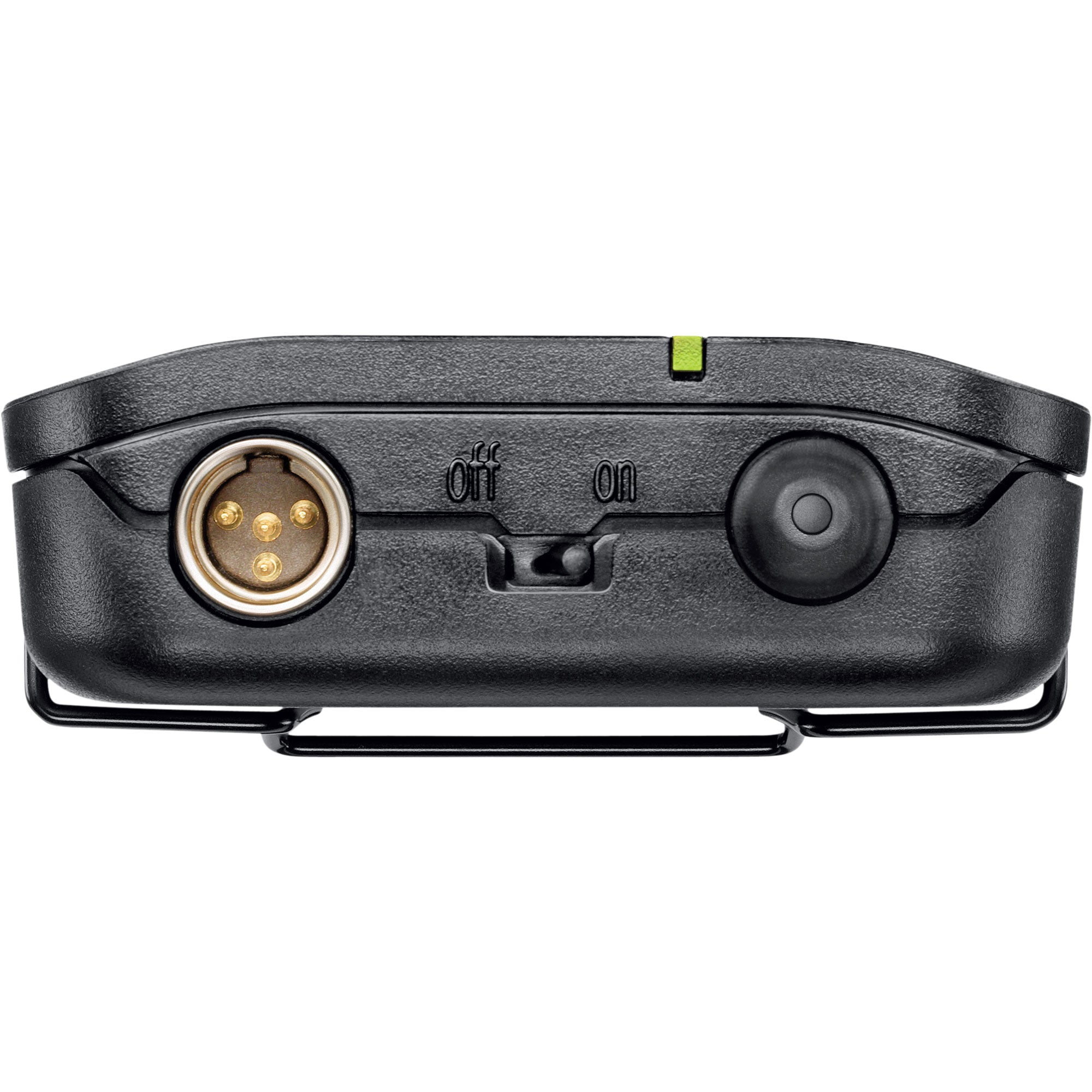

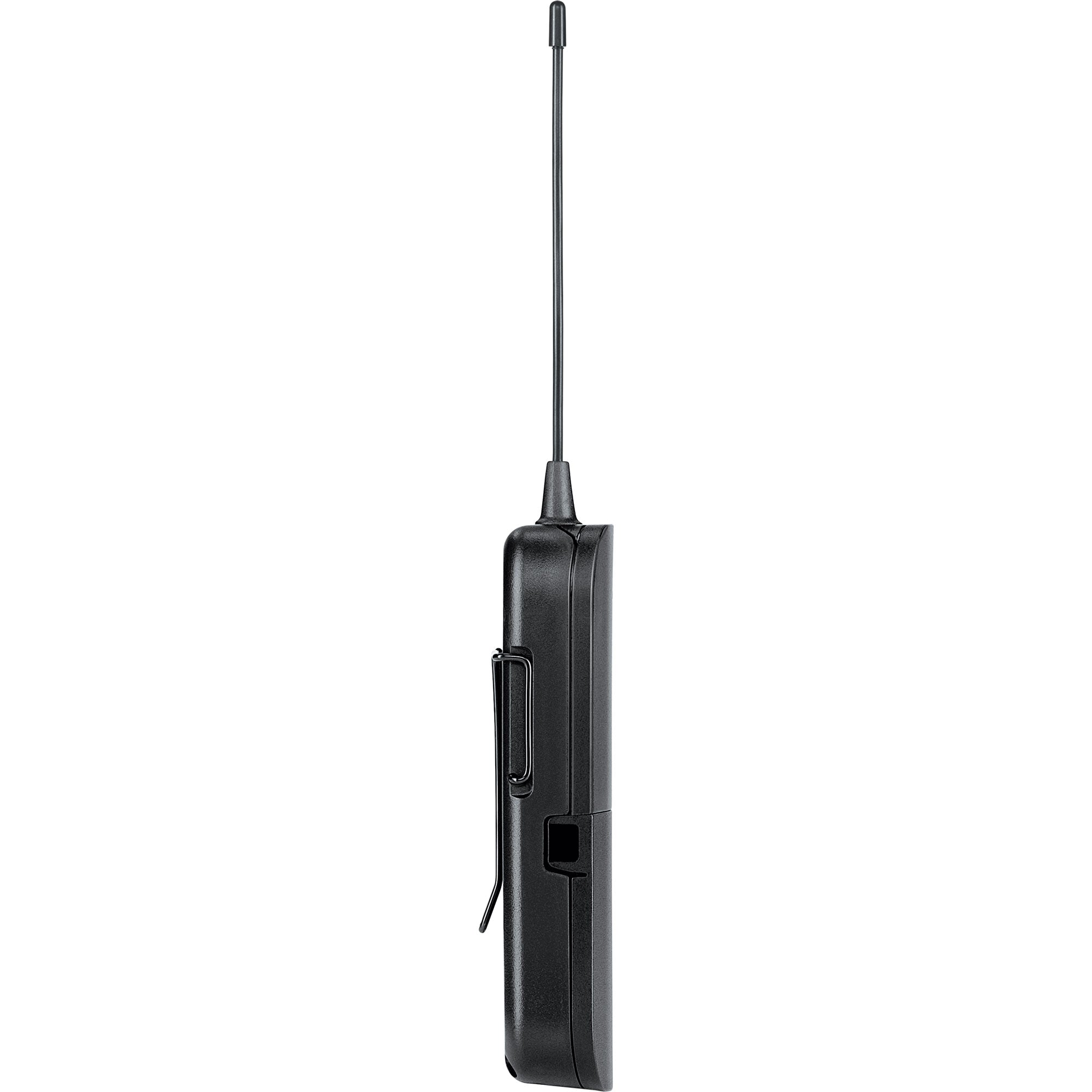

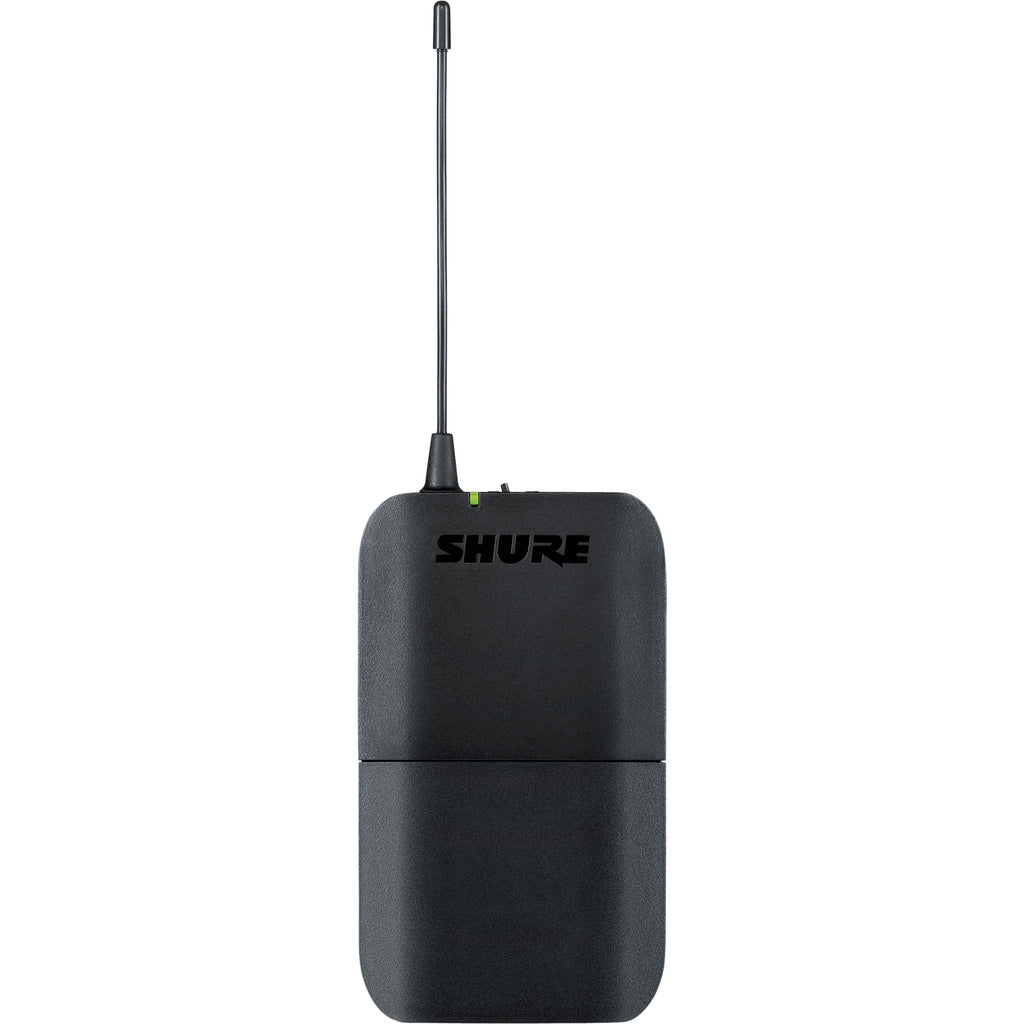

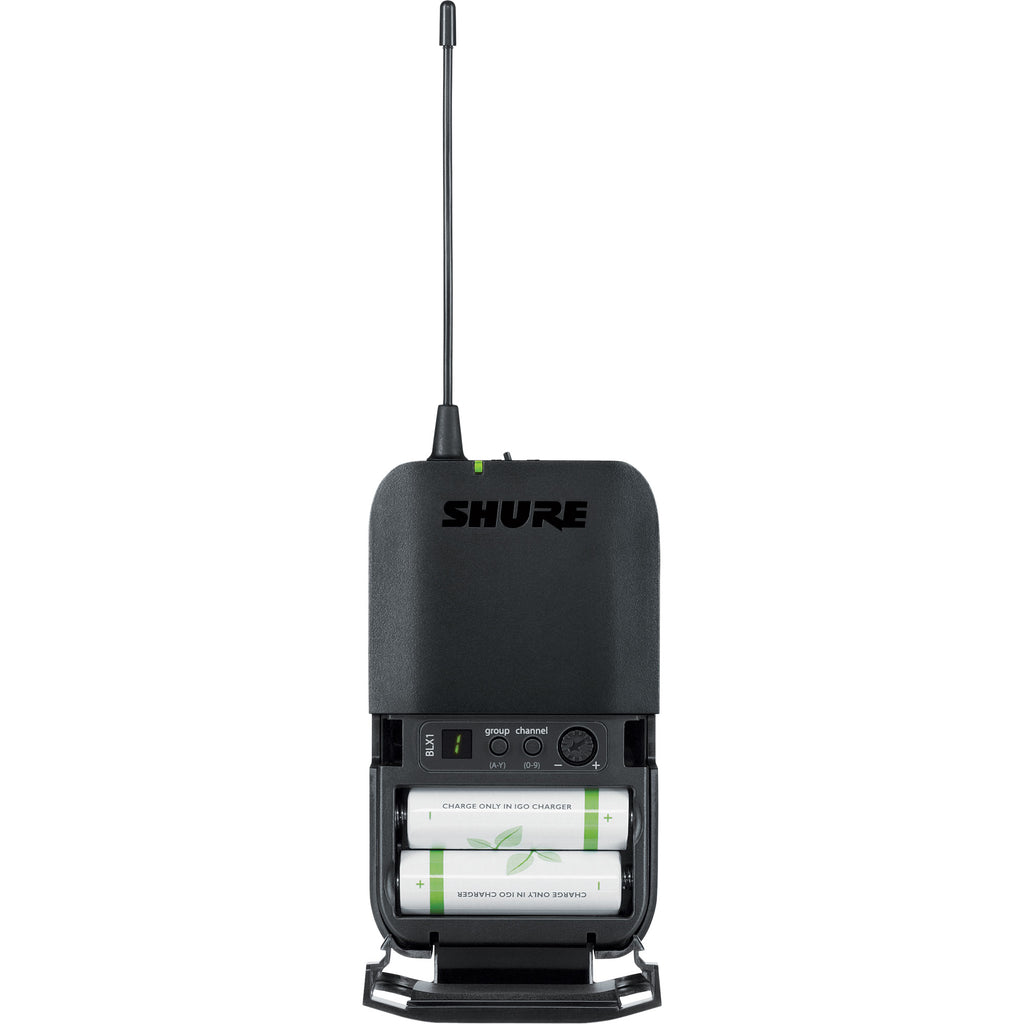

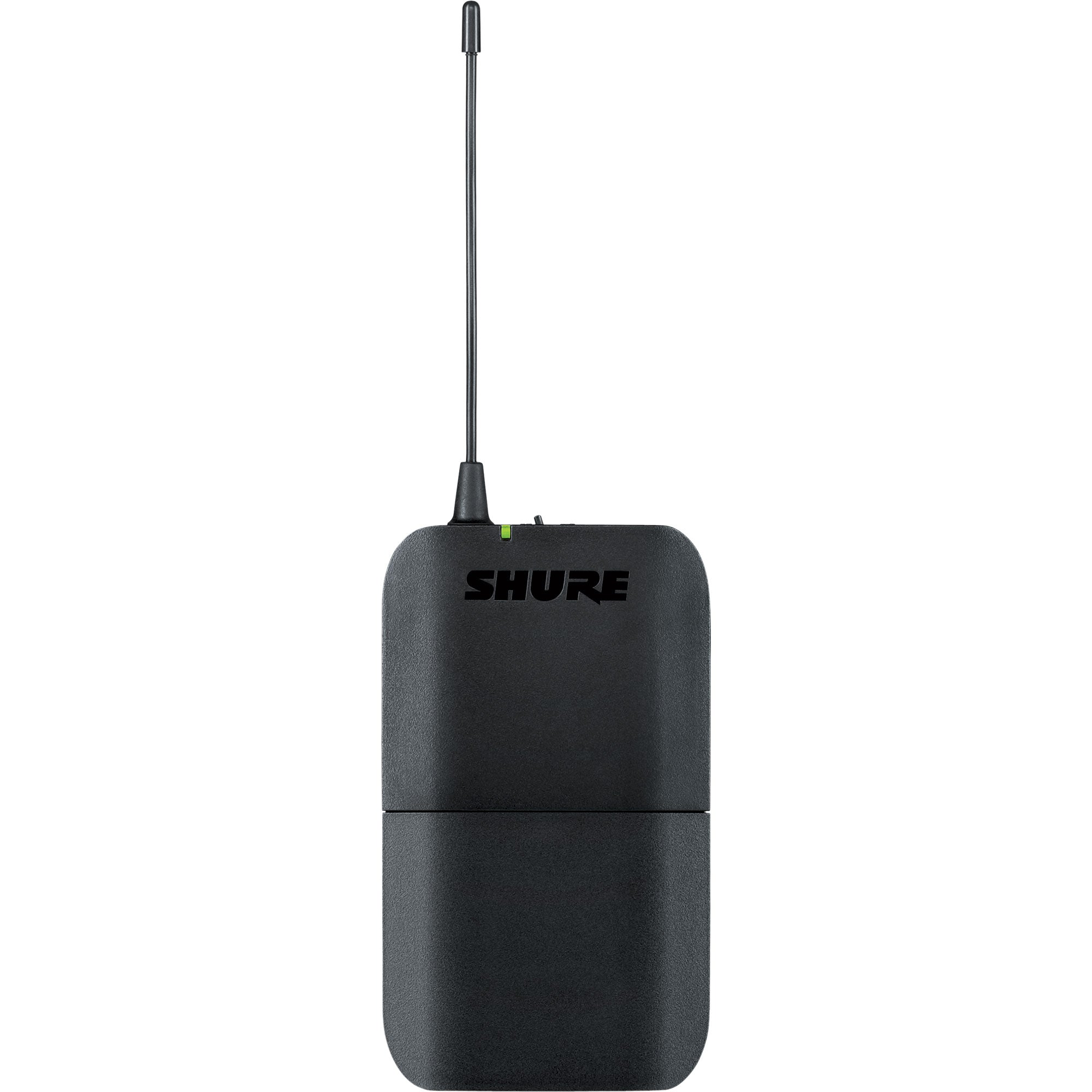

• Transmitter
• Form Factor: Bodypack
• RF Output Power: 10 mW
• Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
• Muting: Off/On Switch
• Auto-Level Control: No
• Gain Range: -16 to +10 dB
• Sync Method: Manual
• Antenna: 1 x Flexible Whip, Fixed (Beltpack)

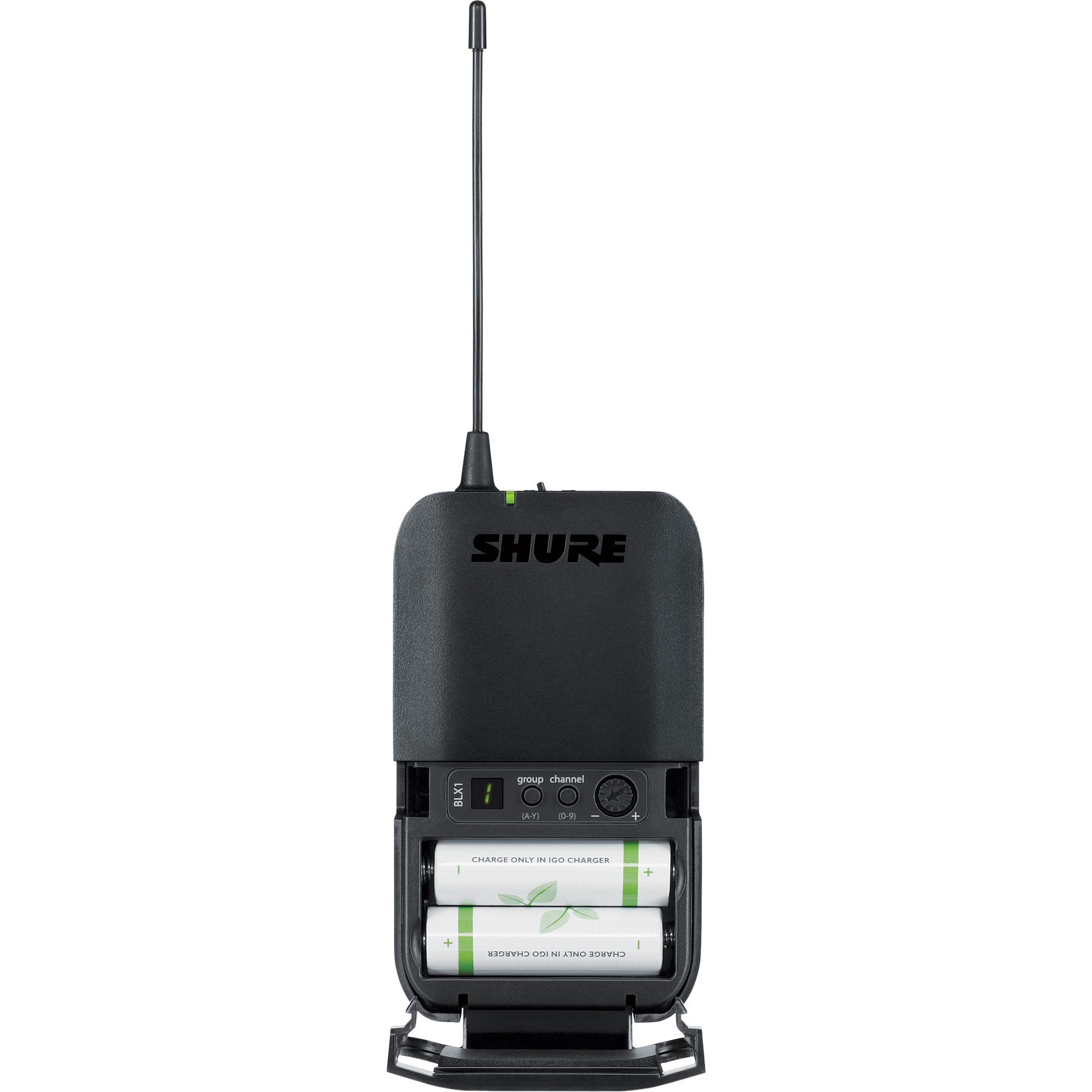

• Power Requirements: Battery
• Battery Type: 2 x AA (Included)
• Approx. Battery Life: 14 Hours (Alkaline)
• Display & Indicators:
  1 x Multi-Segment LED (Channel, Group)
  1 x LED (Battery Status, Power)
• Housing: ABS
• Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
• Weight: 2.6 oz / 75 g (without Batteries)

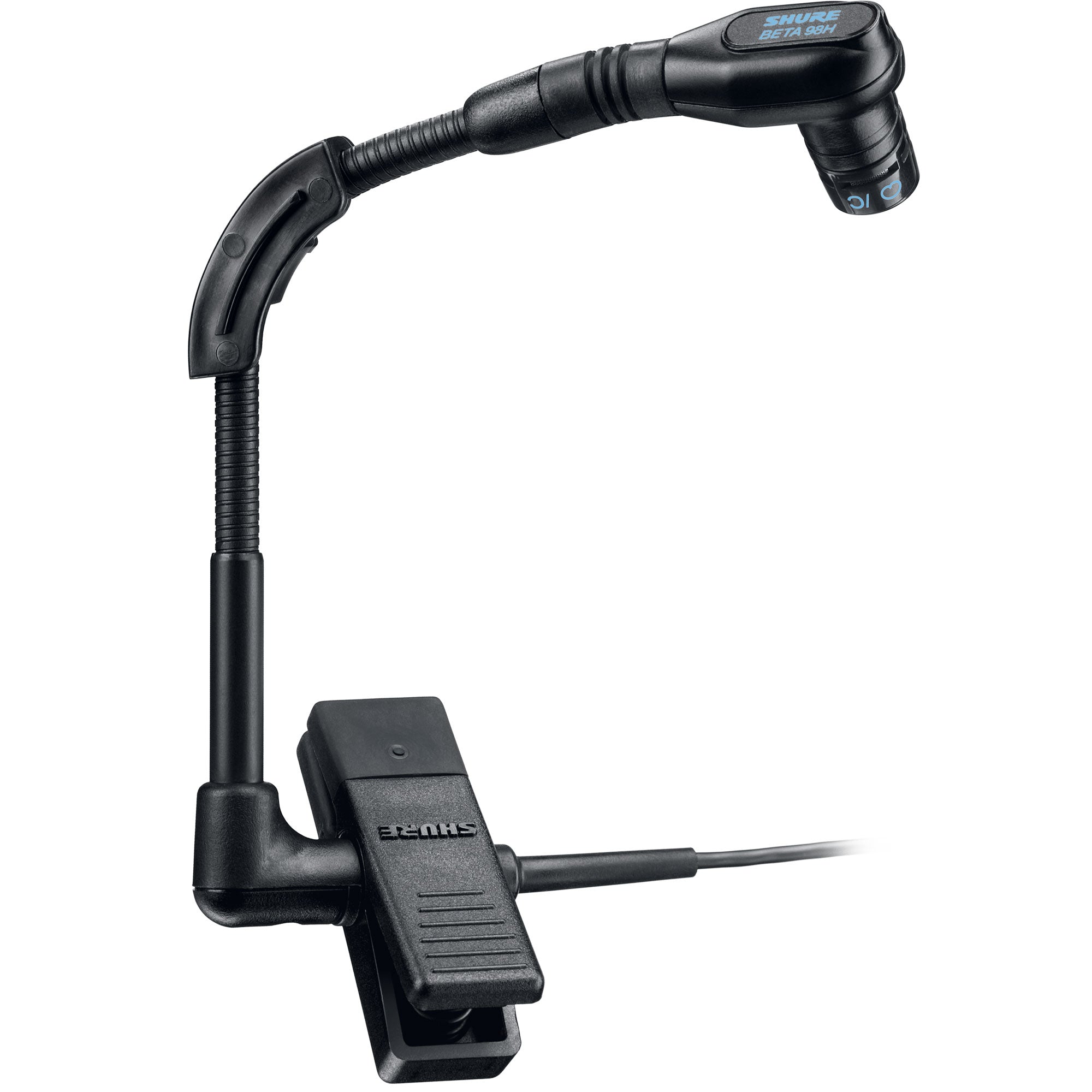

• Microphone
• Form Factor: Clip-On Instrument
• Instrument Mic Type: Clarinet, French Horn, Percussion/Drum, Saxophone, Trombone, Trumpet, Tuba
• Sound Field: Mono
• Capsule: Electret Condenser
• Polar Pattern: Cardioid
• Frequency Range: 20 Hz to 20 kHz
• SNR: 63 dB
• Equivalent Noise Level: 31 dB
• Maximum SPL: 155 dB SPL
• Impedance: 150 Ohms
• Dynamic Range: 132 dB
• Output Connectors: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
• Cable Length: 5.3' / 1.62 m

Includes:

• Shure BLX14/B98 Wireless Cardioid Instrument Microphone System
• Shure BLX4 Tabletop Wireless Receiver
• Shure BLX1 Wireless Bodypack Transmitter
• Shure WB98H/C BETA 98 Clip-On Condenser Instrument Microphone with TA4F (Mini 4-Pin) Connector
• Shure PS24US Power Supply for Select Wireless Receivers
• 2 x AA Batteries
• Padded Zipper Case
• Limited 2-Year Warranty
