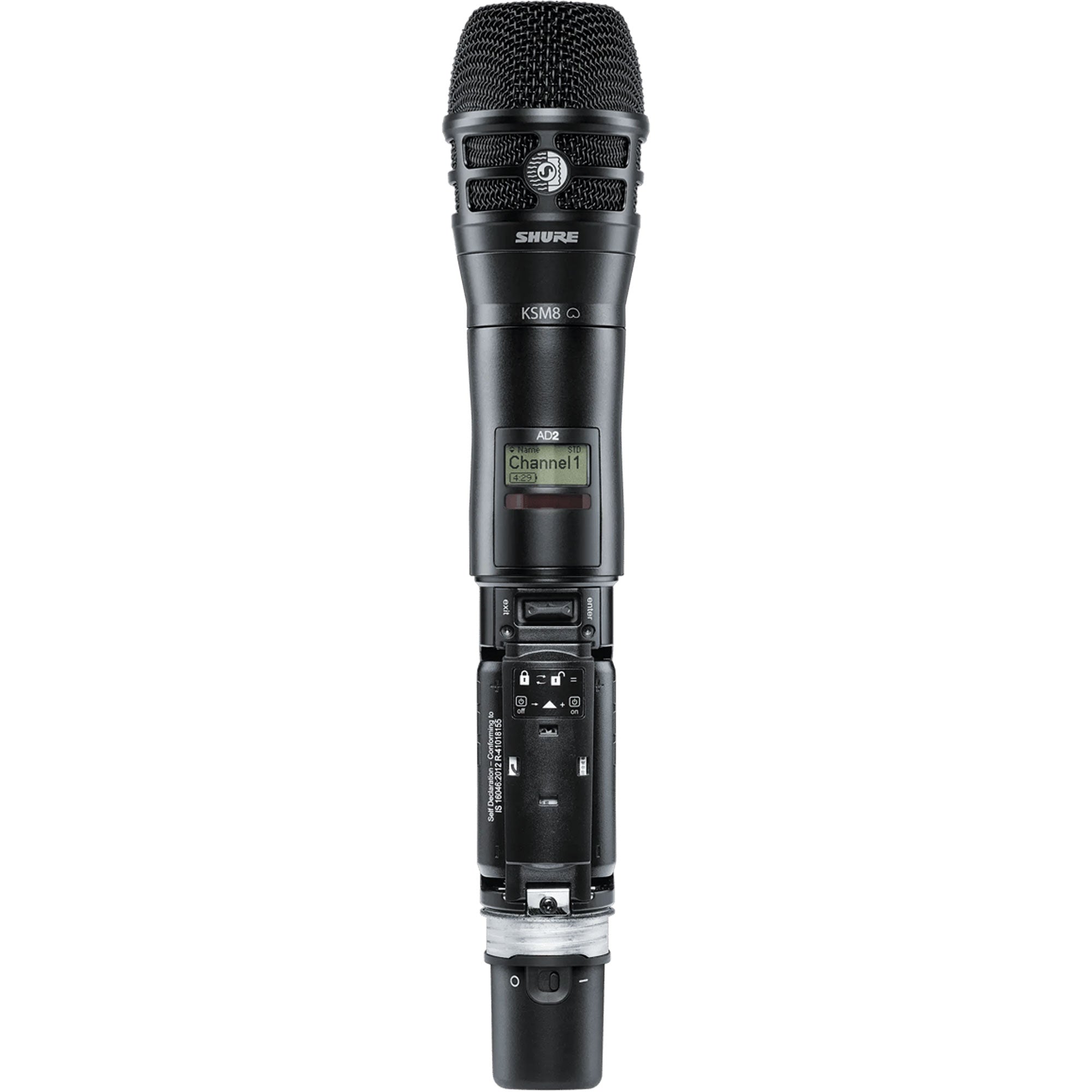

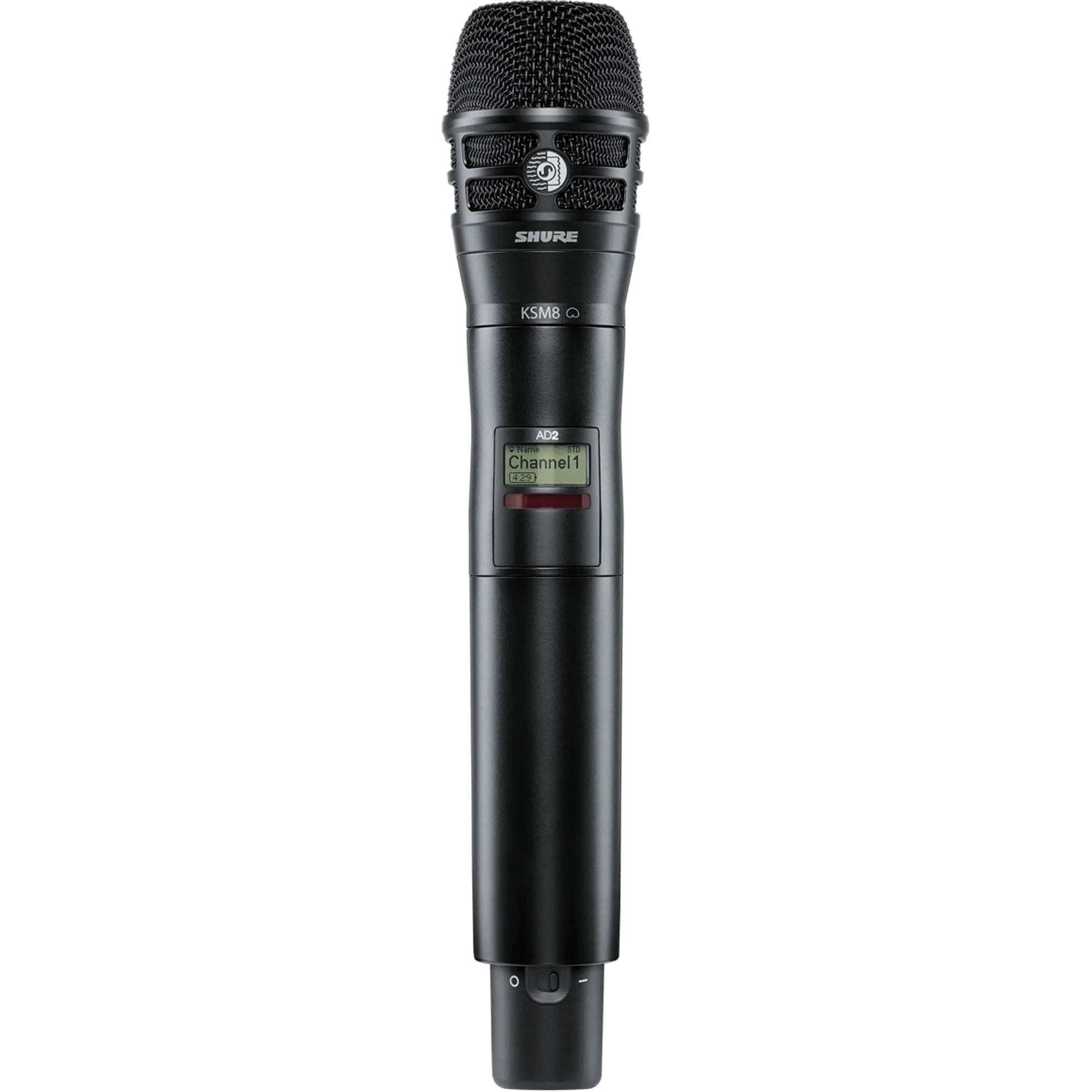

Shure AD2/K8B Axient Digital Handheld Wireless Transmitter (G57: 470-616 MHz, Black)

Axient Digital Handheld Wireless Microphone Transmitter with KSM8 Dual-Diaphragm Dynamic Cardioid Microphone Capsule, G57: 470-616 MHz - Black

AD2/KSM8 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, rechargeable power with dockable charging, and black or nickel finish options.

The AD2/KSM8 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD2/KSM8 puts professional-quality wireless digital audio within reach.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

• Works with Axient Digital Wireless Systems
• Features the KSM8 cartridge
• Offers more than 11 hours of continuous battery life with Shure lithium-ion rechargeable batteries or 8 hours with AA batteries at 10 mW
• Includes AD2/KSM8, microphone clip, zipper bag, 2 AA batteries, and user guide
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Rugged metal construction in black or nickel finish
• Backlit LCD with easy-to-navigate menu and controls
• Low-profile, lockable power switch
• Encryption-enabled, secure transmission
• AA or SB900C lithium-ion rechargeable batteries for convenient power options
• External contacts for docked charging

Specifications:

• Mic Offset Range: -12 to 21 dB (In 1 dB steps)
• Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 Vv
• Battery Runtime: @ 10 mW
  Shure SB900A: up to 9 hours
  Alkaline: up to 8 hours
• Dimensions: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
• Weight: 340 g (12.0 oz.), without batteries
• Housing: Cast Aluminum
• Audio Input
• Configuration: Unbalanced
• Maximum Input Level: 1 kHz at 1% THD
  145 dB SPL (SM58), typical
  Note: Dependent on microphone type
• RF Output
• Antenna Type: Integrated Single Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Axient Digital Proprietary
• Power: 2 mW, 10 mW, 35 mW
