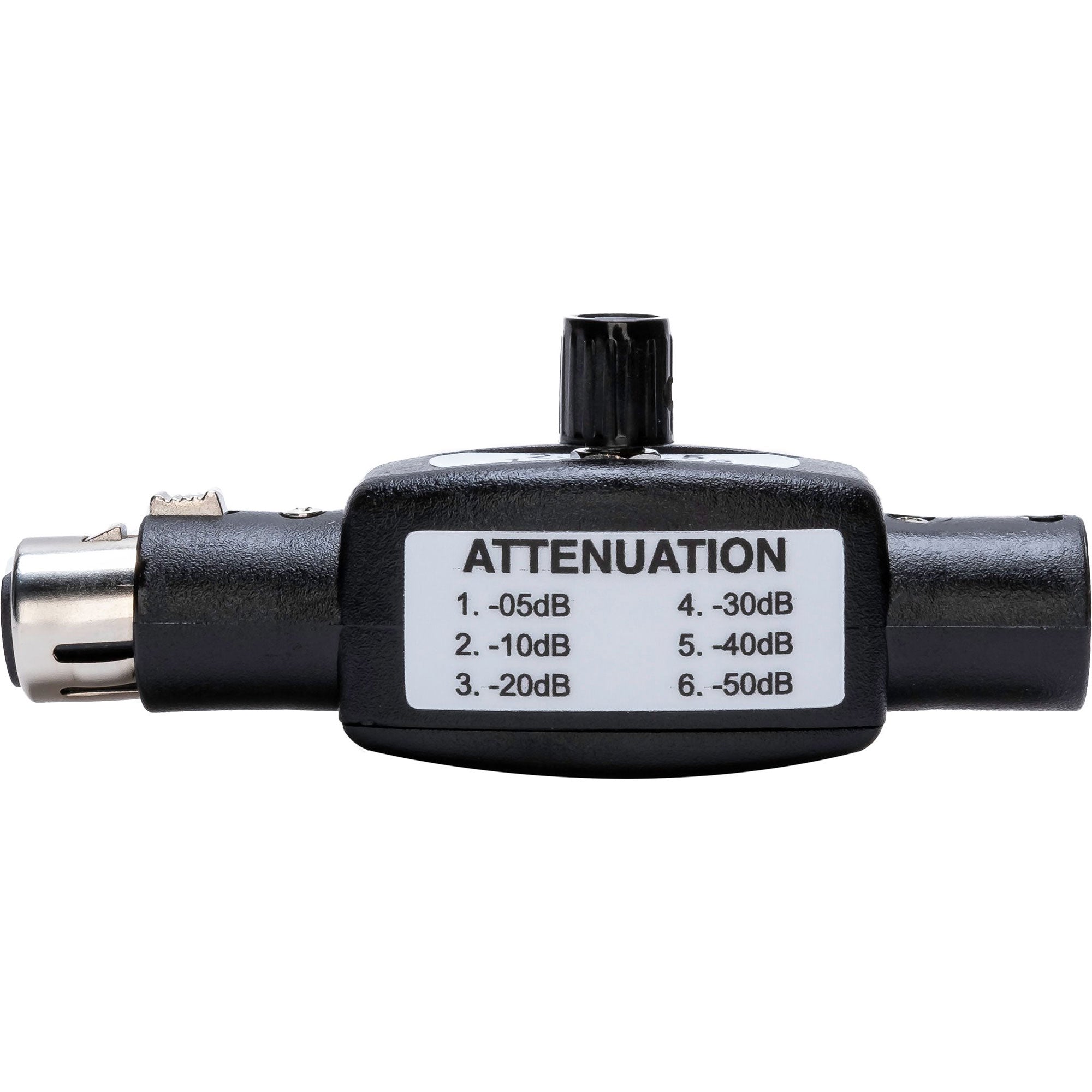

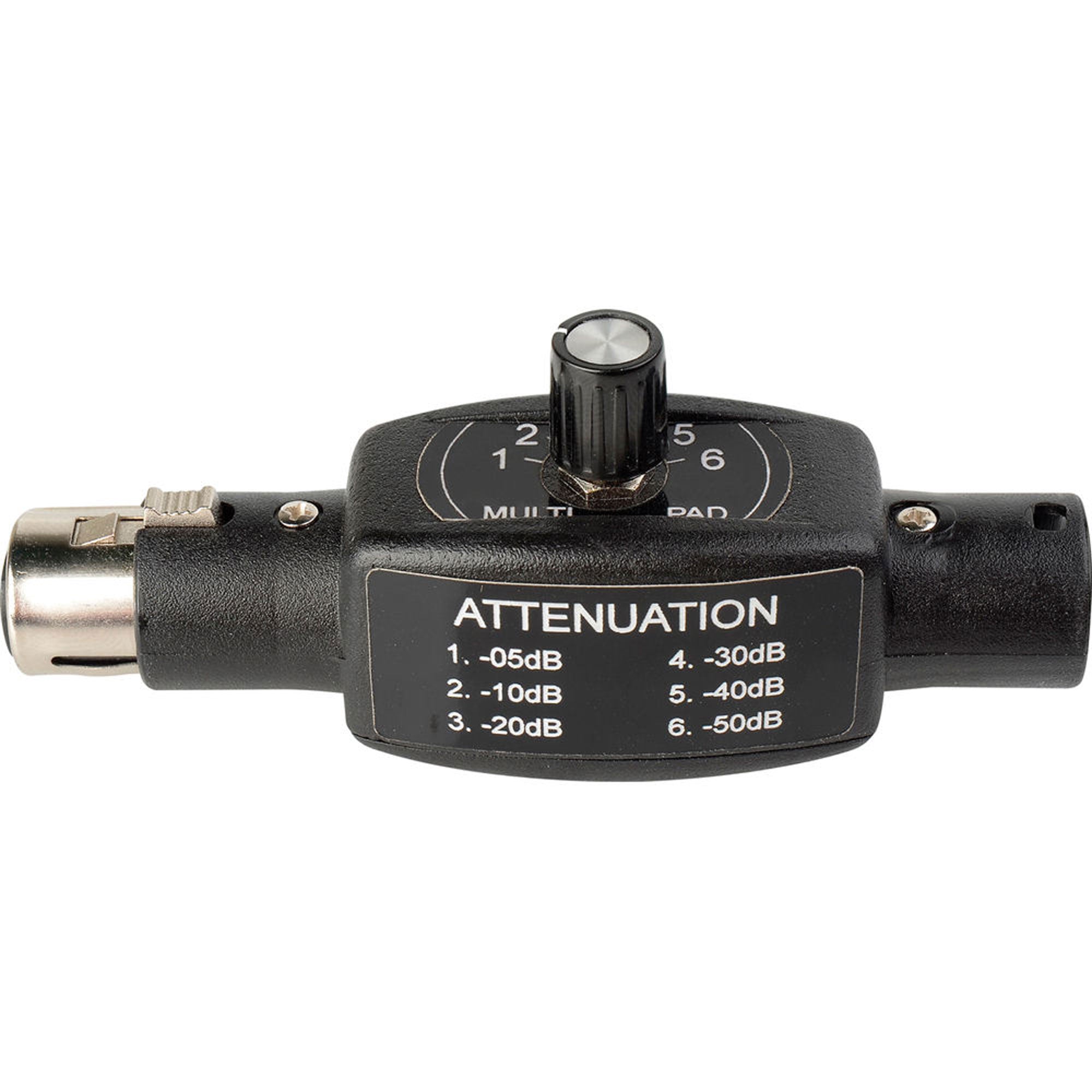

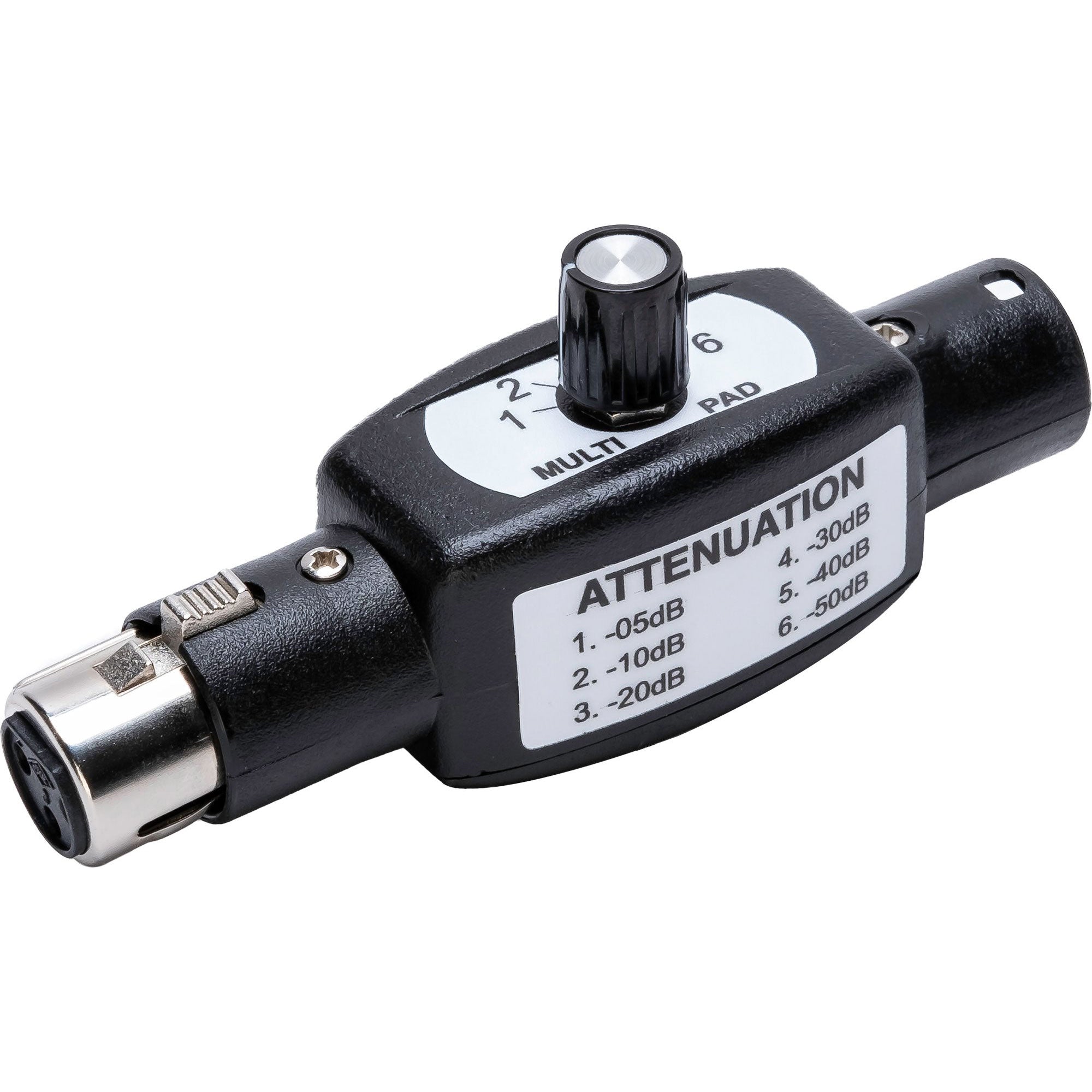

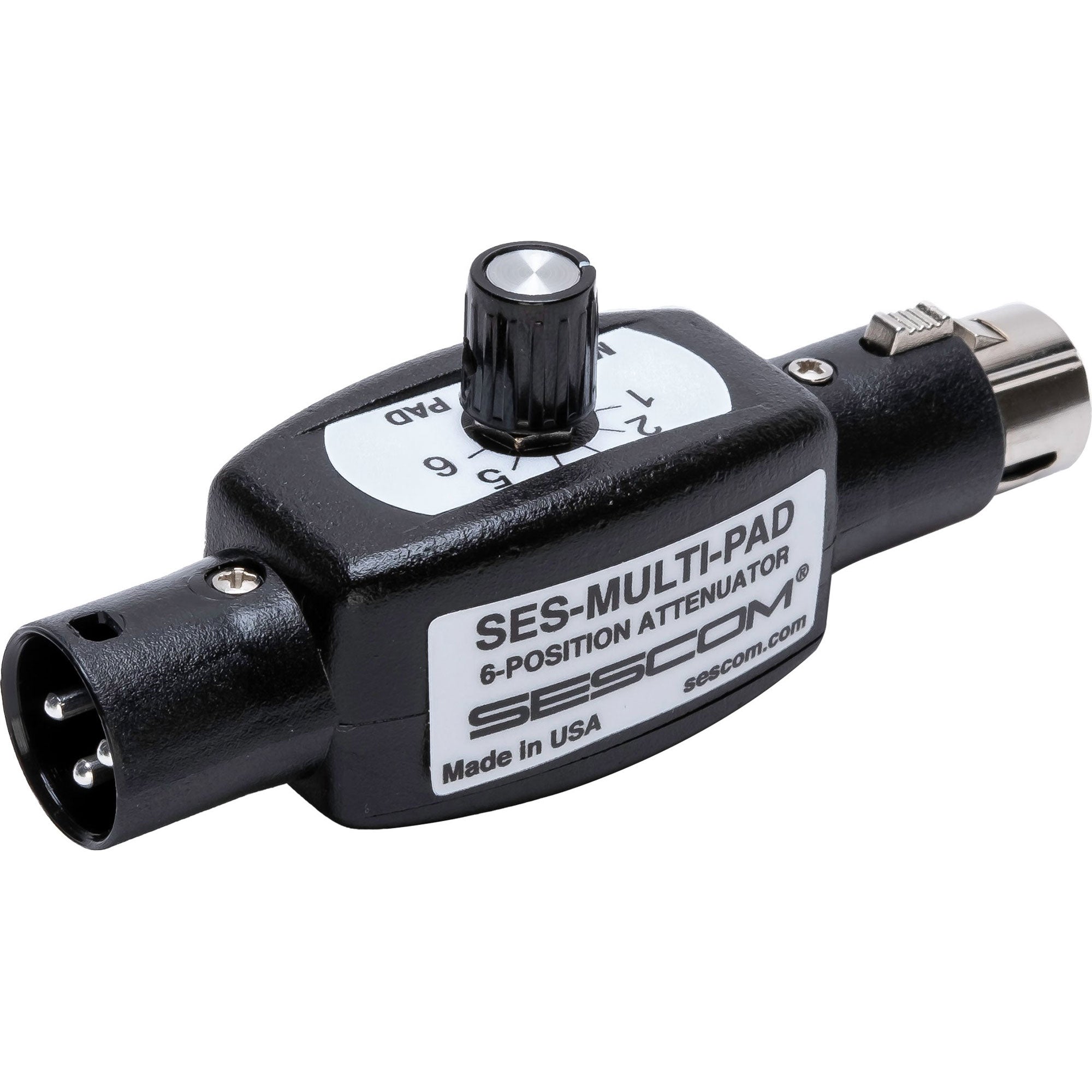

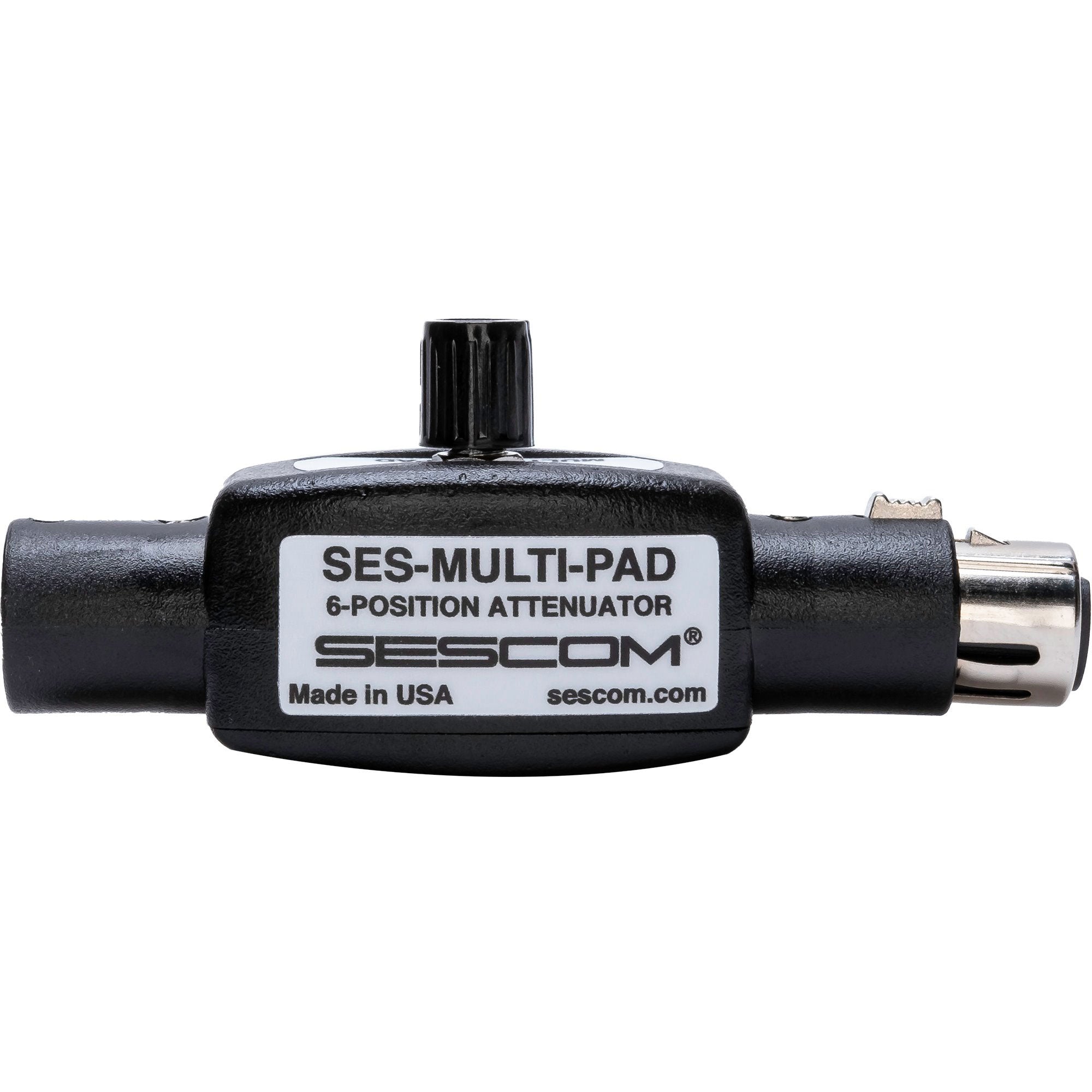

Sescom SES-MULTI-PAD 6-Position Variable Attenuator

SES-MULTI-PAD 6-Position Variable 3-Pin XLR Inline Attenuator

The Sescom SES-MULTIPAD is a balanced inline audio attenuator with XLR male to XLR female connectors that features 6-position selectable attenuation levels for reducing loud audio levels. Precision attenuation levels of -5, -10, -20, -30, -40, and -50 decibels help eliminate overloading peaks and distortion and provide a totally flat, full-bandwidth across-the-board level cut; lowering the signal to the level you need. Assembled and quality controlled in the USA.

The Sescom SES-MULTI-PAD 6-Position Variable Attenuator is a selectable level cut balanced audio attenuator pad that plugs into your equipment I/O's or inline cables. The unit features selectable decibel attenuation levels of 5, 10, 20, 30, 40 and 50dB. The SES-MULTI-PAD is ready to plug directly into other equipments' outputs or inputs with its built in XLR connectors. It can also be used with adapters to attenuate unbalanced audio in a pinch with no ill effects.

FEATURES:

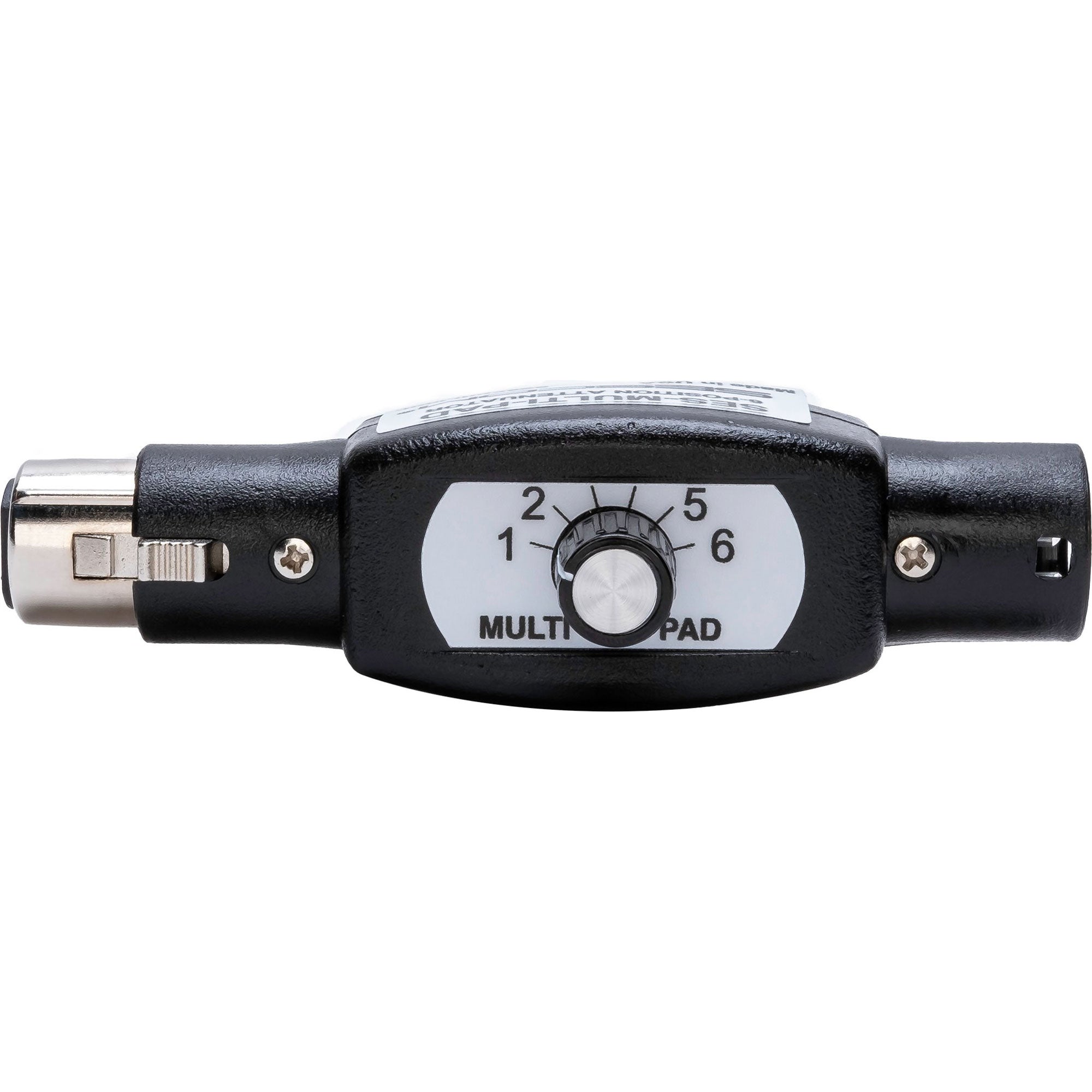

• Six Position rotary switch allows Precision attenuation amounts of -5, -10, -20, -30, -40 and -50 decibels
• Stops overloading peaks and distortion - Provides totally Flat, Full-Bandwidth across-the-board level cut; lowering the signal to the level you need
• Inline design with Built-In Male and Female XLRs right in the housing: Plugs directly into equipment's inputs OR outputs; it can also be used between (2) XLR cables due to its "pluggable" form factor

SPECIFICATIONS:

• Frequency Response Deviation (20Hz-20kHz):
  -5 dB through -50 dB: <0.1 dB
• Signal to Noise Ratio 0dBFS, A-Weighted:
  -5 dB: 113 dB
  -10 dB: 109 dB
  -20 dB: 98 dB
  -30 dB: 89 dB
  -40 dB: 79 dB
  -50 dB: 68 dB
• Total Harmonic Distortion 1KHz, 0 dBFS:
  -5 dB: <0.001%
  -10 dB: <0.001%
  -20 dB: <0.001%
  -30 dB: <0.001%
  -40 dB: 0.002%
  -50 dB: 0.008%
• Maximum Input Level:
  -5 dB through -50 dB: >24 dB
• Maximum Output Level:
  -5 dB: >19 dB
  -10 dB: >14 dB
  -20 dB: >4 dB
  -30 dB: >-3 dB
  -40 dB: >-15 dB
  -50 dB: >-27 dB
• Dynamic Range:
  -5 dB: >132 dB
  -10 dB: >123 dB
  -20 dB: >103 dB
  -30 dB: >86 dB
  -40 dB: >64 dB
  -50 dB: >41 dB
• Gain:
  -5 dB: -5dB
  -10 dB: -10dB
  -20 dB: -20dB
  -30 dB: -29dB
  -40 dB: -39dB
  -50 dB: -51dB
• Input Impedance:
  -5 dB: 1.3k Ohms
  -10 dB: 2.1k Ohms
  -20 dB: 4.6k Ohms
  -30 dB: 7.1k Ohms
  -40 dB: 8.8k Ohms
  -50 dB: 9.7k Ohms
• Output Impedance:
  -5 dB: 910 Ohms
  -10 dB: 940 Ohms
  -20 dB: 940 Ohms
  -30 dB: 960 Ohms
  -40 dB: 980 Ohms
  -50 dB: 990 Ohms
• Phase Deviation:
  -5 dB through -50 dB: <.1 deg
