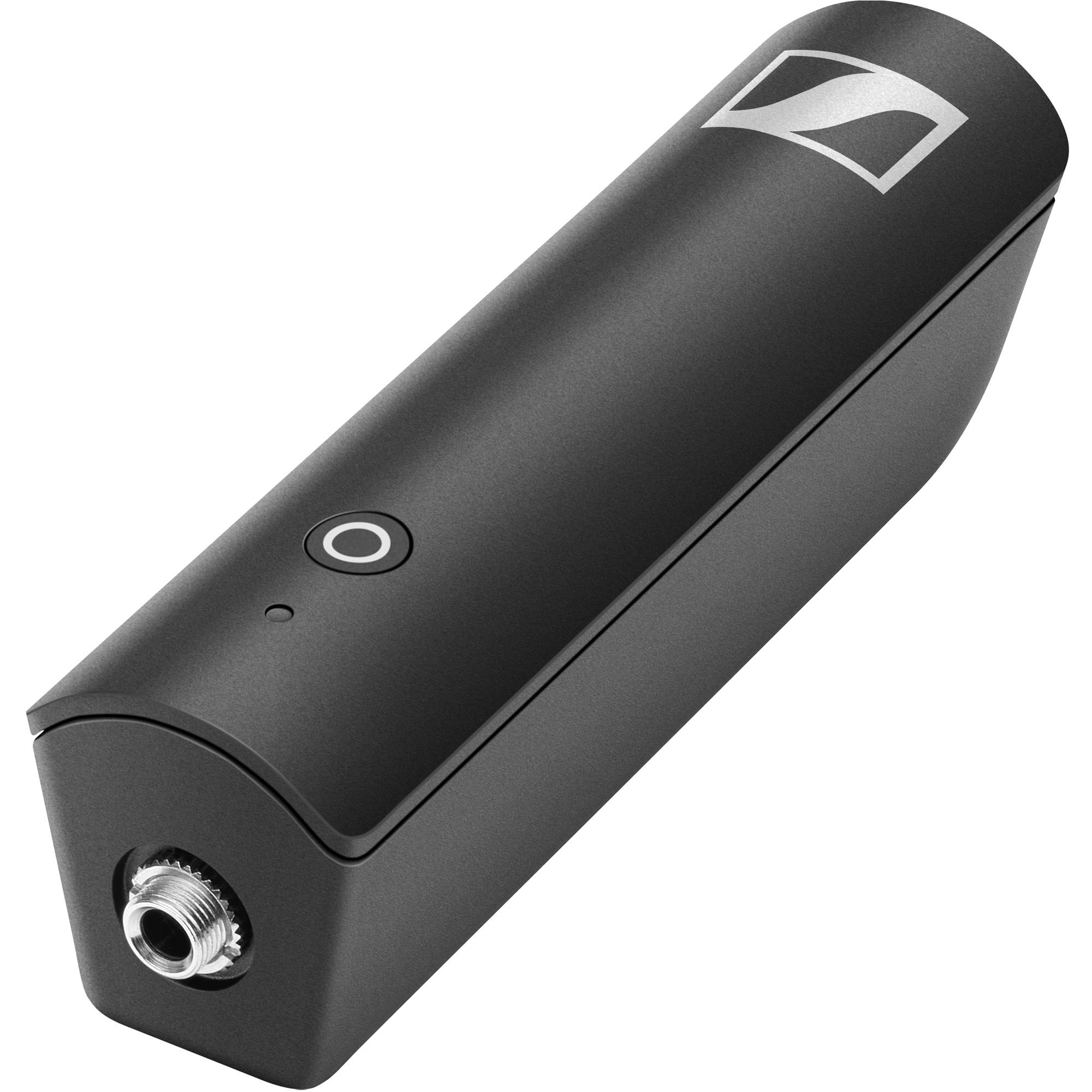

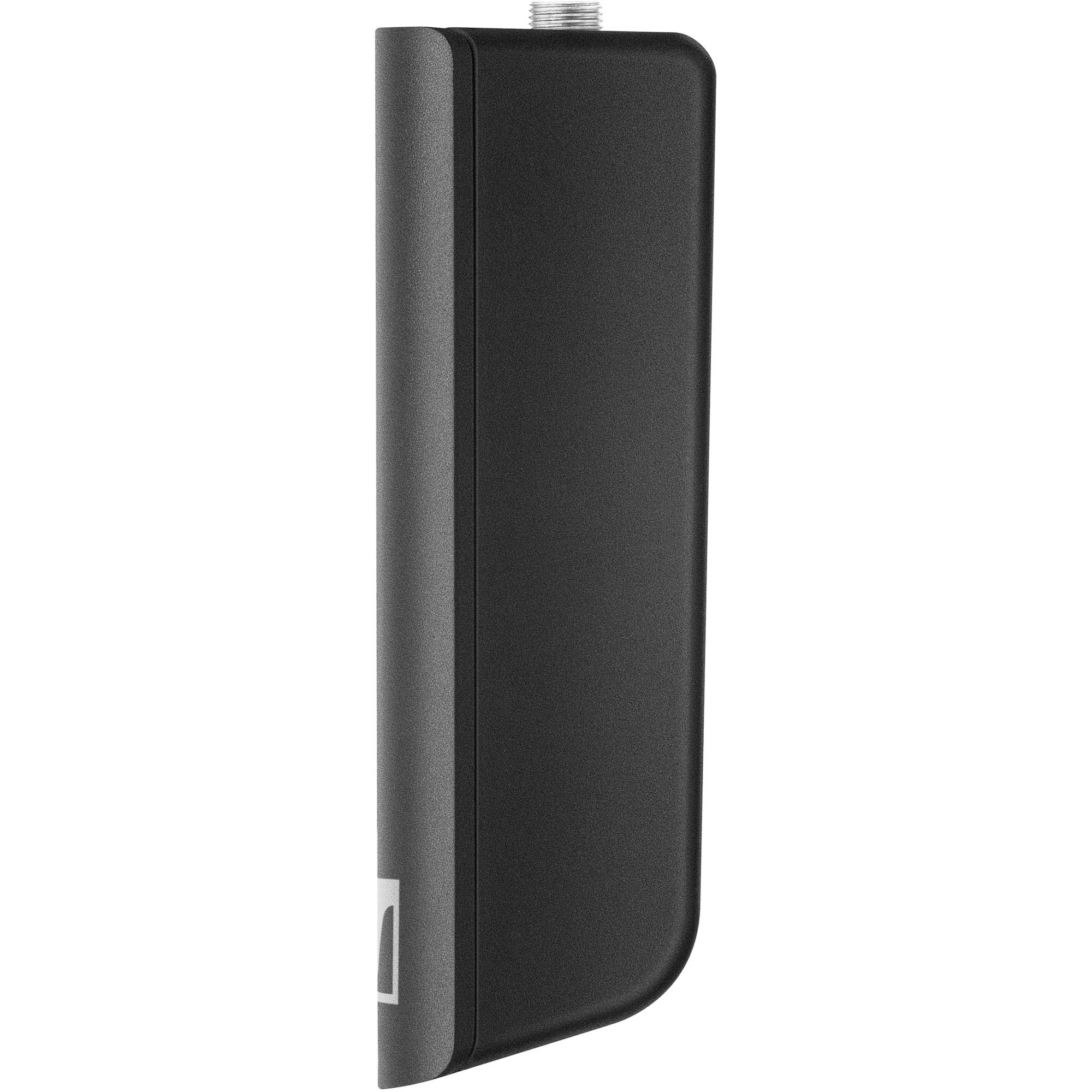

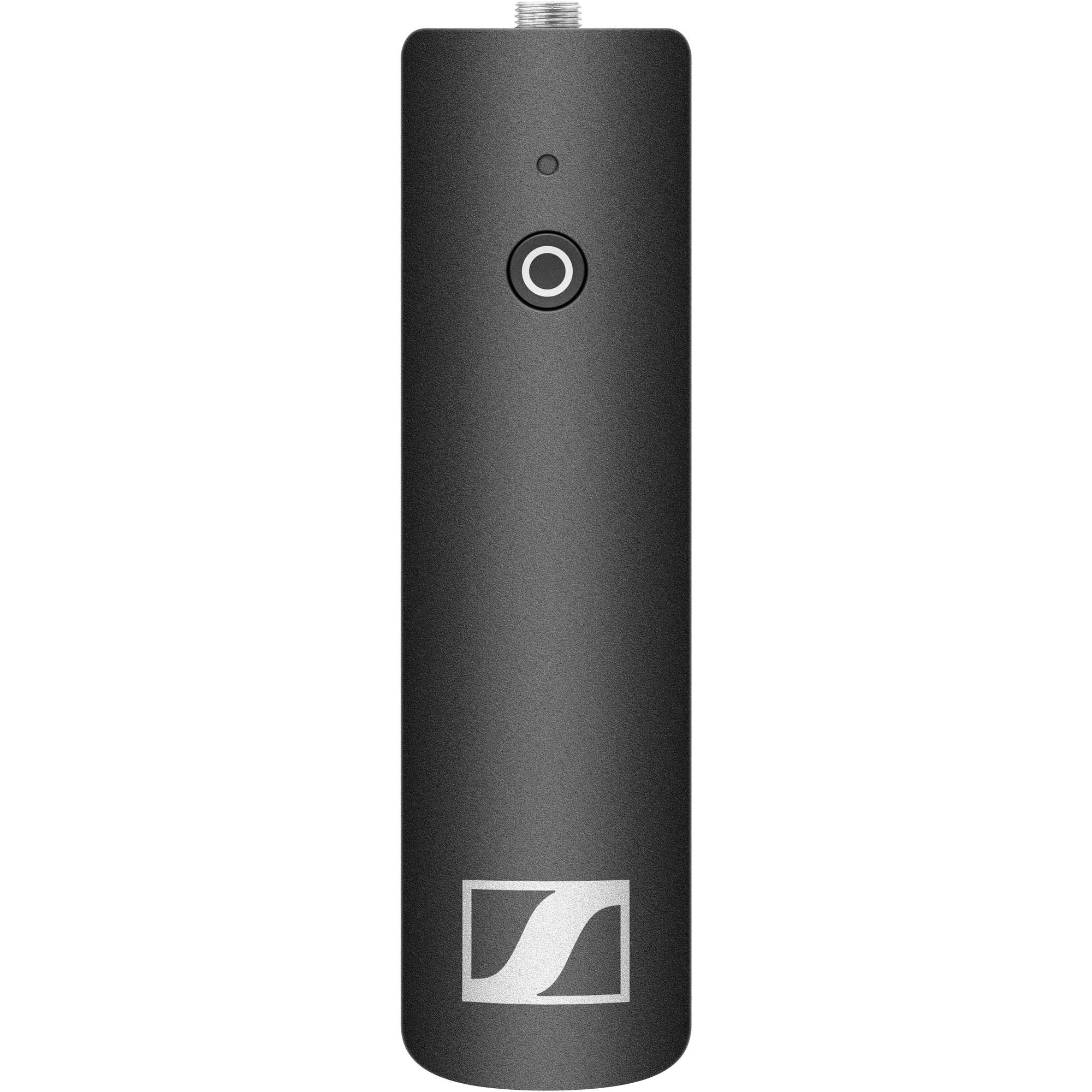

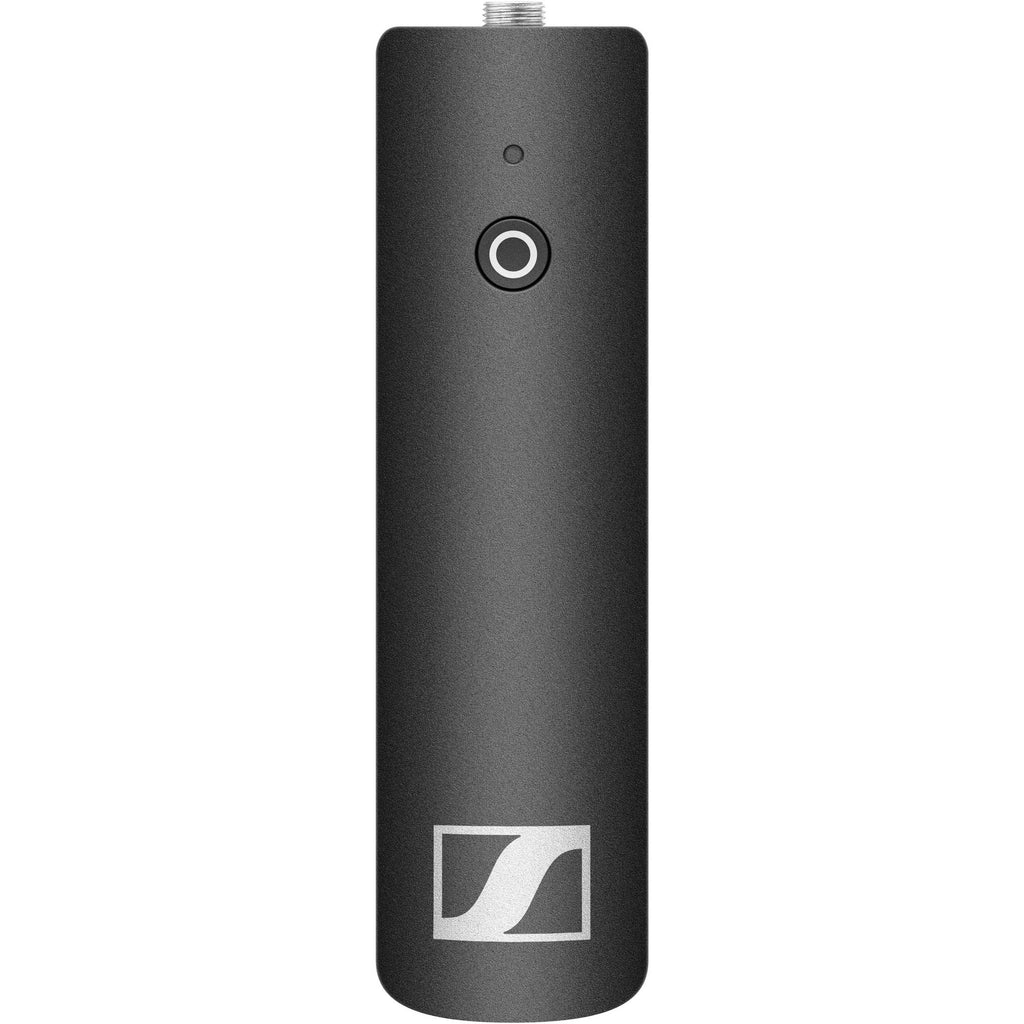

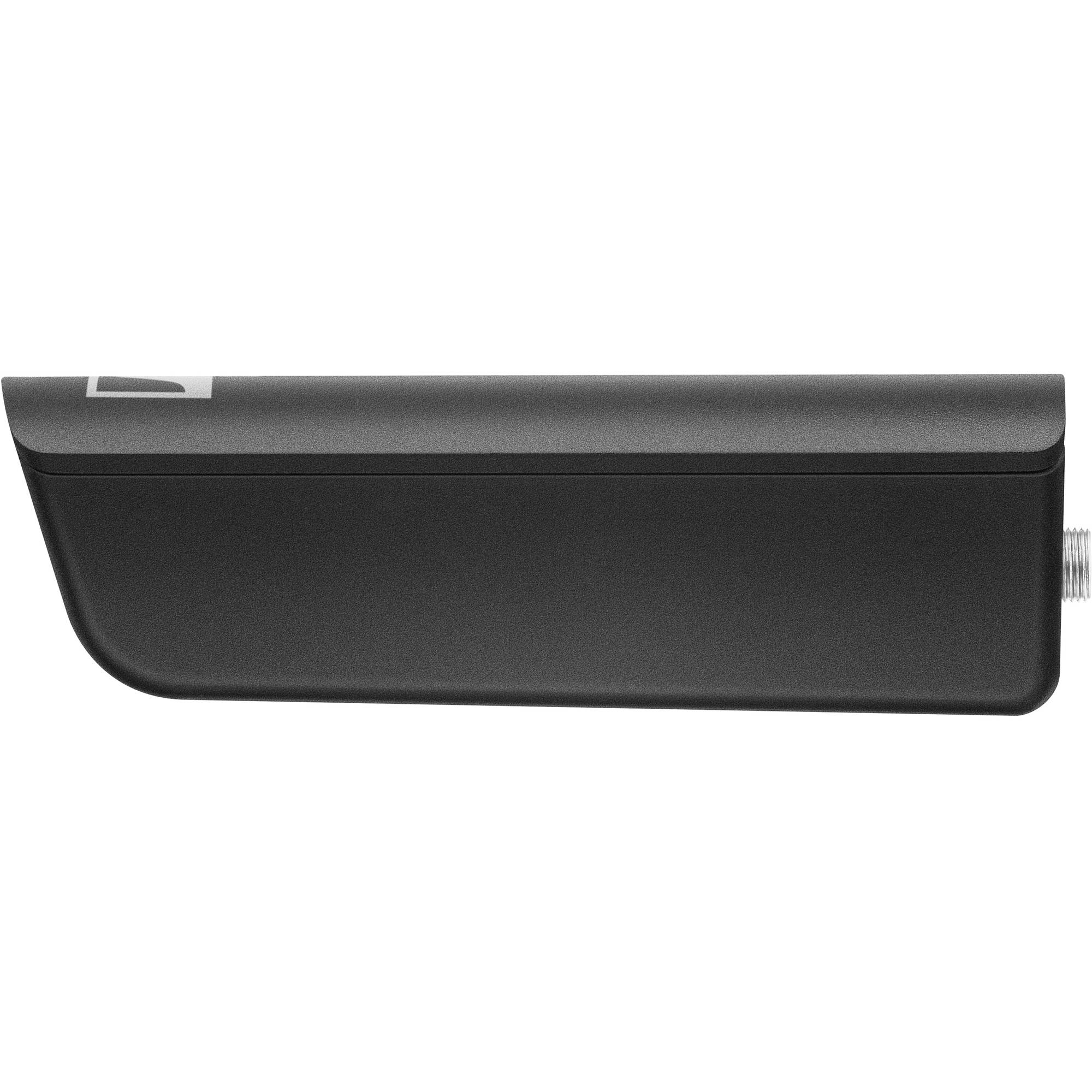

Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)

Plug-and-play Digital Wireless Transmitter with 1/8" (3.5mm) Mini Jack Connector, 250-foot Operating Range, and 5-hour Battery Life - 2.4GHz

Part of the Sennheiser XSW-D digital wireless system, the XSW-D MINI JACK TX bodypack transmitter is available as an individual component when you're ready to add an additional transmitter to your system, or as a replacement unit.

The XSW-D MINI JACK TX features a 3.5mm locking microphone input connector, ready to accommodate a Sennheiser or Sennheiser-compatible lavalier or headset mic. This exceptionally lightweight and compact transmitter can be easily concealed in your pocket or discreetly attached to your waist with a belt clip (available separately). Note that it is designed to transmit signal only from a microphone (not from a mixer or recorder).

The XSW-D puts world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-record, 1-button digital system that anyone can use. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.

Features:

• Plug In, Turn On: It Works
• The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing.
• (For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)
• Step Up to Sennheiser Sound Quality
• Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
• Easy 2.4 GHz Digital Wireless
• Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
• Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.
• License-Free Operation Worldwide
• Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
• Simply let the system pick a channel for you, and you're ready to get started—whether you're working at home or anywhere in the world.
• Other Features
• Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
• 5-hour total battery life gives you plenty of shooting time
• Conveniently recharge battery via USB while in operation or during breaks throughout the day
• Up to five systems can be operated simultaneously in the same environment
• Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
• Mute from either transmitter or receiver
• Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

Specifications:

• System
• Wireless Transmission: Digital 2.4 GHz
• RF Frequency Band: 2400 to 2483.5 MHz
• Max Operating Range: 250' / 76.2 m (Line of Sight)
• Latency: <4 ms
• Encryption: None
• Modulation: GFSK
• Transmitter
• Form Factor: Bodypack
• RF Output Power: 10 mW
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
• Muting: Off/On Switch
• Audio Input Level: 1.2 dBu (Mic Level)
• Frequency Response: 80 Hz to 18 kHz
• Antenna: 1 x Internal
• Power Requirements: Battery, Bus Power (USB)
• Battery Type: 1 x Built-In Rechargeable(Not Replaceable)
• Internal Battery Capacity: 850 mAh
• Battery Charging Time: 3 Hours
• Approx. Battery Life: 5 Hours (Lithium Rechargeable)
• Battery Cycle Count: Up to 1000 Cycles
• USB/Lightning Connectivity: 1 x USB Type-C (Bus Power, Charging)
• Housing: Plastic
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Operating Humidity: 95%
• Dimensions: 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm

Includes:

• Sennheiser XSW-D MINI JACK TX Bodypack Transmitter (2.4 GHz)

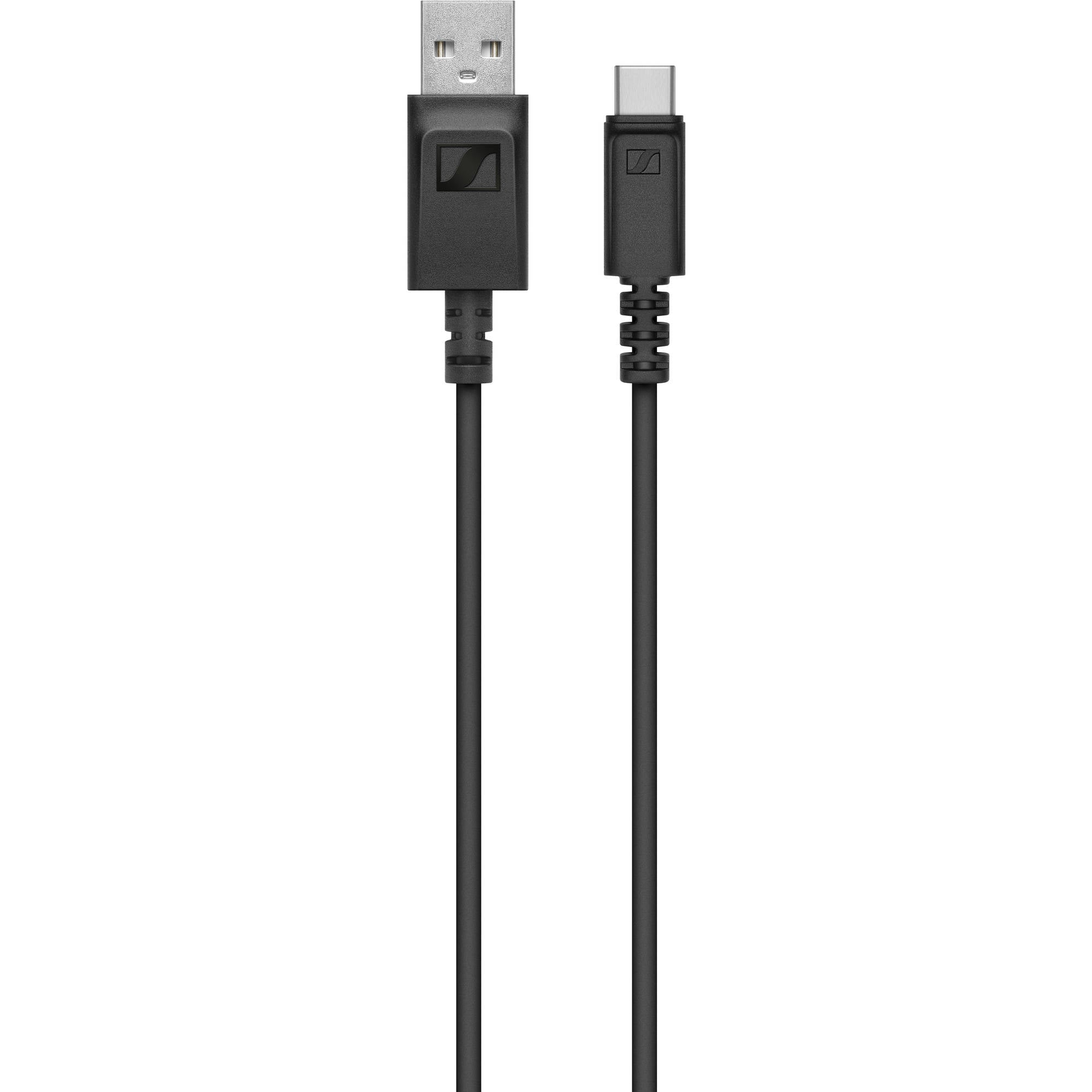

• USB Type-A to USB Type-C Charging Cable
• Limited 2-Year Warranty
