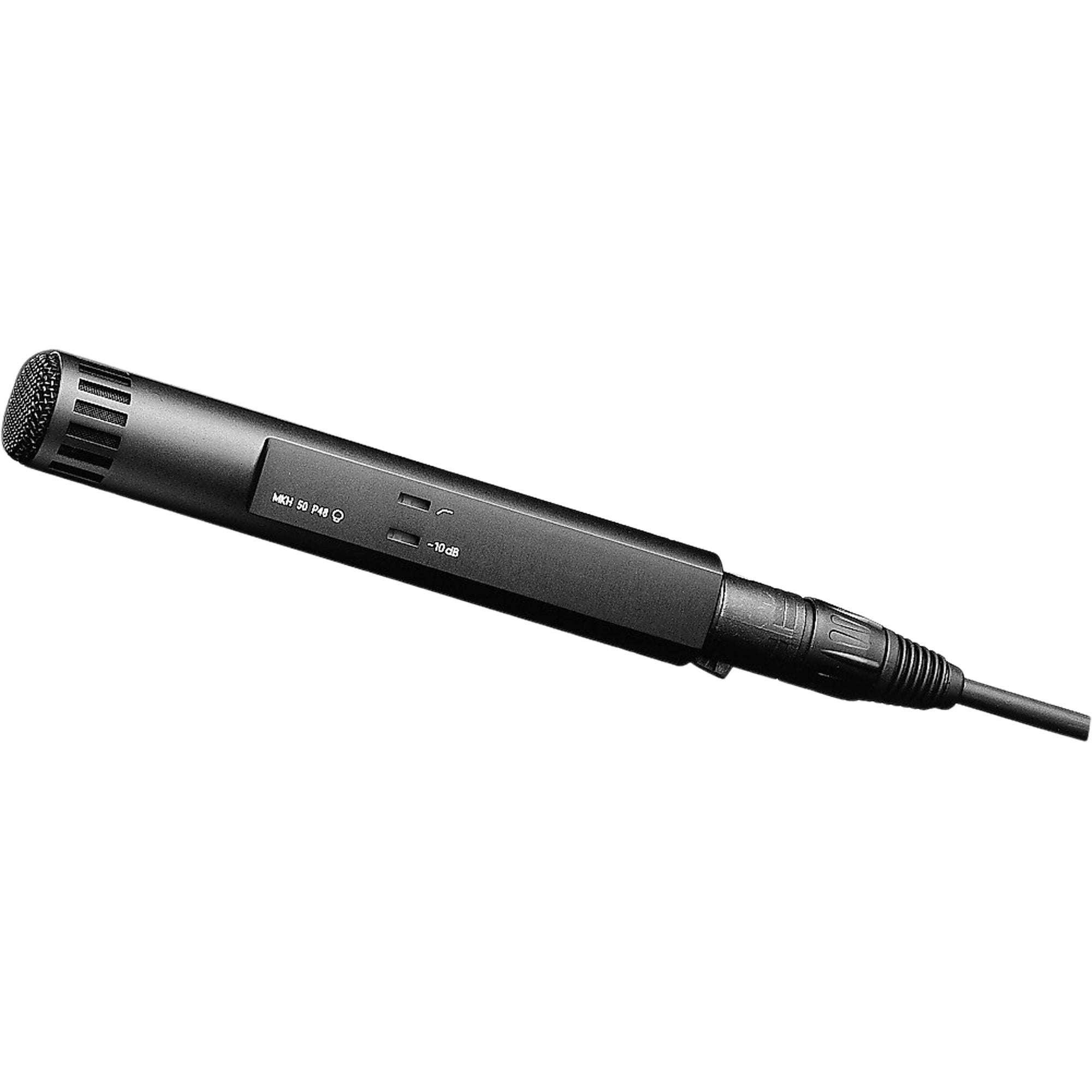

Sennheiser MKH50-P48 Supercardioid Condenser Microphone

Supercardioid Condenser Microphone with Switchable Roll-Off Filter and Switchable Pre-Attenuation

Super-cardioid microphone designed for use as a soloist's or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection. Frequency-independent directional characteristics.

Pressure gradient microphone with super-cardioid pick-up pattern.

Features:

• High rejection of lateral sounds
• Exceptionally low inherent self-noise
• Transformerless and fully floating balanced output
• Symmetrical transducer technology ensures extremely low distortion
• Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 m
• Switchable pre-attenuation
• Black, anodized light metal body

Specifications:

• Dimensions: Ø 25 x 153 mm
• Frequency response (microphone): 40 - 20000 Hz
• Transducer principle (Microphone): RF condenser microphone
• Max. sound pressure level: 134 (142) dB / 1 kHz
• Pick-up pattern: super-cardioid
• Sensitivity in free field, no load (1kHz): 25 mV/Pa +- 1 dB
• Nominal impedance: 150 Ω
• Min. terminating impedance: 1000 Ω
• Equivalent noise level: 12 (18) dB
• Equivalent noise level weighted as per CCIR 468-3: 21 (27) dB
• Current consumption: 2 mA
• Battery Specification: 48 +- 4 V Phantom

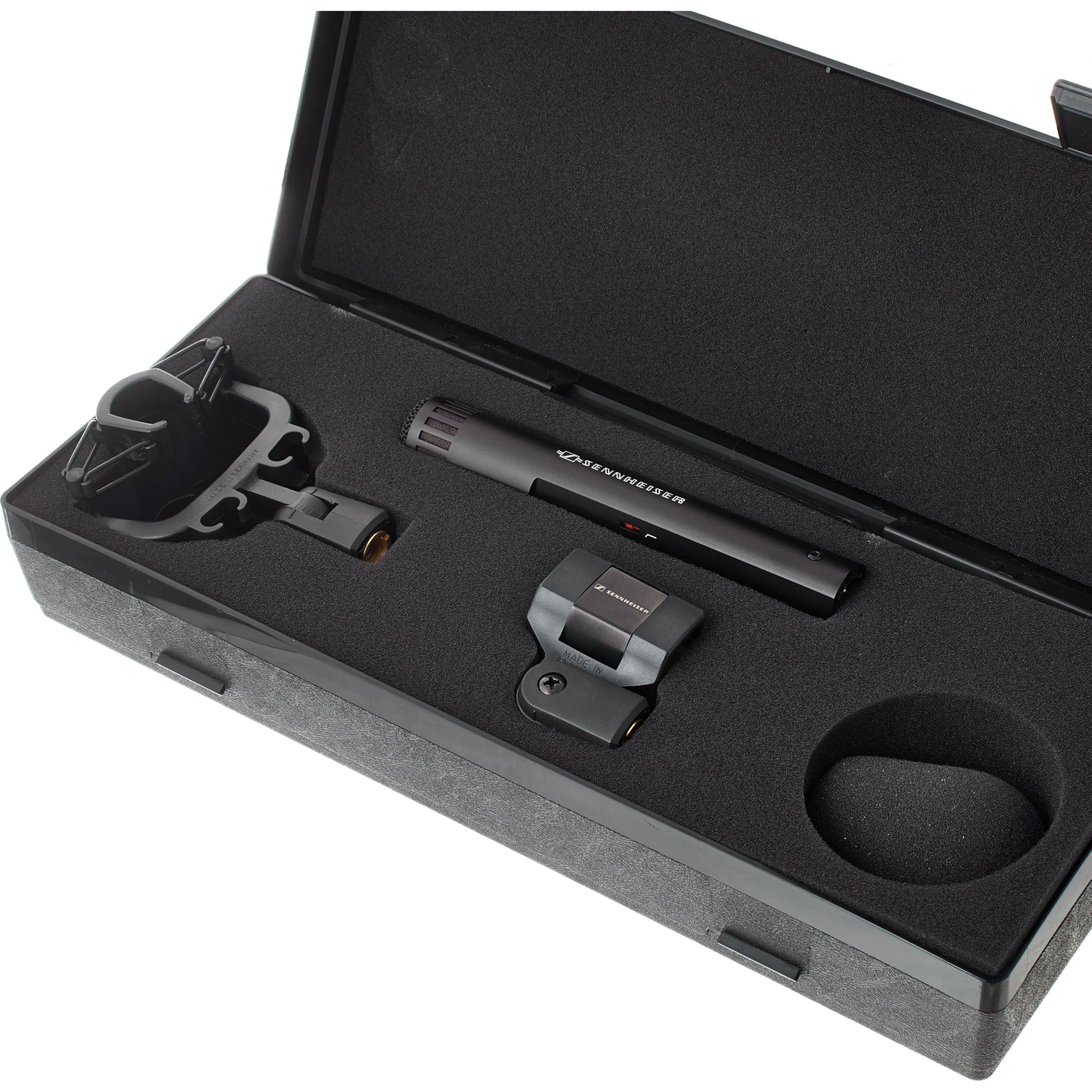

Includes:

• 1 x MKH50-P48 microphone

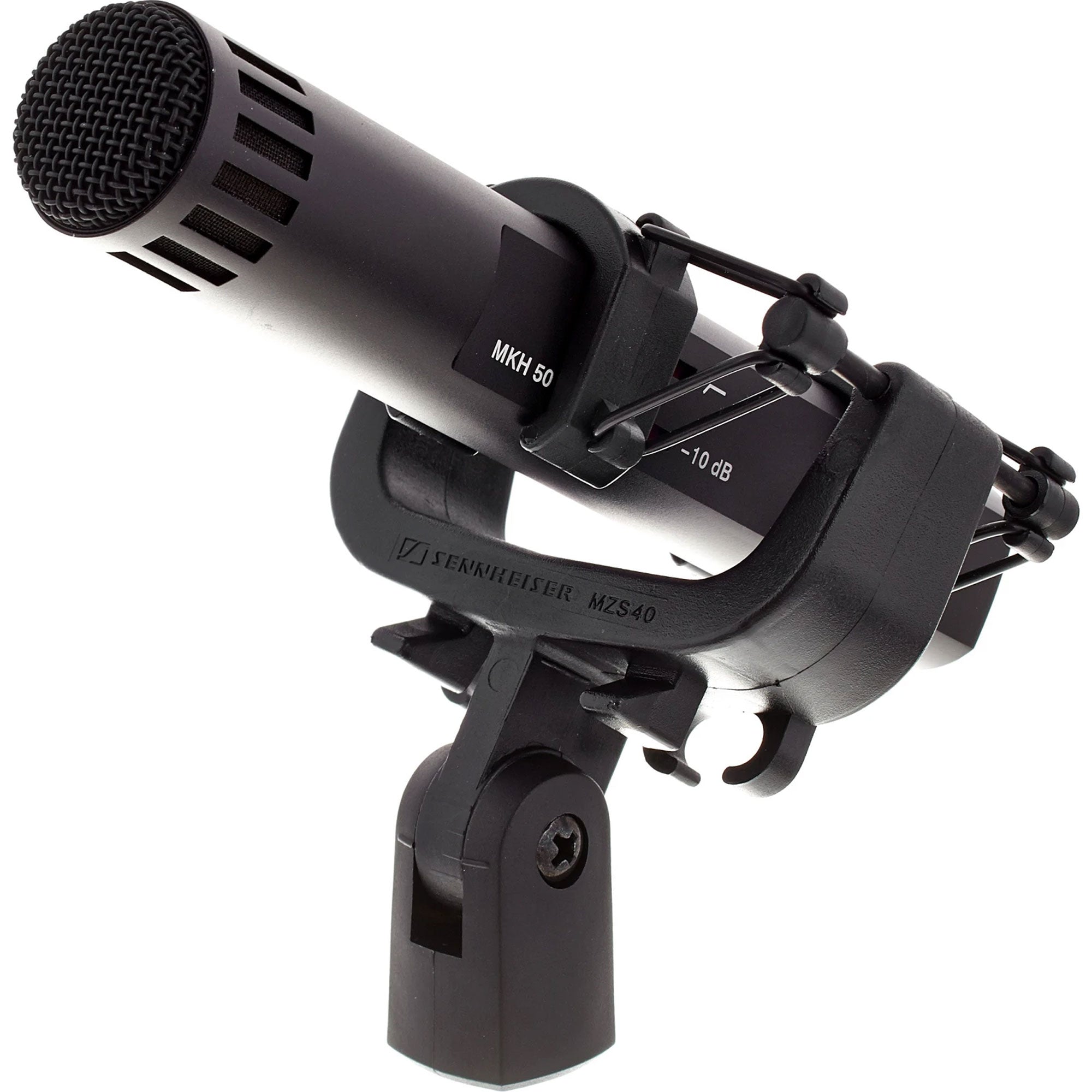

• 1 x MZS40 shock mount
• 1 x MZW41 windshield
