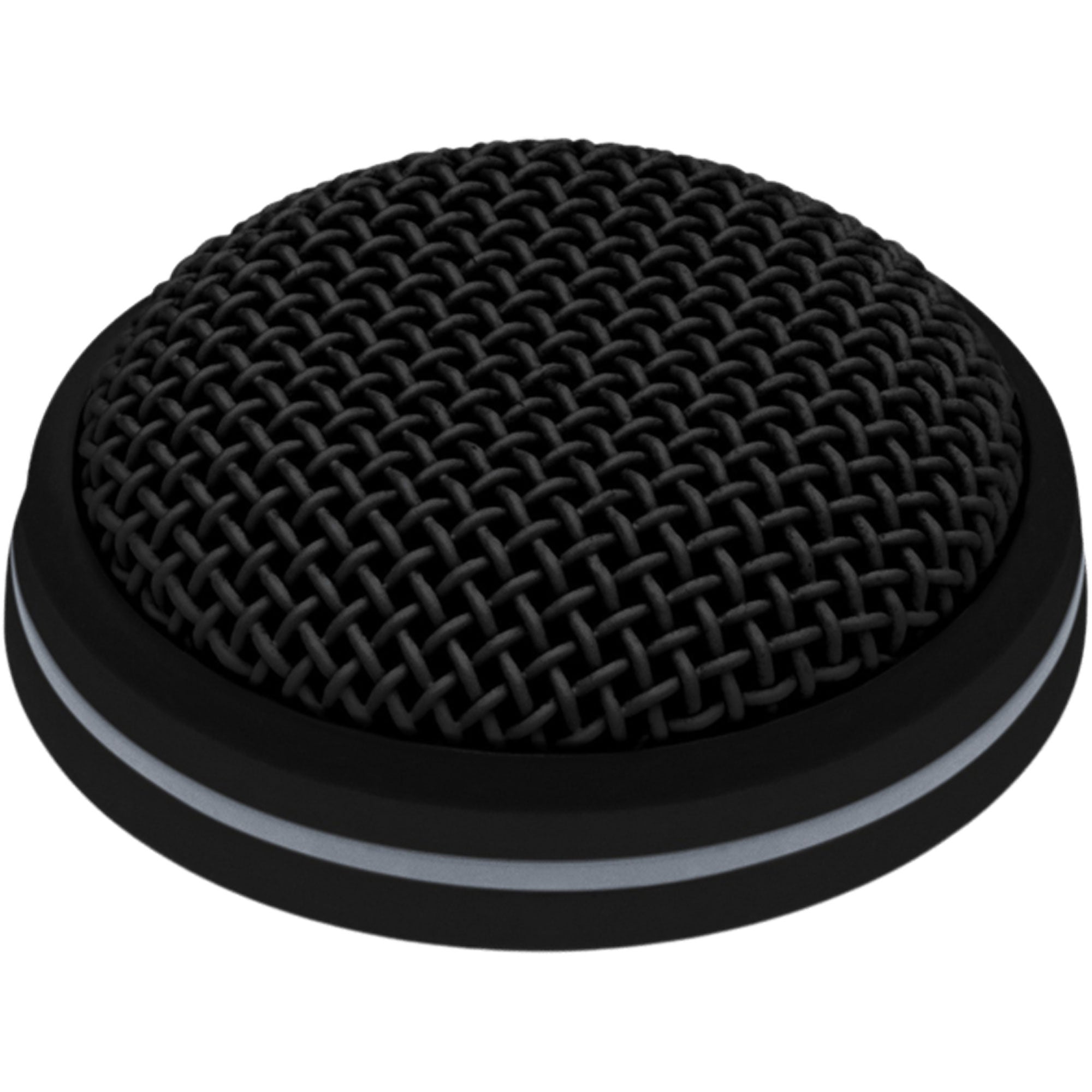

Sennheiser MEB102-L Omnidirectional Boundary Microphone (Black)

Speechline Install Omnidirectional Boundary Microphone with Bi-Color LED (XLR-5) - Black

Boundary installation wired microphone for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The omni-directional microphone capsule guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color.

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

Specifications:

• Connector:
  MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = -
  MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = - (Mic -), 4 = LED green (trigger signal), 5 = LED red (default):
  Current consumption: MEB 102: 3 mA
  MEB 102-L: 6 mA
• Dimensions: Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
• Frequency response: 40 Hz - 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 2.05 oz
• Pick-up pattern: Omnidirectional
• Nominal impedance: 200 Ohm
• Phantom powering: P 24 - P 48
• Operating temperature: 32 °to 104 ° F
• Equivalent noise level: 21 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 104 dB (A)
• Sensitivity: 16 mV/Pa
• Thread: M 20

Includes:

• MEB 102
• Mounting hardware
• Quick guide
