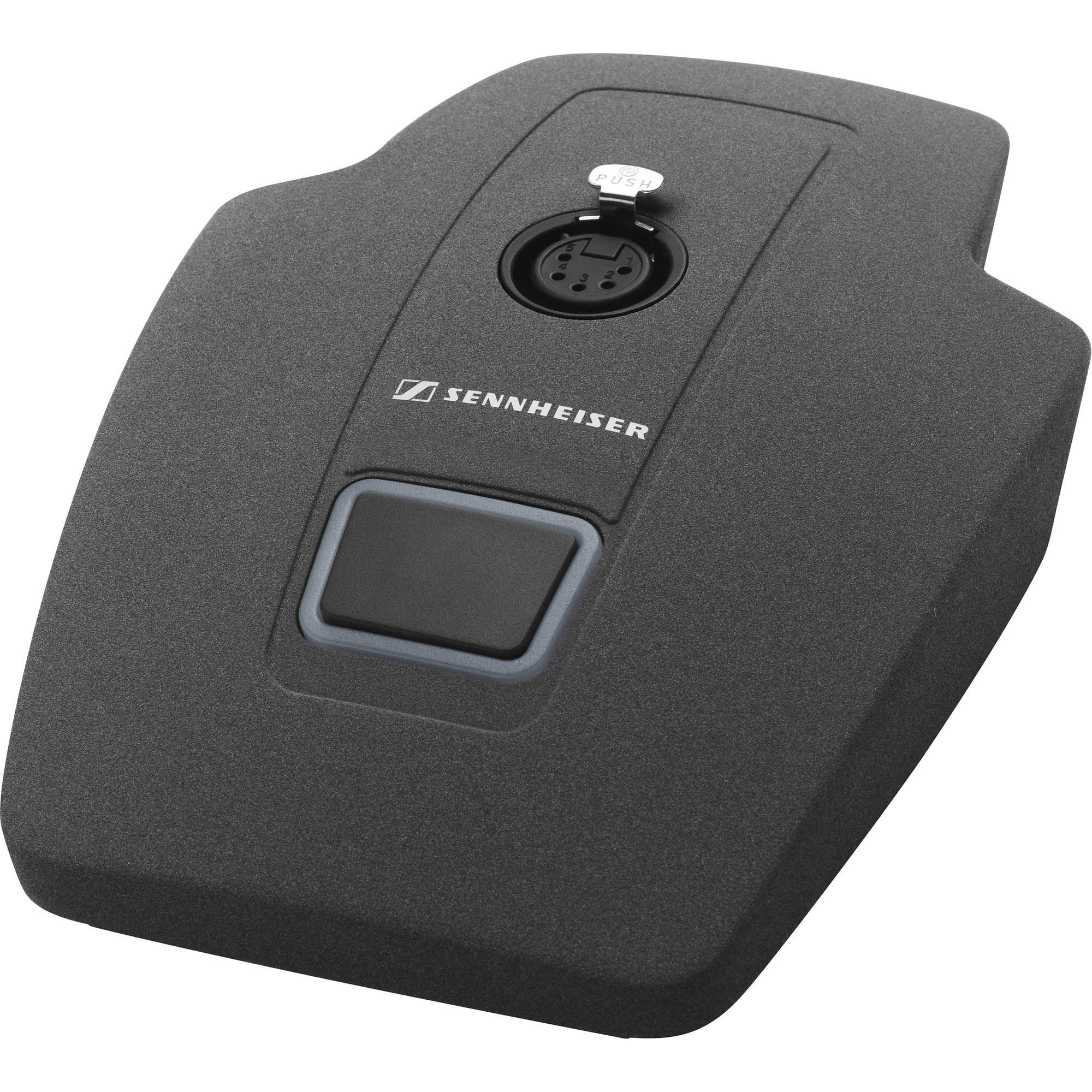

Sennheiser MAT 153-S B Table Stand

Table Stand for MEG 14-40-L II

Featuring a rugged housing, the functionally and unobtrusively designed MAT 153 provides a solid ground for gooseneck microphones with lighting ring.

Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal

Features:

• Powered with standard XLR-3 cable

Specifications:

• Color:
  Black
  LED Light Ring: red / green
• Connector: Mic in: XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (-), 4 = LED (-), 5 = LED (+)
• Connector: Mic out: XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = -
• Connector:
  Clip contact: Pin assignment: trigger signal at the logic connector:
  Logic in (external LED control), GND, Logic out (switch signal)
• Weight:
  Approx. 2.7 lbs
  3.7 lbs
• Current Consumption: 3.7 mA
• Output Voltage: Logic out: high level output voltage > 2.4 V, low level output voltage < 0.4 V
• Output Voltage: Logic in: high level input voltage > 2.0 V, low level input voltage < 0.8 V

Includes:

• MAT 153-S table stand
