Key Features
- For Studio Recording Applications
- Ideal for Drums, Cymbals & Upright Bass
- 1" Titanium Capsule from T2 Microphone
- Cardioid Pickup Pattern
- 157 dB Max SPL
- Low Noise & Ultrafast Transient Response
- -10 or -20 dB Pad
- 80 or 160 Hz High-Pass Filter
- Dent-Proof, Handmade Metal Housing
- Includes Shockmount, Case, & Adapter
Description
Large-diaphragm Condenser Mic with Cardioid Polar Pattern, Twin 1" Titanium-sputtered Brass Capsule, 80Hz/160Hz Low-cut Filters, and -10dB-/20dB Pads
Titanium Makes The Difference

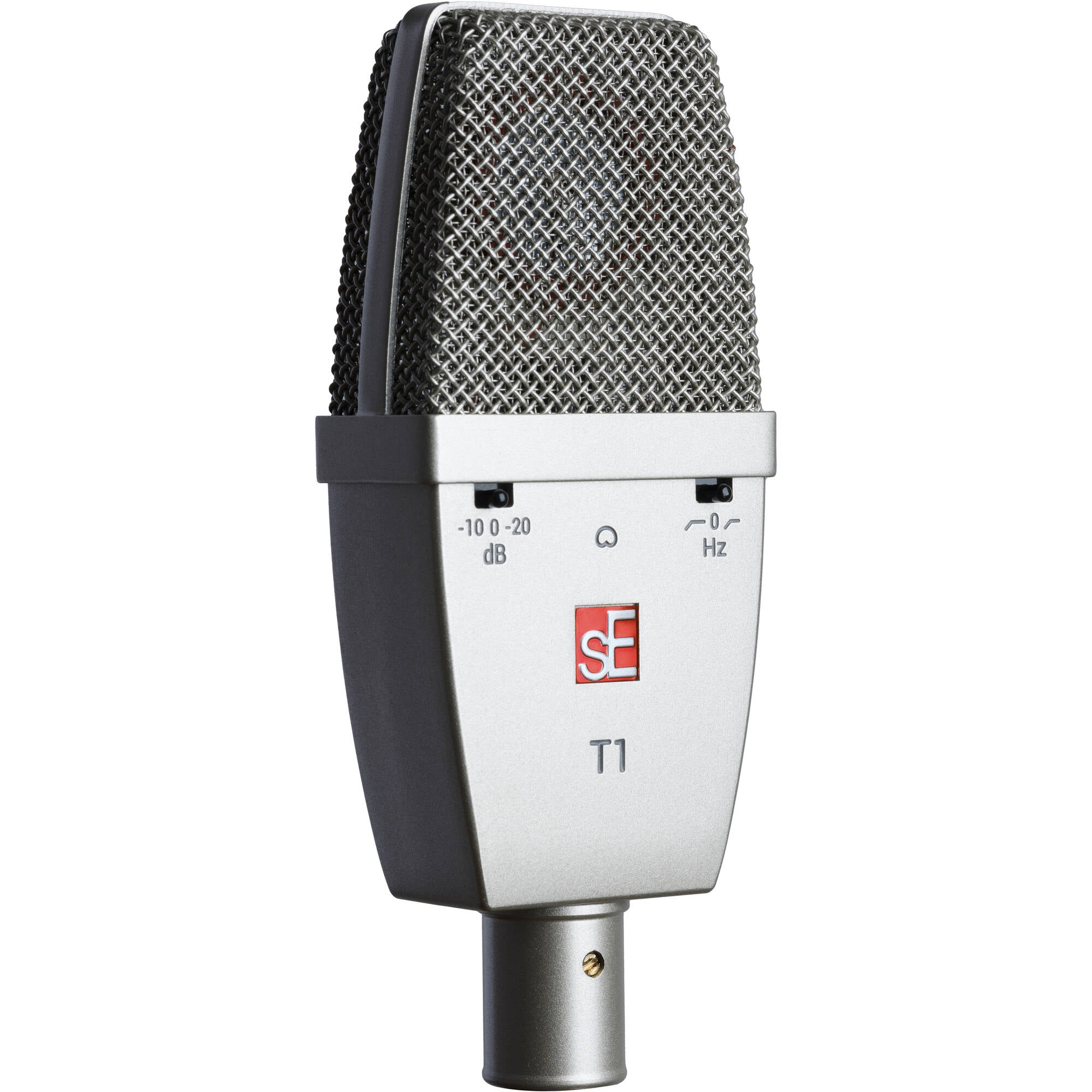

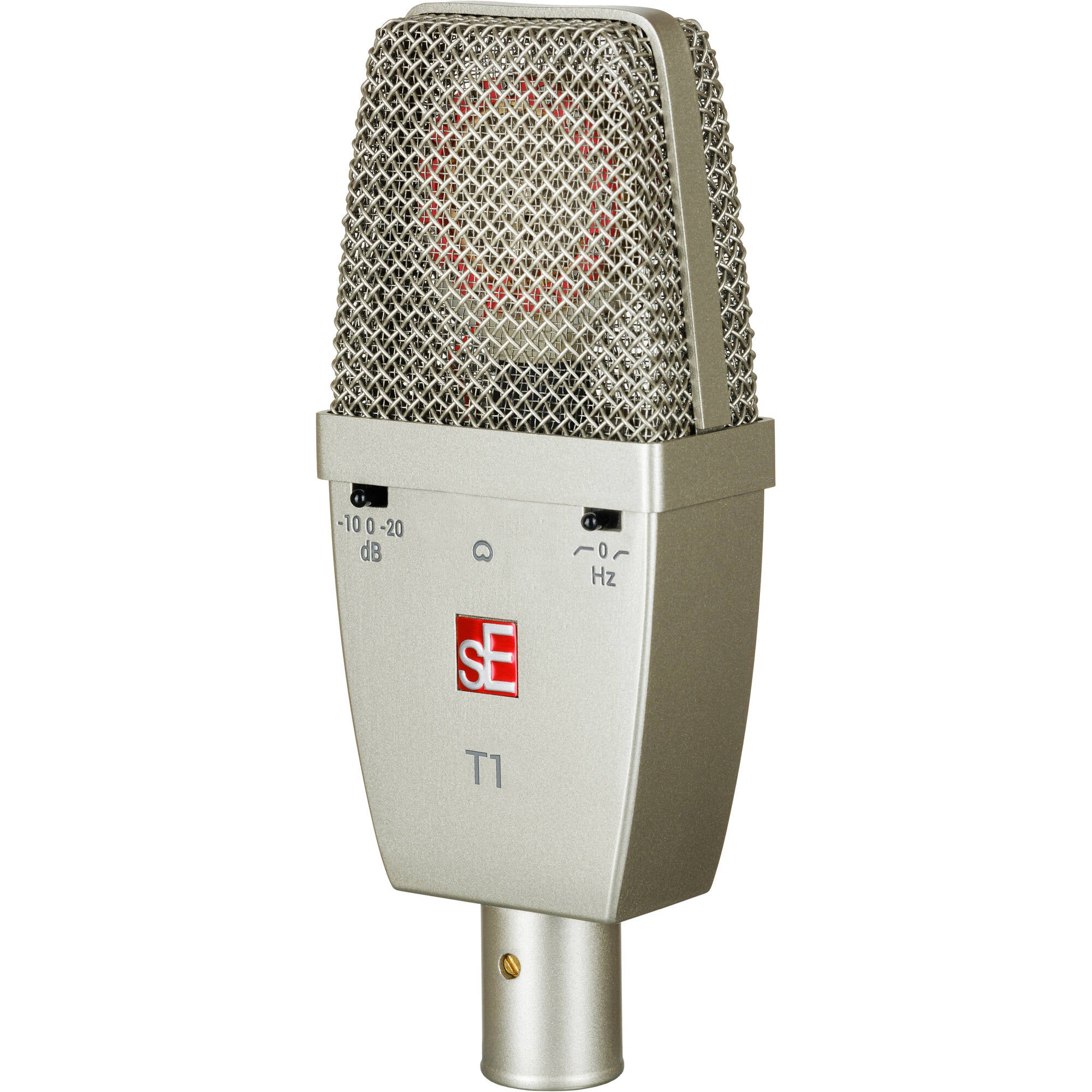

Meet the T1, the latest addition to our renowned range of large-diaphragm true-condenser microphones. This cardioid-only version of the multi-pattern T2 comes with the same sleek design, ultra-fast transient response and warm, smooth sound, making it an ideal choice for a wide variety of applications such as piano, percussion instruments and bass cabinets.
Recommended Use
Drums, percussion, overheads, hi-hats, orchestral + strings, piano, bass guitar cab, acoustic guitar, electric guitar cab, vocals, woodwinds, brass
Features
-
The little brother to the renowned T2
-

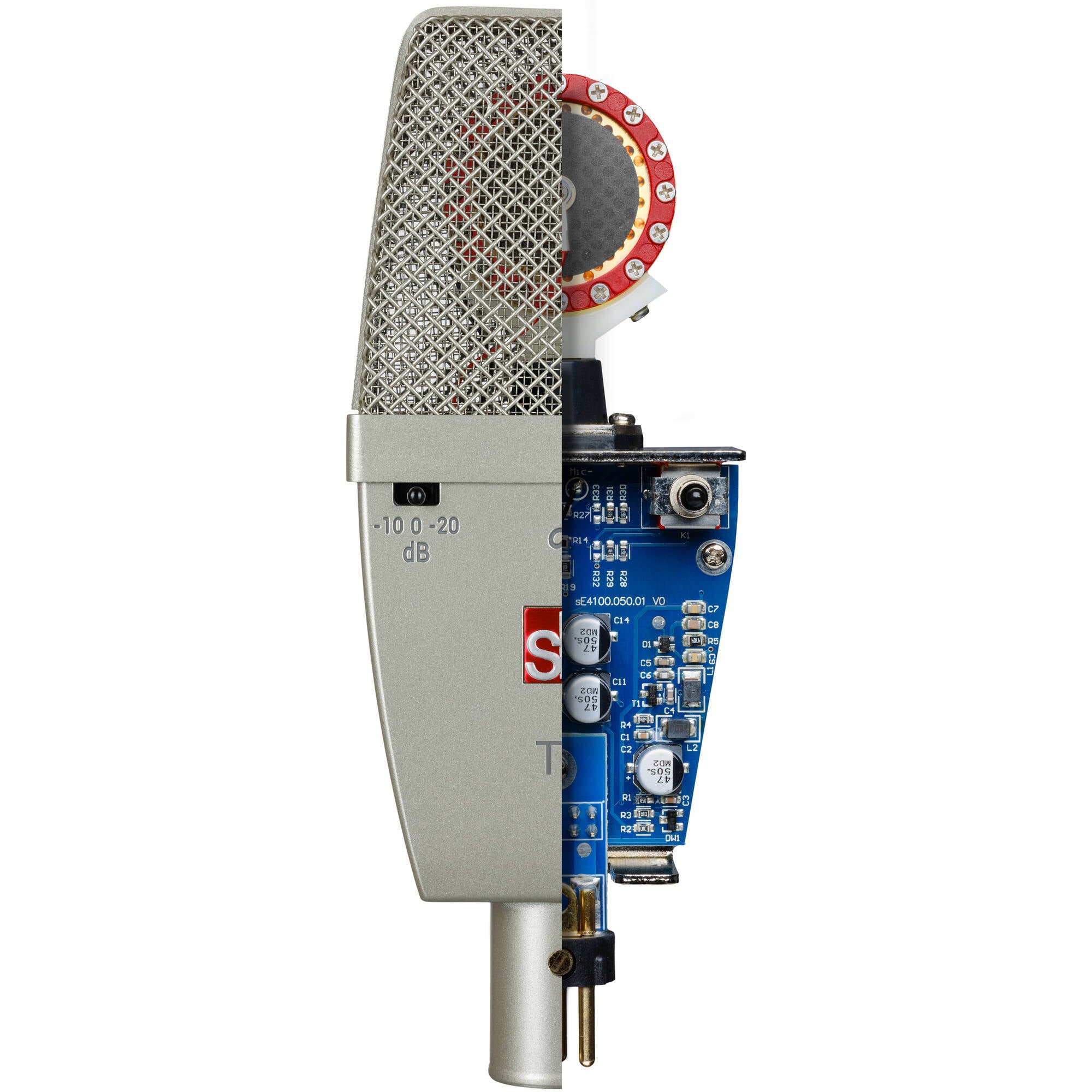

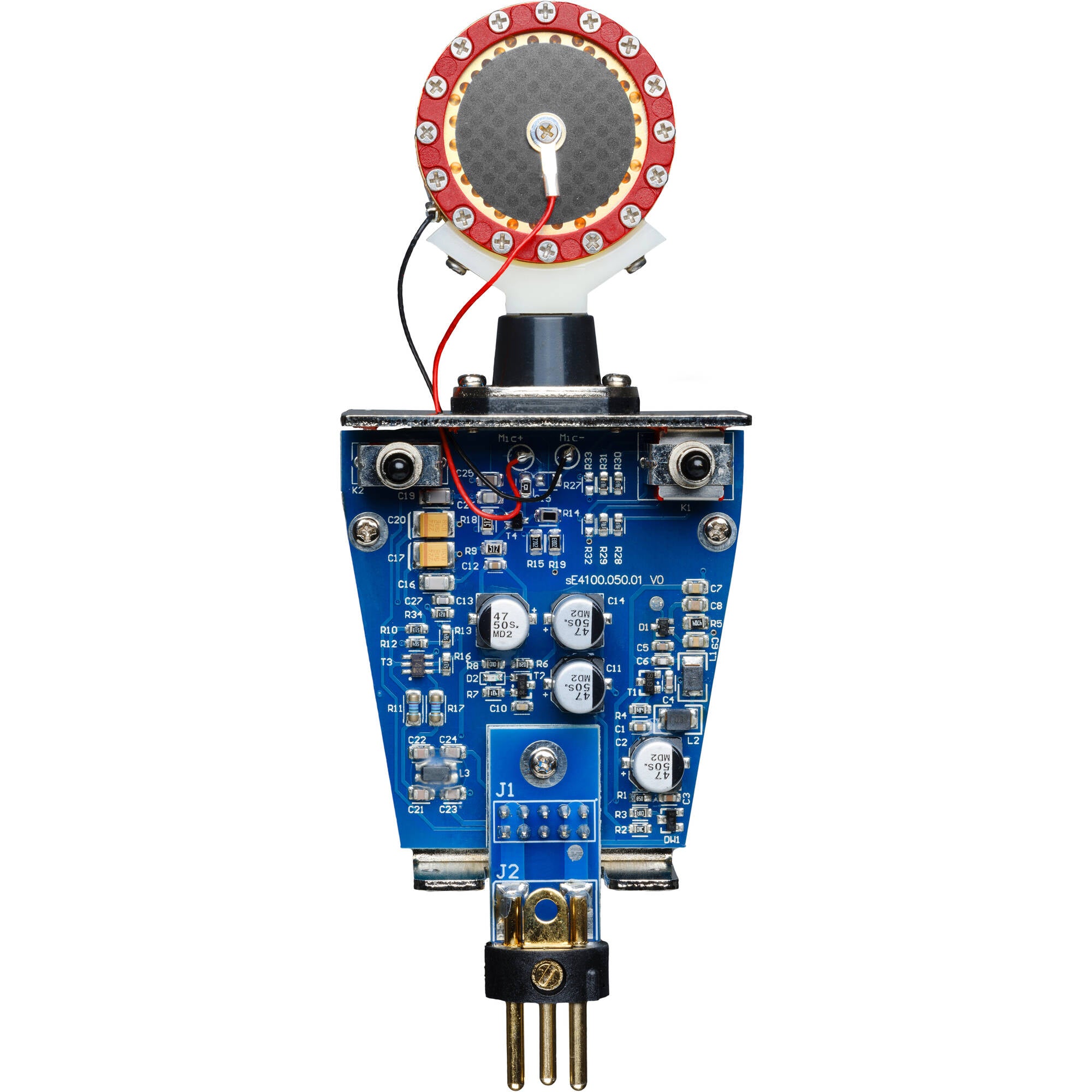

The very same hand-crafted twin 1" titanium-sputtered brass capsule as the T2
-
Titanium-sputtered true condenser cardioid capsule
-
Accurate definition and fast transient response
-
Built roadworthy with all-metal housing
-

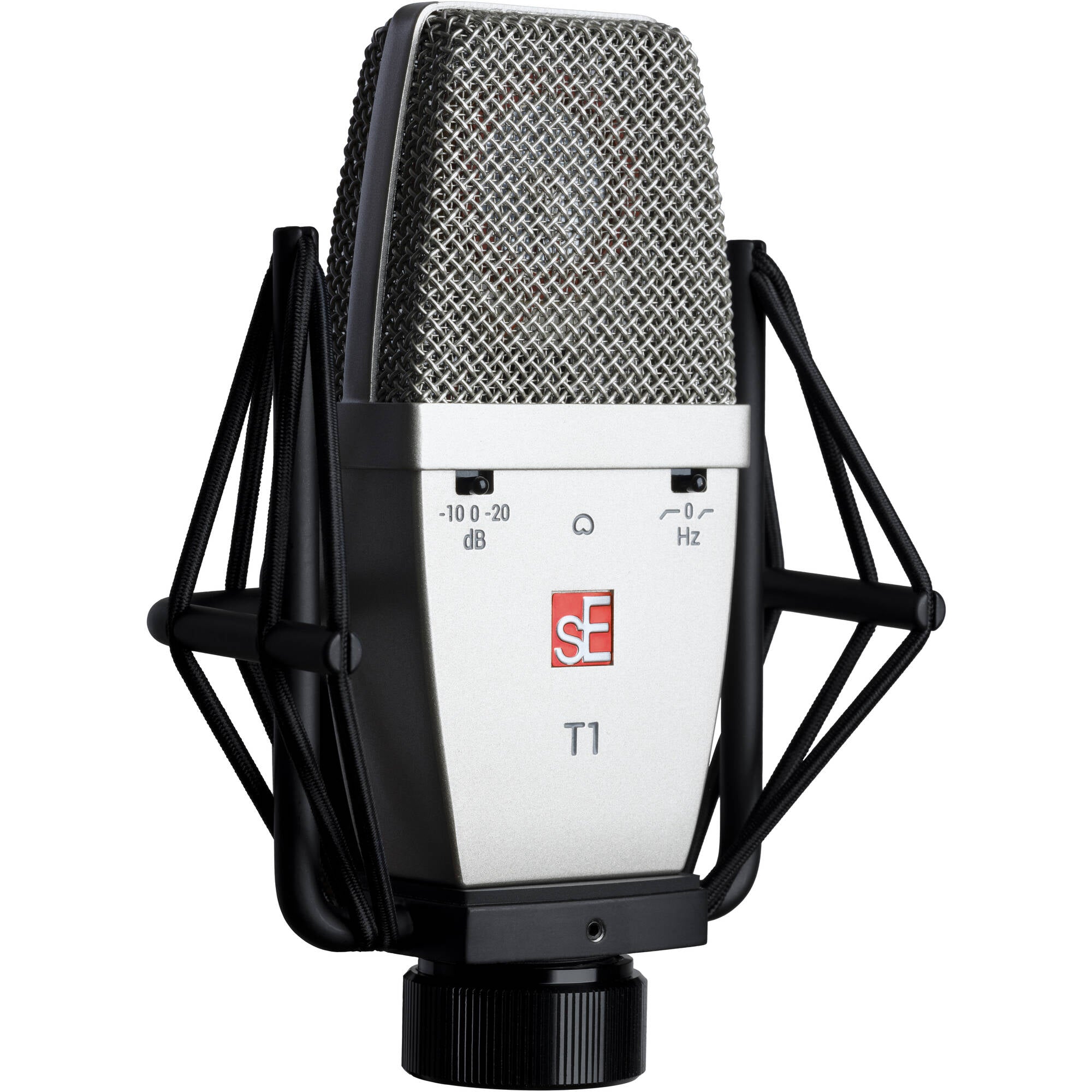

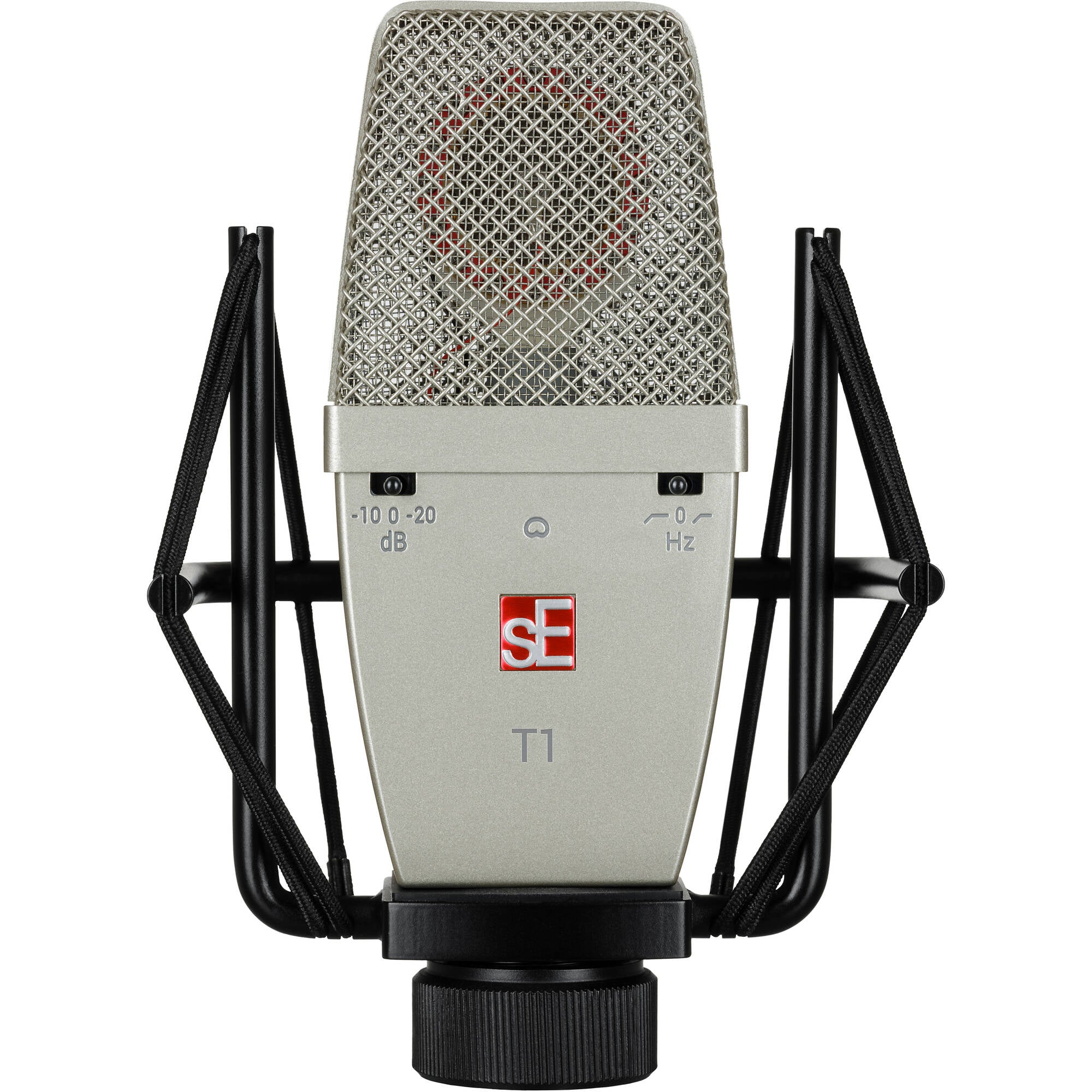

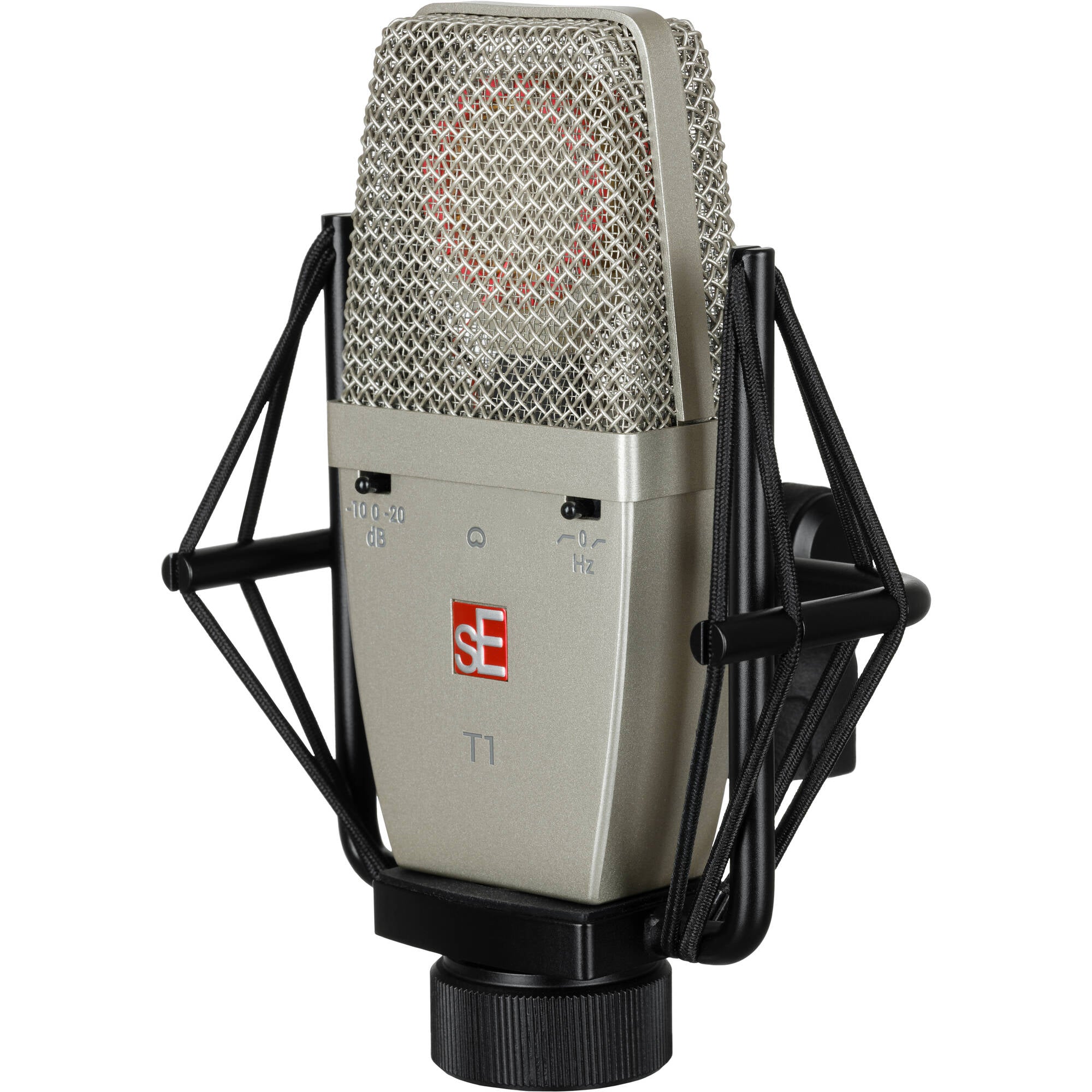

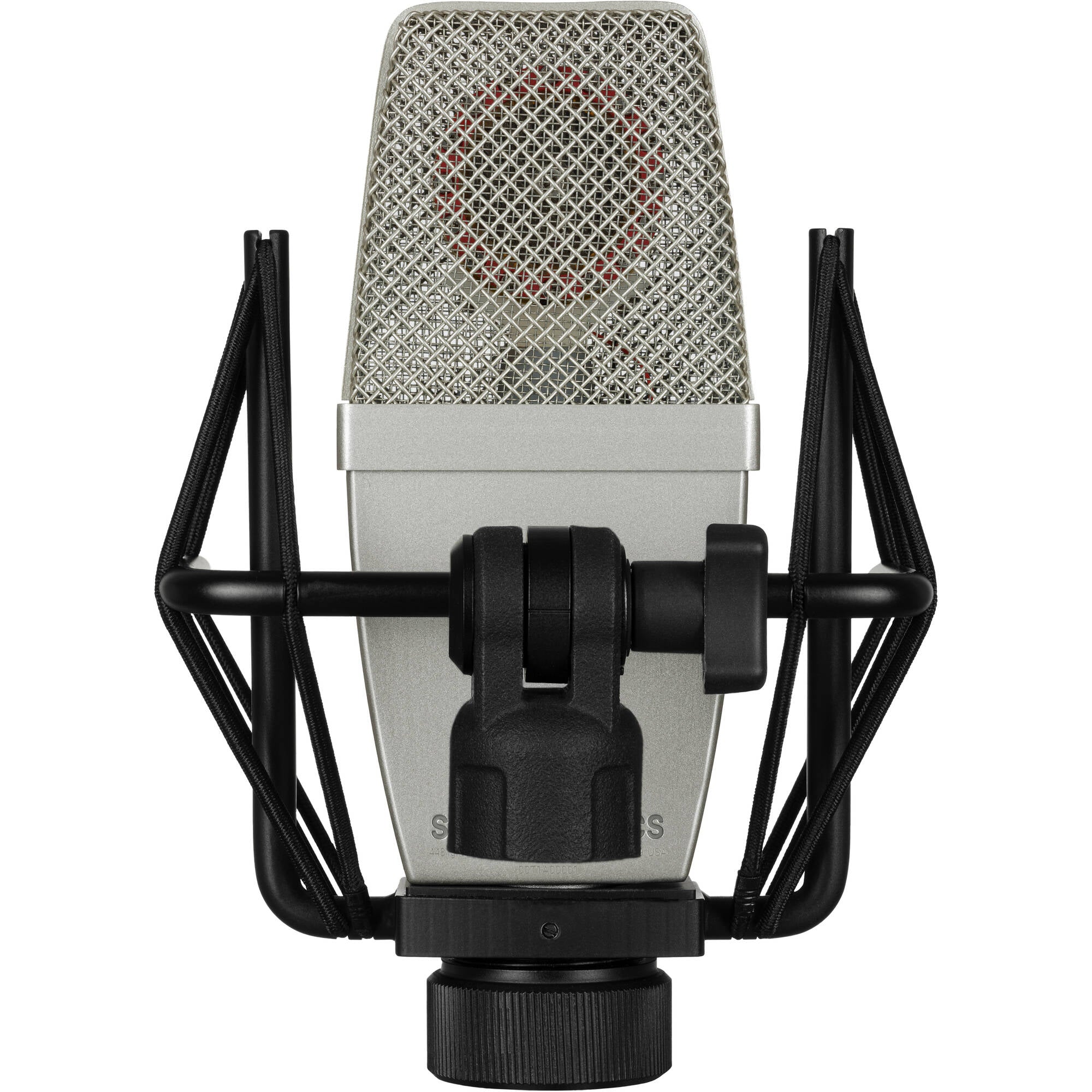

Innovative close-miking shockmount
-
80 / 160 Hz low-cut filters and -10 / -20 dB pads
-
Available in a matched-pair configuration
Specifications
-
Components
-
Capsule: Hand-crafted 1" titanium-sputtered true condenser
-
Diaphragm: Titanium-sputtered mylar
-
Power
-
Electrical impedance: 125 Ohms
-
Connectivity: 3-pin male XLR connector
-
Powering: 48V Phantom power (P48 according to IEC 61938)
-
Sound
-
Polar pattern: Cardioid
-
Frequency range: 20 Hz - 20 kHz
-
Sensitivity: 25 mV / Pa (-32 dBV)
-
Max SPL: 137 / 147 / 157 dB (0/10/20 dB Attenuation Pad - 0.5% THD)
-
Equivalent noise level: 9 dB(A)
-
Signal to noise ratio: 85 dB
-
Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable
-
Attenuation pad: 10 / 20 dB, switchable
-
Dimensions
-
Mic weight: 290 g (10.23 oz.)
-
Mic length: 146 mm (5.75 in.)
-
Mic width: 29 mm (1.10 in.)
What's in the T1 box
-
T1 microphone
-
Custom shockmount + thread adapter
-

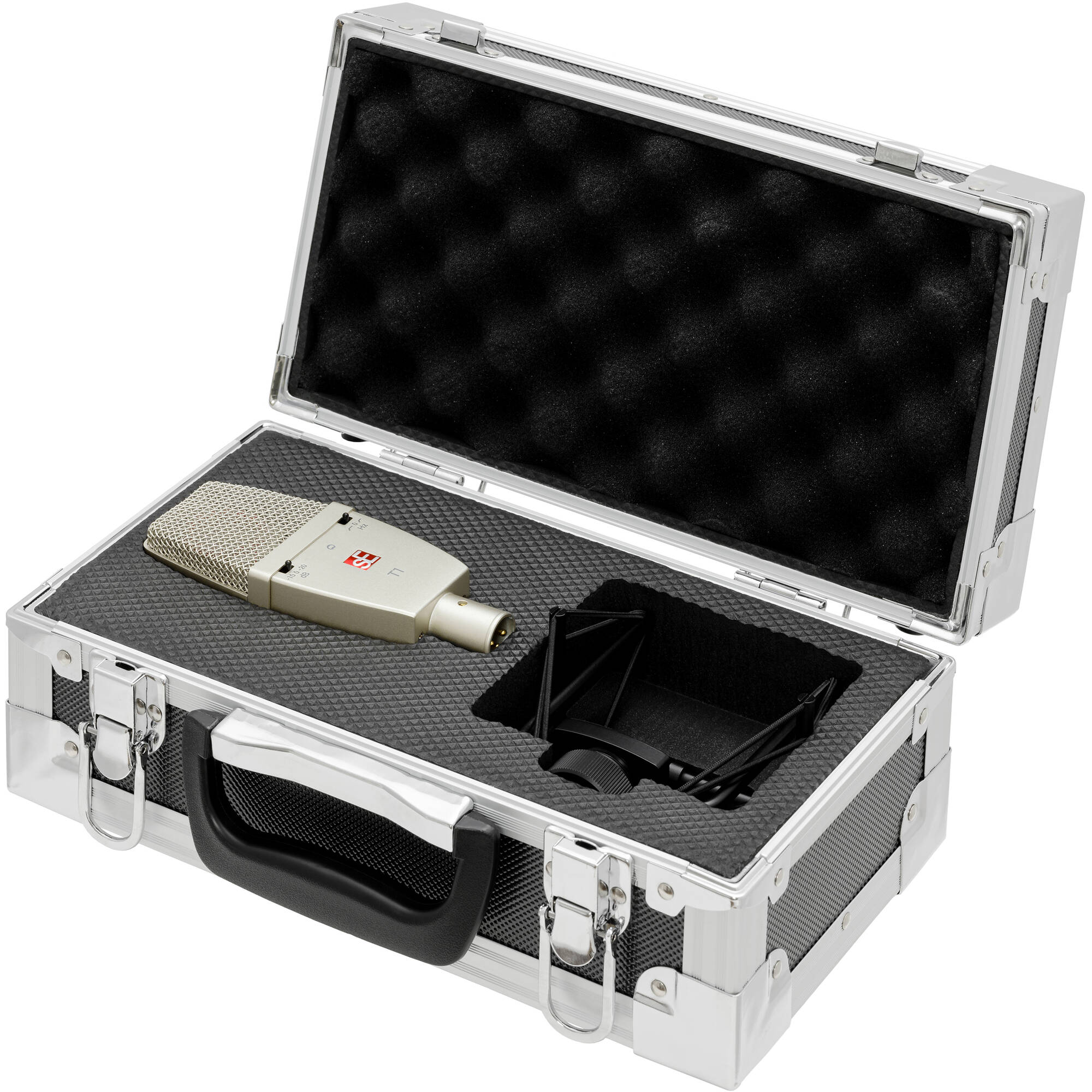

Metal case
