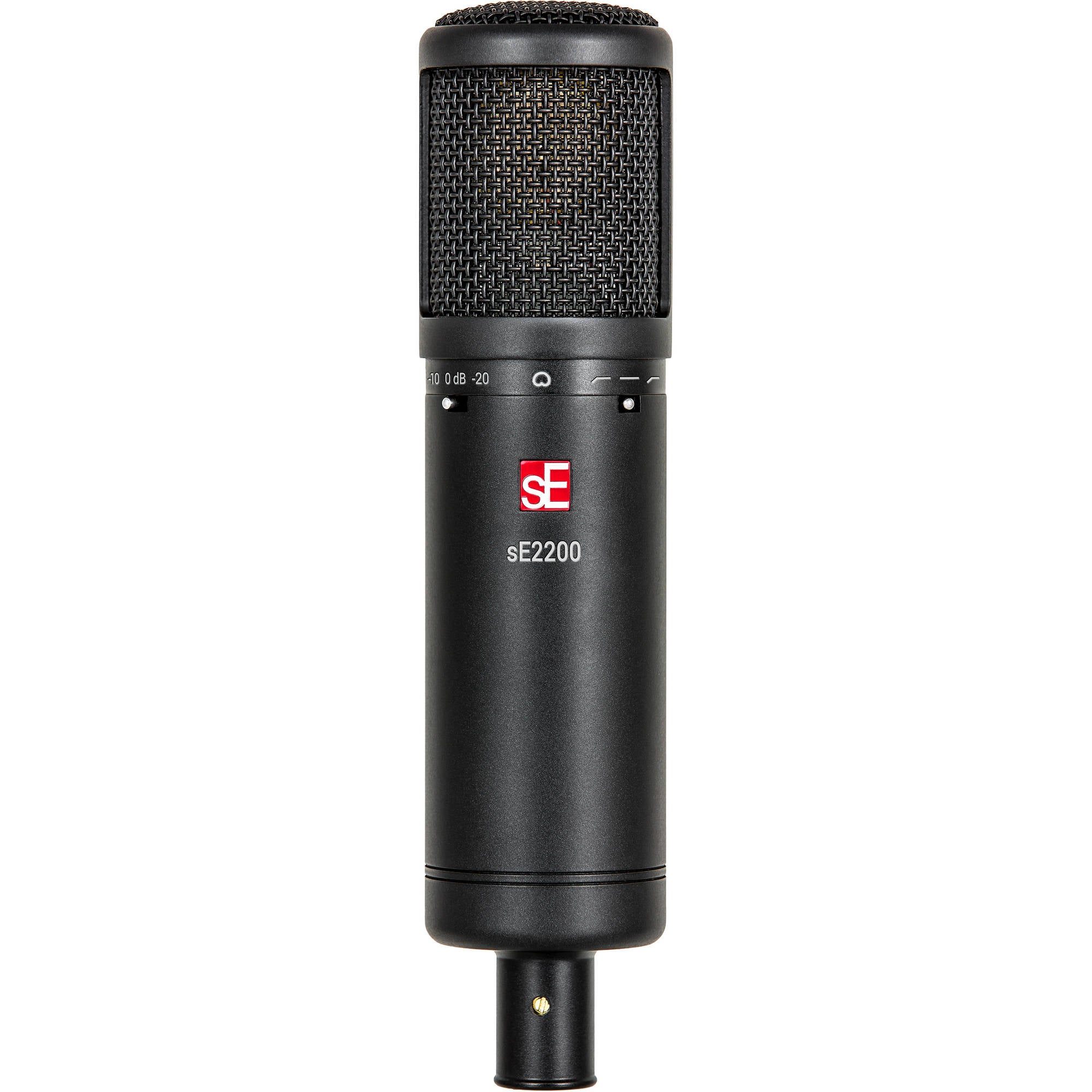

sE Electronics sE2200 Large-Diaphragm Cardioid Studio Condenser Microphone

Large-diaphragm Cardioid Condenser Microphone with 80/160Hz Highpass Filter and 10/20dB Pad

Presented in a black finish, the sE Electronics sE2200 is a hand-crafted true condenser microphone bundled with an isolation pack, making it especially well suited for vocals and voiceovers in addition to instrument miking. This latest iteration of the sE2200 microphone remains true to the original design, utilizing the same capsule, custom transformer, and Class-A circuitry to maintain the smooth, polished sound the sE2200 is known for. The revision boasts updated pad and filter settings and a shorter, optimized signal path for enhanced clarity and noise performance.

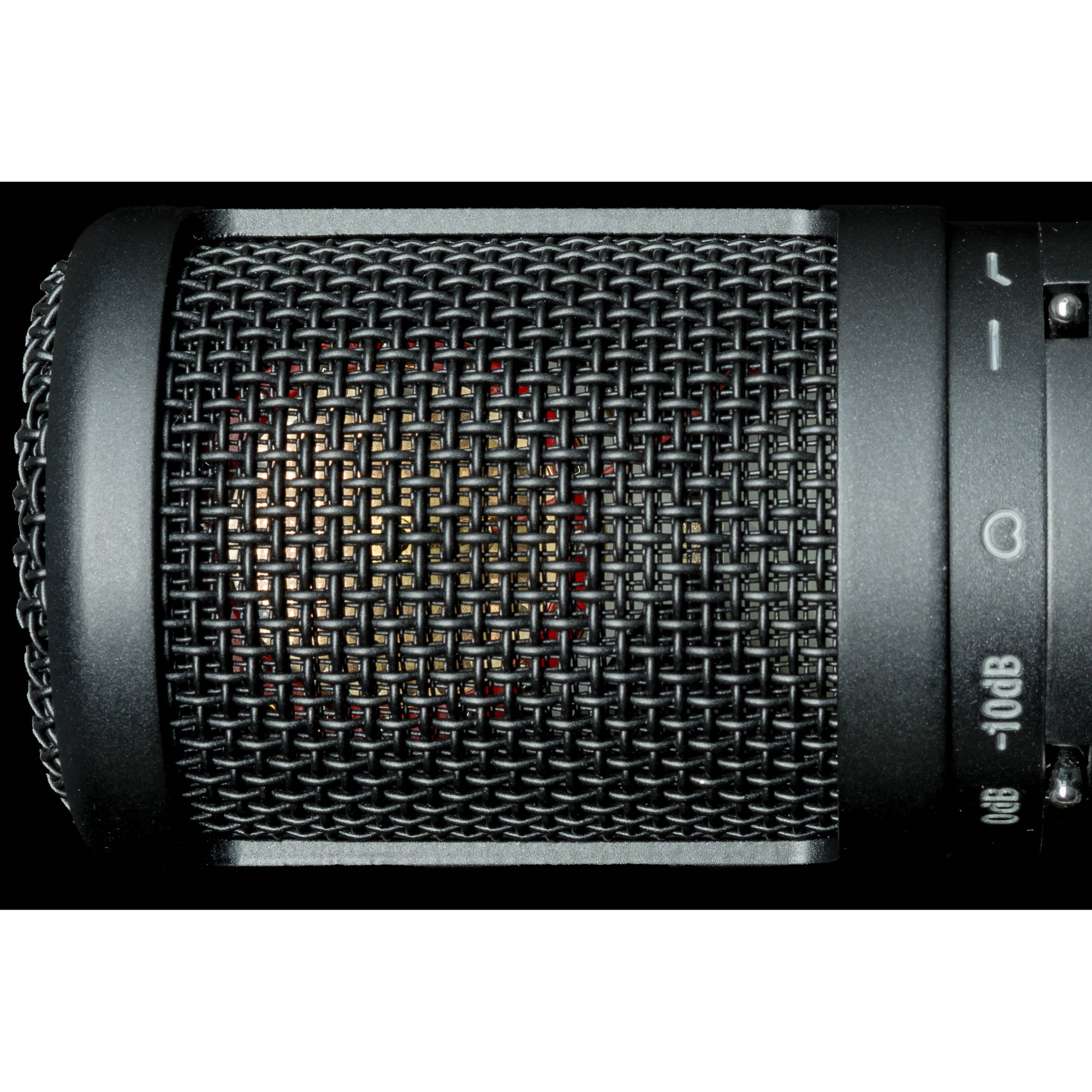

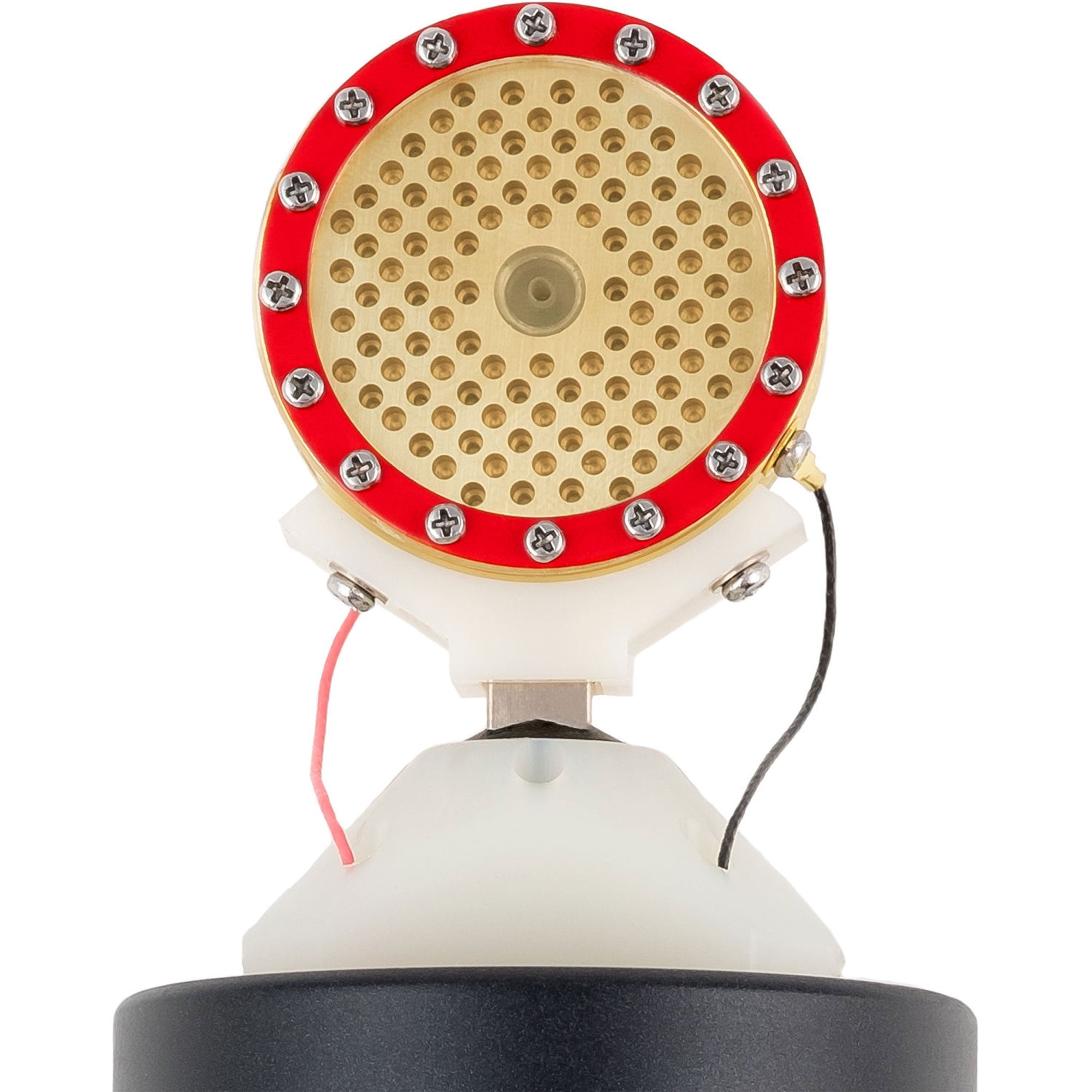

Each sE2200 capsule is hand-crafted and individually tuned in the sE factory. The dual, 1" gold-sputtered diaphragms yield a cardioid polar pattern, which rejects significant SPL behind the mic to reduce the amount of ambient noise in recordings. The included isolation pack features a shockmount that decouples the mic from common sources of vibration noise, plus a curved metal pop filter that helps prevent vocal plosive sounds. The shockmount and pop filter are not only sonically effective, but also fast and easy to set up.

Features:

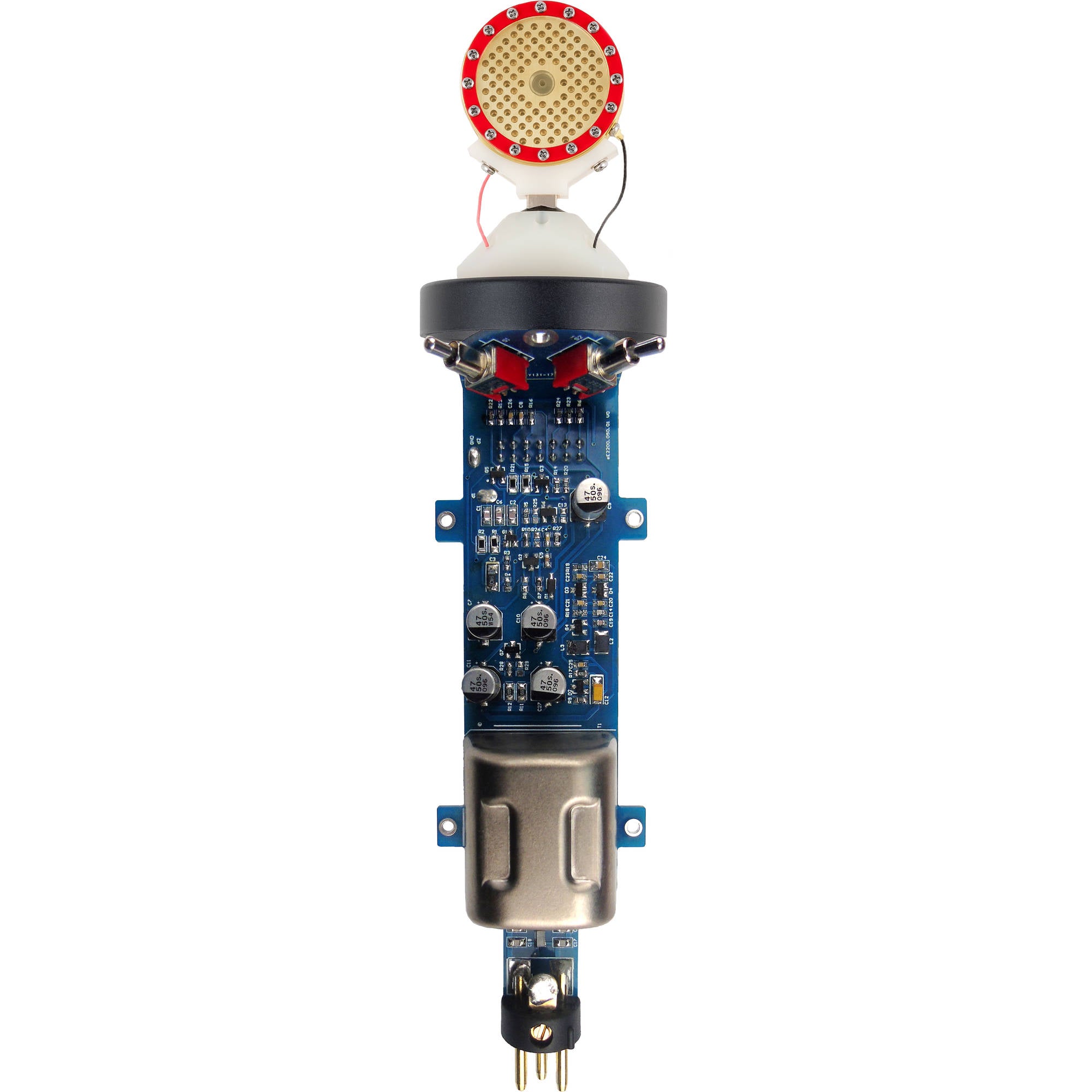

• Traditional Class-A Electronic Design
• Carefully selected, discrete components enable professional sound quality on virtually any source
• Avoids the use of any ICs (integrated circuits)
• Low noise, consistent performance, and high sensitivity is provided by surface-mounted electronic components with extremely tight tolerances
• Two Switchable Attenuation Levels and Low-Cut Filters

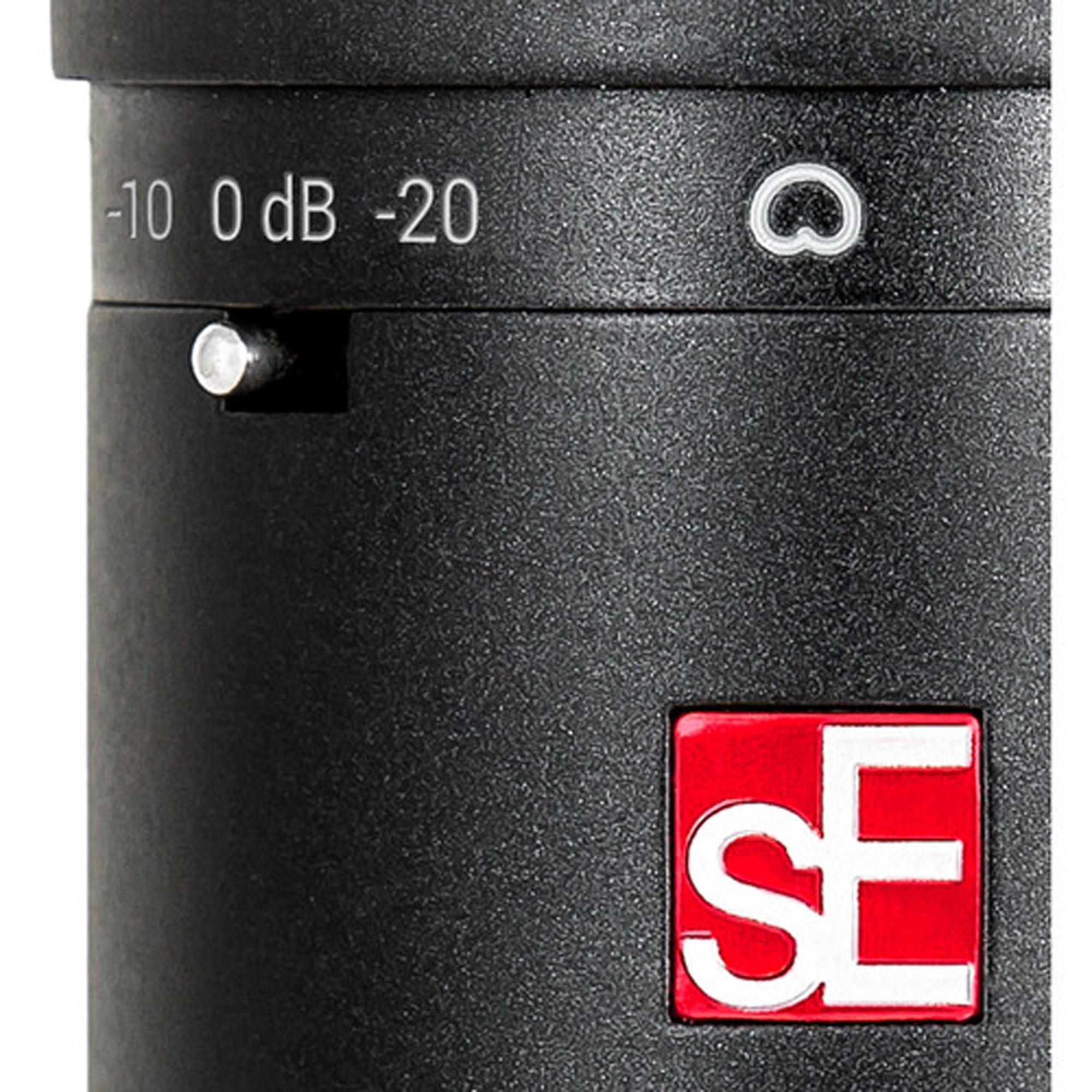

• The -10 and -20 dB pad switches provide extended dynamic range, enabling a wide variety of applications and close-mic techniques for even the loudest instruments

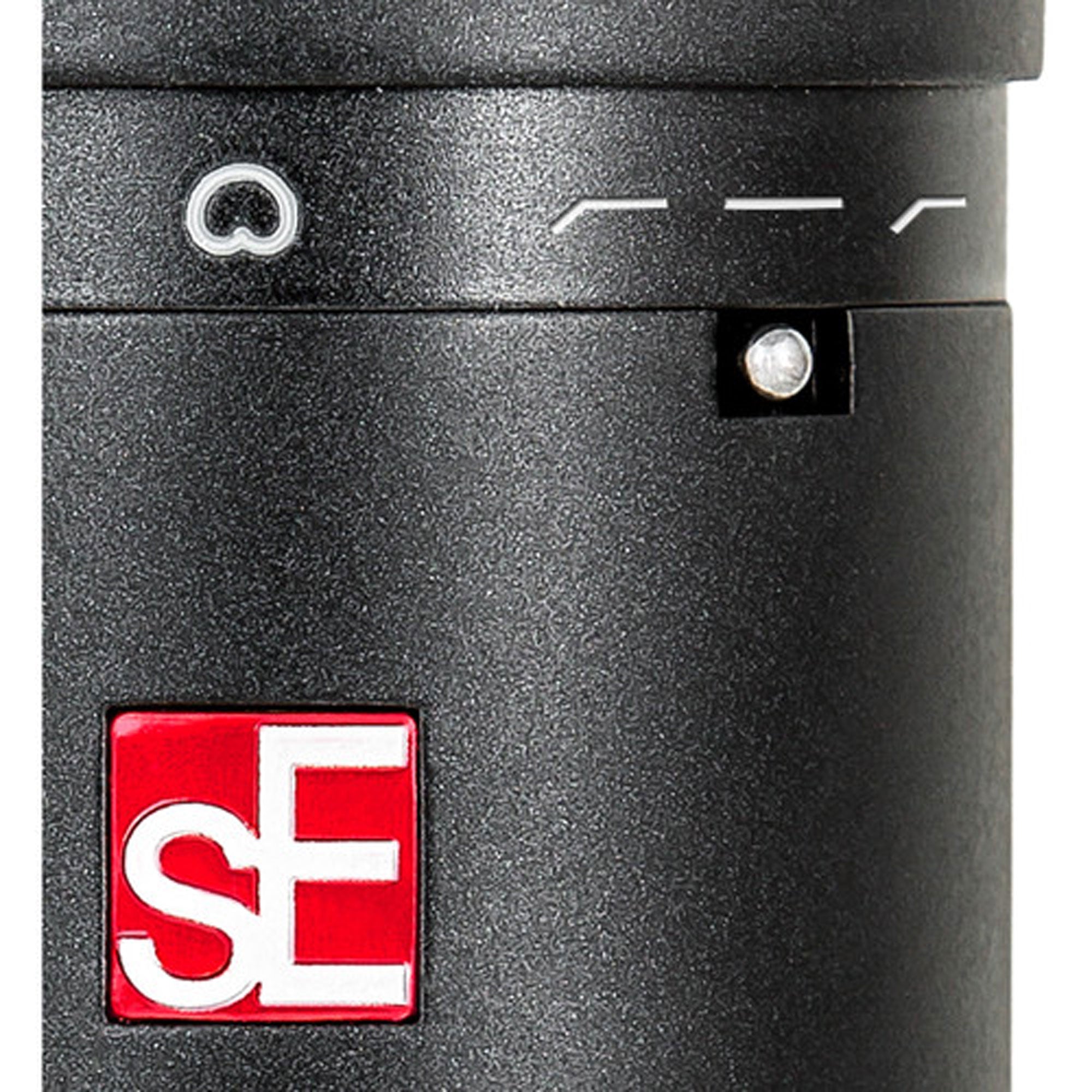

• Selectable at either 80 or 160 Hz, the two low-cut filters help eliminate low-frequency rumble or footfall noise as well as help compensate for excessive bass (proximity effect) with close-mic techniques
• Custom-Built Output Transformer
• Reviving the spirit of classic studio microphones, the sE2200’s custom transformer is designed to provide superb depth and weight to the overall sonic image, while the heavy-shielded metal housing ensures noise-free operation
• All-Metal Housing and Premium Finish
• The sE2200's all-metal chassis provides efficient rejection of any electrical interference and noise

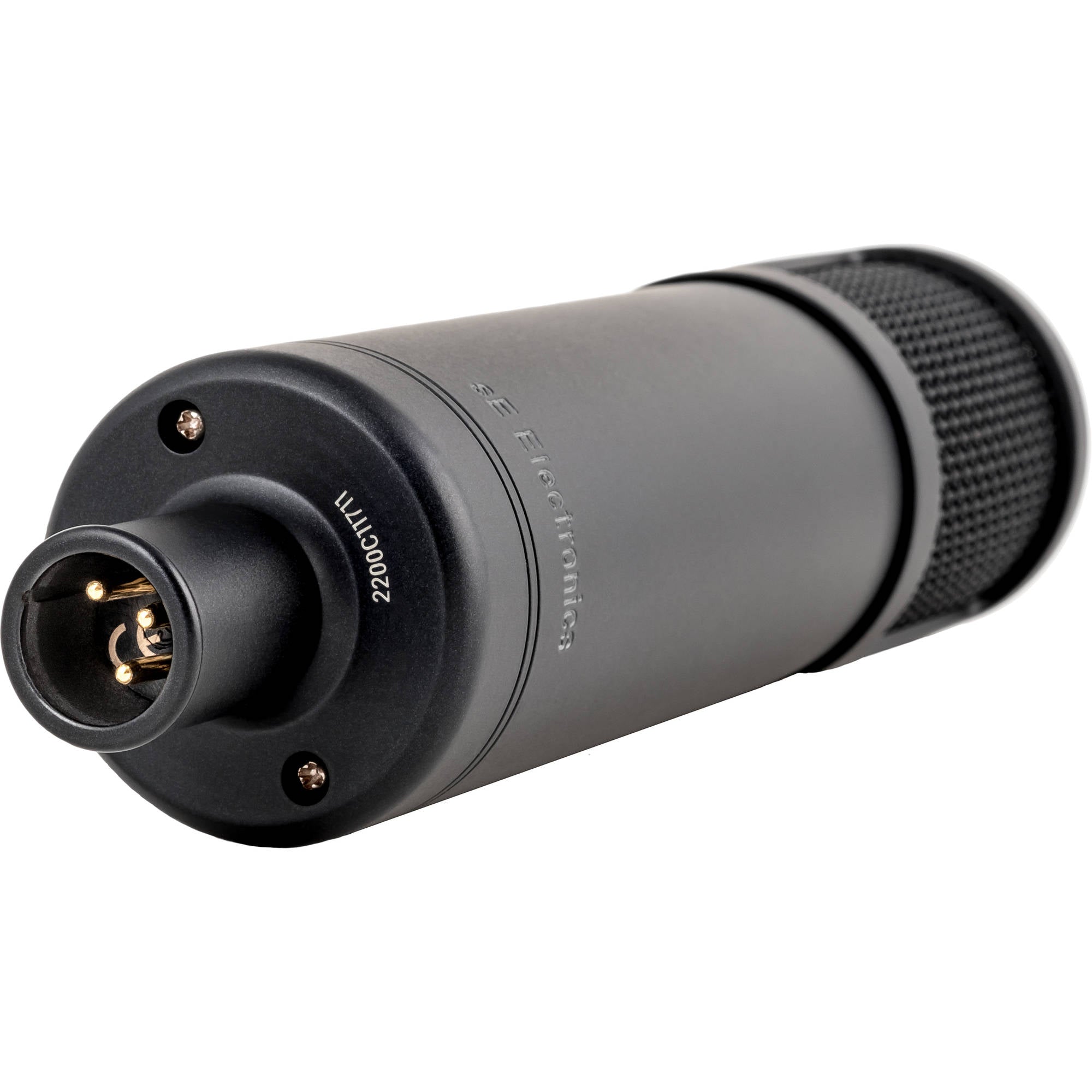

• Connects to XLR Mic Inputs
• Gold-plated XLR connector ensures loss-free, reliable signal connection
• Operates on 48V phantom power

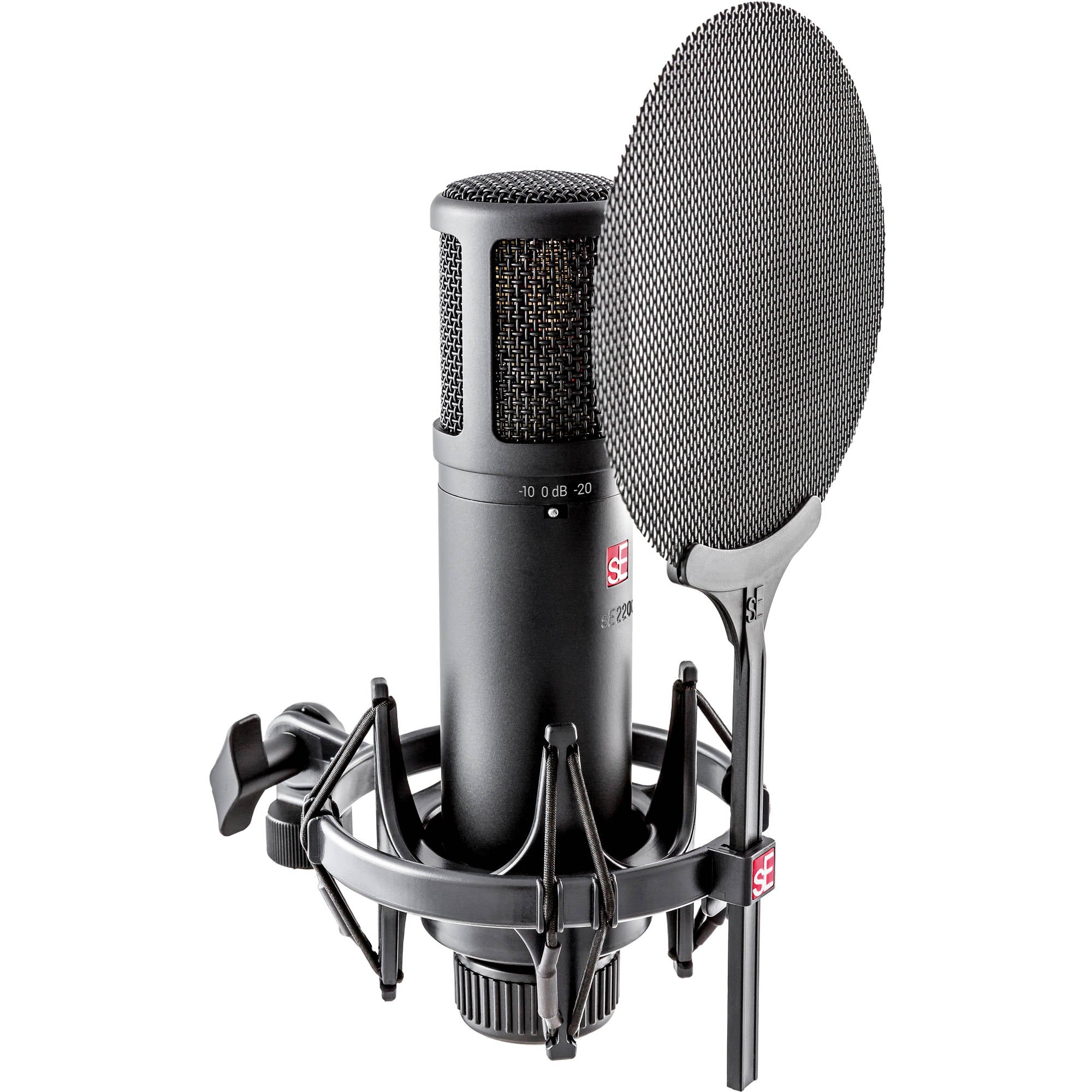

• Isolation Pack

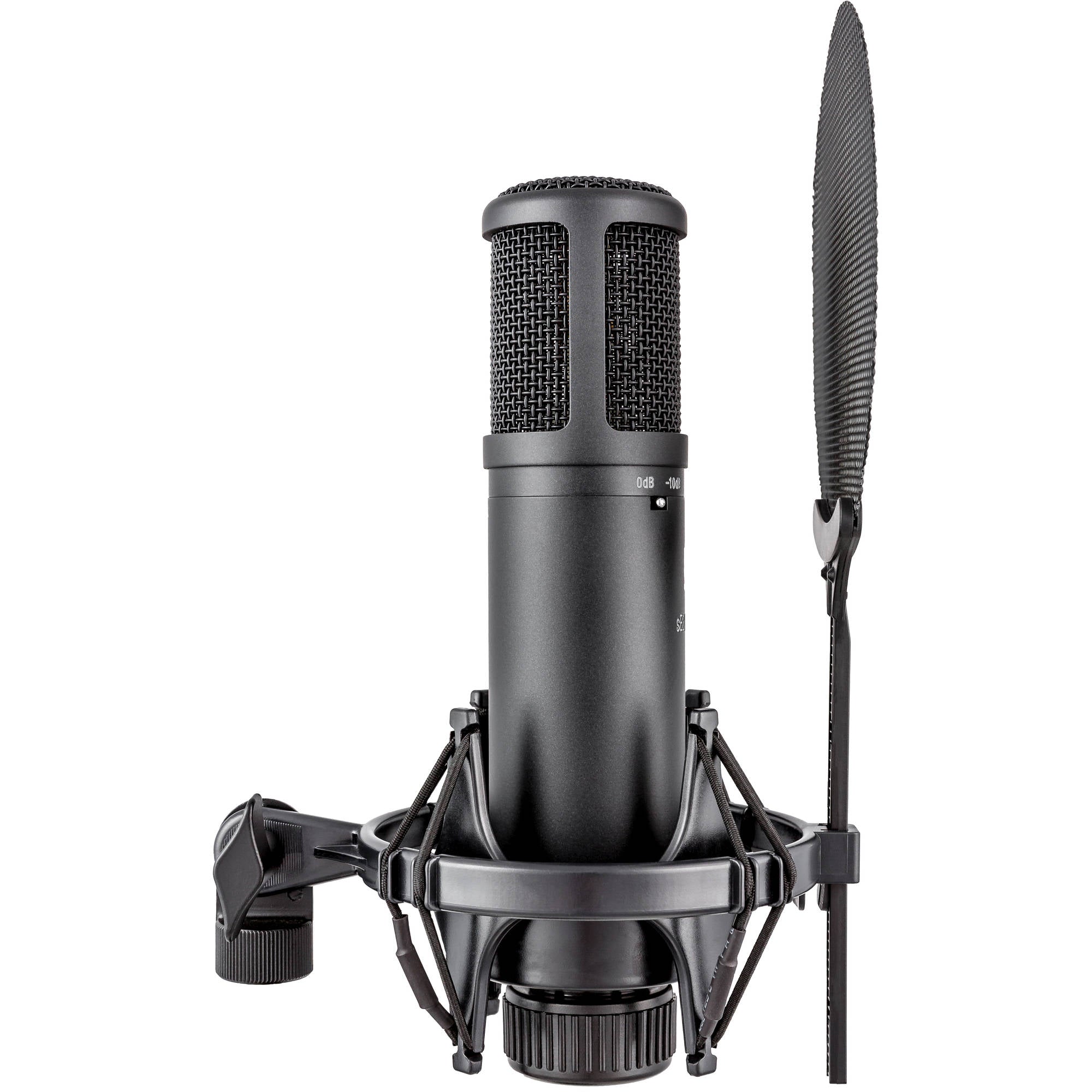

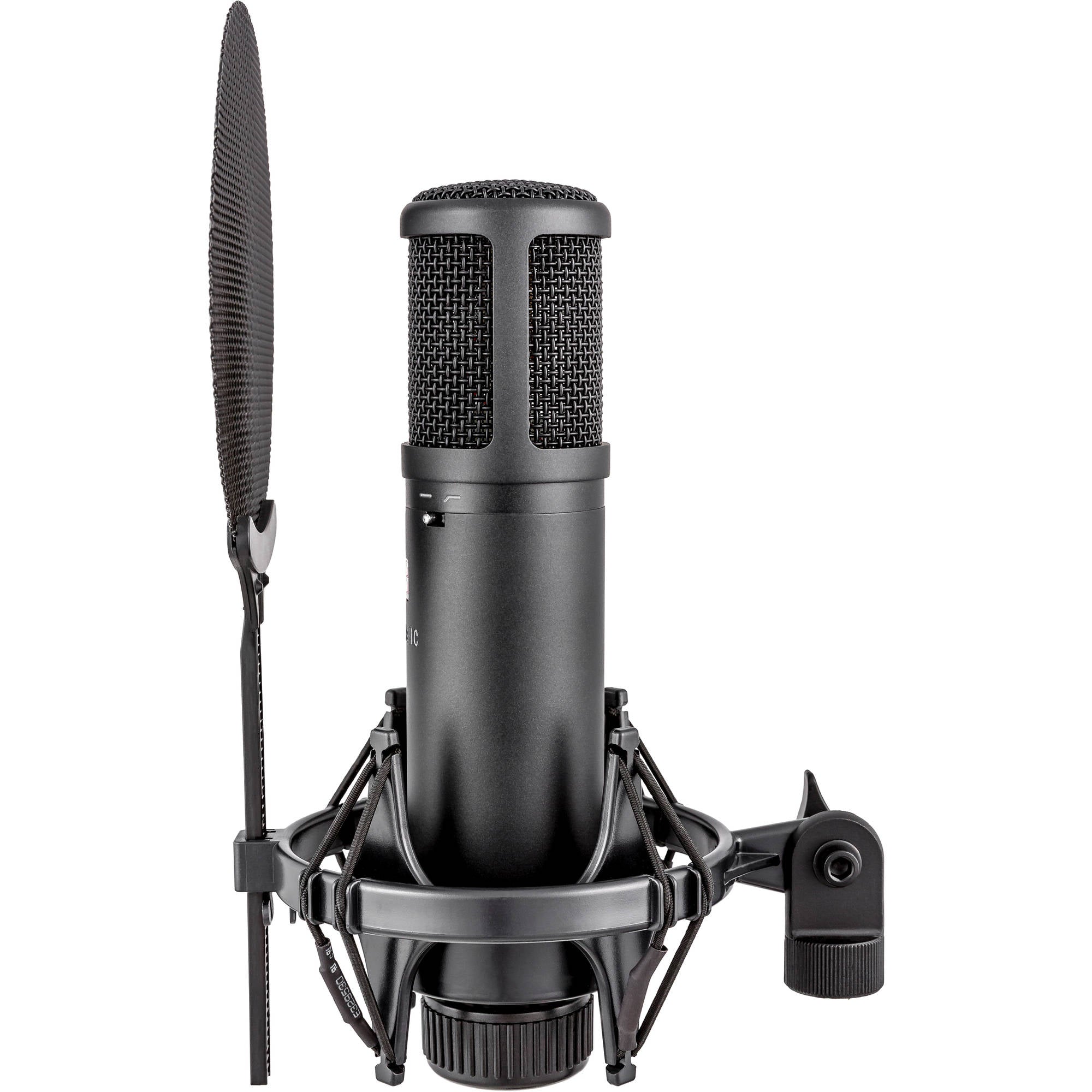

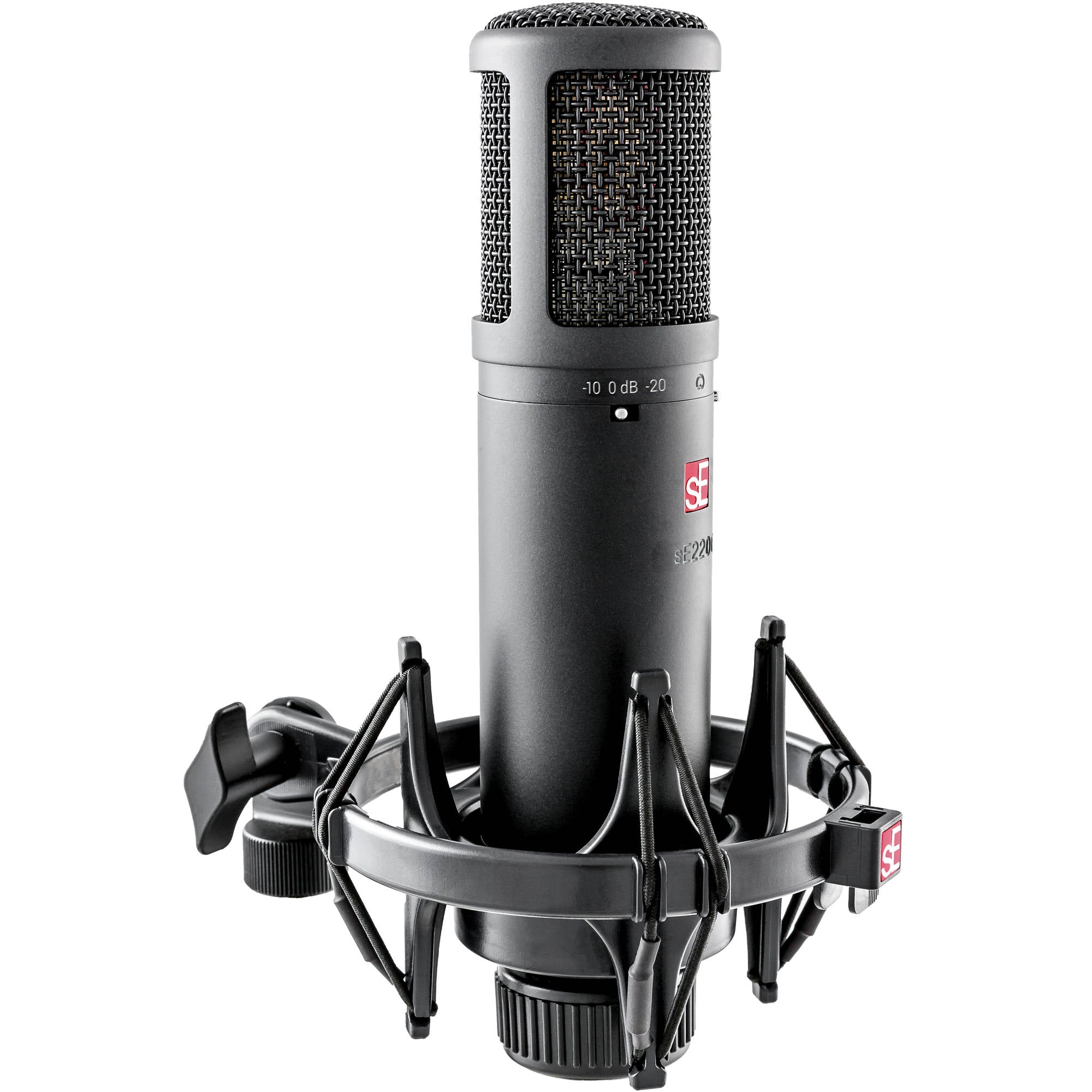

• With the twist of a single knob, the shockmount attaches quickly and securely to the microphone and is removable with the same simple motion, allowing the mic to be set up quickly and easily without superfluous adjustments or hassle
• The Isolation Pack also comes equipped with sE's curved metal pop filter, which efficiently slots in to the shockmount and is vertically adjustable for best performance

Specifications:

• Microphone
• Primary Applications: Studio Recording
• Form Factor: Large Diaphragm Mic / Stand/Boom Mount
• Intended Sound Sources: Vocals, Speech/Voice Over, Instrument
• Sound Field: Mono
• Operating Principle: Pressure Gradient
• Capsule: Condenser
• Diaphragm: 1" / 25.40 mm
• Polar Pattern: Cardioid
• Orientation: Side Address
• Circuitry: Solid-State
• Pad:
  -10 dB
  -20 dB
• High-Pass Filter:
  80 Hz, 6 dB/Octave
  160 Hz, 6 dB/Octave
• Tone Adjustment: None
• Gain Adjustment: None
• Indicators: None
• On-Board Controls: High-Pass Filter, Pad
• Windscreen: None
• Performance
• Frequency Range: 20 Hz to 20 kHz
• Maximum SPL:
  125 dB SPL (1 kHz, .5% THD)
  145 dB SPL (1 kHz, .5% THD, with Pad)
• Off-Axis Rejection:
  3 dB at 60°
  7 dB at 120°
  18 dB at 180°
• Impedance: 50 Ohms
• Load Impedance: > 1000 Ohms
• Sensitivity: Cardioid: -32.5 dBV
• Dynamic Range:
  117 dB (without Pad)
  137 dB (with Pad)
• Signal-to-Noise Ratio: 86 dB
• Equivalent Noise Level: 8 dB A-Weighted
• Connectivity
• Output Connectors (Analog): 1 x XLR 3-Pin Male (on Mic)
• Headphone Connector: None
• Power
• Bus Power: None
• Operating Voltage: 48 V (Phantom Power)
• Operating Current Consumption: 4.2 mA
• Physical
• Color: Black
• Mounting: Shockmount (Included)
• Included Case: None
• Included Filters: Pop Filter
• Construction Material: Metal
• Dimensions: ø: 2.01 x L: 8.46" / ø: 51 x L: 215 mm
• Weight: 1.4 lb / 0.6 kg

Includes:

• sE Electronics sE2200 Large-Diaphragm Cardioid Condenser Microphone with Isolation Pack (Black)
• Shockmount
• Metal Pop Filter
• Thread Adapter
• sE Logo Sticker
• Limited 2-Year Warranty, Extends to 3 Years upon Online Registration
