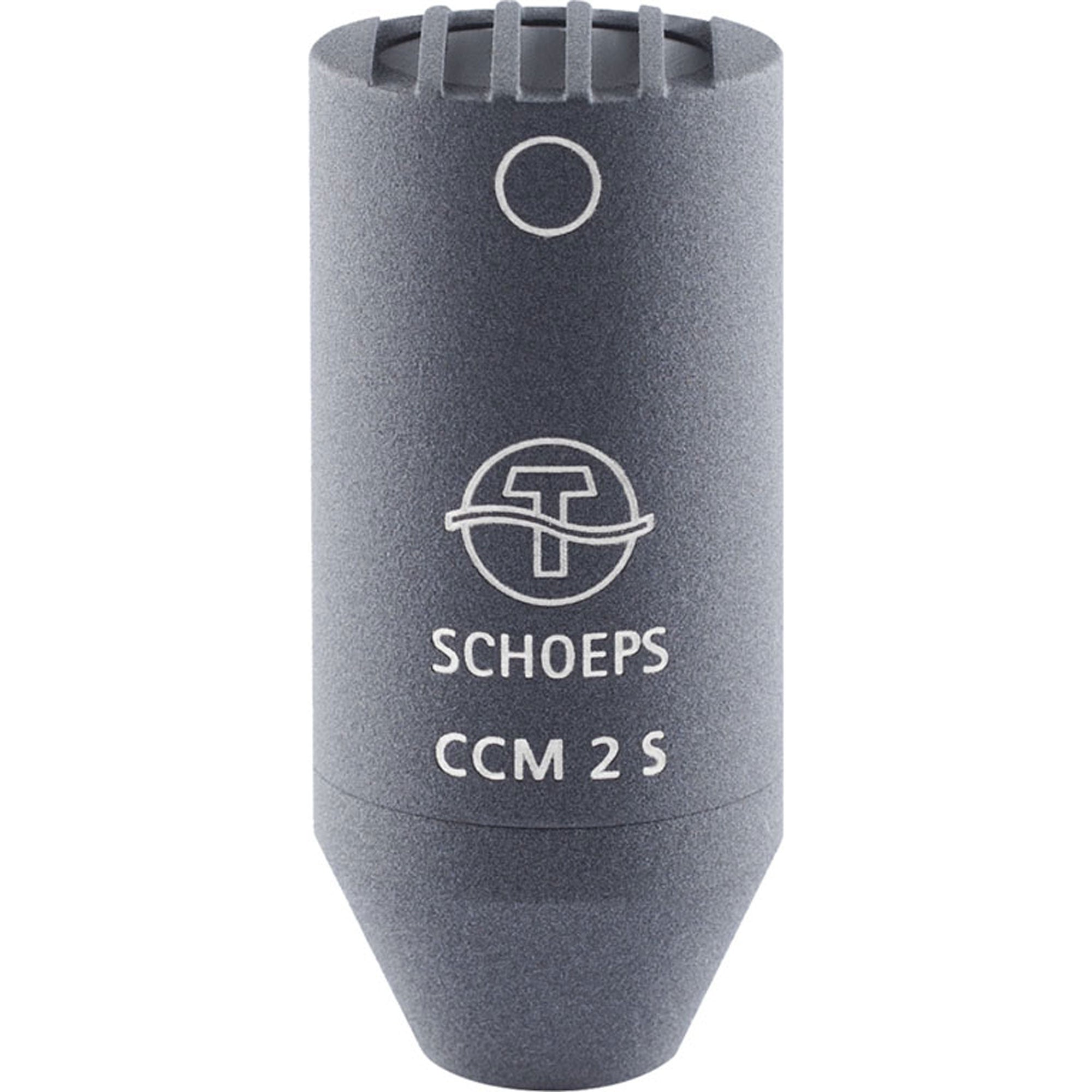

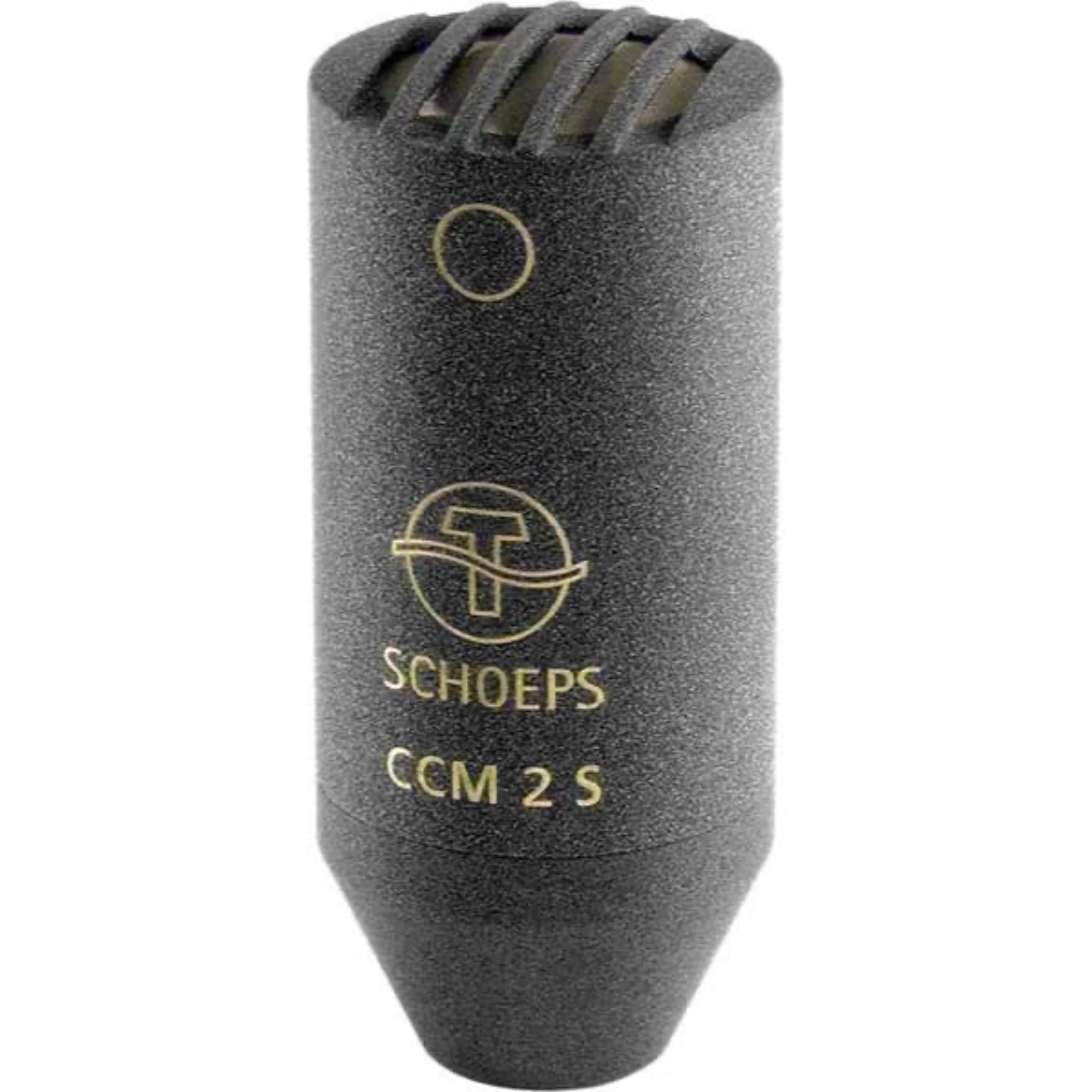

Schoeps CCM 2S Lg Omni Compact Microphone, Slight High Frequency Emphasis

Omnidirectional Compact Microphone, Sight High-Frequency Response, Lemo Disconnect Version

The CCM 2S exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight rolloff of high frequencies off axis and in the reverberant sound field.

The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 2XS, making this microphone suitable for a wide range of applications.

The CCM 2S has proven particularly useful in two- and three-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. This model has become our most popular pressure transducer.

For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.

This microphone can also be ordered as a modular Colette microphone, where the CMC 1 L amplifier is combined with an MK microphone capsule. (CMC 1 L + MK 2S)

This variant allows the capsule to be exchanged and has advantages in terms of electrical properties in combination with digital wireless transmitters.

Features:

• omnidirectional pattern
• slight high-frequency rise to compensate for losses at moderate recording distances
• for a very wide range of recording applications
• often preferred for spaced stereophony and Decca Tree arrangements

Specifications:

• Frequency range: see corresponding capsul
• Sensitivity: see corresponding capsul
• Maximum sound pressure level (THD < 0.5 %):
  136 dB-SPL (P48)
  128 dB-SPL (P12)
• Maximum output voltage: 2,6 V (8,3 dbV) with 2 kΩ load
• Low cut filter: 20 Hz, 12 dB/Okt.
• Output impedance: 90 Ω @ 1 kHz
• Maximum cable length: > 400 m
• SCHOEPS RFI Shield: No
• Powering standard / Valid range: P48 / > 40 V P12 / > 10 V
• Current consumption:
  4 mA (P48)
  3,6 mA (P12)
• Common mode rejection ratio (at 1 kHz): > 55 dB
• Minimum recommended load impedance: 2 kΩ

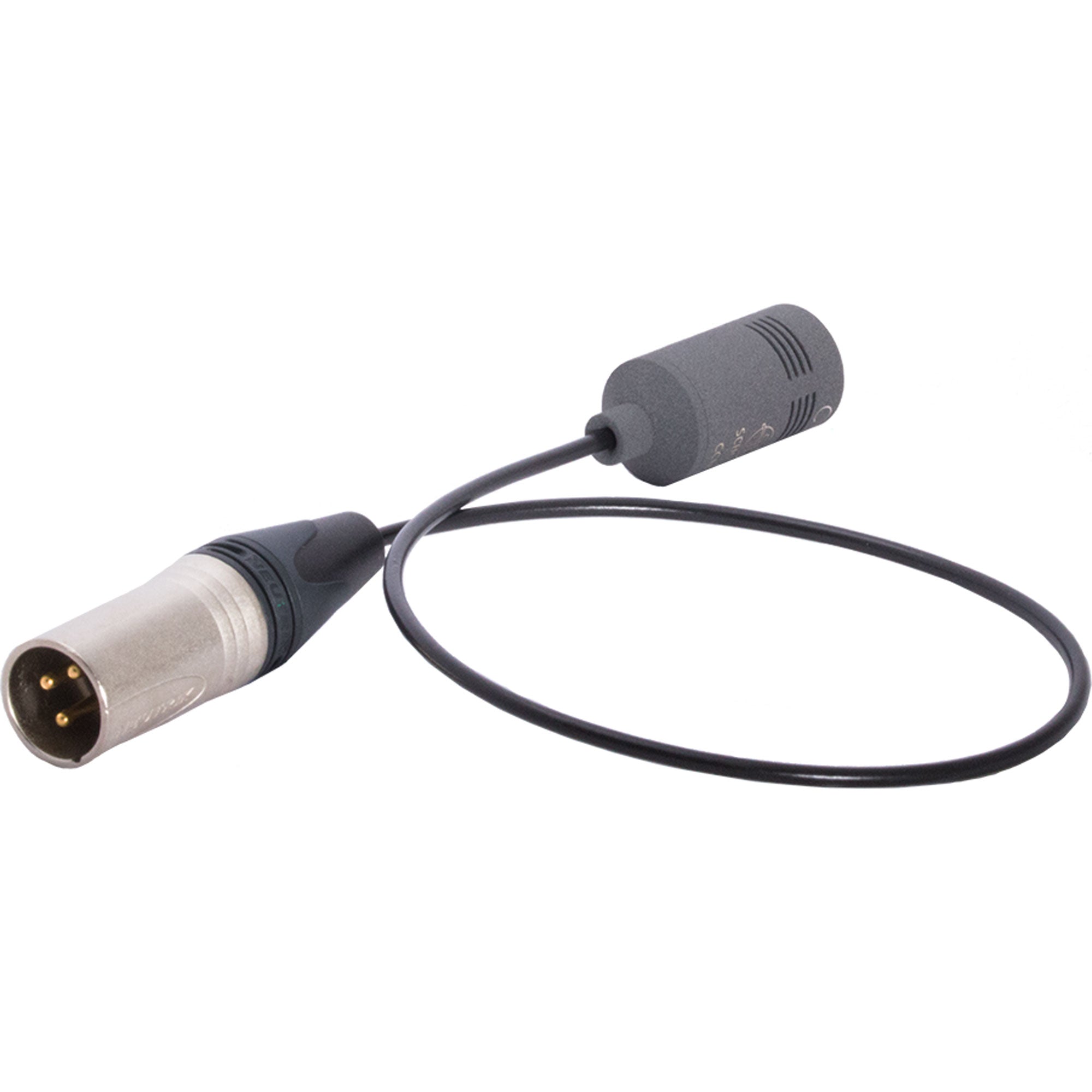

• Output: Lemo (CCM-L) or XLR-3M (CCM-U),
• analog, 1 channel
• Length: 46 mm (CCM-L)
• Diameter: 20 mm
• Weight: 33 g (CCM-L)
• Surface finish: matte gray
