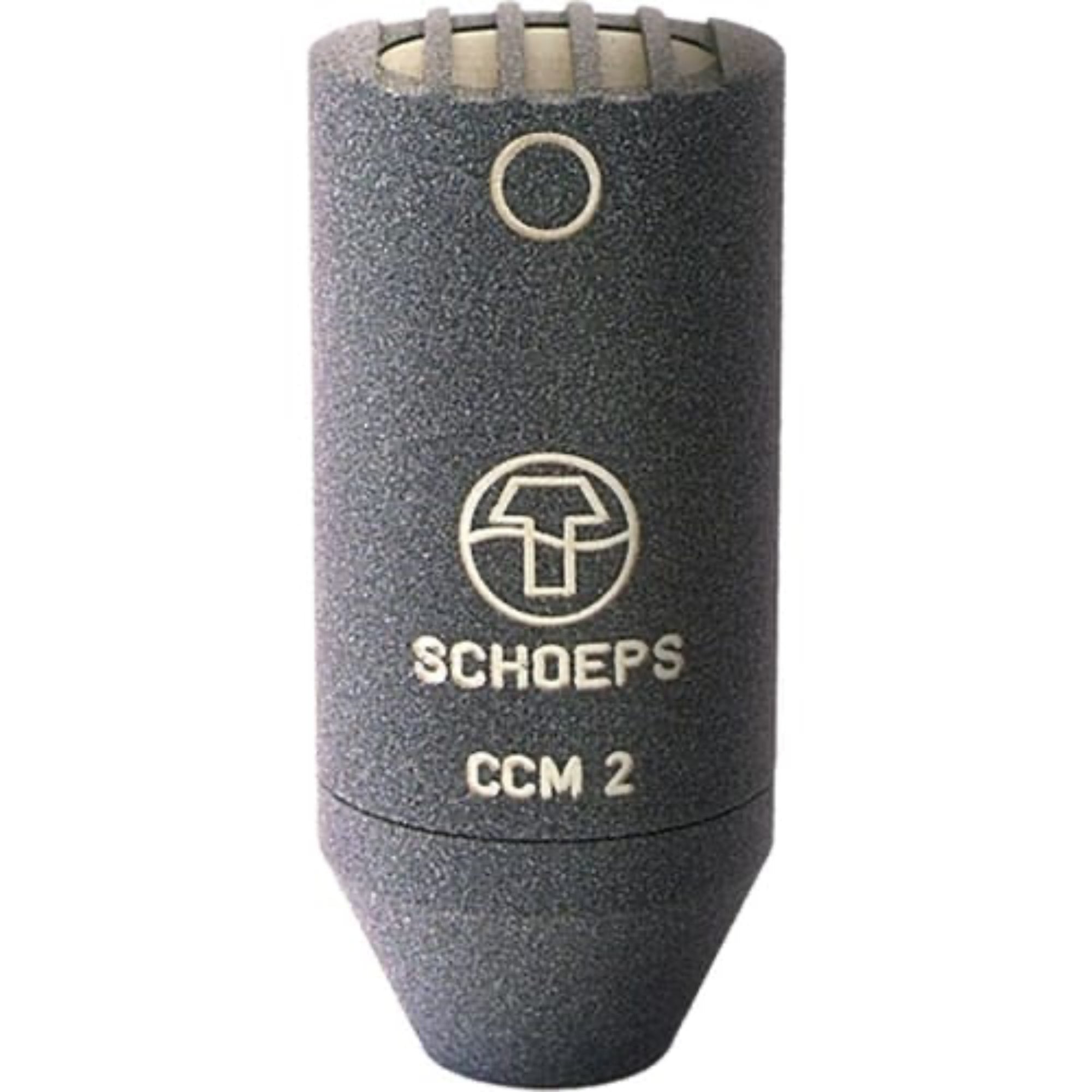

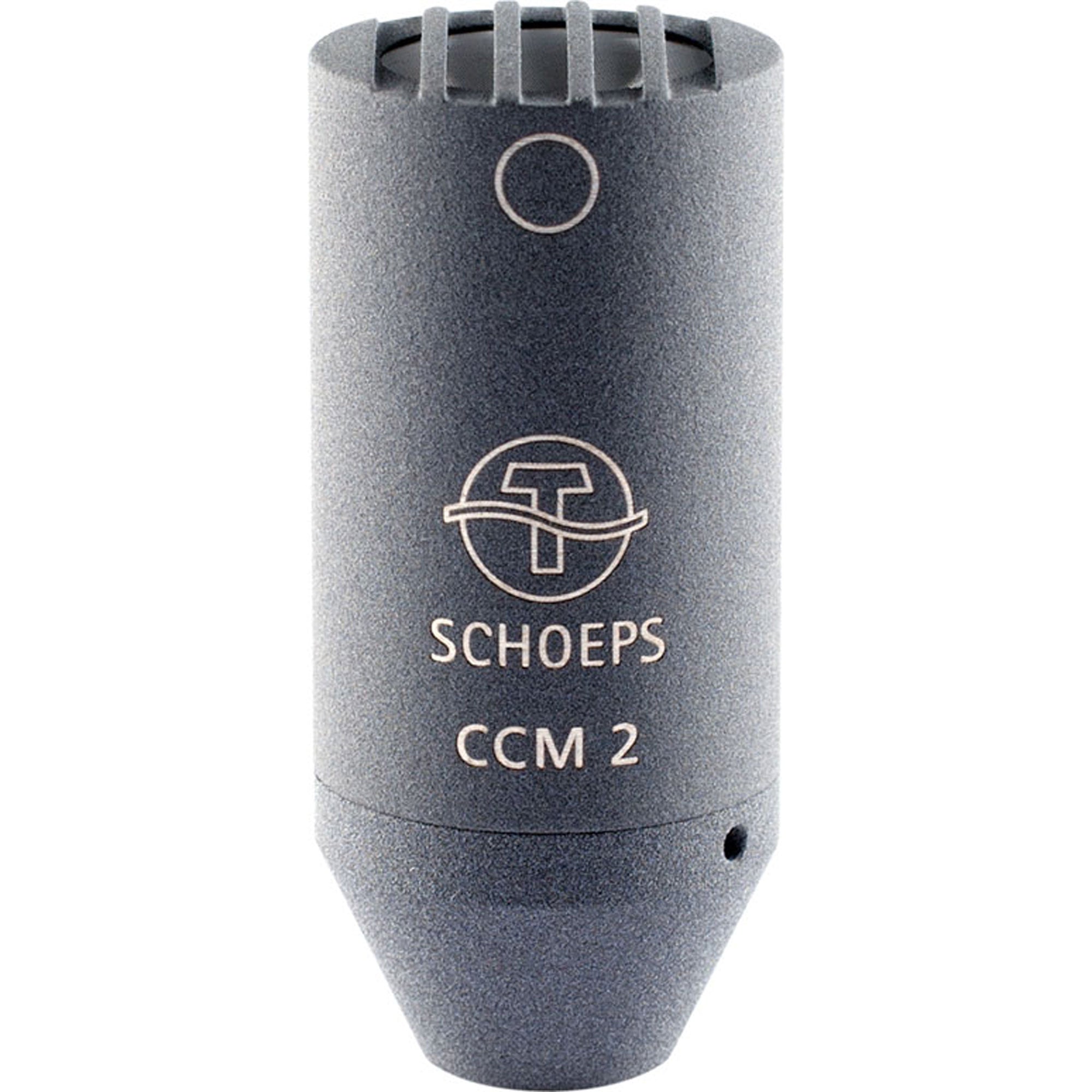

Schoeps CCM 2 Lg Omni Compact Microphone

Omnidirectional Compact Microphone, Flat Frequency Response, Lemo Disconnect Version

As can be seen from the frequency response curve, this microphone type has flat frequency response for frontal sound incidence. This yields a very natural quality when picking up sound that is predominantly direct, i.e. close to the source or in a "dry" acoustic.

The CCM 2 is meant to be placed in close proximity to the sound source. The sonic impression never becomes overly brilliant or harsh. Please note that there is some directivity at high frequencies due to the physics of sound. Thus even with an omnidirectional microphone, it still matters which way the capsule is "aimed."

This microphone can also be ordered as a modular Colette microphone, where the CMC 1 L amplifier is combined with an MK microphone capsule. (CMC 1 L + MK 2)

This variant allows the capsule to be exchanged and has advantages in terms of electrical properties in combination with digital wireless transmitters.

Features:

• omnidirectional
• linear frequency response
• corrected for the direct sound field
• for use close to the sound source (frontal sound incidence)
• preferred applications: close pickup of singers and instruments

Specifications:

• Frequency range: see corresponding capsule
• Sensitivity: see corresponding capsule
• Maximum sound pressure level (THD < 0.5 %):
  135 dB-SPL (P48)
  127 dB-SPL (P12)
• Maximum output voltage: 2,6 V (8,3 dbV) with 2 kΩ load
• Low cut filter: 20 Hz, 12 dB/Okt.
• Output impedance: 90 Ω @ 1 kHz
• Maximum cable length: > 400 m
• SCHOEPS RFI Shield: No
• Powering standard / Valid range:
  P48 / > 40 V
  P12 / > 10 V
• Current consumption:
  4 mA (P48)
  3,6 mA (P12)
• Common mode rejection ratio (at 1 kHz): > 55 dB
• Minimum recommended load impedance: 2 kΩ

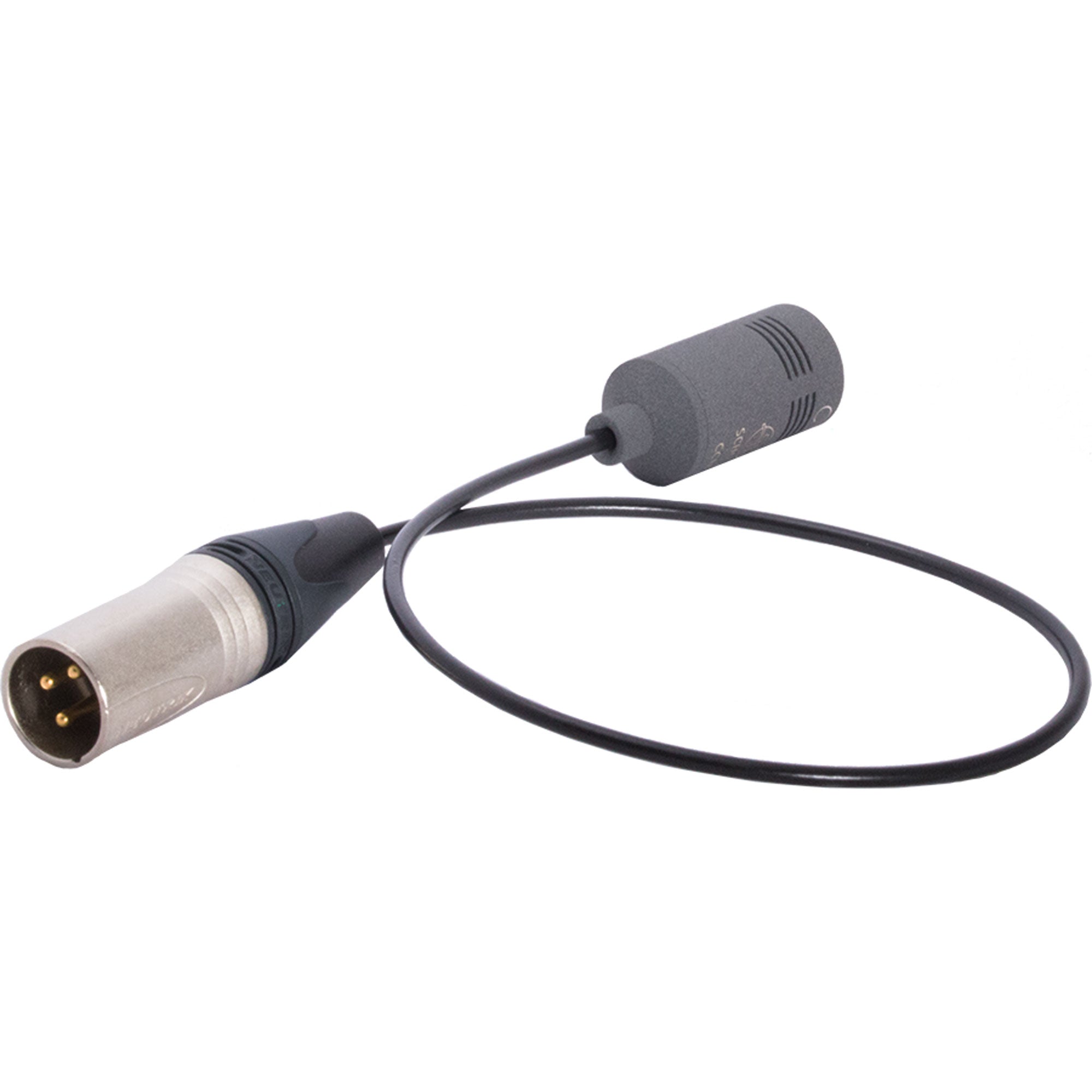

• Output: Lemo (CCM-L) or XLR-3M (CCM-K),
• analog, 1 channel
• Length: 46 mm (CCM-L)
• Diameter: 20 mm
• Weight: 33 g (CCM-L)
• Surface finish: matte gray
