Key Features
- Stereo Input x 4 Output
- Mono Input x 8 Output
- Balanced XLR Female Inputs
- Balanced XLR Male Outputs
- Individual Output Level Control
- 1-Space 19" Rack Mountable
Description

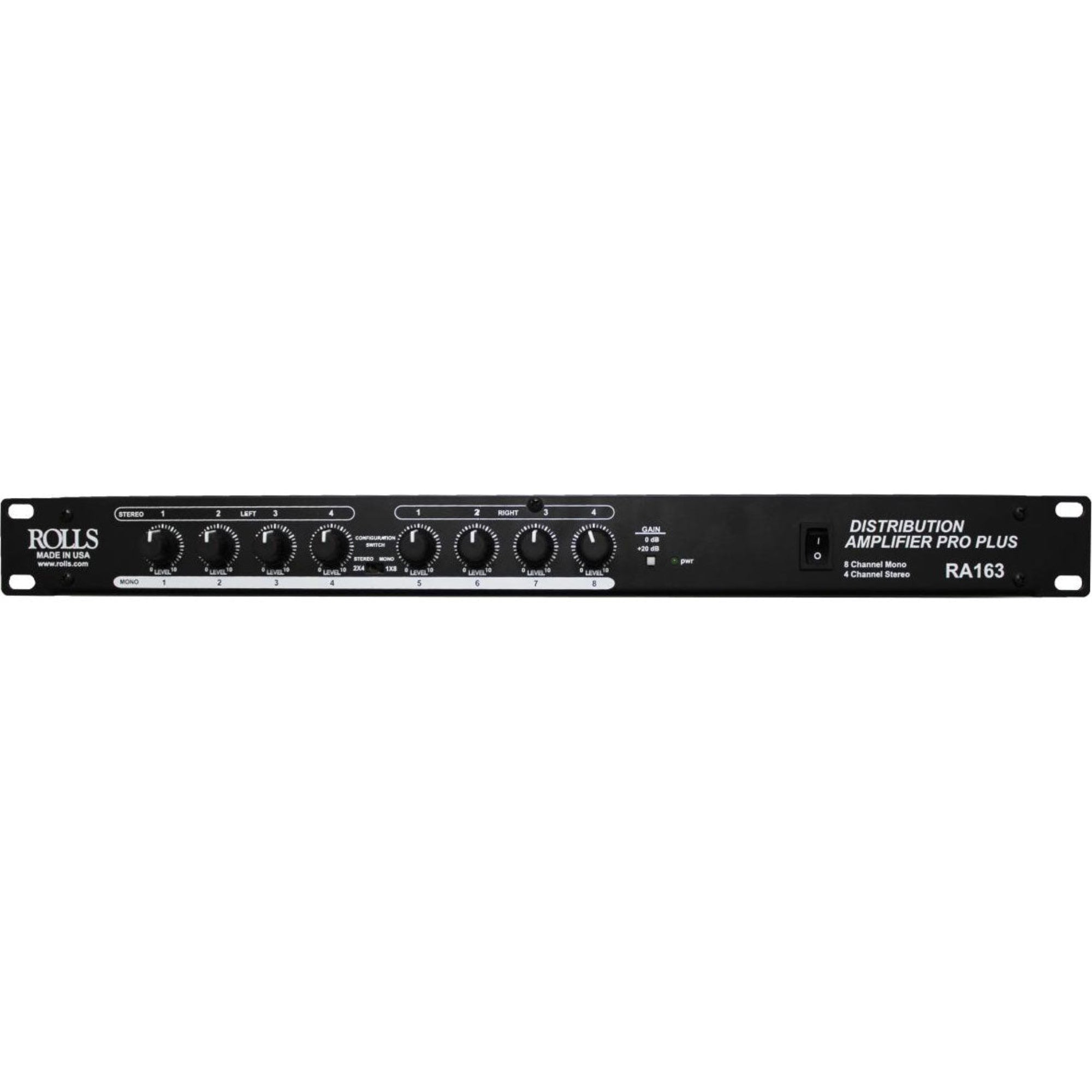

8 Channel Mono/4 Channel Stereo Distribution Amplifier with XLR, 1 Rack Space

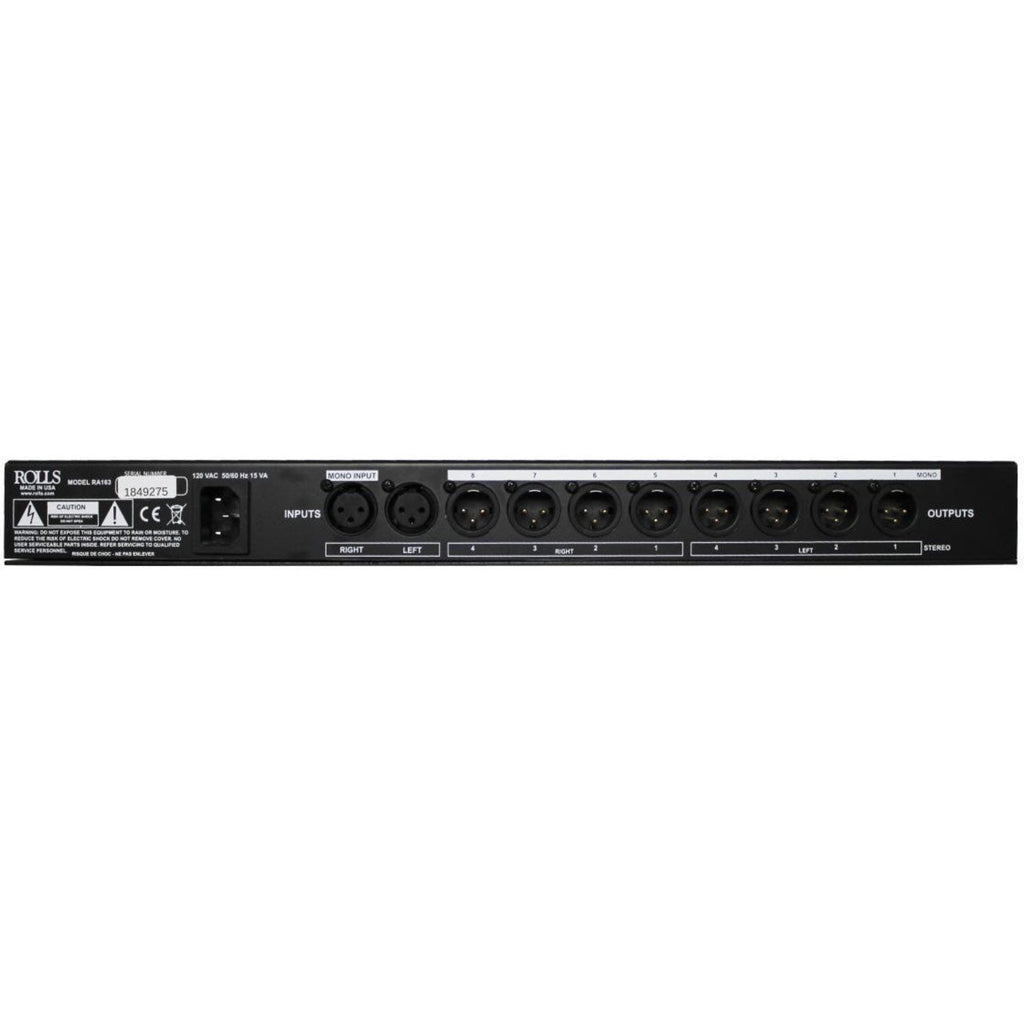

The RA163 is an eight channel mono, or four channel stereo distribution amplifier designed for the contractor / install market. The outputs are designed to drive high-level balanced lines in a sound distribution system. The XLR jacks on the rear panel are for input and output, and each output may power more than one line.
Features:
- Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs.
- +20 dB Gain switch.
- All XLR jack inputs and outputs.
Specifications:
- Input Impedance: 100 K Ohms balanced
- Max Input Level: +24 dBV
- I/O Connectors: XLR
- Output Impedance: 50 Ohms balanced
- Max Output Level: +24 dB
- Max Gain: 20 dB
- S/N Ratio: >90 dB
- Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
- THD: <.008%
- Power: 120 VAC 50-60 Hz, 15VA
- Size: 19" x 1.75" x 6.5" (48 x 4.5 x 17 cm)
- Weight: 7 lbs. (3 kg)
Details
- Manufacturer: Rolls
- MPN: RA163
- Model Number: RA163
- UPC: 675889016307
