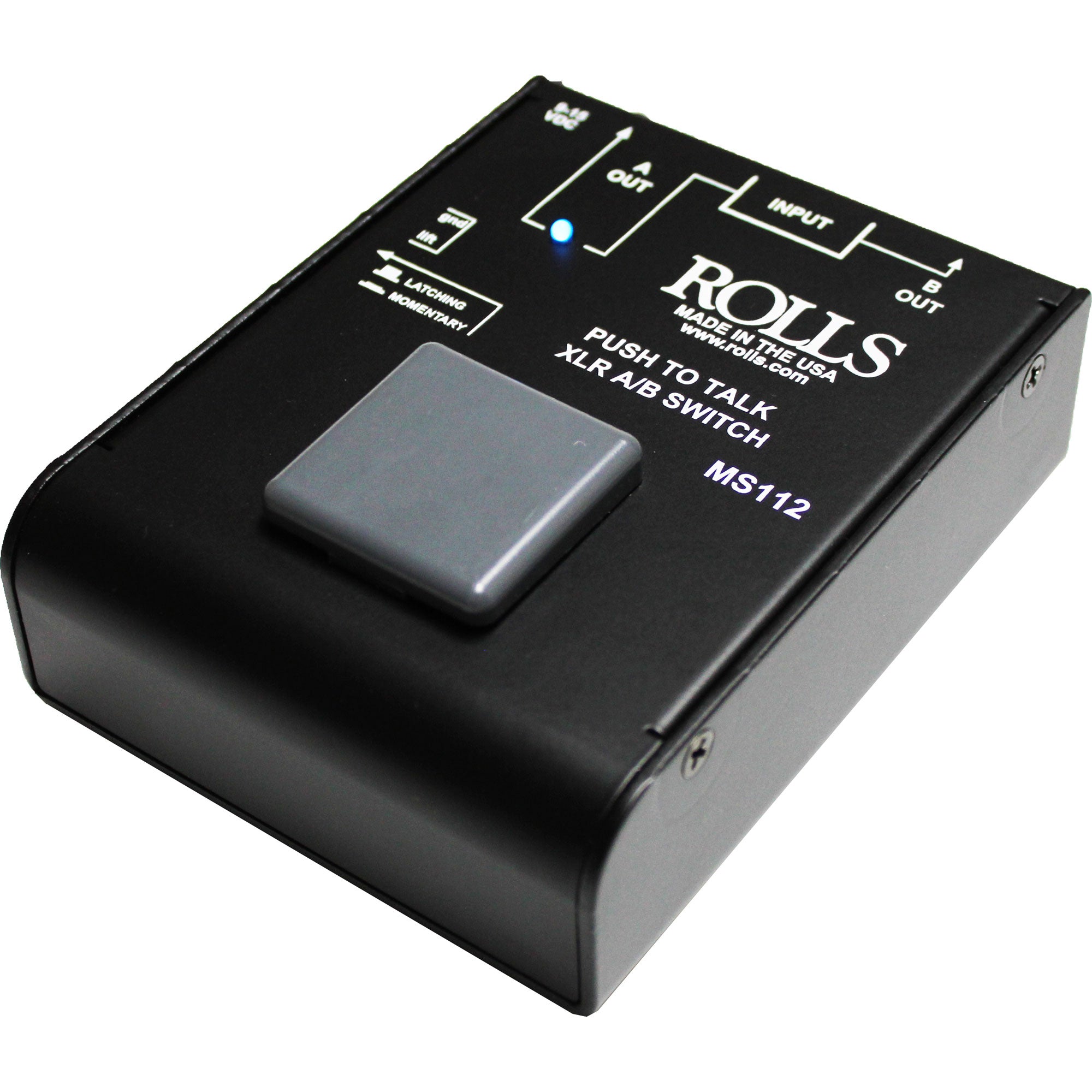

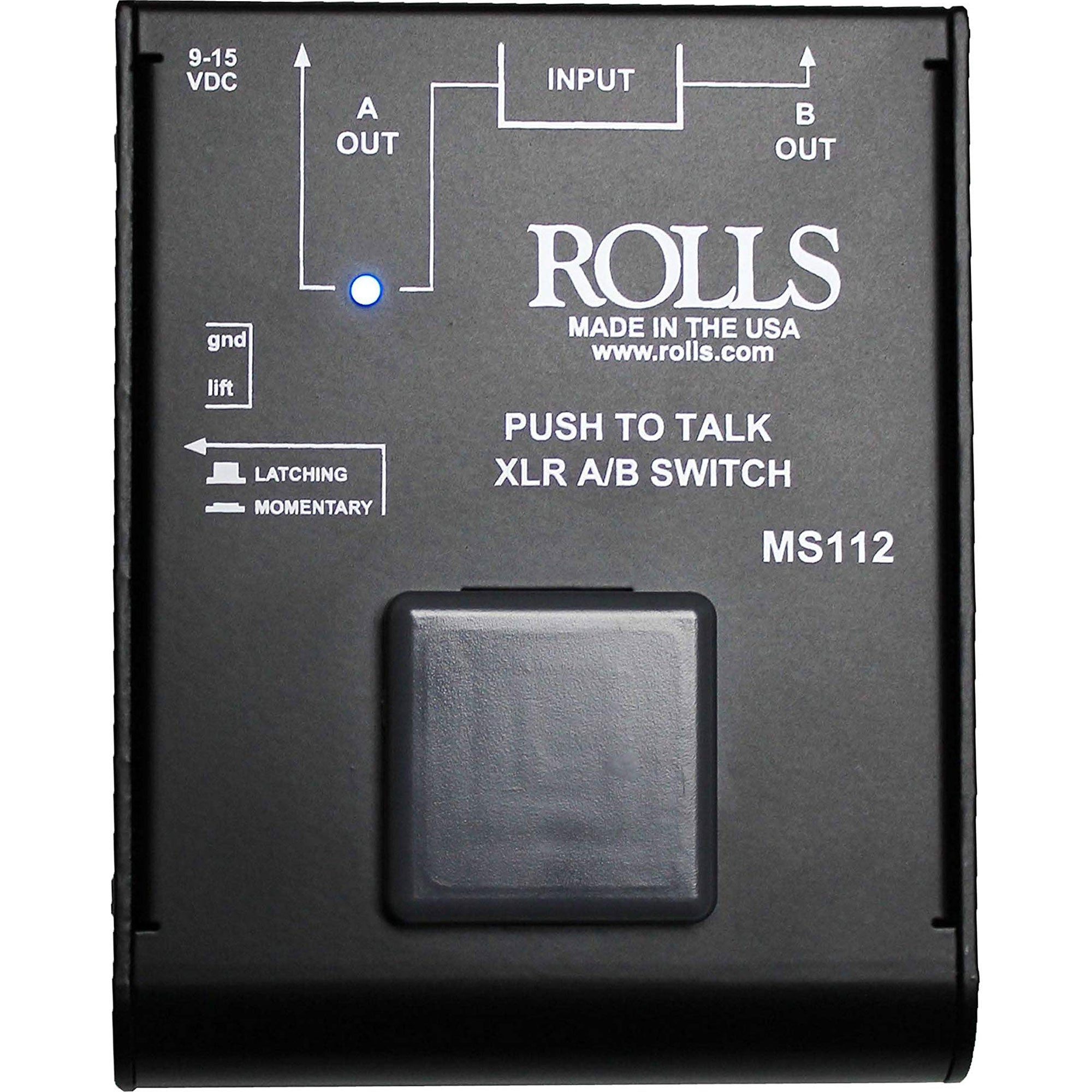

Rolls MS112 XLR A-B Switching Device Push-to-Talk/Push-to-Mute

Rolls SKU: ROL MS112
MPN: MS112 UPC: 675889001129

Price:
Sale price$149.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • XLR Input/Output
  • Momentary or Latching
  • Quiet Switching
  • Ground/Lift Switch
  • LED Status Indicator

Description

Send one XLR source where you need it.

The Rolls MS112 routes a microphone or line-level XLR signal to output A or B, with selectable momentary or latching operation. Use it to change destinations or configure a push-to-talk or push-to-mute workflow, with an LED status indicator showing the active output.

Choose momentary or latching control

  • Momentary: Change the routing while holding the switch, then return to the resting state when you release it.
  • Latching: Change the selected output and retain that state without holding the switch down.

Follow the manufacturer's setup instructions for push-to-talk or mute applications, and check the resting and pressed states before use. The MS112 is an A/B routing device, not a mixer for combining two sources.

Switch microphone or line-level audio

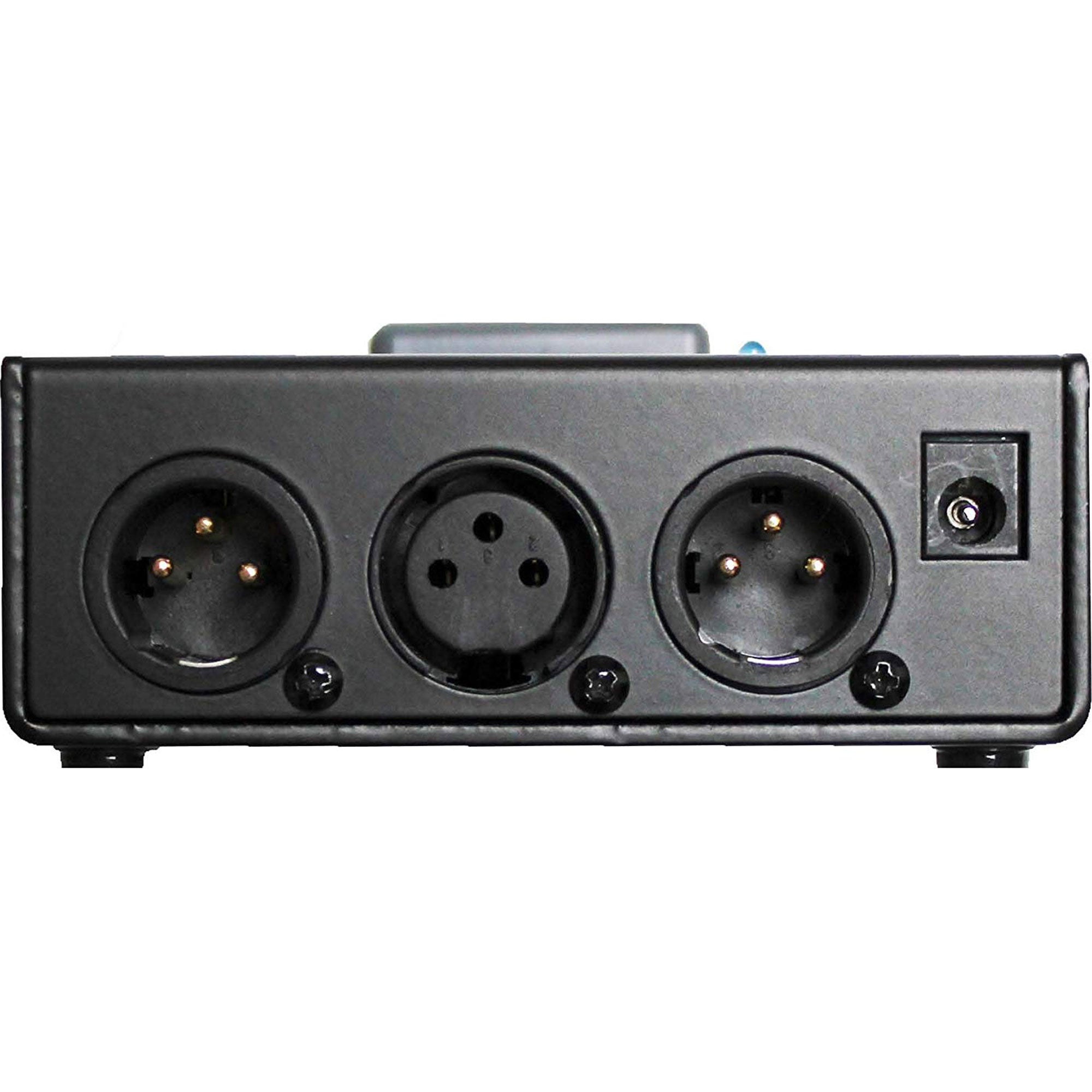

A female XLR input accepts your source, and male XLR outputs provide the A and B destinations. The MS112 is designed for dynamic microphones, compatible +48V phantom-powered microphones, and line-level XLR signals. Match the destination's input settings to the source: switching a line-level signal does not turn it into microphone-level audio.

The switching design is intended to reduce audible pops. For phantom-powered microphone setups, follow the manufacturer's connection and phantom-power instructions and test the complete signal path before a live event.

See the active destination

The LED status indicator gives you a visual reference for which output is active. This helps when moving a microphone between destinations or checking a talk/mute configuration without relying solely on what you hear.

Address ground-related hum when appropriate

A ground/lift switch provides an option for troubleshooting ground-loop-related hum. It is not a cure for every noise problem, and it should never be used as a reason to remove an equipment power plug's protective earth connection.

At a glance

  • Function: One-input, two-destination XLR A/B switching
  • Input: Female XLR
  • Outputs: Male XLR A and B
  • Switch modes: Selectable momentary or latching
  • Applications: Destination selection and configured push-to-talk or push-to-mute operation
  • Signal compatibility: Microphone- or line-level XLR audio
  • Microphone compatibility: Dynamic and compatible +48V phantom-powered microphones
  • Status display: LED active-output indication
  • Grounding control: Ground/lift switch
Details
  • Manufacturer:  Rolls
  • MPN: MS112
  • Model Number: MS112
  • UPC: 675889001129
