Key Features
- 20Hz to 24kHz Frequency Range
- Generates Sine & Square Waves
- 1/4" Unbalanced Outputs
- -10 dB Pad for Referencing
- Power Loop-Thru Connection
Description

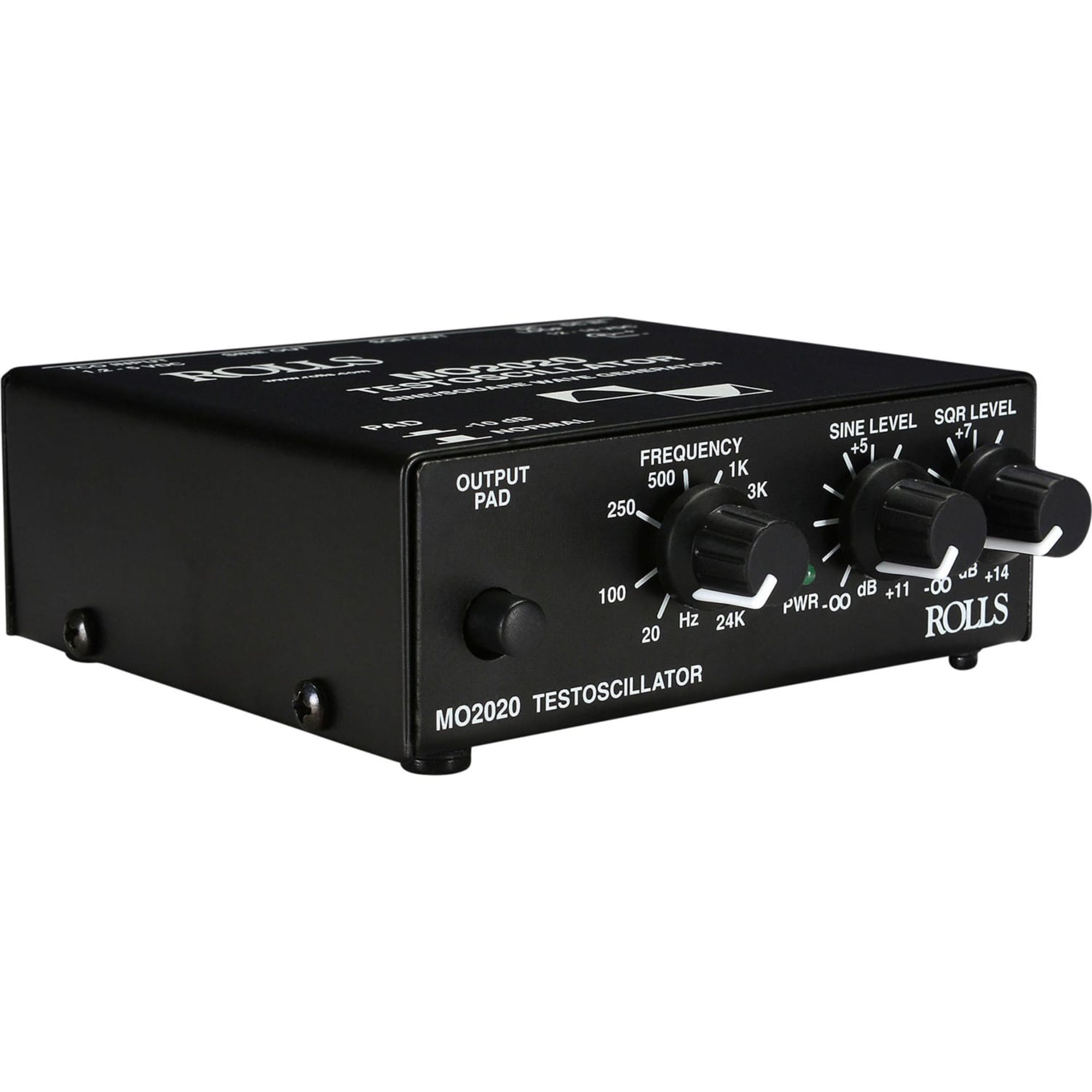

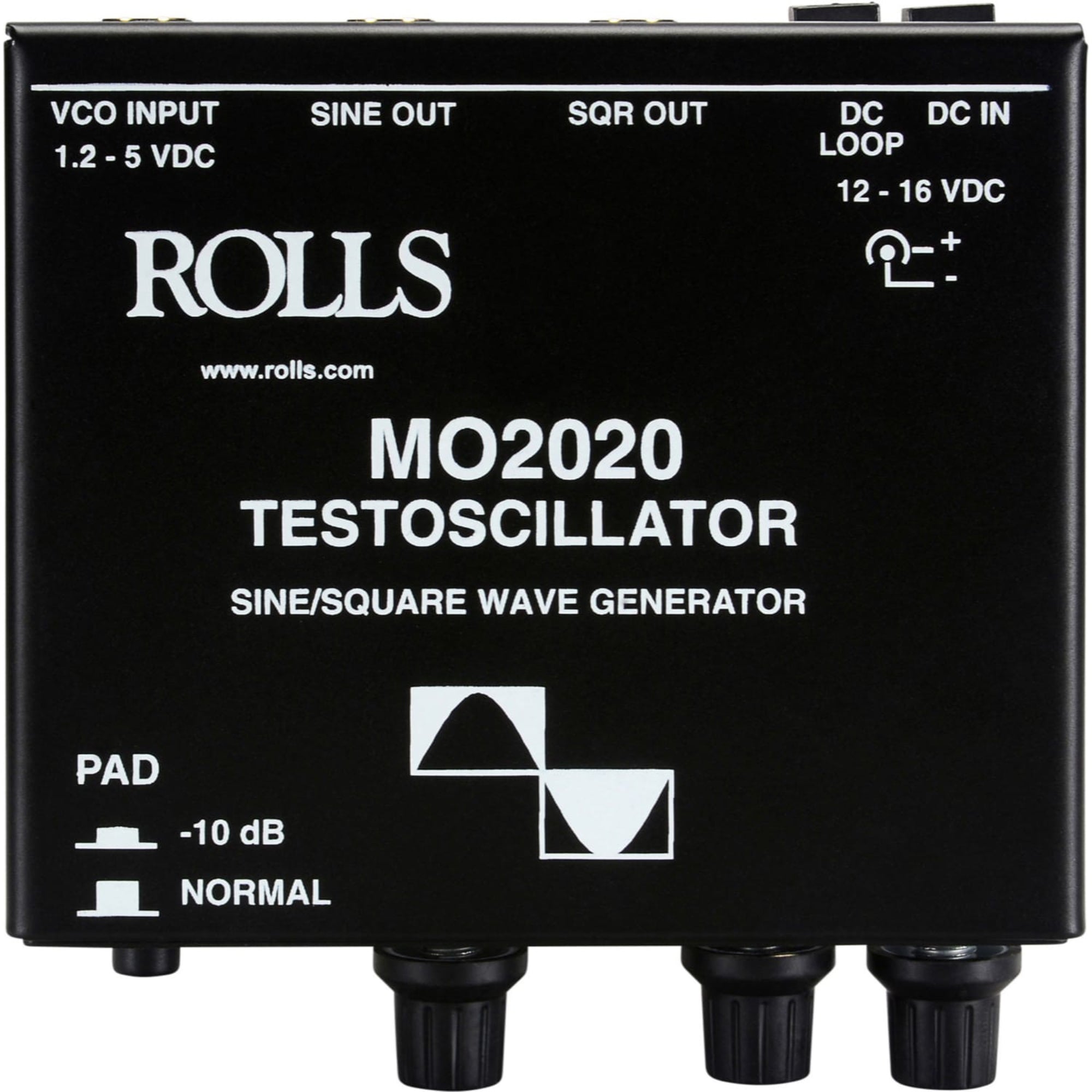

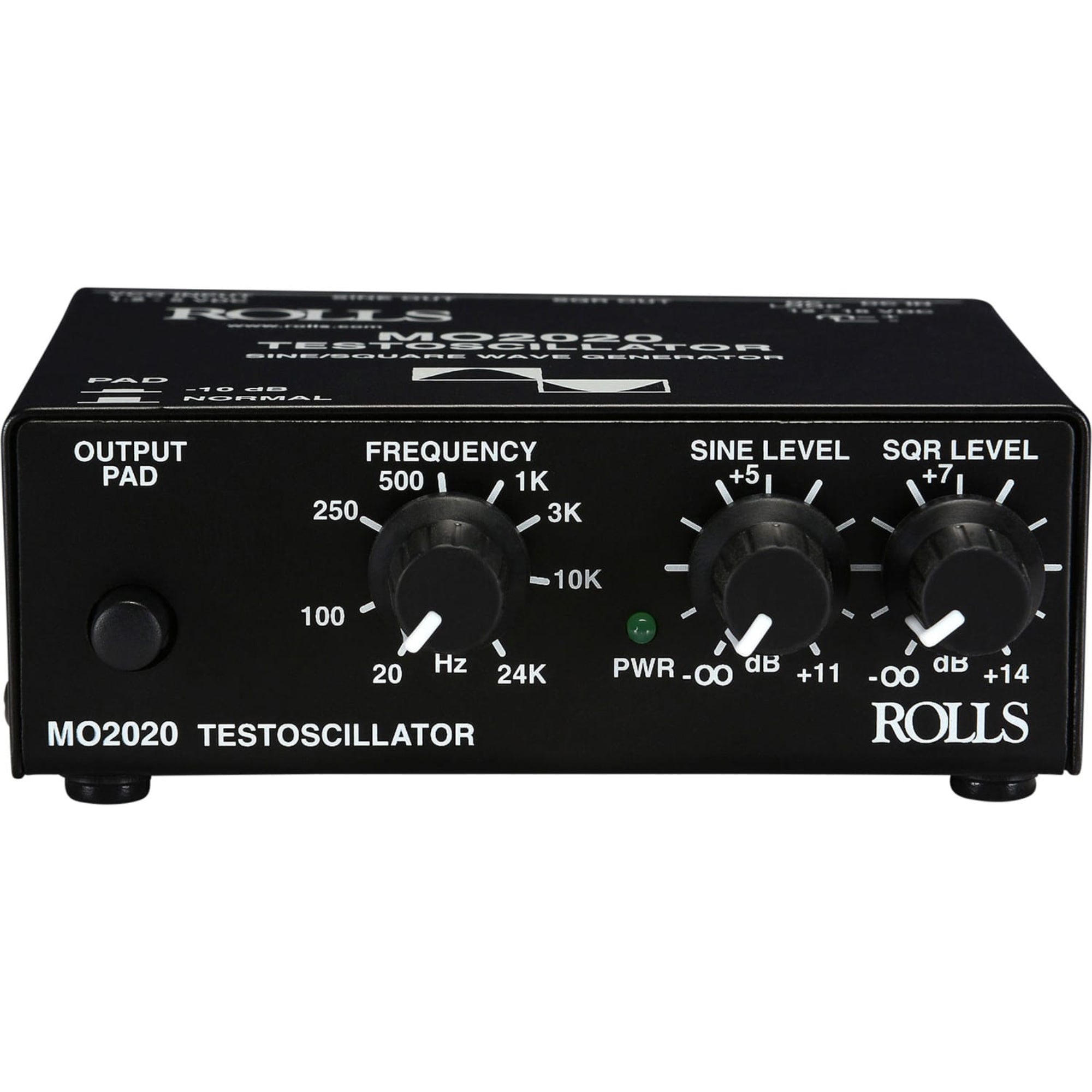

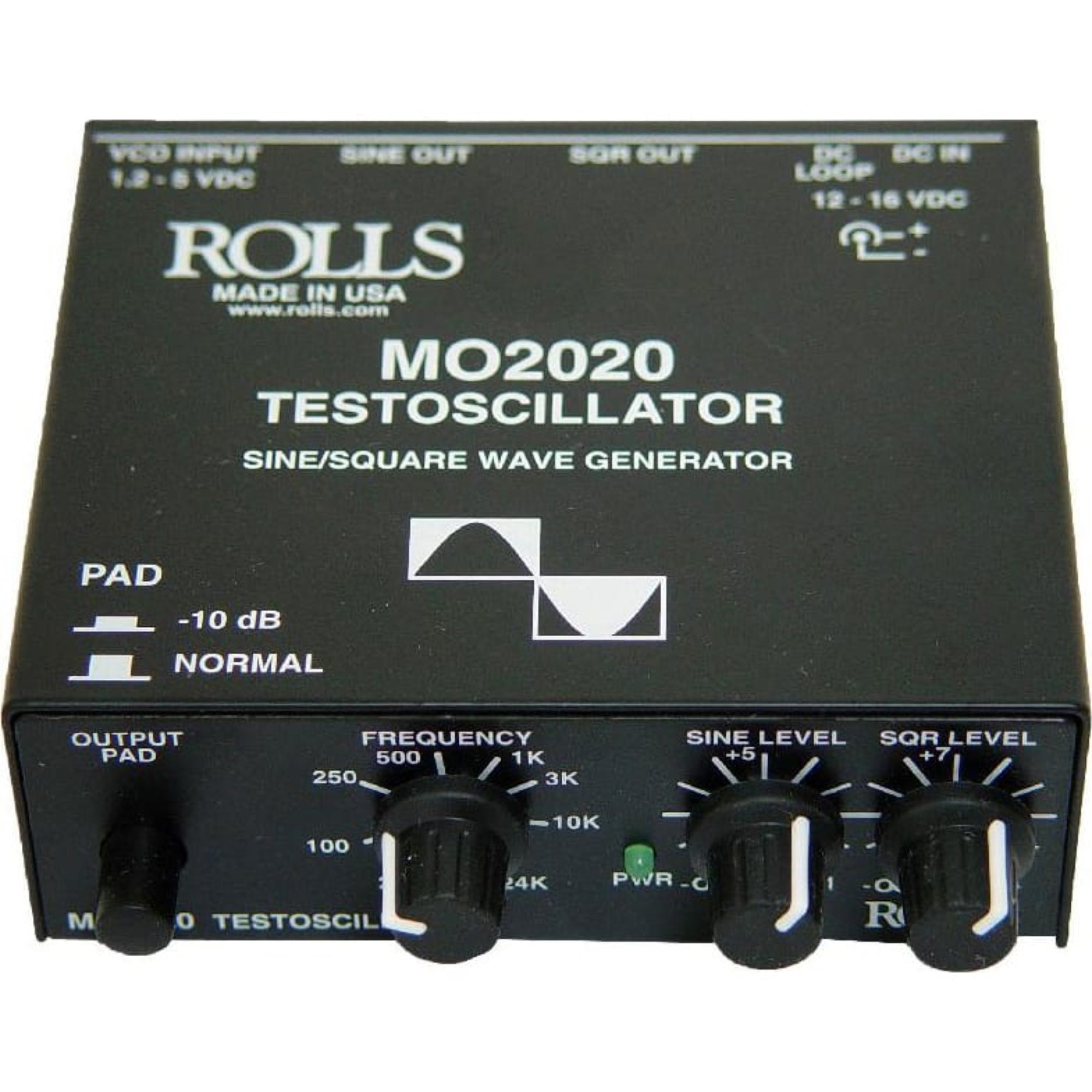

Test Oscillator Variable Frequency Sine/Square Wave Generator
The MO2020 provides a sine and square wave output on two 1/4" jacks. The frequency range is variable from 20Hz to 24kHz, it accepts a 1.2 to 5 volt dc input on a 1/4" jack for external frequency control, and a 10 dB Output Pad is included to provide a -10 dB reference signal.
Features:
- Generates both sine and square wave test tones
- Tests frequencies from 20Hz to 24kHz
- External frequency control made available via a 1/4 in. VCO input jack
- Independent level controls for both sine and square waves
- 10dB pad
Details
- Manufacturer: Rolls
- MPN: MO2020
- Model Number: MO2020
- UPC: 675889202007
