Rolls DB425 Passive Four-Channel DI Box

Rolls SKU: ROL DB425
MPN: DB425 UPC: 675889004250

Price:
Sale price$269.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • For Studios, Broadcast, & Stage Use
  • Line- or Instrument-Level Operation
  • Eight 1/4" Inputs
  • Four Balanced XLR Outputs
  • Special Design Nickel-Plated Transformer
  • Fully Passive Operation, No Power Needed
  • Ground-Lift Switch Eliminates Noise
  • Rugged Design, Made in the USA

Description

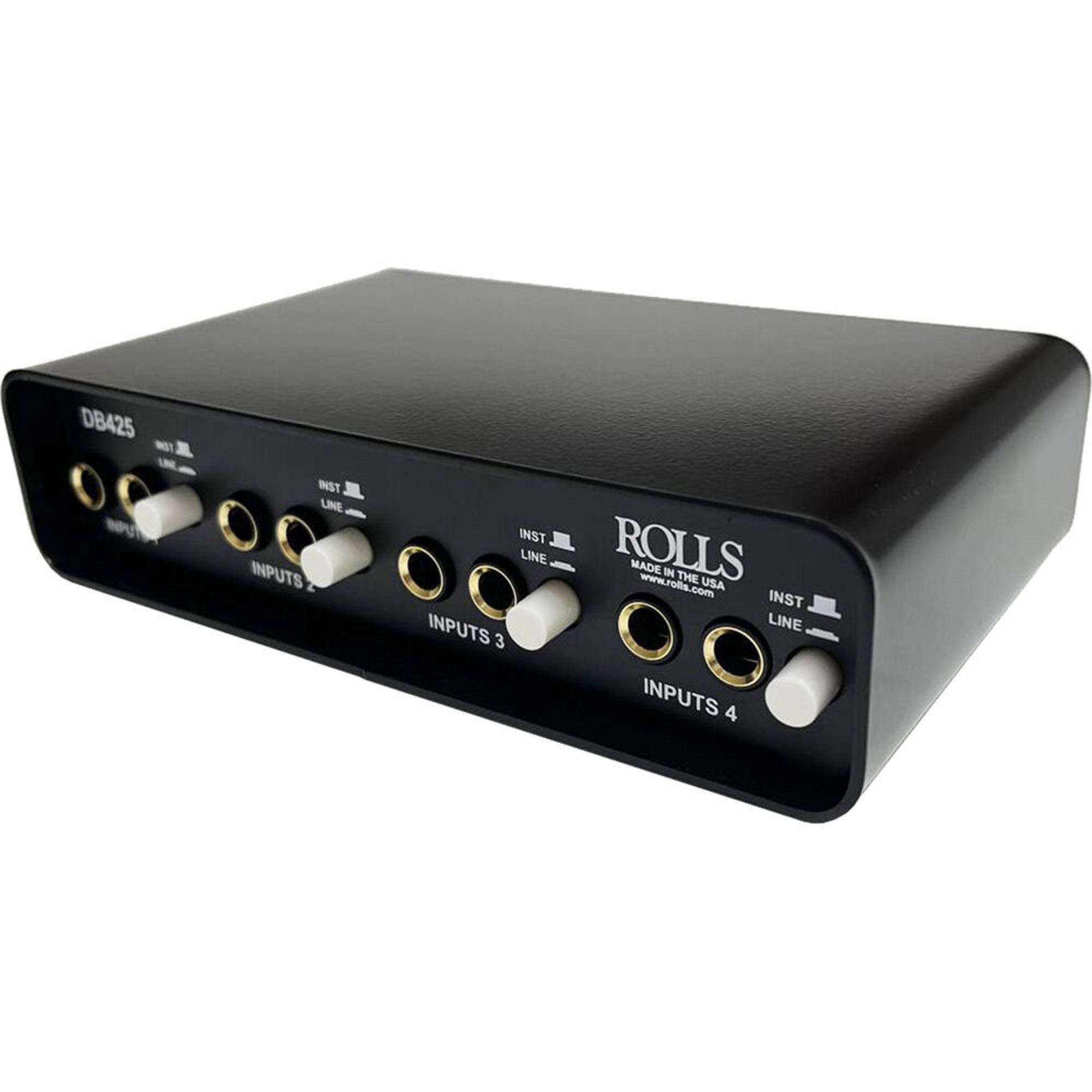

Handle four DI channels in one compact box.

The Rolls DB425 is a four-channel passive direct box for connecting compatible unbalanced instrument- or line-level sources to balanced audio-system inputs. Four separate transformer channels and four male XLR outputs keep your signals on individual feeds, making it a practical option for stage, studio, and broadcast setups.

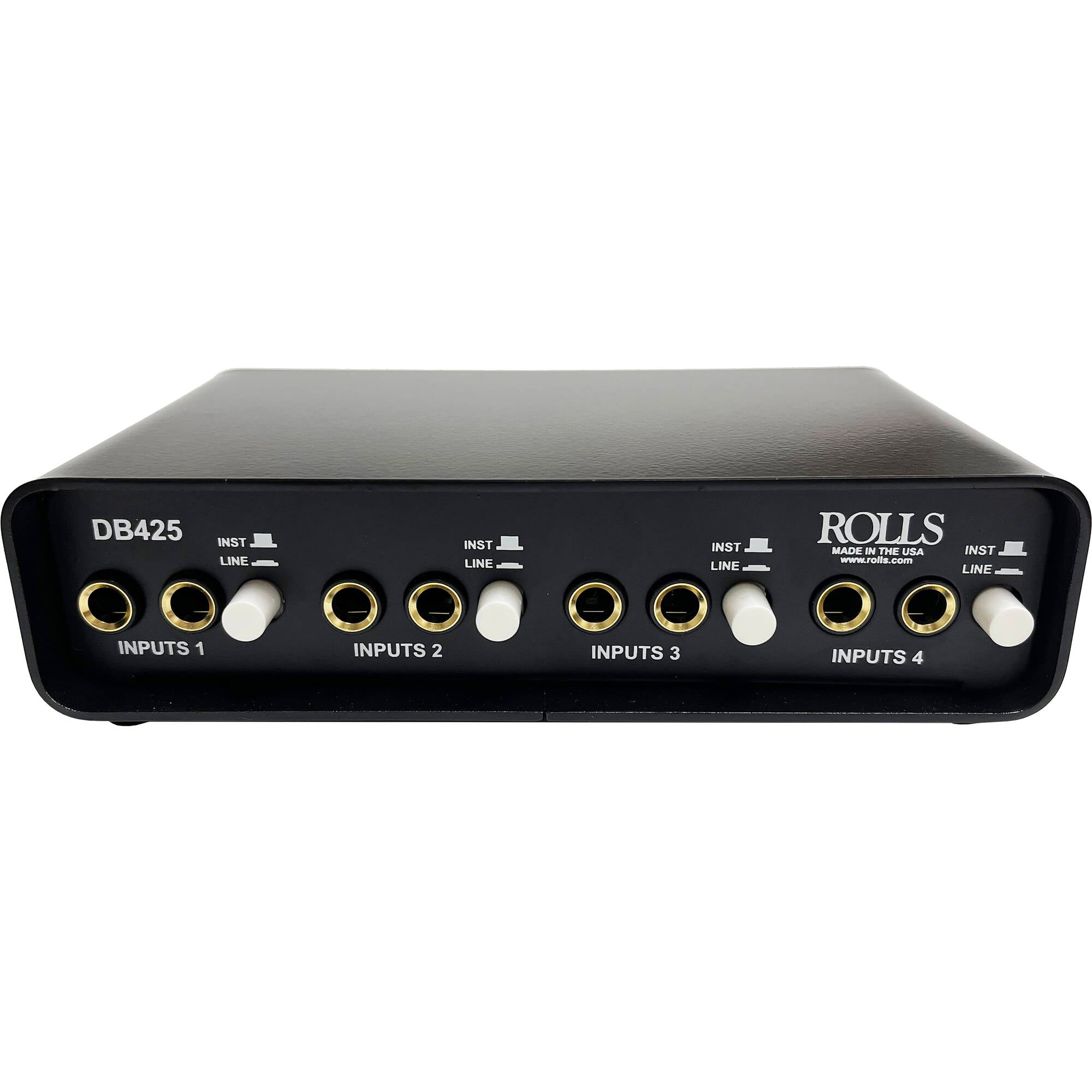

Choose instrument or line operation

Instrument/Line switches let you configure the interface for the connected sources. Use the DB425 to bring several compatible sources into your mixer without packing a separate DI enclosure for each channel. Match the settings and receiving input levels to your equipment.

Transformer isolation without external power

The DB425 uses four custom, fully potted audio transformers with nickel-laminated construction. Its passive design requires no external power supply or batteries, simplifying setup wherever you need multiple DI channels.

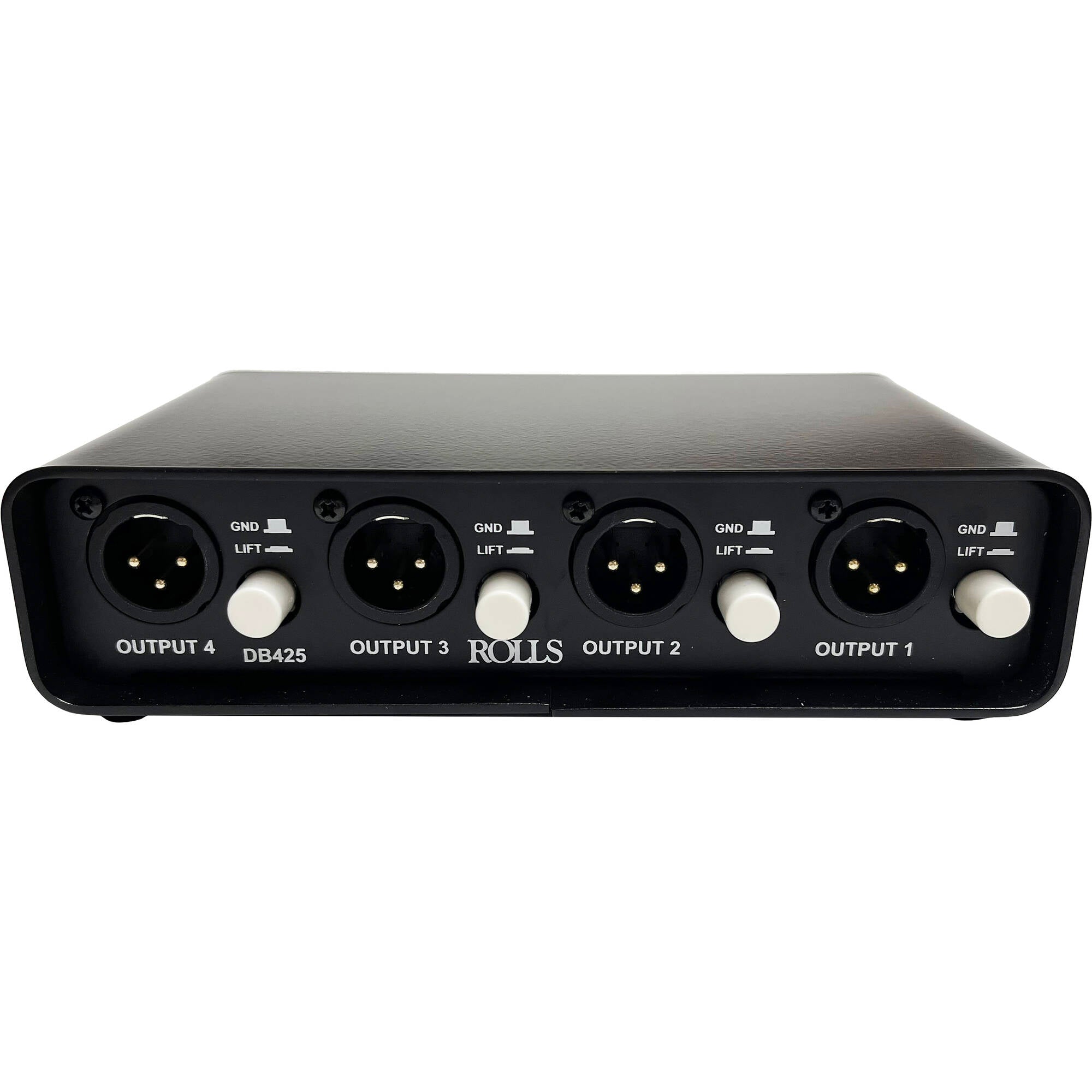

Troubleshoot ground-loop hum by channel

Each channel has its own ground-lift switch, so you can address a ground-loop issue on one connection without changing the others. Ground lift can help reduce ground-loop hum, but it does not eliminate every kind of audio noise.

At a glance

  • Type: Four-channel passive DI box
  • Operating options: Instrument- or line-level
  • Transformers: Four custom, fully potted, nickel-laminated audio transformers
  • Balanced outputs: Four male XLR connectors
  • 1/4-inch connections: Eight jacks total
  • Ground lift: Individual switch for each channel
  • Input impedance: 20 kΩ
  • Output impedance: 600 Ω
  • Frequency response: 35 Hz–20 kHz, ±3 dB
  • Maximum output level: 4 dBm
  • Power: No external power or batteries required
  • Dimensions: 6.75 × 4 × 1.7 inches (W × D × H)
  • Product weight: 2.1 lb
  • Manufacturing: Made in the USA
Details
  • Manufacturer:  Rolls
  • MPN: DB425
  • Model Number: DB425
  • UPC: 675889004250
