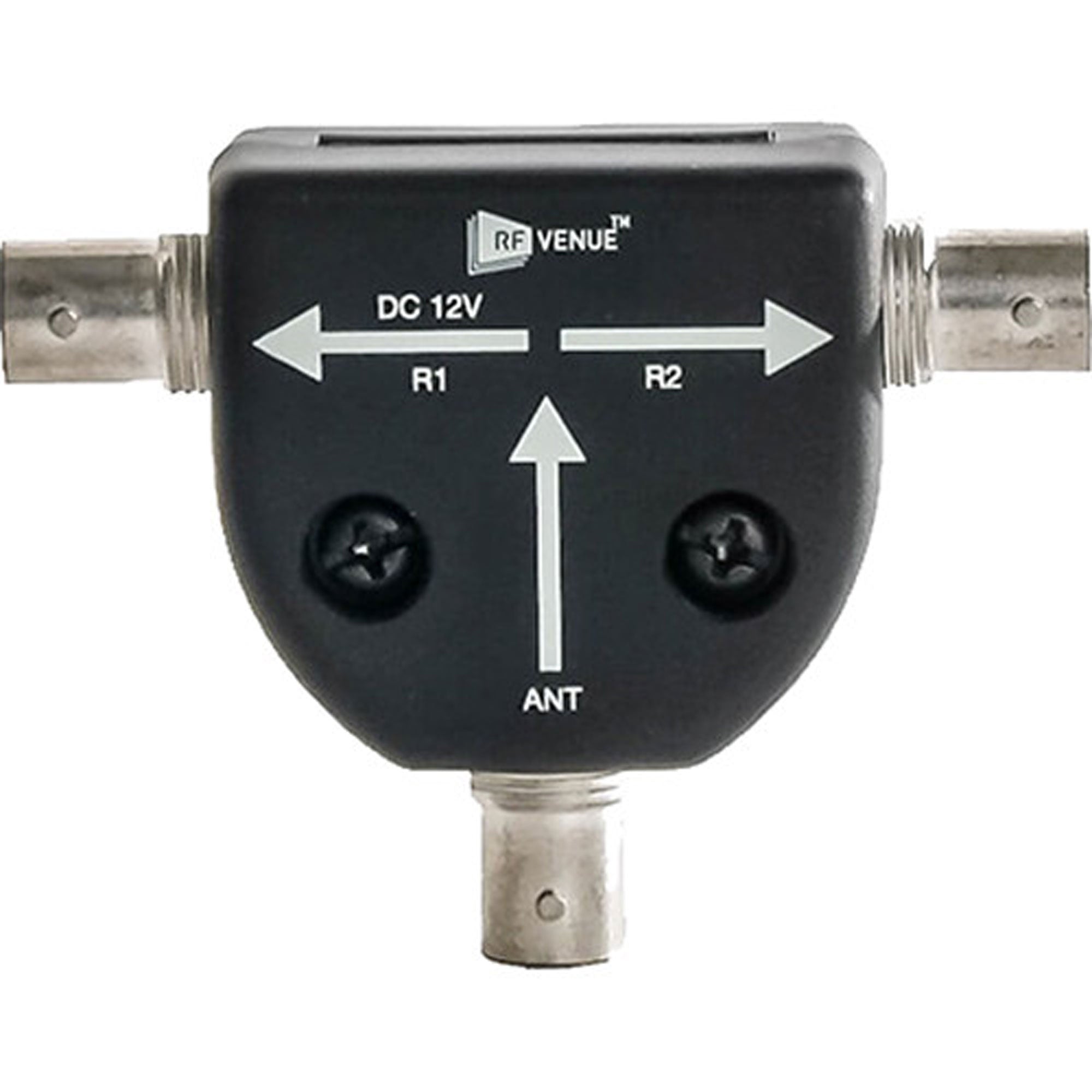

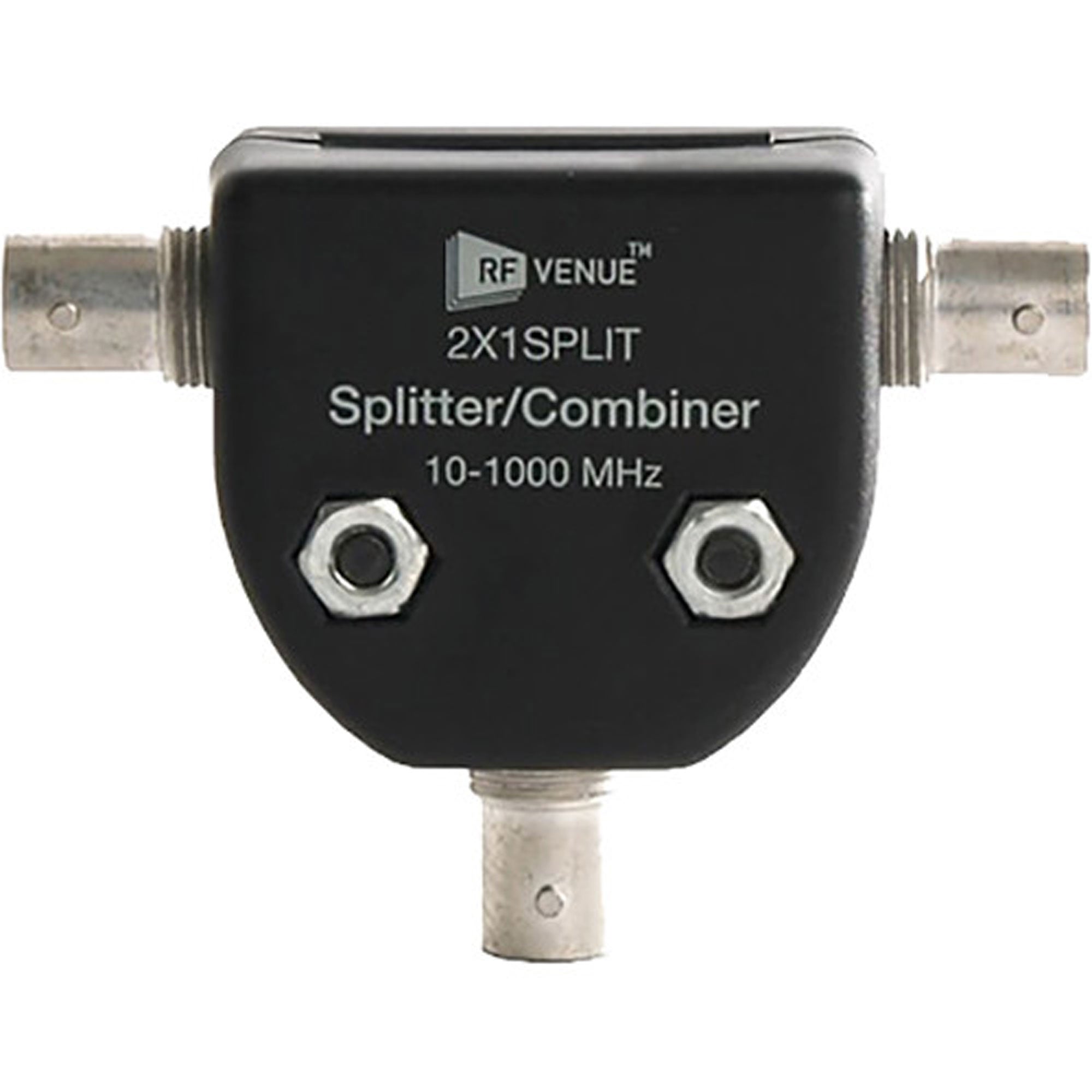

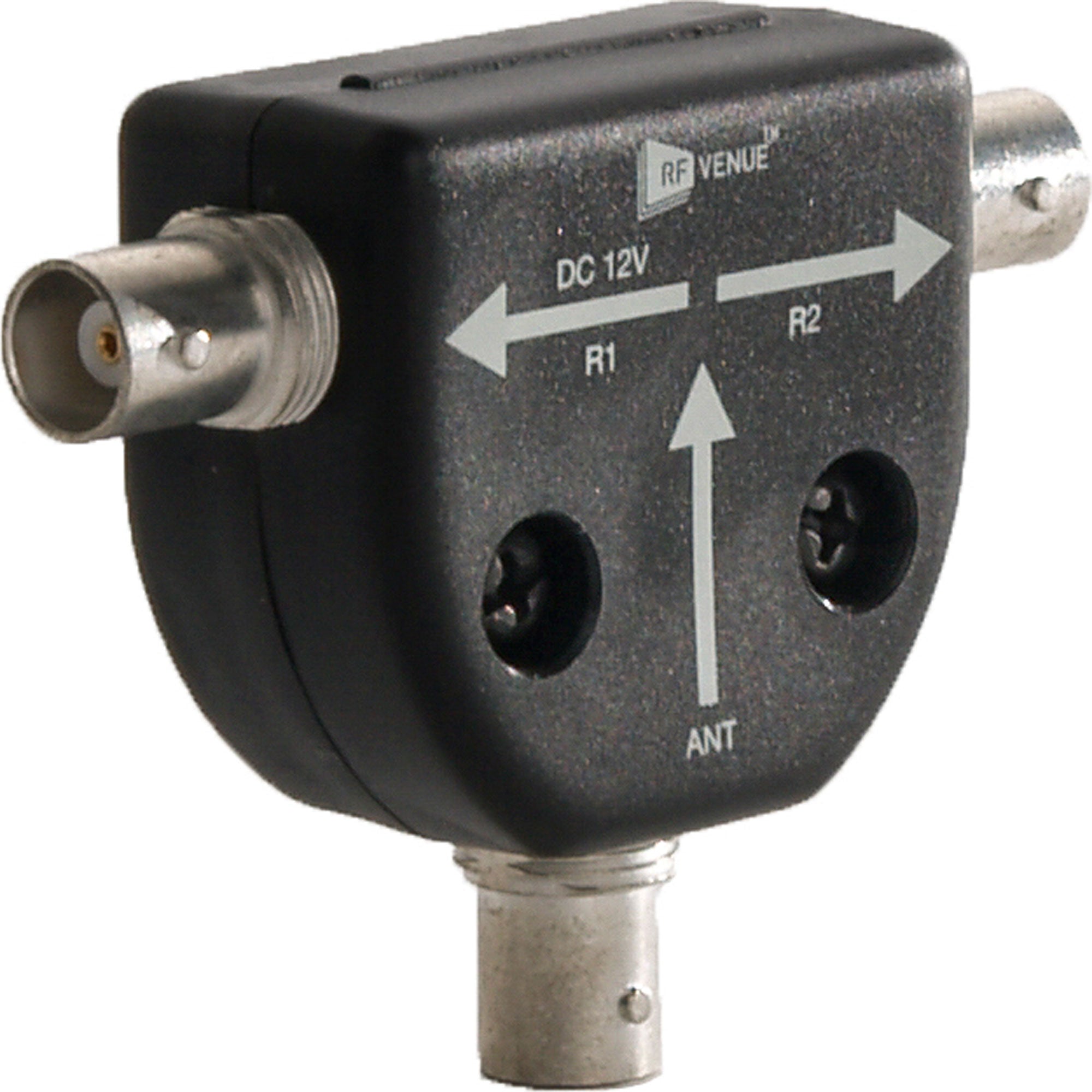

RF Venue 2X1SPLIT Passive Antenna Splitter/Combiner (10 to 1000 MHz)

Passive 2x1 RF Splitter/Combiner, 50 Ohm, BNC Female Connectors

The Passive Antenna Splitter/Combiner from RFvenue is intended for use with wireless systems. It can not only split one incoming signal into two output signals, but also combine two incoming signals into one output signal. It is designed in accordance with industry standards, so it is compatible with wireless systems of major brands.

Features:

• One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out
• Supports full frequency band (470 to 870 MHz)
• 10 to 1,000 MHz RF carrier frequency range support
• 50 ohm impedance and 2 dB insertion loss

Specifications:

• Connectors: 1 BNC antenna in and 2 BNC out or 2 BNC antennas in and 1 BNC out
• Frequency Band: 470 to 870 MHz
• RF Carrier Frequency Range: 10 to 1,000 MHz
• Impedance: 50 ohms
• Insertion Loss: 2 dB
• Isolation: 20 dB
• Voltage Wave Standing Ratio (VSWR): 1.2
• Dimensions (WxHxD): 2.8 x 0.9 x 2.2" (72.2 x 23.6 x 54.9 mm)
• Weight: 2.2 oz (62.6 g)
