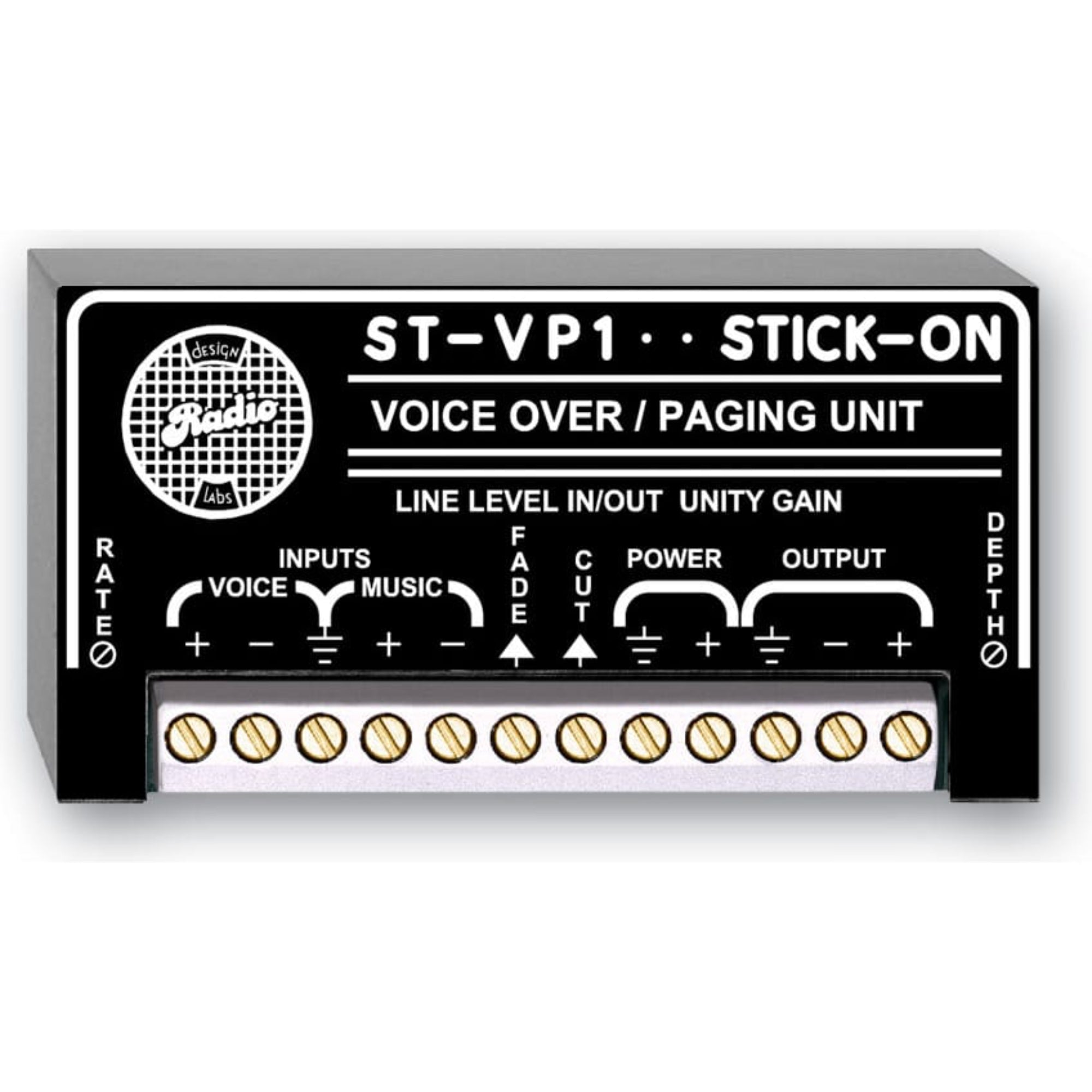

RDL ST-VP1 Voice-Over & Paging Module

Voice-Over / Paging Module - Manual

The ST-VP1 is intended for voice-over paging with user adjusted and controlled FADE or CUT between two input sources. This unit is also perfect for voice-overs where precise and consistent fade levels are required. Automatic operation can be achieved when used in conjuction with RDL's ST-ACR products.

Features:

• High-Quality Voice-Over Mixing
• Noiseless Paging
• Single Input Adapted for Paging or Voice-Over
• Selectable Fade-Under or Hard-Cut
• Adjustable Fade DEPTH and RATE
• Soft Audio Switching

Specifications:

• MUSIC SOURCE:
• Frequency Response: 10 Hz to 20 kHz (± 0.25 dB)
• THD+N: < 0.01%
• Attenuation when muted: > 65 dB
• VOICE SOURCE:
• Frequency Response: 30 Hz to 20 kHz (± 0.25 dB)
• THD+N: < 0.01%
• Attenuation when muted: > 80 dB
• COMMON:
• Input Level: +4 dBu Balanced (may be connected unbalanced)
• Output Level: +4 dBu balanced (may be connected unbalanced)
• Gain (either input): Unity (balanced input/output)
• Noise: < -85 dB (below +4 dBu output)
• Headroom: > 18 dB (above +4 dBu)
• Fade Rate: Adj. 0.3 to 1.3 seconds (for 20 dB fade) Adj. 0.2 to 1.0 seconds (for 12 dB fade)
• Fade Depth (music input): Adj. 3 dB to 40 dB
• Ambient Operating Environment: 0° C to 55° C
• Power Requirement: GROUND-REFERENCED 24 Vdc @ 45 mA
• Package Type: Cardboard Box
• Package Dimensions: 2 x 2 x 4 in.
• Shipping Weight: 0.195 lbs.
• WEEE weight: 0.145 lbs.
• Tariff code: 8518.40.2000
