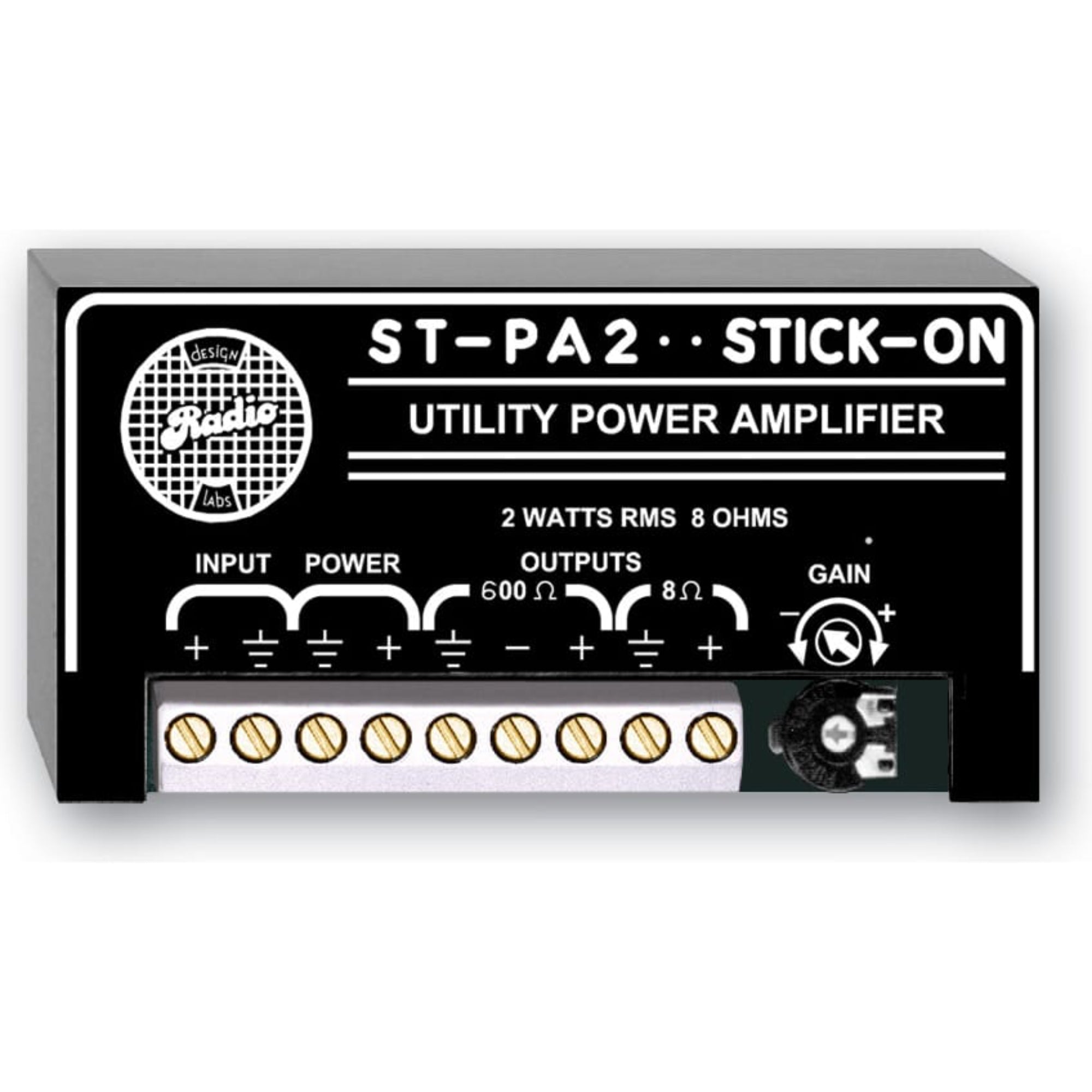

RDL ST-PA2 2 W Mono Audio Amplifier

2 Watt Mono Audio Amplifier - 8 Ω

The ST-PA2 features a single, unbalanced audio input, a gain control, and two outputs. The first output is designed to deliver a clean 2 watts RMS into an 8 Ω speaker. The second output is intended to drive 600 Ω transformers, typically on equipment inputs. This makes the ST-PA2 uniquely suited to applications such as music-on-hold inputs on telephone systems which may have either 8 Ω or 600 Ω inputs. If desired, both outputs may be used at the same time.

Features:

• 2 Watts RMS into 8 Ω
• +12 dBu Into 600 Ω
• Quality Utility Amplifier
• Intercom Driver
• Music-On-Hold Driver

Specifications:

• Input:Unbalanced 10 kΩ
• Input Level:-15 dBV minimum (for rated power output)
• -20 dBV minimum (for 1 watt RMS into 8 Ω
• Frequency Response:35 Hz to 30 kHz (8 Ω +/- 1.5 dB)
• 20 Hz to 30 kHz (600 Ω +/- 0.5 dB)
• THD+N:< 0.75%; 0.5% typical
• Noise:< -80 dB (8 Ω @ 2 W RMS)
• < -70 dB (600 Ω, referred to +4 dBu)
• Outputs (2):1 @ 8 Ω, 2 watts RMS maximum
• 1 @ 600 Ω, +12 dBu maximum
• Power Requirement:GROUND-REFERENCED, 24 Vdc @ 250 mA
• Ambient Operating Environment:0 C to 50 C
