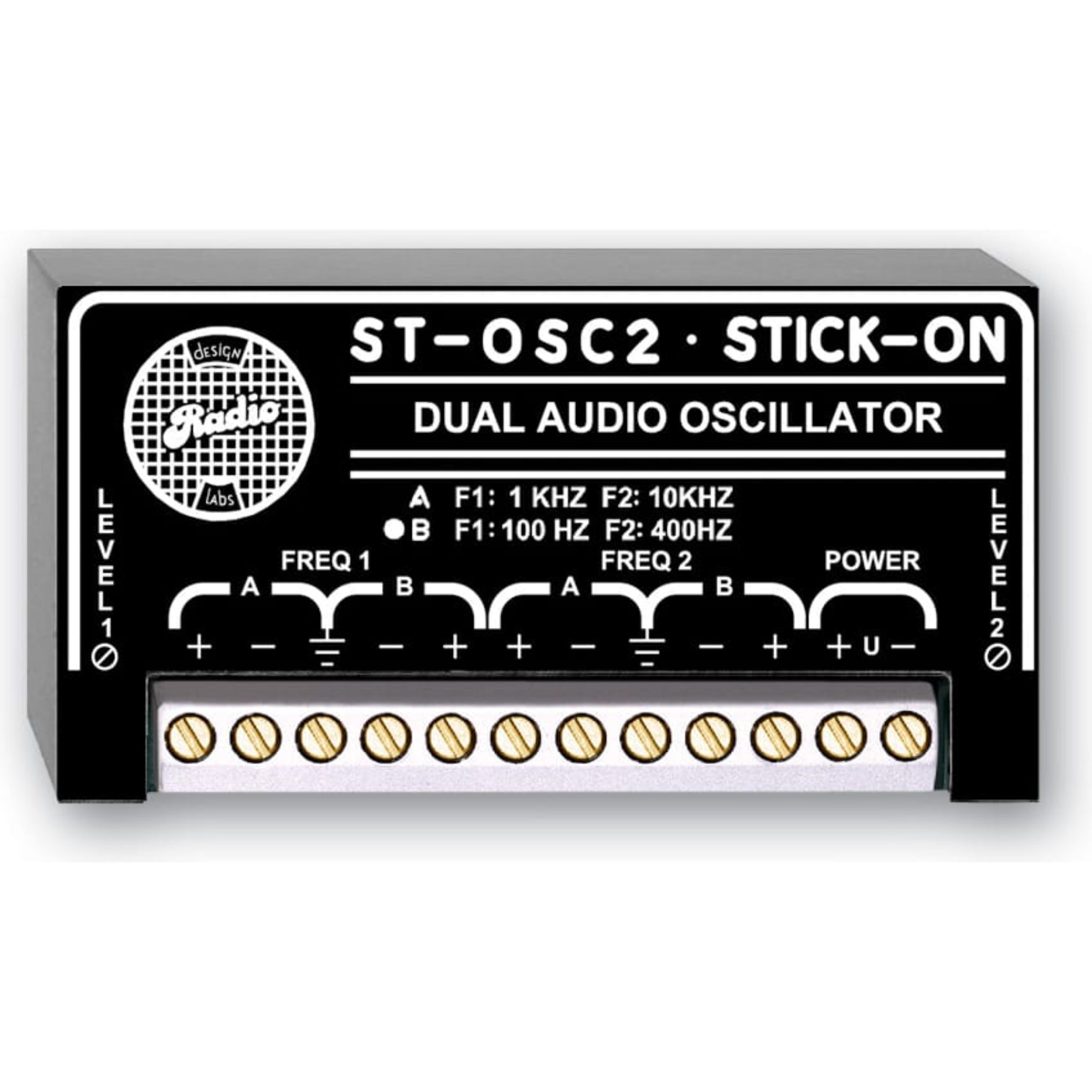

RDL ST-OSC2B Audio Oscillator 100 Hz and 400 Hz

Audio Oscillator - 100 Hz and 400 Hz

Each of the ST-OSC2 products is a Dual Audio Oscillator. These products are designed for quick, convenient installation, and reliable operation in a variety of audio applications.

The ST-OSC2 products feature RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the POWER minus terminal and any module ground, the module power becomes ground-referenced.

Features:

• Low-impedance output drives virtually any audio line
• Outputs may be connected to either balanced or unbalanced lines
• Multiturn level adjustment permits precise output setting
• Separate output level control provided for each oscillator
• Integral AGC circuitry for stable output level
• Each oscillator has two separate outputs to drive stereo lines

Specifications:

• Outputs: 2 for each oscillator, bal. or unbal.
• Output Impedance: 200 Ω to drive high or low Z lines
• Nominal Frequencies:
• ST-OSC2A: 1 kHz and 10 kHz
• ST-OSC2B: 100 Hz and 400 Hz
• THD+N:
• ST-OSC2A: 0.5%
• ST-OSC2B: < 3%
• Output Level: Off to +10 dBu (adjustable) 600 Ω load. Level Maintained by internal AGC circuit
• Ambient Operating Environment: 0° C to 55° C
• Power Requirement: GROUND-REFERENCED or FLOATING, 24 Vdc @ 80 mA
• Package Type: Cardboard Box
• Package Dimensions: 2 x 2 x 4 in.
• Shipping Weight: 0.215 lbs.
• WEEE weight: 0.165 lbs.
• Tariff code: 8543.20.0000
