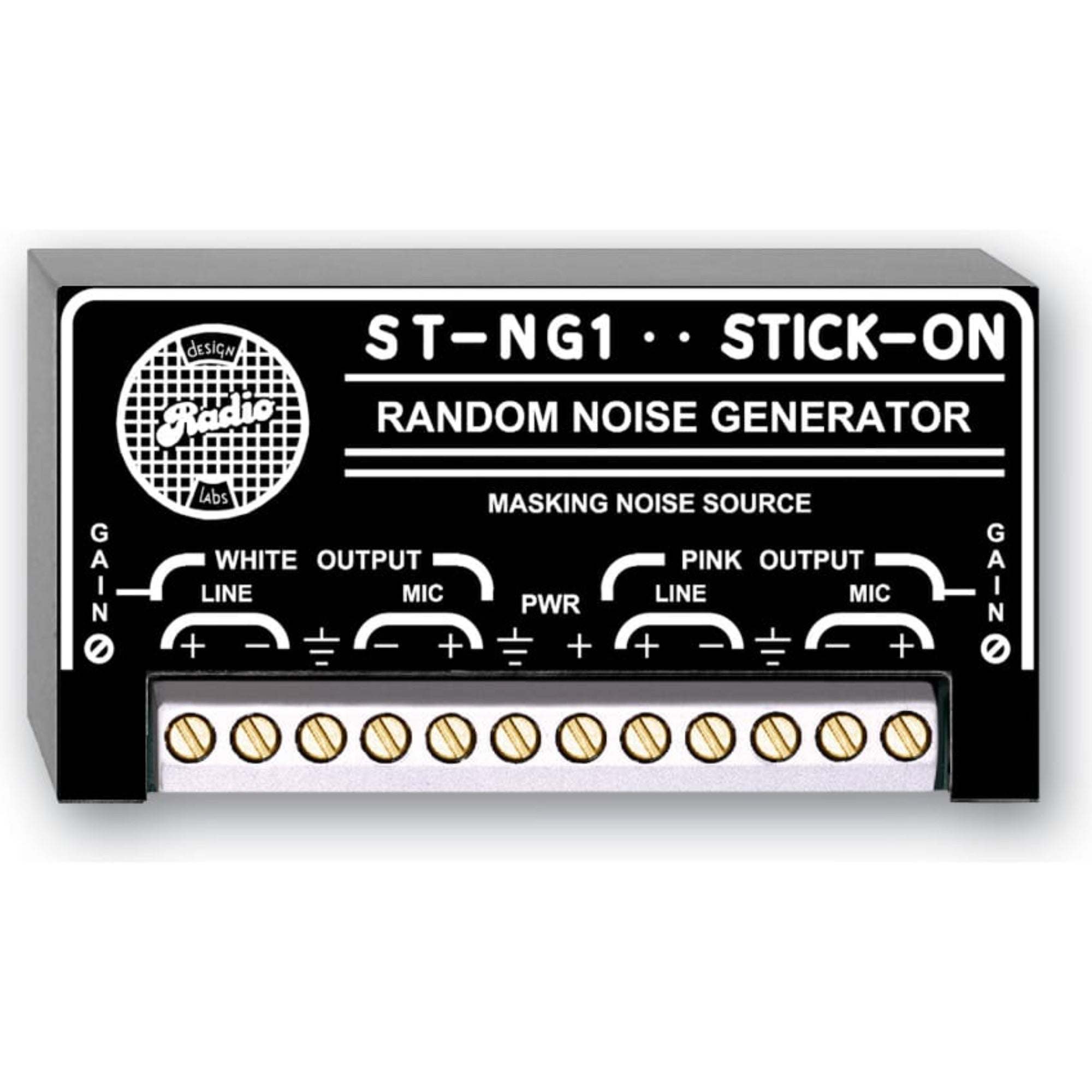

RDL ST-NG1 White and Pink Noise Generator

White and Pink Noise Generator

The ST-NG1 is the ideal choice where random white or pink noise is needed. It is suitable either as a reference noise source for audio measurements or as a masking noise source in engineered sound or counter-intelligence applications.

Amplitude limiting circuitry in the ST-NG1 controls extreme peak excursions while preserving random variations of at least 20 dB. The noise generating circuitry in the ST-NG1 is truly random analog noise occupying the full bandwidth from 20 Hz to 20 kHz. This makes the ST-NG1 ideal in masking environments where secure, random noise is required. Unlike the typical digitally generated pseudo-random noise generators which can be decoded and removed by effective intelligence equipment, the ST-NG1 produces no repetitive frequency or amplitude pattern.

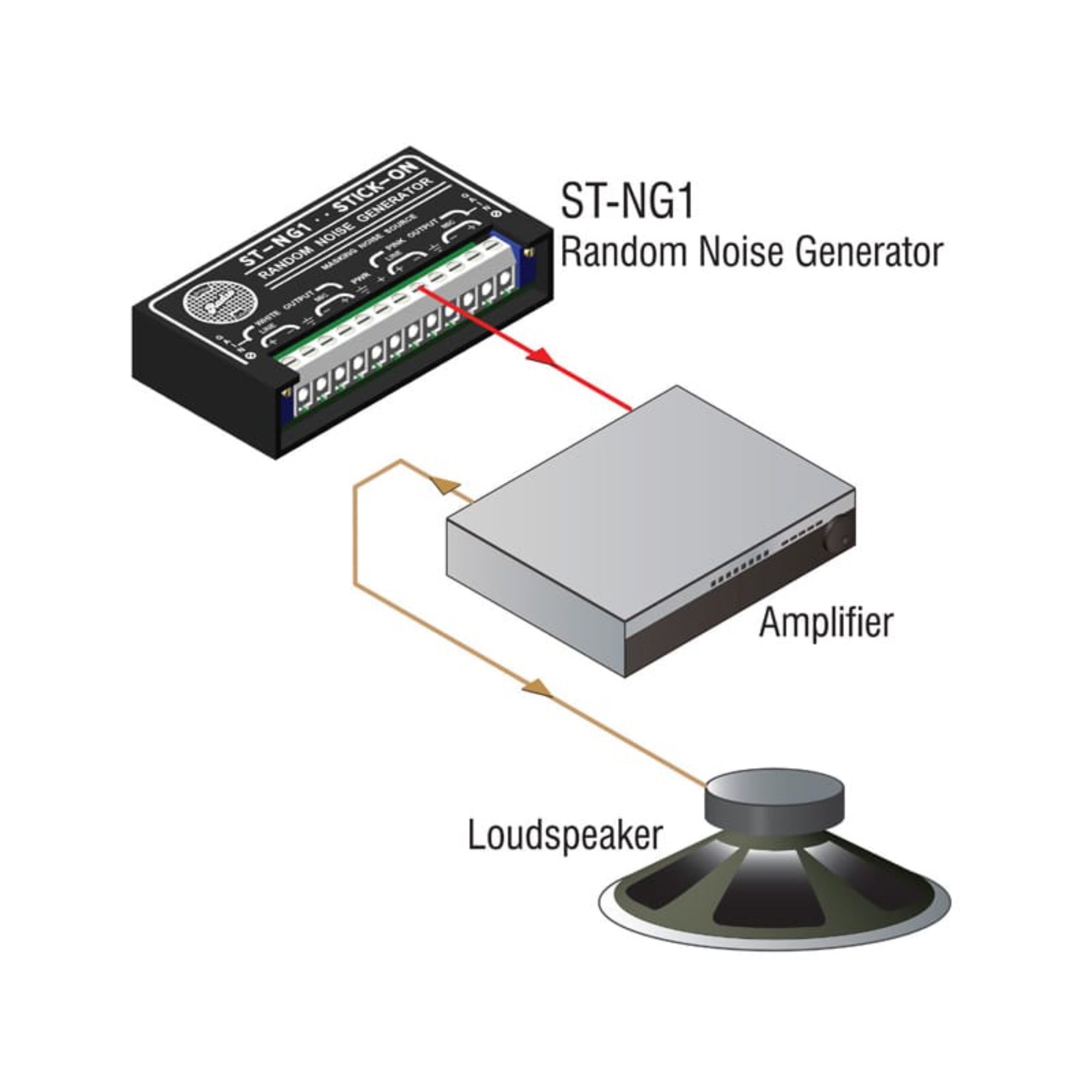

Wherever white or pink noise signals are needed, the ST-NG1 is the ideal choice. Use the ST-NG1 individually, or combine it with other RDL products as part of a complete audio/video system.

Features:

• Random Noise Source
• Masking Noise Sources
• Pink Noise
• White Noise
• Mic and/or Line Level Noise Signals

Specifications:

• Outputs (each source):+4 dBu balanced line-level
• -45 dBu balanced mic-level
• Output Level:OFF to +8 dBu (line-level output adjustable)
• Off to -40 dBu (mic-level output)
• Spectral Distribution:White and Pink
• Power Requirement:GROUND-REFERENCED 24 Vdc @ 30 mA
• Ambient Operating Environment:0 C to 55 C
