Key Features
- Horn Loudspeaker Protection
- Low-Freq. Attenuation Below 300 Hz
- Low-Freq. Attenuation Below 500 Hz
- Line-Level Input & Outputs
- Filtering Requiring no Field Adjustment
- RDL SupplyFlex Power Input Configuration
Description
High Pass Filter - 300 Hz and 500 Hz

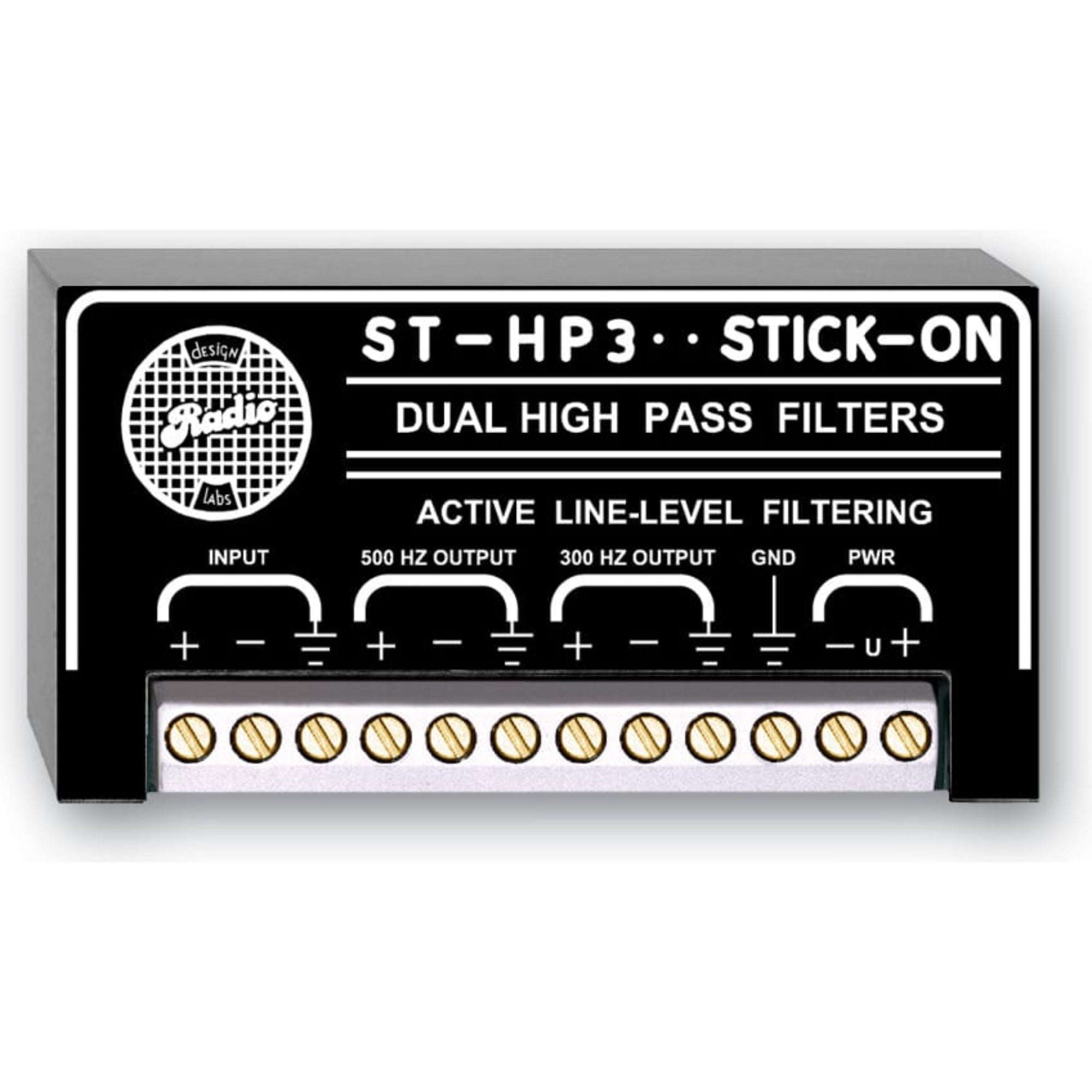

The ST-HP3 is the ideal choice where line-level audio filtering needs to be provided at the input of a power amplifier for protection of public address horns against damage from low frequencies.
The ST-HP3 has one input and two filtered outputs: 300 Hz high pass and 500 Hz high pass. Both the input and output are balanced, and each may be wired unbalanced if required. The input accepts line-level (+4 dBu nominal) audio. The module operates at unity gain (balanced input and output). The two outputs may be used simultaneously.
The ST-HP3 features RDL's SupplyFlex power input configuration for operation directly from ground-referenced, floating or bipolar 24 Vdc power.
Features:
- Horn Loudspeaker Protection
- Low-Frequency Attenuation below 300 Hz
- Low-Frequency Attenuation below 500 Hz
- Line-Level Input and Outputs
- Filtering Requiring no Field Adjustment
- RDL SupplyFlex Power Input Configuration
Specifications:
- Input:20 kΩ balanced line level (+4 dBu)
- Outputs (2):150 Ω balanced line level (+4 dBu)
- Headroom:> 18 dB
- Attenuation Curve:18 dB/octave
- THD+N:< 0.01%
- Residual Noise:< 90 dB (referred to +4 dBu)
- Insertion Loss:< 2 dB
- 300 Hz Output:
- Frequency Response:300 Hz to 30 kHz (+/- 0.5 dB)
- -3 dB Frequency:225 Hz
- 500 Hz Output:
- Frequency Response:500 Hz to 30 kHz (+/- 1.0 dB)
- -3 dB Frequency:450 Hz
- Power Requirement:GROUND-REFERENCED or FLOATING, 24 Vdc @ 30 mA
- Ambient Operating Environment:0 C to 55 C
